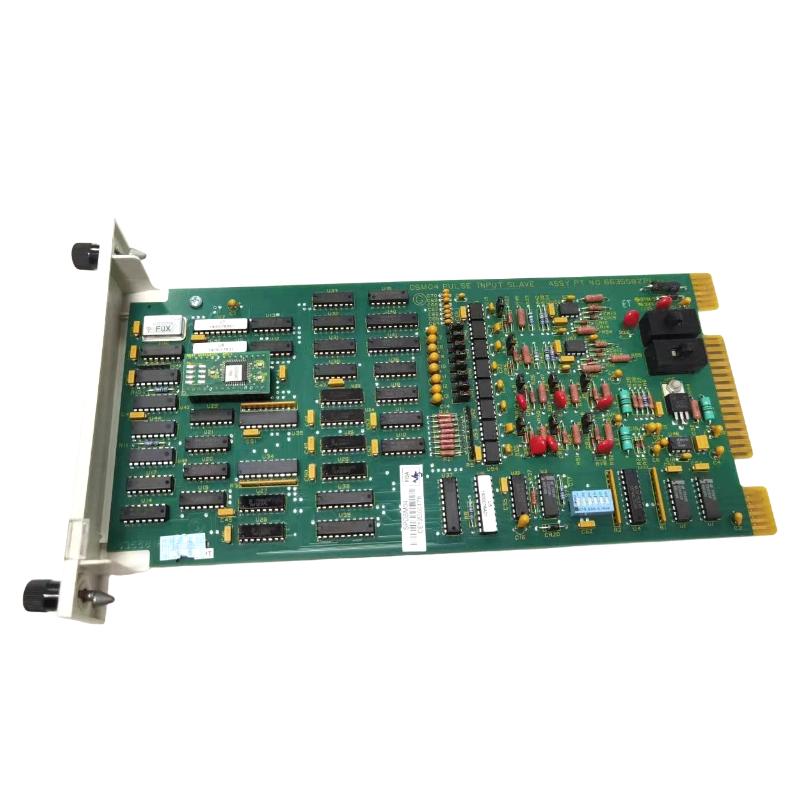

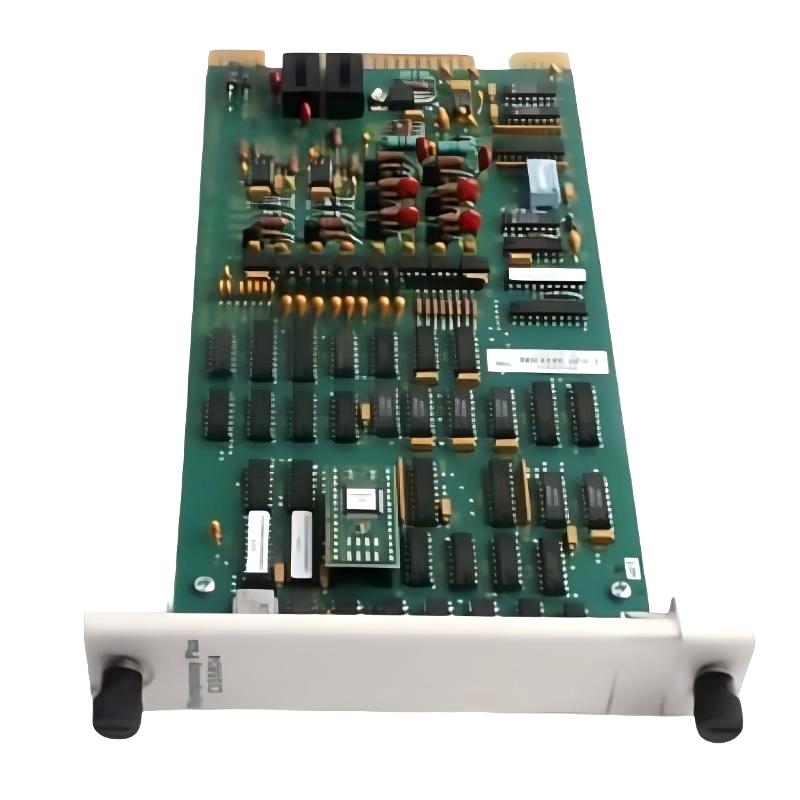

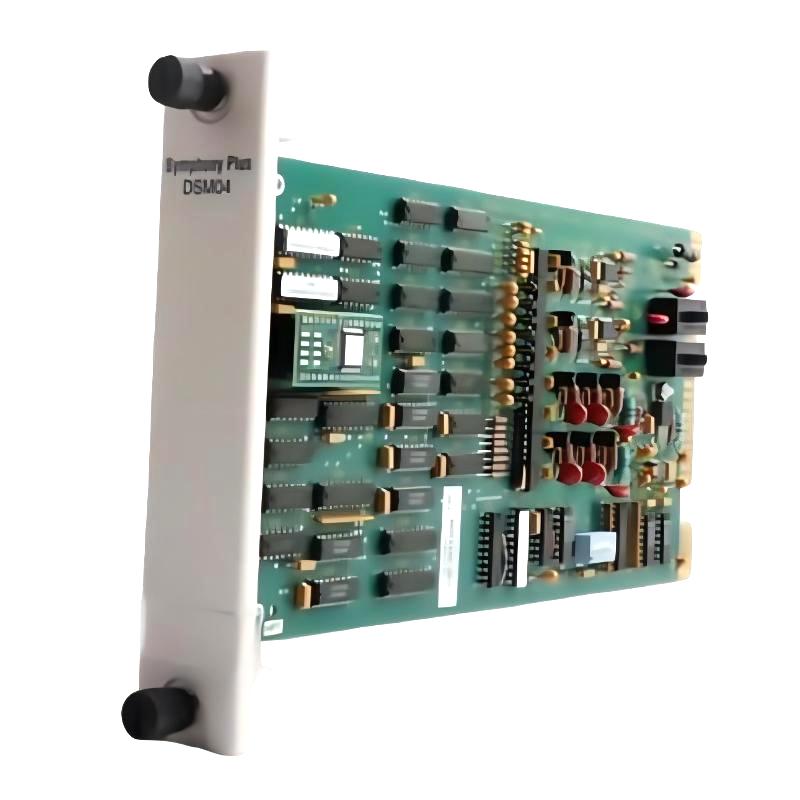

ABB Bailey SPDSM04 Pulse Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | SPDSM04 |
| Product Type | Pulse Input Module |
| Product Series | Symphony Plus HR Series I/O |
| Product Description | 8-Channel Pulse Input Module, 0–50 kHz |
| Compatible System | ABB Symphony Plus |
| Pulse Input Channels | 8 independently configured, optically isolated channels |
| Input Range 1 | 4.0–6.0 VDC |
| Input Current 1 | 14.8 mA maximum at 6.0 VDC |
| Logic 1, Range 1 | 4.0–6.0 VDC |
| Logic 0, Range 1 | 0–1.0 VDC |
| Input Range 2 | 21.6–27.0 VDC |
| Input Current 2 | 8.4 mA maximum at 24.0 VDC |
| Logic 1, Range 2 | 21.6–27.0 VDC |
| Logic 0, Range 2 | 0–1.0 VDC |
| Input Range 3 | 50 mVpp–10 Vpp, for pre-amplifier signals |
| Input Current 3 | 0.4 mA maximum at 10.0 Vpp |
| Maximum Input Frequency | 50 kHz at 50% duty cycle |
| Operating Modes | Period, frequency, totalize and duration |
| Module Power Supply | 5 VDC ±5%, 1.4 A typical |
| Additional Supply | 24 VDC ±10%, 62 mA typical, from termination unit |
| Ambient Temperature | 0°C to 70°C |
| Main Function | Acquisition and processing of high-speed pulse signals |
| Typical Applications | Speed monitoring, pulse counting, frequency measurement and process control |
| Installation | Installed in the corresponding Symphony Plus HR Series I/O system |
| Dimensions | 71.12 × 358.14 × 271.78 mm |
| Weight | 0.7 kg |
FAQ
1. What is the ABB Bailey SPDSM04 used for?
The SPDSM04 is an 8-channel pulse input module for ABB Symphony Plus control systems. It processes pulsed field signals and can be used for frequency measurement, period measurement, totalizing and duration measurement.
2. How many pulse input channels does the SPDSM04 provide?
The SPDSM04 provides eight independently configured, optically isolated pulse input channels. Each channel can be configured according to the requirements of the connected field signal.
3. What types of input signals can the SPDSM04 accept?
The module supports three input ranges: 4.0–6.0 VDC contact signals, 21.6–27.0 VDC contact signals, and 50 mVpp–10 Vpp signals from pre-amplifiers. The appropriate range should be selected according to the actual field signal.
4. What is the maximum input frequency of the SPDSM04?
The maximum specified input frequency is 50 kHz at a 50% duty cycle. For high-frequency applications, signal quality, wiring and the characteristics of the connected pulse source should also be considered.
5. What measurement modes are supported by the SPDSM04?
The SPDSM04 supports four operating modes: period, frequency, totalize and duration. These functions allow the module to be used for applications such as speed monitoring, pulse counting and process equipment monitoring.
6. What power supply does the SPDSM04 require?
The module requires 5 VDC ±5% with a typical current of 1.4 A. It also uses a 24 VDC ±10% supply with a typical current of 62 mA from the termination unit.
7. What should be checked if the SPDSM04 does not detect a pulse signal?
Check the field pulse source, signal voltage, wiring and termination connections first. Confirm that the selected input range matches the actual signal. For high-frequency signals, also check signal amplitude, duty cycle and electrical interference, then review the controller diagnostics.
8. What should be checked before replacing an SPDSM04?
Confirm the complete model number and verify the number of channels, input range, maximum input frequency, termination unit and Symphony Plus system compatibility. The replacement module should match the original system configuration before installation.
ABB Bailey SPDSM04 Pulse Input Module is in stock. Please contact us for a quick quote and competitive pricing.
