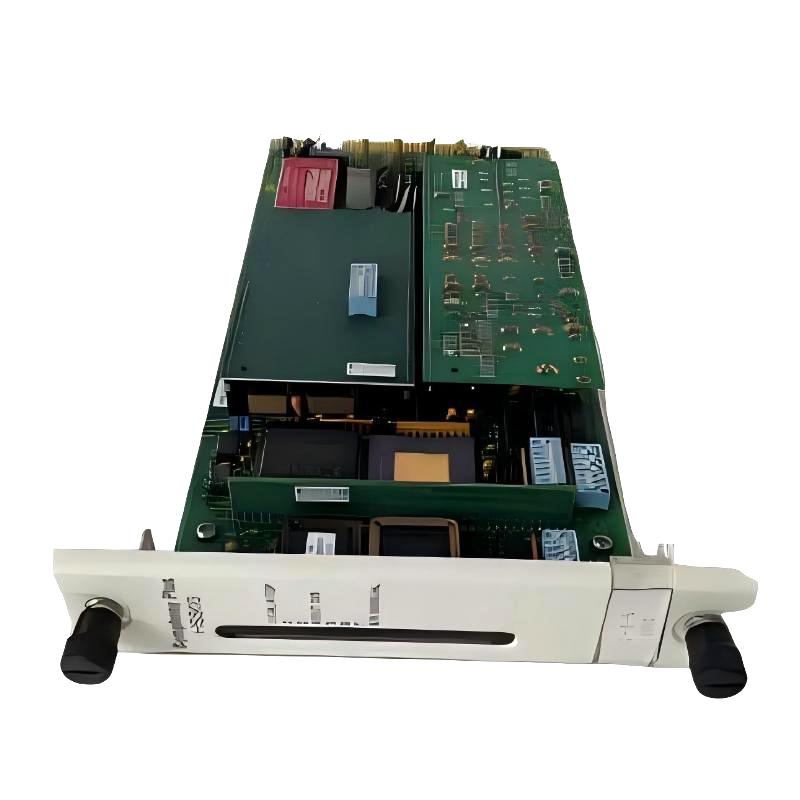

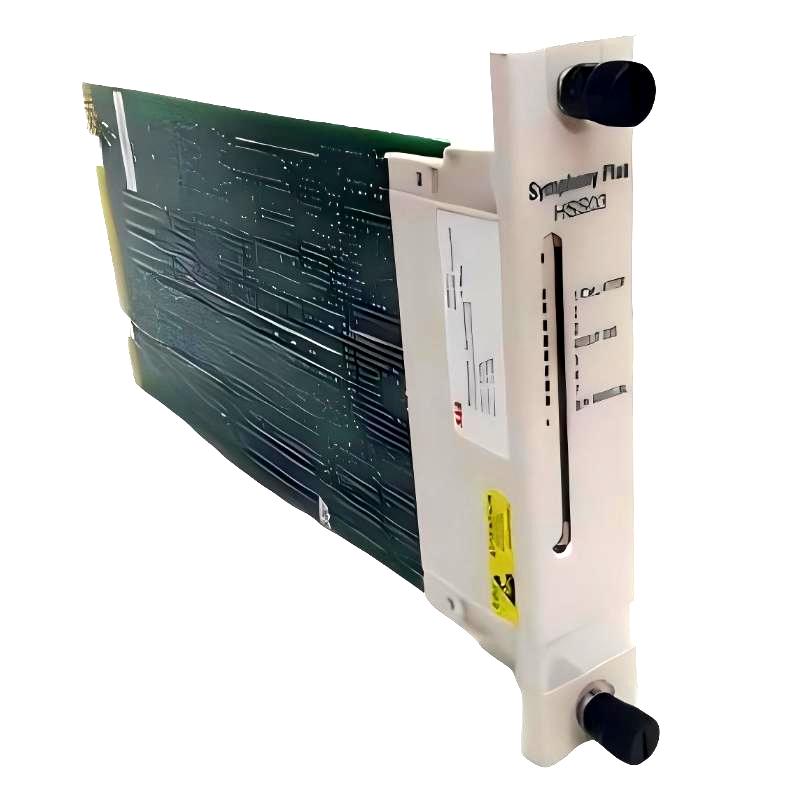

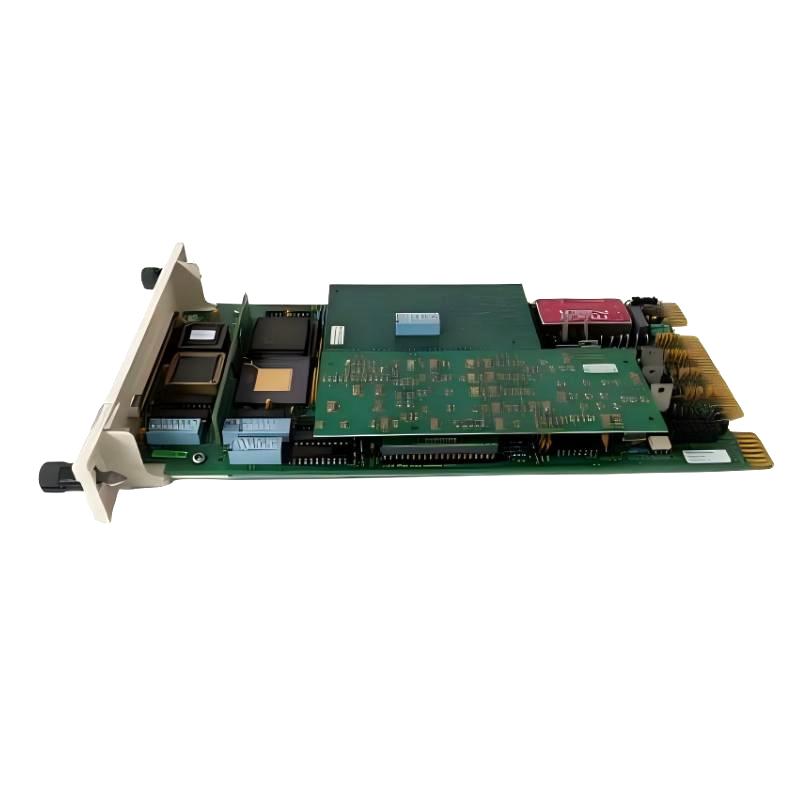

ABB Bailey SPHSS03 Hydraulic Servo Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | SPHSS03 |
| Product Type | Hydraulic Servo Module |
| Product Series | ABB Symphony Plus |
| I/O Type | HR Series / Harmony Rack I/O Module |
| Main Function | Provides an interface for a processor module to control a hydraulic actuator through a servo valve |
| Application | Turbine control, hydraulic actuator control, valve positioning and industrial process automation |
| Servo Valve Interface | ±10 V or 4–20 mA |
| Servo Valve Compliance | ±12 V, 120 mA maximum |
| Excitation | 3.2 kHz ±0.2 kHz |
| Digital Inputs | 3 × 24 VDC opto-isolated inputs |
| Dead Band | 0–10% |
| Position Feedback | Supports actuator position feedback for closed-loop valve control |
| System Compatibility | ABB Symphony Plus / Harmony Rack systems |
| Turbine Application | Servo valves, E/H converters and position feedback |
| Power Supply | +5 VDC from the termination unit |
| Typical Power Consumption | 576 mA |
| Operating Temperature | -20°C to +60°C rack air temperature |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Control Function | Hydraulic actuator and valve position control |
| Installation | Harmony Rack module installation |
| Replacement Model | SPHSS13 |
| Product Status | Legacy module; SPHSS13 is the current replacement model |
| Dimensions | 200 × 150 × 100 mm |
| Weight | 1.5 kg |
FAQ
1. What is the ABB Bailey SPHSS03 Hydraulic Servo Module used for?
The SPHSS03 is a hydraulic servo module used in ABB Symphony Plus control systems to provide an interface between the processor and hydraulic actuators. It controls hydraulic actuators through servo valves and supports precise valve positioning.
2. What type of applications is the SPHSS03 designed for?
The module is commonly associated with turbine control applications, including servo valves, electro-hydraulic converters and actuator position feedback. It can also be used in industrial hydraulic control systems requiring closed-loop actuator control.
3. What servo valve signals does the SPHSS03 support?
The SPHSS03 supports servo valve interfaces of ±10 V or 4–20 mA. The actual signal configuration should match the connected servo valve or electro-hydraulic converter and the control-system configuration.
4. Does the SPHSS03 support actuator position feedback?
Yes. The SPHSS03 supports position feedback for hydraulic actuators, allowing the control system to compare the commanded position with the actual actuator position and perform closed-loop valve control.
5. What are the main electrical specifications of the SPHSS03?
The module provides three 24 VDC opto-isolated digital inputs, ±12 V servo valve compliance with a maximum current of 120 mA, and a 3.2 kHz ±0.2 kHz excitation signal. Its typical power requirement from the termination unit is +5 VDC at approximately 576 mA.
6. What does the dead-band setting do on the SPHSS03?
The dead-band setting defines a range in which small control-signal changes do not cause unnecessary actuator movement. The SPHSS03 provides a configurable dead-band range of 0–10%, which can help optimize valve response and system stability.
7. What should be checked if the SPHSS03 has a hydraulic control fault?
Check the module power supply, servo valve wiring, output signal, digital input status and actuator feedback circuit. If the control output is present but the actuator position is incorrect, the servo valve, feedback device, wiring and system configuration should be checked systematically.
8. Can the SPHSS03 be replaced by the SPHSS13?
SPHSS13 is the newer replacement for the SPHSS03. Before replacement, verify the Harmony Rack configuration, field wiring, termination-unit compatibility, control-system configuration and actuator feedback arrangement to ensure the replacement is suitable for the existing installation.
ABB Bailey SPHSS03 Hydraulic Servo Module is in stock. Please contact us for a quick quote and competitive pricing.
