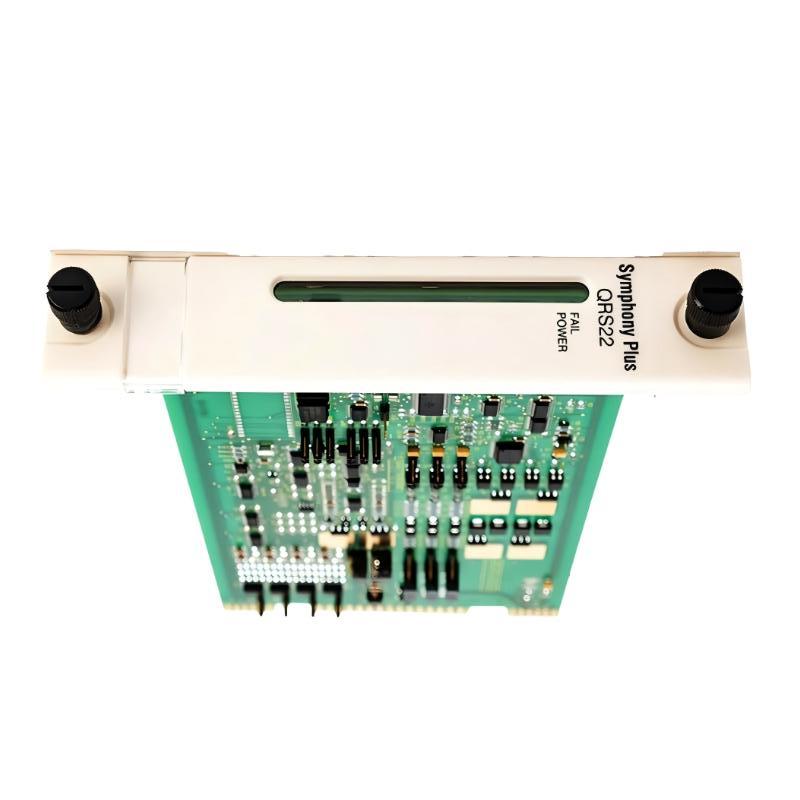

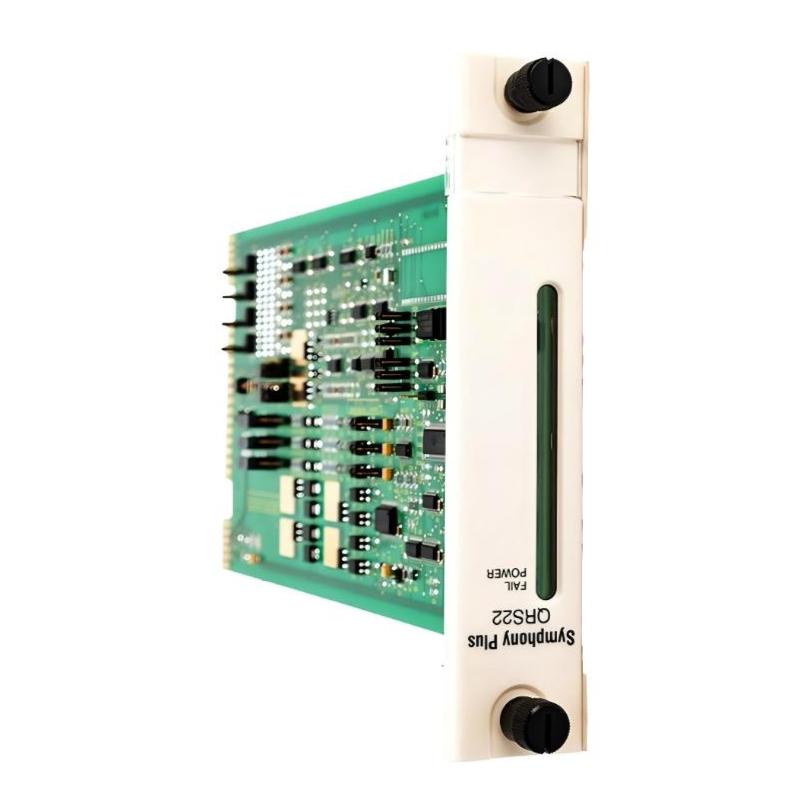

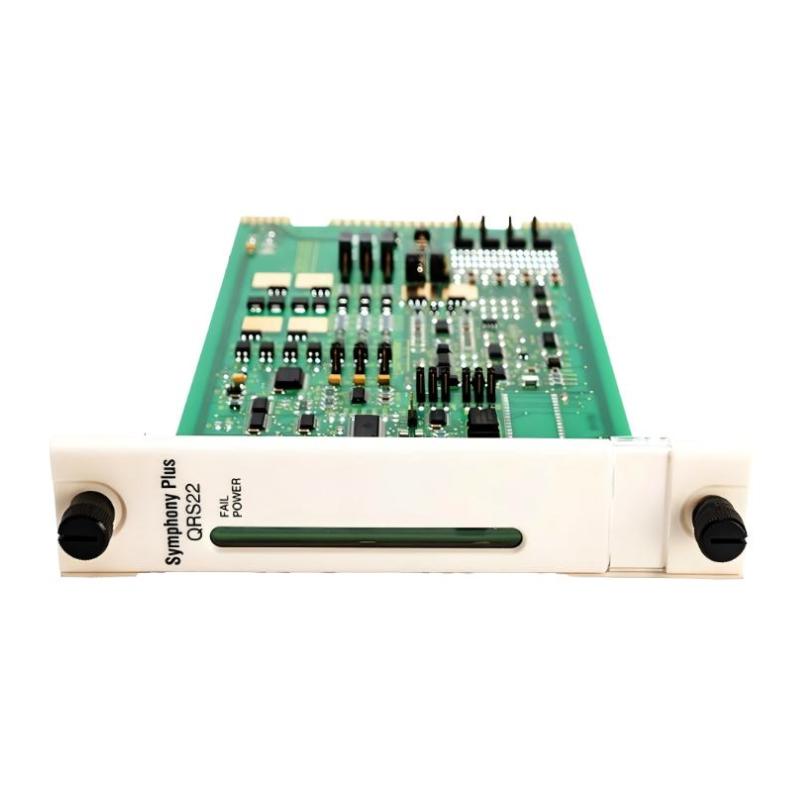

ABB Bailey SPQRS22 Rapid Response Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | SPQRS22 |
| Product Type | Quick Response I/O Module |
| Product Family | ABB Symphony Plus HR Series |
| Main Function | High-speed process signal acquisition, processing, and control output |
| Response Performance | Approximately 10 times faster response than SPCIS22 |
| Analog Input Channels | 4 independently configured channels |
| Analog Input Signal | 4–20 mA |
| Analog Input Resolution | 12-bit A/D conversion |
| Digital Input Channels | 3 optically isolated channels |
| Digital Input Voltage | 24 VDC, 48 VDC, 125 VDC, or 120 VAC |
| Digital Input Response Time | 17 ms fixed |
| Digital Output Channels | 4 optically isolated, independently configured open-collector channels |
| Digital Output Voltage | 24 VDC or 48 VDC |
| Digital Output Capacity | 250 mA maximum at 24 VDC; 125 mA maximum at 48 VDC |
| Analog Output Channels | 2 independently configured channels |
| Analog Output Signal | 4–20 mA |
| Analog Input Response Time | Approximately 0.27 seconds to reach 95% of final value for a 100% step change |
| Normal Mode Rejection | 37 dB at 50/60 Hz |
| Common Mode Rejection | 53 dB from DC to 60 Hz |
| Power Requirements | +5 VDC, +15 VDC, -15 VDC, and +24 VDC |
| +5 VDC Consumption | 100 mA typical, 180 mA maximum |
| +15 VDC Consumption | 27 mA typical, 35 mA maximum |
| -15 VDC Consumption | 23 mA typical, 30 mA maximum |
| +24 VDC Consumption | 46 mA typical, 65 mA maximum |
| System Communication | I/O Expander Bus |
| Installation | Standard ABB Bailey Harmony Rack / HR Series mounting unit |
| Slot Requirement | One module slot |
| Status Indicators | Two front-panel status LEDs |
| Field Connection | P3 connector to the termination unit |
| Typical Applications | DCS, process automation, high-speed signal acquisition, and industrial control |
| Operating Temperature | 0°C to 70°C |
| Relative Humidity | 5%–95% up to 55°C; 5%–45% at 70°C, non-condensing |
| Environmental Requirement | Non-corrosive industrial environment |
| Dimensions | 358.14 × 73.66 × 269.24 mm |
| Weight | 0.5 kg |
FAQ
1. What is the main function of the ABB Bailey SPQRS22 Rapid Response Module?
The SPQRS22 is an HR Series control I/O module designed for process signal acquisition and control. It interfaces analog and digital field signals with the ABB Bailey control system and provides faster analog input response for applications requiring rapid process feedback.
2. How many I/O channels does the SPQRS22 provide?
The module provides 4 analog inputs, 3 digital inputs, 4 digital outputs, and 2 analog outputs. Each I/O channel can be individually configured according to the application requirements.
3. What analog input signal does the SPQRS22 support?
The SPQRS22 provides four independently configured 4–20 mA analog input channels. The associated termination unit provides the field interface for the current signals.
4. What makes the SPQRS22 different from the SPCIS22?
The two modules are functionally similar, but the SPQRS22 provides approximately ten times faster response. Its analog input response is approximately 0.27 seconds to 95% of the final value for a 100% step change, compared with approximately 2.4 seconds for the SPCIS22. The faster response is accompanied by lower noise rejection.
5. What digital input voltages are supported by the SPQRS22?
The three optically isolated digital inputs can be configured for 24 VDC, 48 VDC, 125 VDC, or 120 VAC field signals. The fixed digital input response time is 17 ms.
6. What are the output capabilities of the SPQRS22?
The module provides four optically isolated open-collector digital outputs and two independently configured 4–20 mA analog outputs. Each digital output can handle up to 250 mA at 24 VDC or 125 mA at 48 VDC.
7. How does the SPQRS22 communicate with the ABB Bailey controller?
The SPQRS22 communicates with the controller through the I/O Expander Bus. Field I/O signals are connected through the module’s P3 interface and associated termination unit, allowing the controller to process input data and control field outputs.
8. What should be checked if the SPQRS22 has an I/O signal fault?
Check the module power supply, termination unit connections, field wiring, I/O channel configuration, signal levels, and I/O Expander Bus communication. The two front-panel LEDs should also be checked for module status and diagnostic indications. If the field wiring and configuration are correct but the fault remains, the module itself should be tested or replaced according to the system maintenance procedure.
