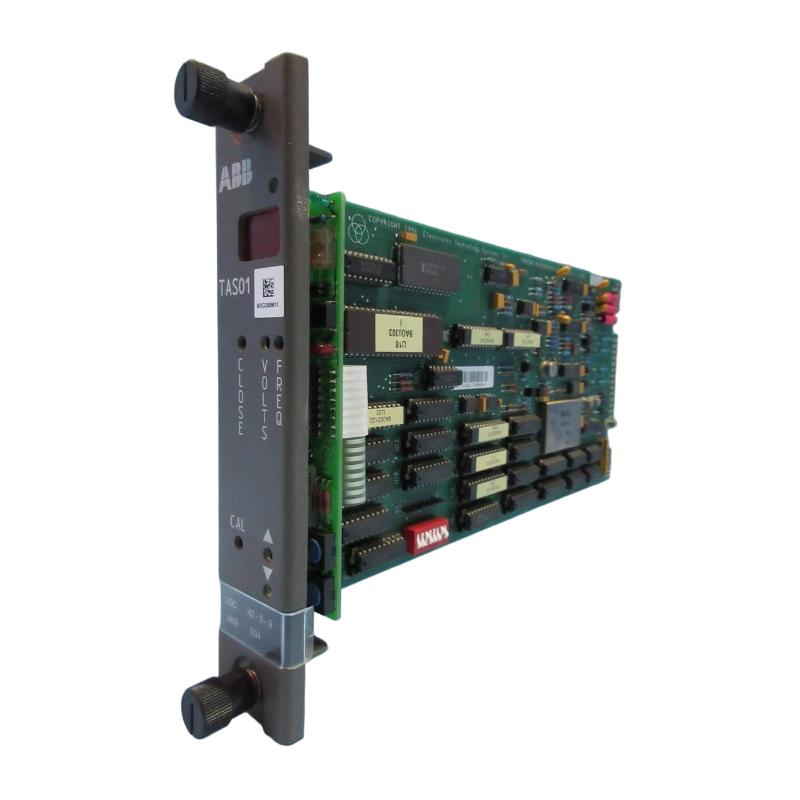

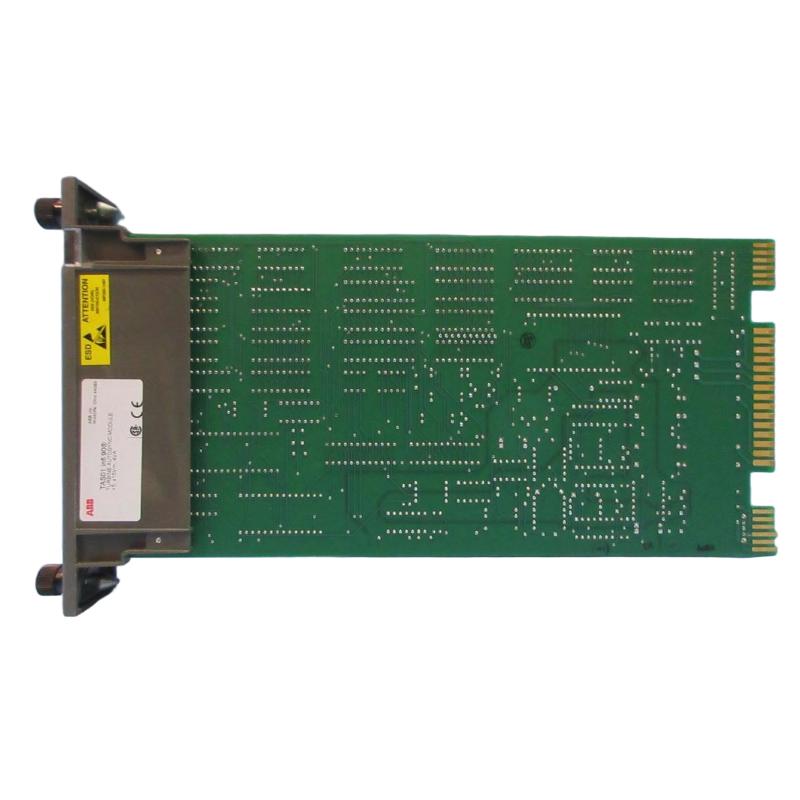

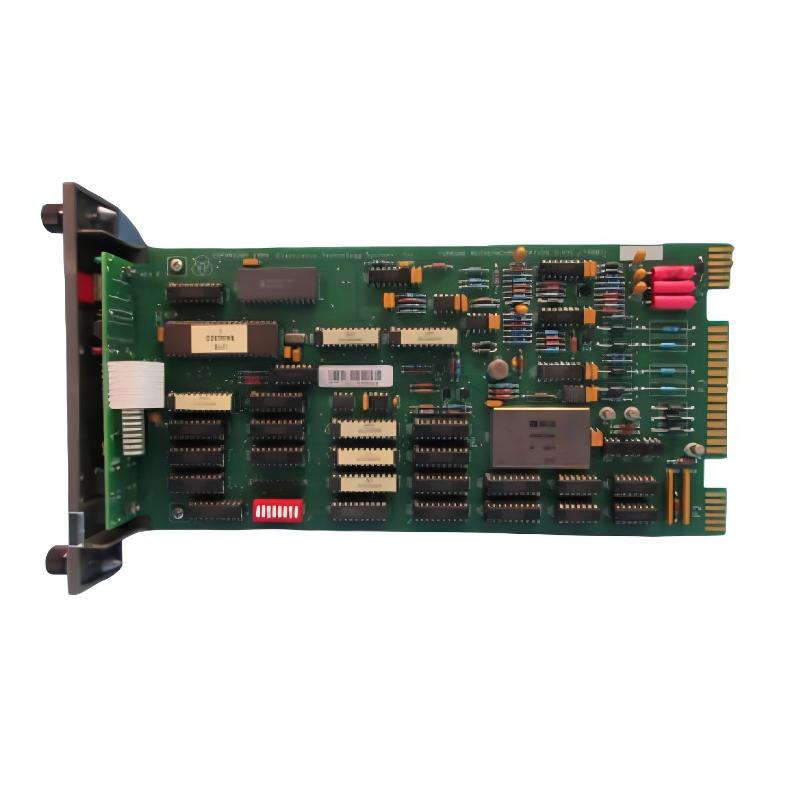

ABB Bailey TAS01 Turbine Automatic Synchronization Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB Bailey |
| Model | TAS01 |
| Product Name | Turbine Automatic Synchronization Module |
| Product Type | Turbine Auto Synchronization Module |
| System Family | ABB Bailey INFI 90 / Harmony Rack |
| Main Function | Automatic synchronization of a turbine generator with the electrical grid |
| Synchronization Function | Automatic matching of generator and grid voltage, frequency and phase before breaker closing |
| Synchronization Control | Internal automatic synchronization sequence |
| Voltage Control Interface | Relay interface for excitation system voltage adjustment |
| Speed Control Interface | Control signal interface for turbine speed adjustment |
| AC Inputs | Generator-side and line-side voltage inputs |
| Input Voltage | 0–50 VAC or 0–150 VAC |
| Input Frequency | 50 / 60 Hz |
| Input Impedance | 21 kΩ |
| Output Contacts | 24 VDC, maximum 51 mA |
| System Communication | 8-bit parallel communication |
| I/O Termination | NTDI01 Digital Input Termination Unit |
| Mounting | Standard INFI 90 Module Mounting Unit (MMU) |
| Power Supply | +5 VDC ±5%, +15 VDC ±5%, -15 VDC ±5% |
| Typical Applications | Turbine-generator synchronization, generator grid connection, line synchronization and automatic breaker closing |
| Operating Temperature | 0 to 70°C |
| Humidity | 5–90% RH up to 55°C, non-condensing; 5–40% RH up to 70°C, non-condensing |
| Atmospheric Pressure | Sea level to 3 km |
| Installation Category | Category I |
| Dimensions | 280 × 35 × 150 mm |
| Weight | 0.45 kg |
FAQ
1. What is the main function of the ABB Bailey TAS01 Turbine Automatic Synchronization Module?
The TAS01 is designed to perform automatic synchronization of a turbine generator before it is connected to the electrical grid. It monitors the generator-side and line-side electrical conditions and controls the synchronization sequence so that breaker closing occurs only when the required synchronization conditions are satisfied.
2. How does the TAS01 perform automatic generator synchronization?
The TAS01 measures and compares the generator and grid voltage, frequency and phase. It coordinates the required voltage and speed adjustments and determines when the synchronization conditions are within the configured limits. Once the conditions are suitable, the module provides the appropriate breaker closing control signal.
3. What AC voltage inputs are supported by the TAS01?
The TAS01 supports generator-side and line-side AC voltage inputs in the 0–50 VAC or 0–150 VAC ranges, depending on the system configuration. The applicable input range must be selected according to the actual turbine generator and grid measurement circuits.
4. How does the TAS01 control generator voltage and turbine speed?
The module uses dedicated control interfaces for the synchronization process. The voltage control interface can be connected to the excitation system to adjust generator voltage, while the speed control interface exchanges control signals with the turbine control system to adjust generator frequency.
5. Is the synchronization sequence executed inside the TAS01?
Yes. The TAS01 is designed to execute the automatic synchronization sequence within the module. This allows the synchronization function to operate without relying entirely on the normal scan cycle of a general-purpose DCS controller, which is useful when precise timing is required during generator-to-grid synchronization.
6. What should be checked if the TAS01 cannot complete an automatic synchronization sequence?
First check the generator-side and line-side voltage signals and confirm that both inputs are within the specified range. Then verify frequency and phase measurements, excitation control, turbine speed control and breaker feedback signals. The NTDI01 termination unit, module power supplies, wiring and synchronization configuration should also be checked if the measured electrical conditions appear correct.
7. How is the TAS01 installed and connected to an ABB Bailey control system?
The TAS01 is designed for installation in the appropriate INFI 90 Module Mounting Unit (MMU). Field connections are made through the specified termination arrangement, including the NTDI01 Digital Input Termination Unit. The module slot, termination unit, field wiring and system configuration must correspond correctly to ensure reliable synchronization operation.
8. What should be tested after replacing a TAS01 module?
After replacement, verify the module installation, power supplies and field connections. Check generator and line voltage measurements, frequency and phase detection, excitation control, turbine speed control and breaker command and feedback signals. A controlled synchronization test should then be performed according to the site’s approved commissioning procedure before returning the automatic synchronization function to normal service.
ABB Bailey TAS01 Turbine Automatic Synchronization Module is in stock. Please contact us for a quick quote and competitive pricing.
