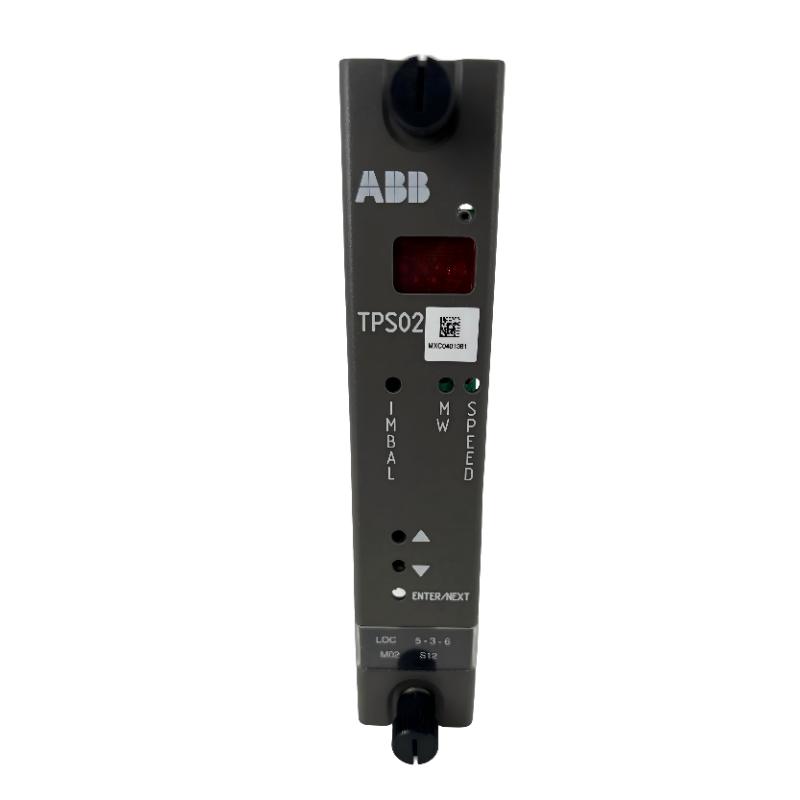

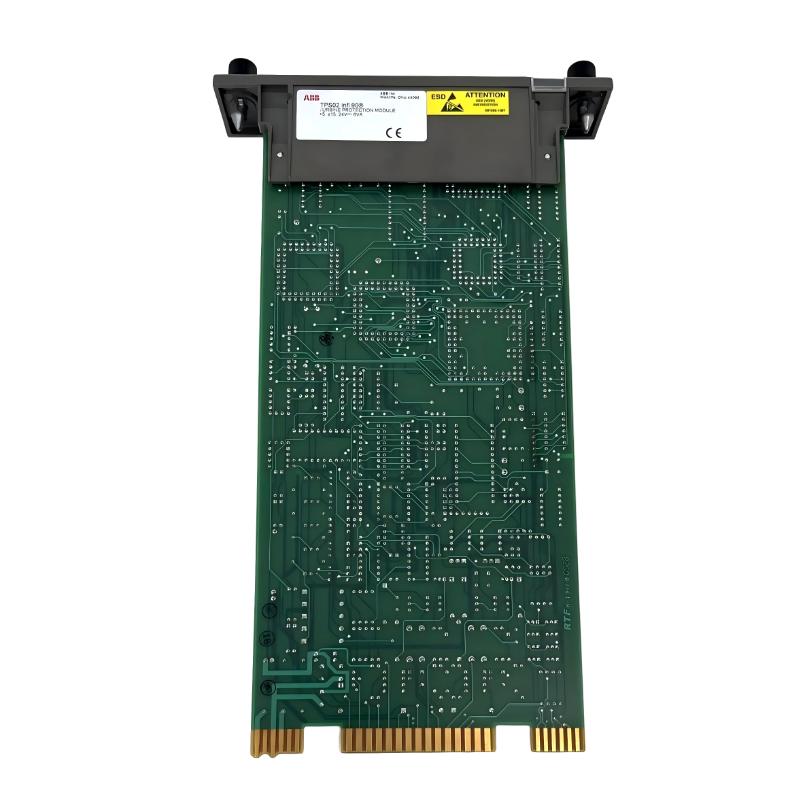

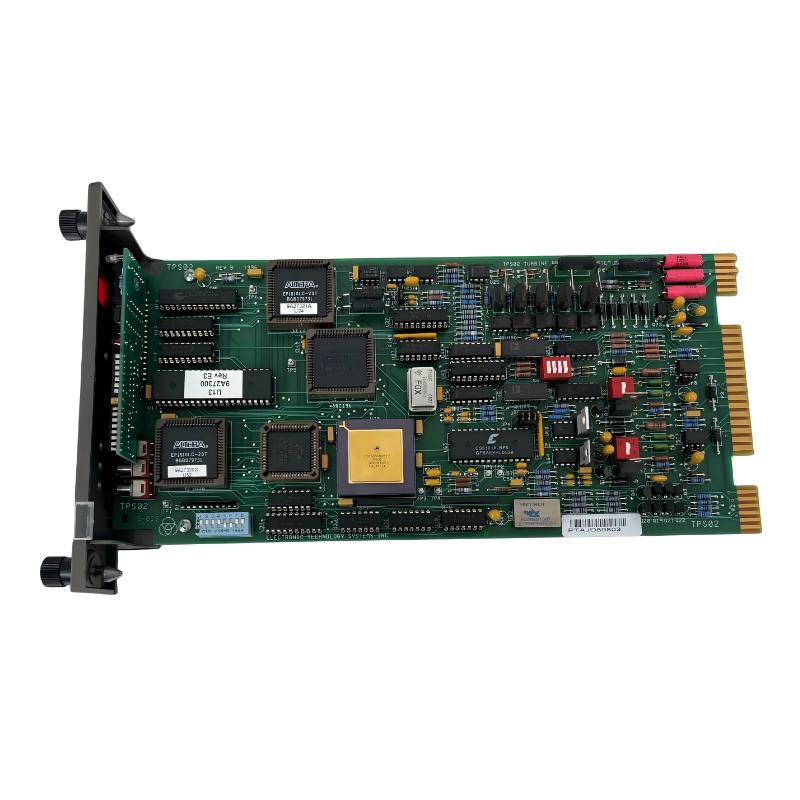

ABB Bailey TPS02 Steam Turbine Protection Slave Station Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Product Name | Steam Turbine Protection Slave Station Module |
| Model | TPS02 |
| Product Type | Turbine Protection Slave Module |
| System Platform | ABB Bailey INFI 90 / Symphony Plus |
| Main Function | Turbine protection and monitoring |
| Module Role | Slave protection module within the turbine protection architecture |
| Mounting | Modular system mounting |
| I/O Termination | TPSTU02 Turbine Protection System Termination Unit |
| Digital Output | 24 VDC to TPSTU02 termination unit |
| Speed Protection | Supports turbine speed and overspeed protection functions |
| Protection Architecture | Designed for integration with dedicated turbine protection hardware |
| Communication | Dedicated system communication interface |
| Operating Voltage | +15 VDC ±5%, +5 VDC ±5%, +24 VDC ±10% |
| Current Consumption | +15 VDC: 320 mA; +5 VDC: 100 mA; +24 VDC: 75 mA |
| Power Dissipation | +15 VDC: 4.8 W; +5 VDC: 0.5 W; +24 VDC: 1.8 W |
| Operating Temperature | 0 to 70°C |
| Humidity | 5–90% RH up to 55°C; 5–40% RH up to 70°C, non-condensing |
| Installation Environment | Non-corrosive air environment |
| Application | Steam turbine protection, overspeed monitoring and turbine trip systems |
| Dimensions | 280 × 35 × 150 mm |
| Weight | 0.27 kg |
FAQ
1. What is the main function of the ABB Bailey TPS02?
The TPS02 is a turbine protection slave module used in ABB Bailey turbine protection architectures. It handles protection-related signals and works with the turbine protection termination unit to support functions such as turbine speed monitoring, overspeed protection and trip-related operations.
2. Which system is the TPS02 designed for?
The TPS02 is associated with ABB Bailey INFI 90 turbine protection applications and can be integrated into compatible Symphony Plus turbine control architectures. It operates as part of a dedicated turbine protection system rather than as a general-purpose DCS I/O module.
3. What termination unit is used with the TPS02?
The TPS02 uses the TPSTU02 Turbine Protection System Termination Unit for field I/O termination. The termination unit provides the physical interface between the protection module and the associated turbine field circuits, including protection-related digital signals.
4. What type of power supply does the TPS02 require?
The module uses multiple DC supply rails. The specified operating voltages are +15 VDC ±5%, +5 VDC ±5% and +24 VDC ±10%. Typical current requirements are 320 mA on the +15 VDC supply, 100 mA on the +5 VDC supply and 75 mA on the +24 VDC supply.
5. How does the TPS02 participate in turbine overspeed protection?
The TPS02 forms part of the turbine protection signal-processing path. Speed and protection-related information is handled by the turbine protection architecture, while the associated termination unit provides the field interface and protection output connections. In a properly configured system, the protection path can operate independently of normal DCS control functions.
6. What digital output is provided by the TPS02?
For the TPS02 configuration, the digital output to the TPSTU02 termination unit is 24 VDC. The termination unit then provides the appropriate interface to the external turbine protection or trip circuitry. The actual output assignment depends on the installed protection-system configuration.
7. What should be checked if the TPS02 reports a protection fault?
Check the module power supplies first, including the +15 VDC, +5 VDC and +24 VDC rails. Then inspect the module seating, termination-unit connections, field wiring and protection-related input/output signals. If the fault remains, the associated turbine protection configuration and connected termination circuitry should also be checked before replacing the module.
8. What precautions should be taken when replacing the TPS02?
Verify the complete model and system configuration before replacement. Follow the site’s electrical isolation procedure, inspect the mounting and termination connections, and confirm that the TPSTU02 and associated field circuits are correctly connected. After replacement, verify module status, power-supply levels and the relevant turbine protection functions before returning the protection system to normal service.
ABB Bailey TPS02 Steam Turbine Protection Slave Station Module is in stock. Please contact us for a quick quote and competitive pricing.
