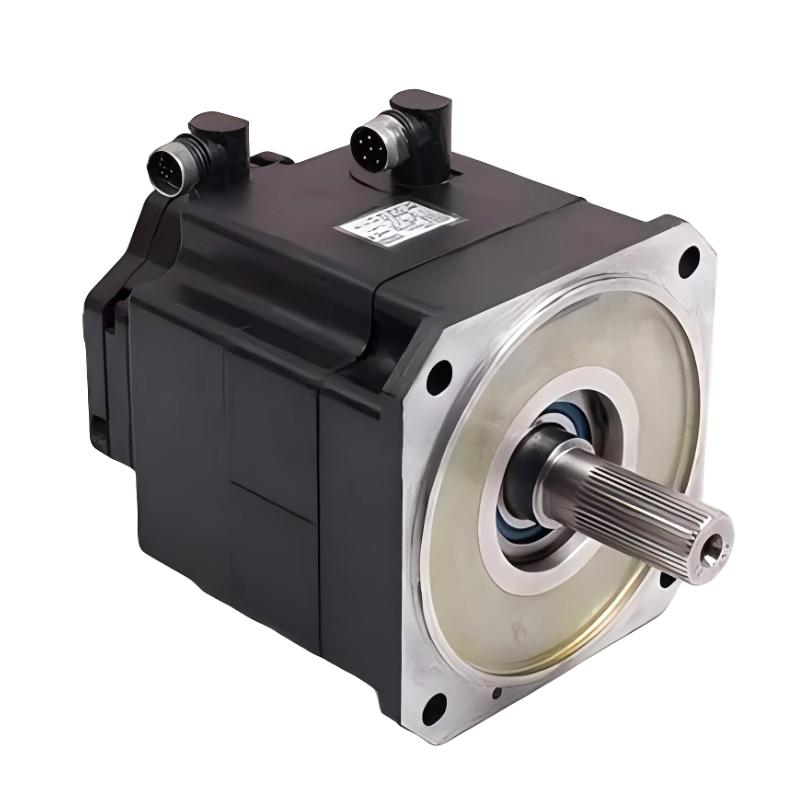

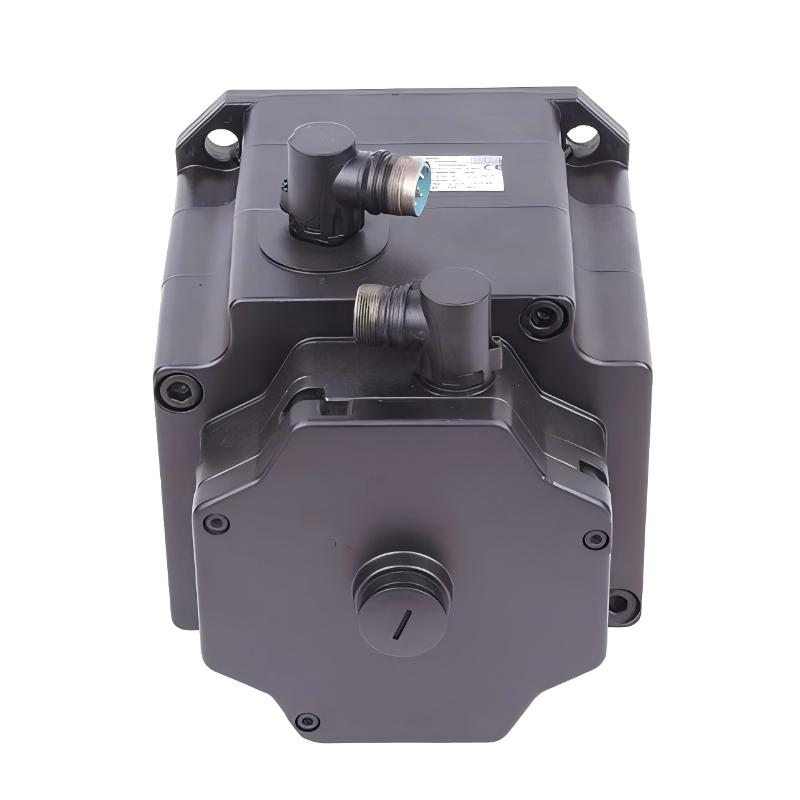

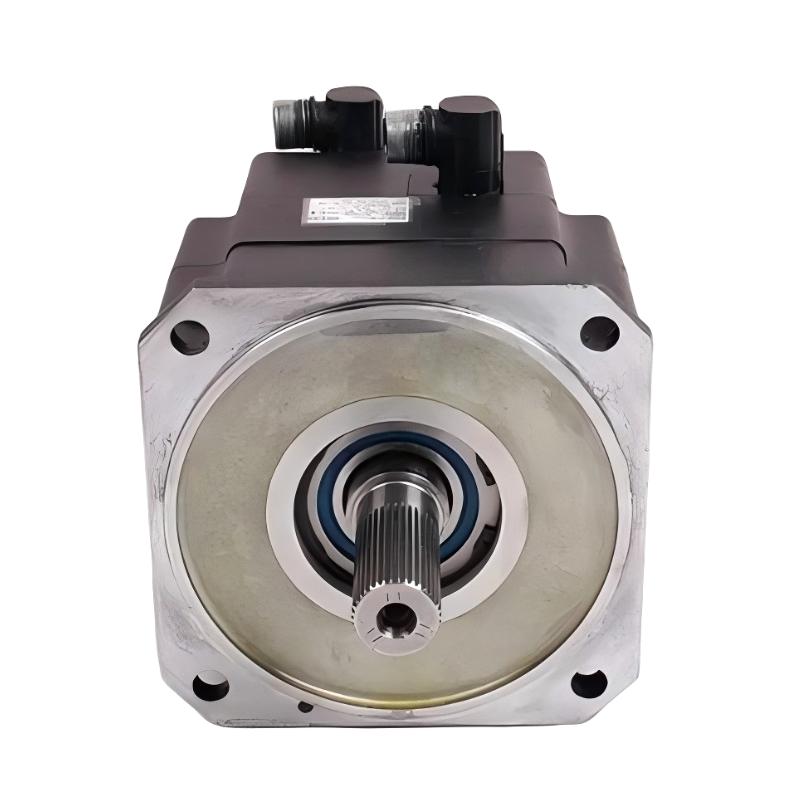

ABB（KUKA） 1FK6100-8AF71-1ZZ9-ZS09 69-225-463 Robot Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB（KUKA） |
| Product Name | Robot Servo Motor |
| Motor Series | 1FK6 |
| Model Number | 1FK6100-8AF71-1ZZ9-ZS09 |
| Ordering Number | 69-225-463 |
| Product Type | AC Servo Motor |
| Motor Technology | Permanent-Magnet Synchronous Servo Motor |
| Application | Industrial robot motion control and automated manufacturing systems |
| Main Function | Provides controlled rotational motion and torque for robot axes and compatible drive systems |
| Feedback System | Encoder or feedback device; verify the installed configuration |
| Drive Compatibility | Must be matched to the motor’s electrical ratings, feedback interface, and compatible servo drive |
| Cooling Method | Confirm according to the motor nameplate and technical documentation |
| Electrical Ratings | Rated voltage, current, power, and speed must be verified from the exact motor nameplate |
| Mounting Requirements | Install according to the specified flange, shaft, and mechanical coupling requirements |
| Operating Environment | Follow the manufacturer’s specified temperature, humidity, and protection requirements |
| Dimensions | 320 × 100 × 220 mm |
| Weight | 24.94 kg |
FAQ
Q1: What is the primary function of the 1FK6100-8AF71-1ZZ9-ZS09 robot servo motor?
A1: This servo motor is designed for controlled motion in industrial automation applications. When paired with a compatible servo drive and feedback system, it enables accurate speed, torque, and position control for robot axes and other automated mechanisms.
Q2: How can I verify compatibility with an existing KUKA robot?
A2: Check the motor model 1FK6100-8AF71-1ZZ9-ZS09 and ordering number 69-225-463 against the robot’s spare-parts list. Confirm the robot model, axis assignment, drive type, feedback interface, and electrical ratings before installing a replacement.
Q3: Which servo drive should be used with this motor?
A3: The compatible drive must support the motor’s rated voltage, current, power, speed range, and feedback system. Select the drive using the motor nameplate and the relevant KUKA or Siemens technical documentation rather than relying on the motor series alone.
Q4: What are common causes of servo motor positioning errors?
A4: Positioning errors can result from encoder or feedback faults, incorrect drive parameters, mechanical backlash, coupling problems, excessive load, or unstable power connections. Review drive alarms and feedback signals before determining whether the motor requires repair or replacement.
Q5: What should be checked if the motor overheats during operation?
A5: Check the motor load, acceleration and deceleration settings, drive current, ventilation or cooling arrangements, and mechanical resistance in the robot axis. Compare operating conditions with the manufacturer’s limits and investigate recurring temperature alarms before returning the system to production.
Q6: Can the motor be replaced without changing the servo drive parameters?
A6: Not always. Even when the replacement has the same model designation, the drive configuration, feedback settings, motor identification data, and axis parameters should be verified. Incorrect settings can cause unstable motion, excessive current, or positioning faults.
Q7: What precautions are necessary when installing this robot servo motor?
A7: Isolate the power supply and follow the robot manufacturer’s safety procedures. Check the mounting flange, shaft coupling, connectors, grounding, and cable routing. Avoid applying impact loads to the shaft or feedback device, and complete the required commissioning checks before enabling automatic operation.
Q8: How can the service life of the servo motor be extended?
A8: Keep the motor within its specified load and temperature limits, inspect connectors and cables regularly, and monitor vibration, noise, and drive alarms. Maintain the mechanical transmission and robot axis according to the manufacturer’s maintenance schedule, and investigate abnormal operating conditions promptly.
ABB（KUKA） 1FK6100-8AF71-1ZZ9-ZS09 69-225-463 Robot Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
