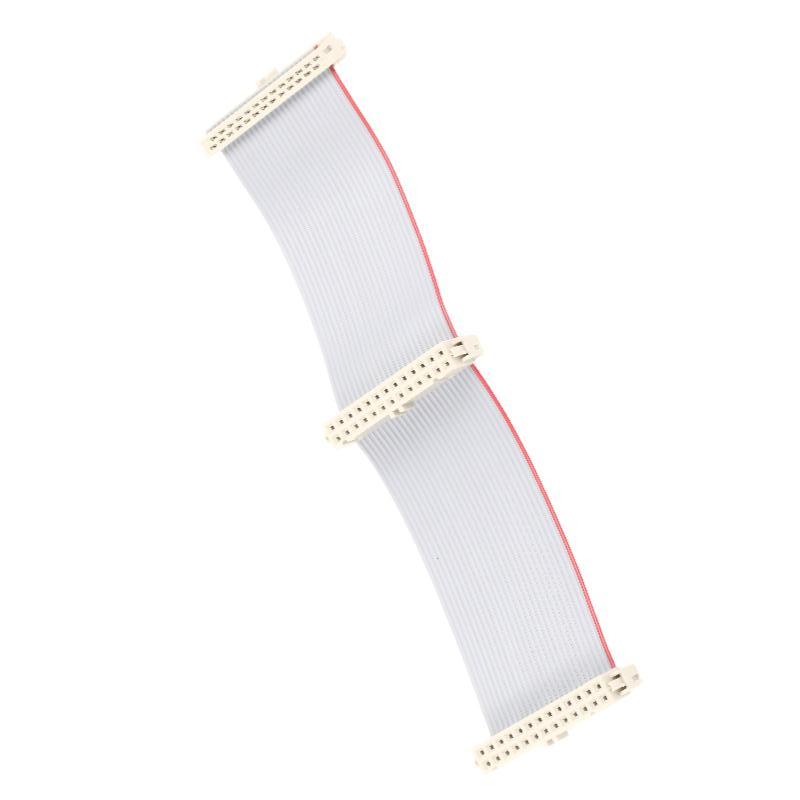

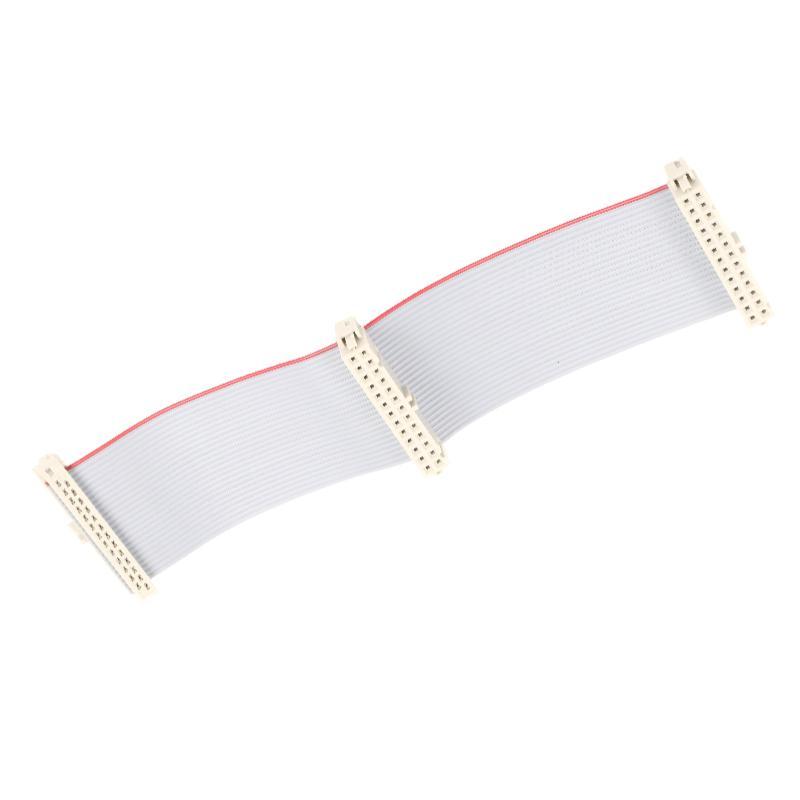

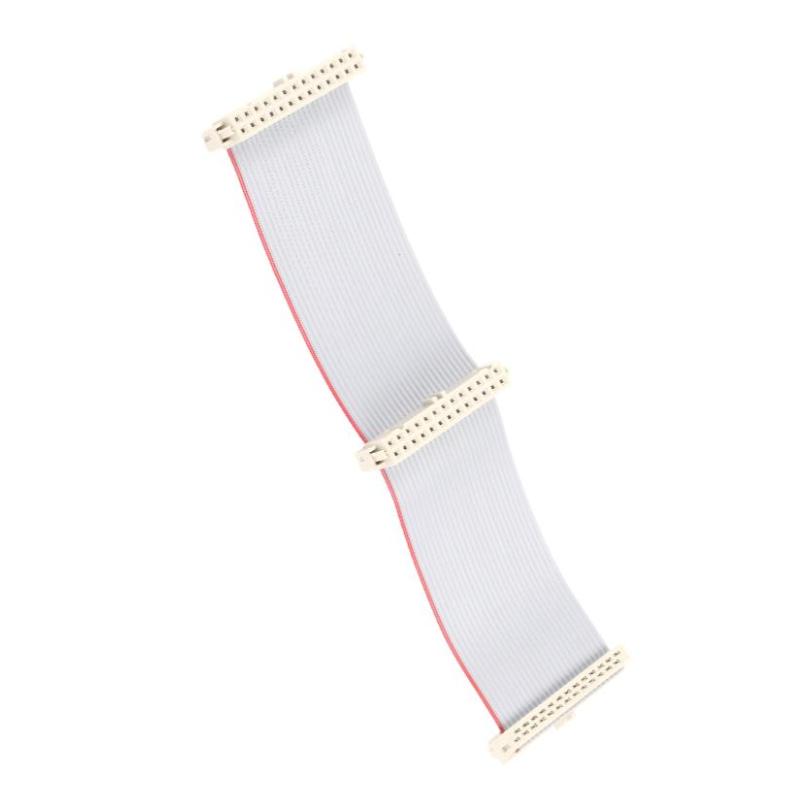

ABB 3BSE001694R1 26-Pole Flat Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Ordering Number | 3BSE001694R1 |
| Product Name | 26-Pole Flat Cable |
| Product Type | Flat Ribbon Cable Assembly |
| Number of Poles | 26 |
| Cable Length | 136 mm |
| Application | Industrial automation and control system connections |
| Primary Function | Transmits electrical signals between compatible control boards and system components |
| Connection Type | 26-pole flat cable interface |
| Compatibility | Must be confirmed against the equipment model, connector layout, and wiring requirements |
| Installation | Connect according to the equipment wiring diagram, ensuring correct orientation and secure contact |
| Maintenance | Inspect for damaged insulation, bent contacts, loose connections, and signs of overheating |
| Shipping Weight | 3 kg |
FAQ
Q1: What is the function of the ABB 3BSE001694R1 26-Pole Flat Cable?
A1: The cable provides a multi-conductor connection between compatible industrial automation components. It carries electrical signals between circuit boards or control system modules, depending on the equipment configuration.
Q2: How can I confirm whether this flat cable is compatible with my ABB system?
A2: Check ordering number 3BSE001694R1 against the equipment parts list. Also verify the 26-pole connector arrangement, pin orientation, cable length, and connection requirements before installation.
Q3: Why is the 26-pole configuration important?
A3: The 26-pole configuration determines the number of electrical connection positions available. Using a cable with a different pole count or pin arrangement may prevent correct connection or cause signal errors.
Q4: What are the common symptoms of a faulty flat cable?
A4: Common symptoms include intermittent communication, missing signals, unexpected system alarms, and unreliable module operation. These issues may also result from defective connectors or faults in connected components, so the complete connection path should be inspected.
Q5: How should the cable be installed correctly?
A5: Switch off and isolate the equipment according to the applicable safety procedures. Align the connector with the correct pin orientation, avoid twisting or sharply bending the cable, and ensure the connector is fully seated before restoring power.
Q6: Can the ABB 3BSE001694R1 be replaced with a generic 26-pole ribbon cable?
A6: Not without confirming the electrical and mechanical requirements. The replacement must match the pole count, pin mapping, connector type, pitch, cable construction, and required length. The same number of poles alone does not guarantee compatibility.
Q7: How can signal problems caused by the flat cable be diagnosed?
A7: Inspect the cable and connectors for wear, contamination, loose contacts, or damaged insulation. With the equipment safely isolated, qualified personnel can check continuity and pin-to-pin connections against the approved wiring diagram.
Q8: What maintenance practices help extend the cable’s service life?
A8: Keep connectors clean and securely connected, prevent excessive bending and pulling, and route the cable away from heat sources and mechanical interference. Replace the assembly if its conductors, insulation, or connectors show signs of damage.
ABB 3BSE001694R1 26-Pole Flat Cable is in stock. Please contact us for a quick quote and competitive pricing.
