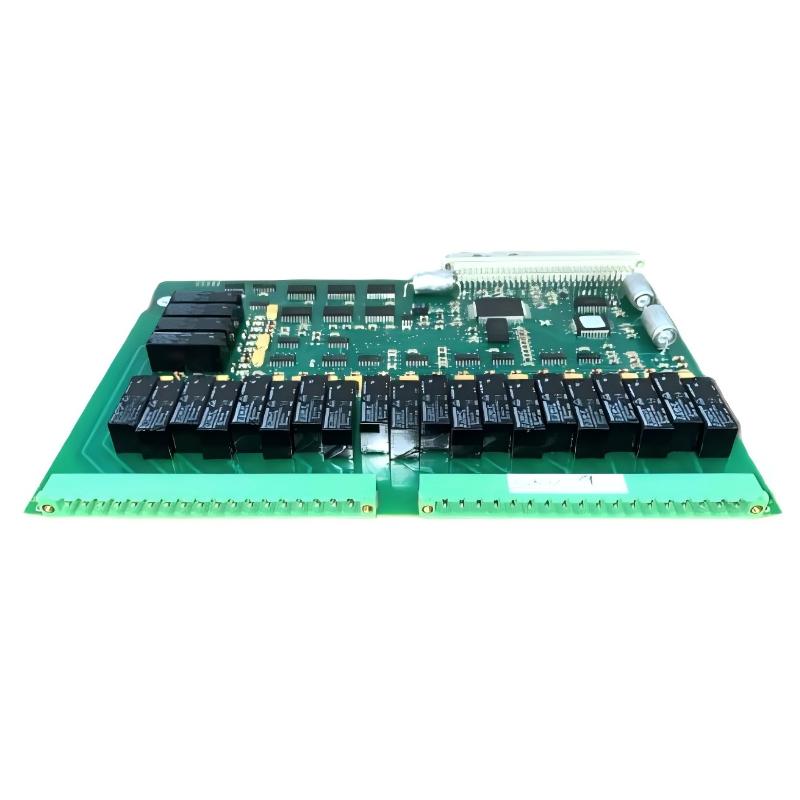

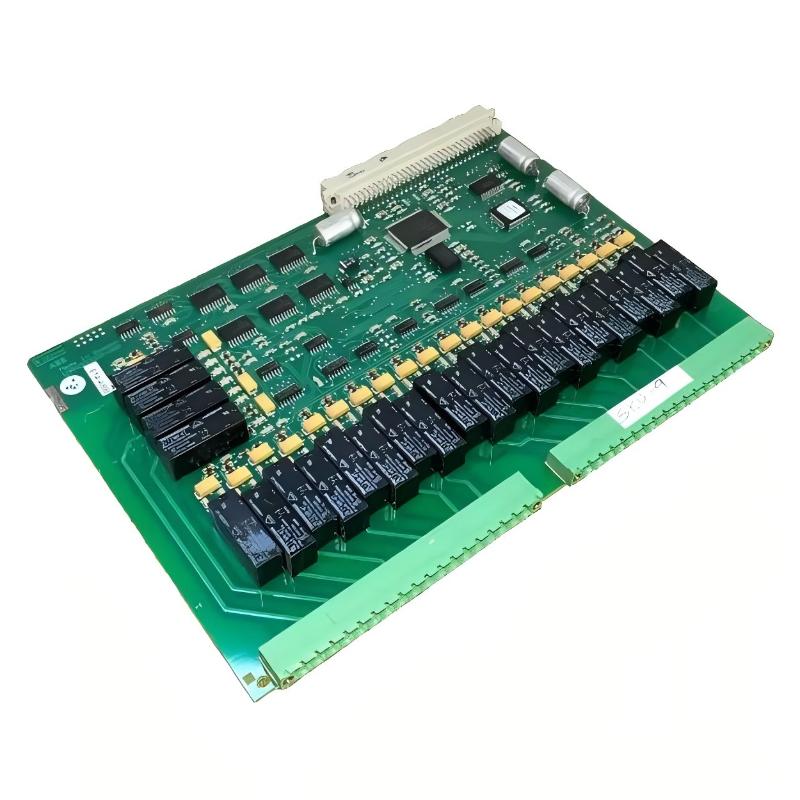

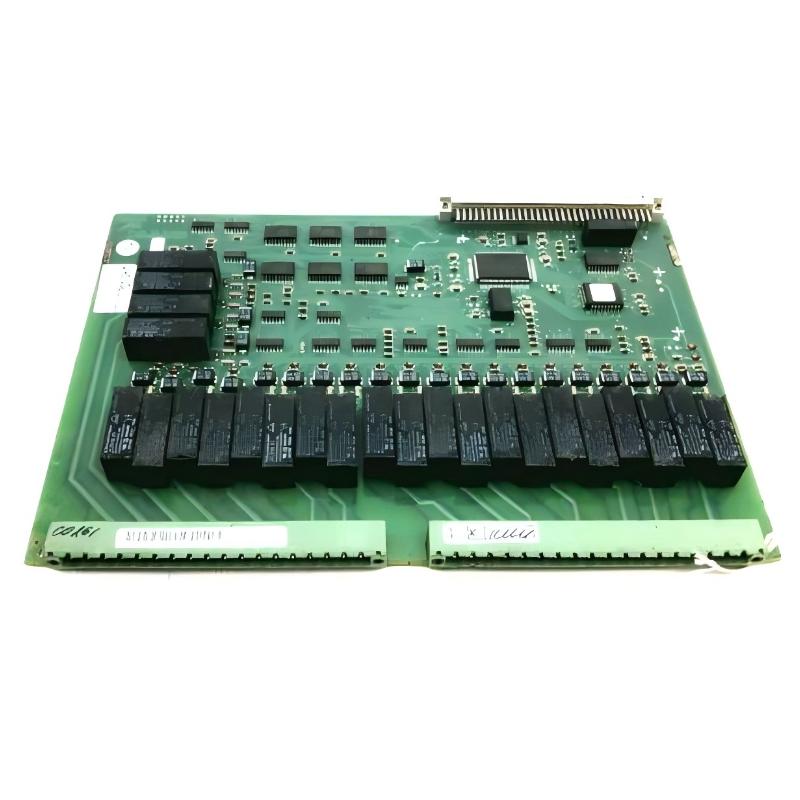

ABB 1MRK000005-380 PCB Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 1MRK000005-380 |
| Product Type | PCB Board |
| Related Module | 1MRK000614-ABr00 |
| Product Family | ABB Relion 670 Series |
| Typical Application | Protection and control systems |
| Main Function | Binary output signal processing and relay interface |
| Output Type | Relay / Binary Output |
| Signal Functions | Trip, alarm, interlocking and control signals |
| Typical Equipment | Generator, transformer and line protection systems |
| System Integration | ABB protection and control IEDs |
| Installation | Internal plug-in PCB installation |
| PCB Construction | Multi-layer electronic circuit board |
| Signal Processing | Binary control and relay output processing |
| Operating Environment | Industrial and electrical power automation applications |
| Dimensions | 35 × 210 × 198 mm |
| Weight | 0.363 kg |
FAQ
Q1: What is the main function of the ABB 1MRK000005-380?
A: The ABB 1MRK000005-380 is a PCB board used in ABB protection and control equipment. It is associated with binary output functions and provides the hardware interface required for relay-based control signals. Typical functions include circuit breaker trip commands, alarms, interlocking and other protection-related outputs.
Q2: What equipment is the 1MRK000005-380 designed for?
A: The board is associated with ABB Relion 670 Series protection and control equipment. It can be used in protection applications involving generators, transformers, transmission or distribution lines and other electrical equipment. The exact compatibility should always be confirmed against the complete hardware configuration of the host IED.
Q3: What is the relationship between 1MRK000005-380 and 1MRK000614-ABr00?
A: The two numbers are associated with the same binary output hardware configuration. The 1MRK000614-ABr00 identifies the corresponding binary output module, while 1MRK000005-380 is used as the related PCB board identification. When replacing the board, both the PCB number and the complete I/O configuration of the protection device should be checked.
Q4: What are the typical applications of the binary outputs?
A: Binary outputs can be used for circuit breaker trip commands, alarm indication, interlocking, blocking and other discrete control functions. When a protection function detects a fault and generates a trip command, the corresponding output circuit can transfer that command to the external breaker control circuit.
Q5: What should be checked if a binary output does not operate?
A: First verify that the protection logic has actually generated the required output command. Then check the IED event records, hardware diagnostics and output status. The external control supply, terminal wiring, intermediate relays and breaker control circuit should also be inspected. If the internal command is present but the external circuit does not respond, the output circuit should be investigated further.
Q6: What could cause several outputs to fail simultaneously?
A: If several binary outputs become abnormal at the same time, check common factors first. These include the PCB connection, internal power supply, communication or I/O interface and protection-device diagnostics. If only one output is affected, the corresponding relay contact, terminal wiring and external load should be checked more closely.
Q7: What should be confirmed before replacing the 1MRK000005-380?
A: Confirm the complete ordering number, the associated 1MRK000614-ABr00 configuration, the host protection device model and the existing I/O configuration. A visually similar PCB should not automatically be considered interchangeable. After installation, hardware diagnostics and the relevant binary output functions should be tested before the equipment is returned to normal operation.
Q8: Why is the 1MRK000005-380 important in a protection system?
A: The PCB provides an important interface between the protection logic and external control circuits. Reliable binary output operation is essential for functions such as breaker tripping, alarms, interlocking and protection signaling. A correctly configured output board allows commands generated by the protection logic to be transferred reliably to the associated electrical equipment.
ABB 1MRK000005-380 PCB Board is in stock. Please contact us for a quick quote and competitive pricing.
