FAQ

1. What is the main function of the ABB 1MRK000284-ABr02?

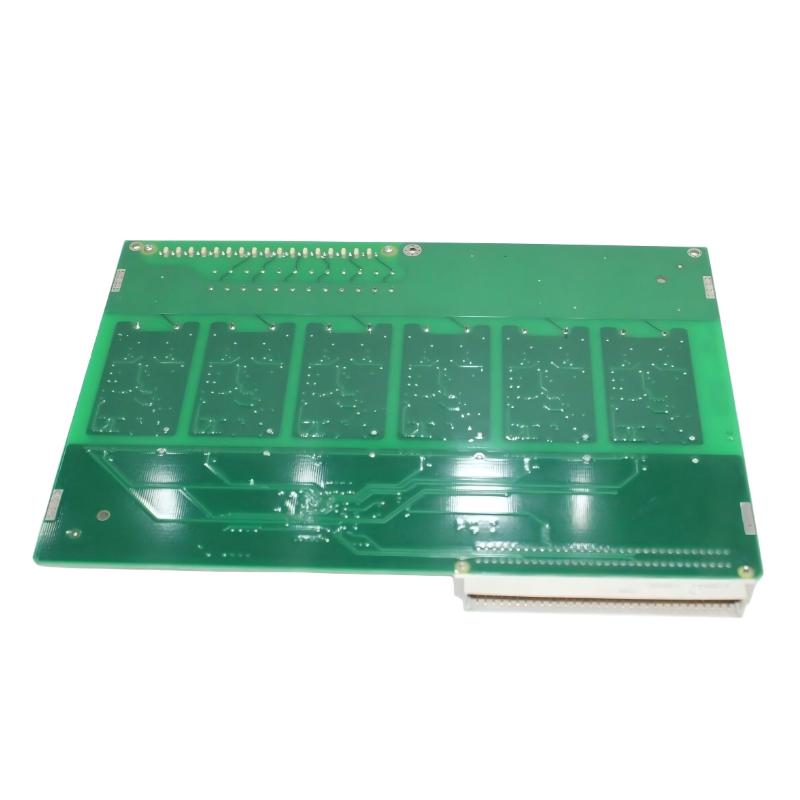

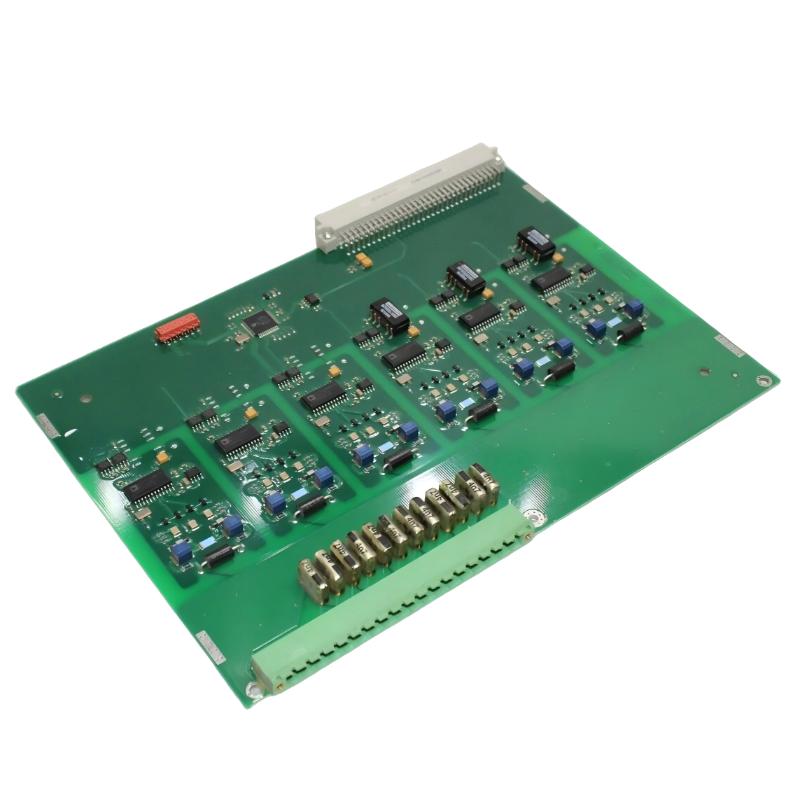

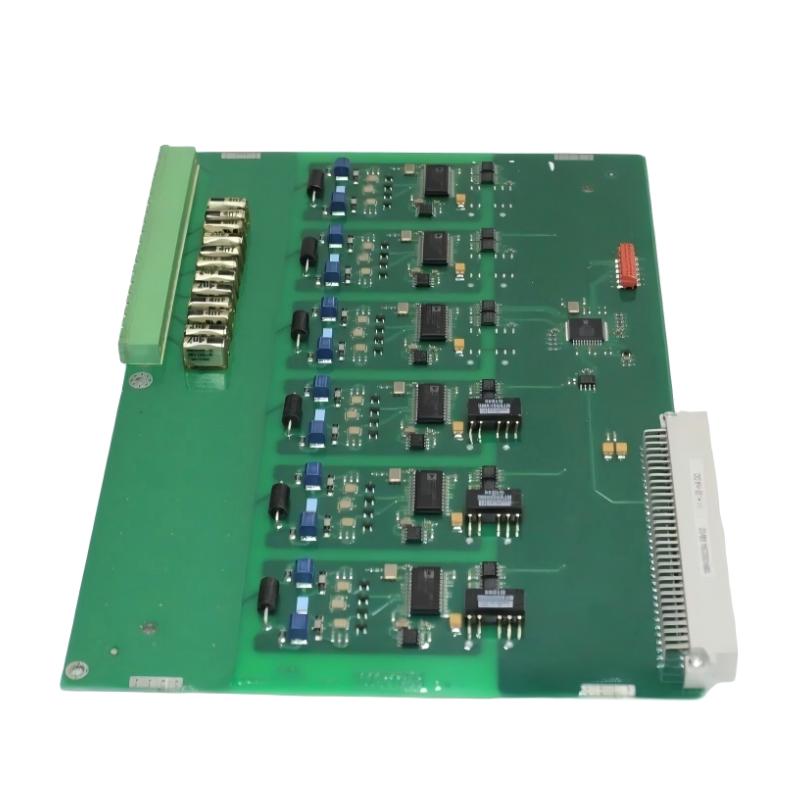

The ABB 1MRK000284-ABr02 is a Binary Input Module used to acquire discrete ON/OFF signals from external equipment and transfer the detected status information to an ABB protection or control system. It can monitor the operating state of circuit breakers, disconnectors, auxiliary contacts, alarms and other binary field signals. The collected information can then be used for indication, protection logic, interlocking, event recording and equipment supervision.

2. How many binary input channels does the 1MRK000284-ABr02 provide?
The module provides 24 independent binary input channels. Each channel can be used to monitor a separate discrete signal from field equipment. This high-density configuration is useful in protection and substation automation systems where a large number of equipment status signals must be acquired and processed by the associated intelligent electronic device.

3. What type of signals can be connected to the 1MRK000284-ABr02?
The module is designed for binary status signals rather than continuous analog measurements. Typical signal sources include circuit breaker auxiliary contacts, disconnector position contacts, protection relay contacts, alarm contacts, pushbuttons and other ON/OFF field devices. The actual input voltage and wiring arrangement should be selected according to the applicable system configuration and the electrical characteristics of the connected field circuit.

4. Does the ABB 1MRK000284-ABr02 provide electrical isolation for the input channels?
The binary inputs use isolated input circuitry to separate field signals from the internal processing electronics. This isolation is important in electrical protection applications because field circuits can be exposed to electrical disturbances, ground potential differences and switching transients. Proper isolation helps maintain reliable status detection and reduces the possibility of disturbances on one field circuit affecting the internal electronics.

5. How is the input status of the 1MRK000284-ABr02 monitored?
Each binary input detects whether its associated field signal is in the active or inactive state. The status information is passed to the associated ABB protection or control device, where it can be displayed, recorded or used by programmed logic. Depending on the application, the input status can be used for breaker position indication, alarm processing, interlocking, protection functions or sequence-of-events monitoring.

6. What should be checked if a binary input does not detect the field signal?
Start by checking the external field circuit, including the auxiliary contact, signal source, fuses, terminal connections and wiring continuity. Next, verify that the correct input channel has been assigned and that the expected input voltage is actually reaching the module. The configuration of the associated protection or control device should also be checked. If the field signal is present but the input status remains unchanged, testing the input circuit with a suitable measurement device can help determine whether the problem is in the wiring, termination or module itself.

7. Can the 1MRK000284-ABr02 be used for circuit breaker and disconnector status monitoring?
Yes. Monitoring the open/closed status of circuit breakers and disconnectors is a typical application for binary input modules in protection and substation automation systems. Auxiliary contacts from the switching equipment can be connected to the binary inputs, allowing the protection or control system to determine the actual equipment position. These status signals can also be incorporated into interlocking logic to prevent incorrect switching operations.

8. What applications are suitable for the ABB 1MRK000284-ABr02?
The module is suitable for applications requiring reliable acquisition of multiple discrete electrical signals, particularly in power-system protection, substation automation and equipment monitoring. Common applications include circuit breaker status monitoring, disconnector position feedback, alarm acquisition, protection signaling, interlocking and auxiliary equipment supervision. It can also be used wherever an ABB protection or control platform requires additional binary input capacity for external field signals.
