1. What is the main function of the ABB 1MRK000614-ABr01 Binary Output Module?

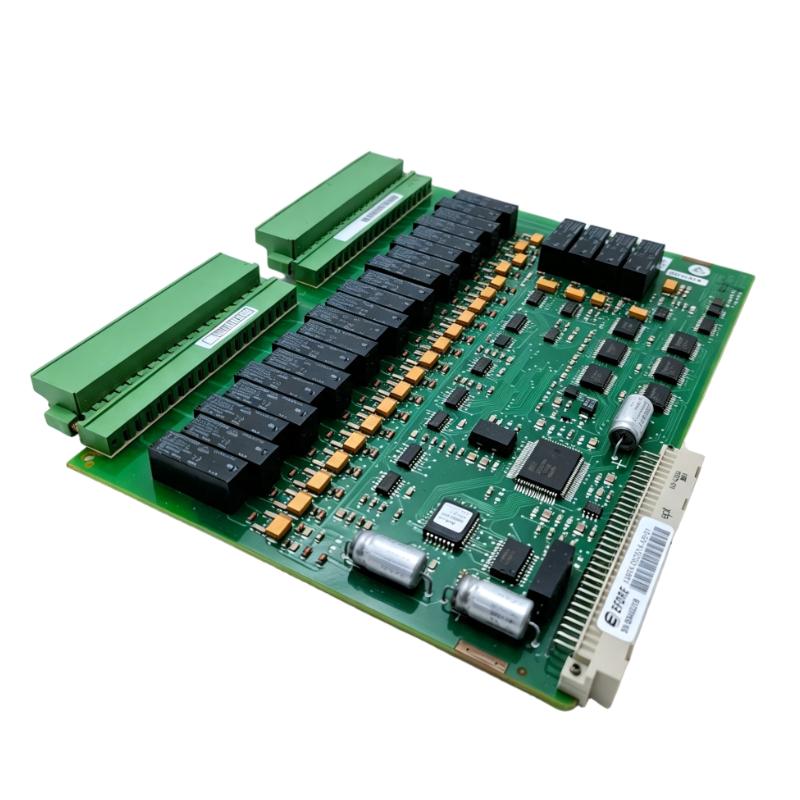

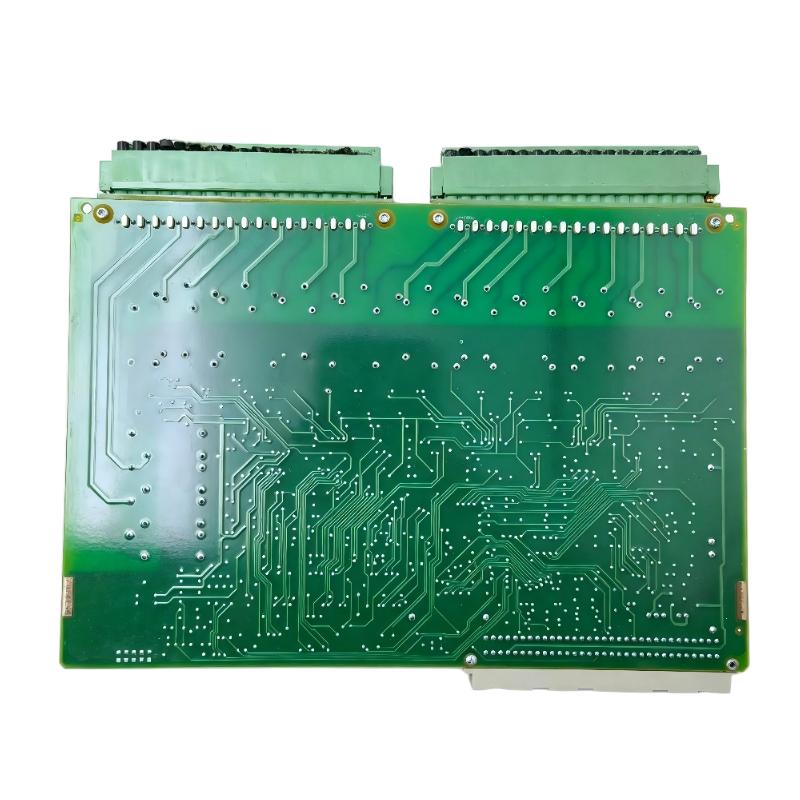

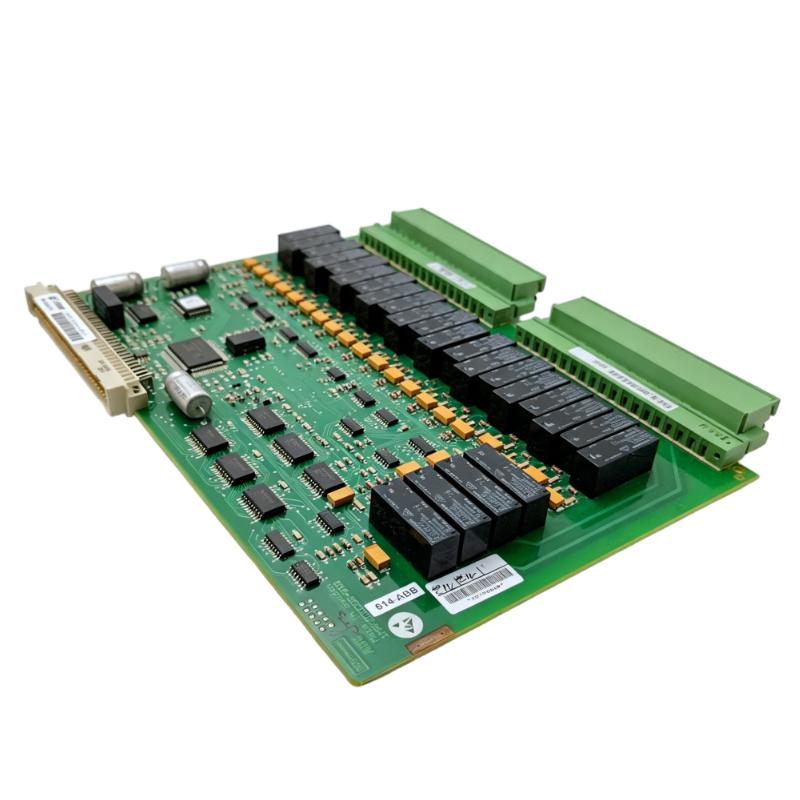

The ABB 1MRK000614-ABr01 is a binary output module designed to provide relay-based switching interfaces between an ABB protection or control system and external field circuits. It can transmit discrete commands generated by the protection system to devices such as circuit breakers, auxiliary relays, alarms and signaling circuits. The module is particularly useful when multiple independent binary outputs are required within a protection and automation installation.

2. How many binary outputs does the 1MRK000614-ABr01 provide?
The module provides 24 binary relay outputs. These outputs can be assigned to different protection, control, alarm and signaling functions according to the configuration of the associated system. The number of available outputs makes the module suitable for applications requiring multiple independent switching commands without using separate relay interfaces for every function.

3. What type of output contacts are used by the ABB 1MRK000614-ABr01?
The module uses relay contacts for its binary outputs. Relay technology allows external AC or DC circuits to be switched while maintaining electrical separation between the control electronics and field circuits. This configuration is suitable for discrete switching tasks such as trip commands, alarm activation, status indication and interlocking signals.

4. What voltage can the binary outputs handle?
The relay contacts support system voltages up to 250 VAC/DC, while the permissible current depends on the actual load and switching conditions. The specified contact capacity should always be considered together with the voltage, load type and switching frequency. Inductive DC loads can place additional stress on relay contacts, so the connected circuit should be designed within the applicable electrical ratings.

5. Can the 1MRK000614-ABr01 be used for circuit breaker trip applications?
Yes. The binary relay outputs can be used for protection and control functions such as circuit breaker trip commands. When configuring an output for a trip circuit, the output logic must be coordinated with the protection function, breaker control voltage, auxiliary contacts and trip circuit supervision. The complete trip path should be tested during commissioning to confirm that the command reaches the breaker correctly.

6. What should be checked when one binary output does not operate?
Start by confirming that the associated protection or control logic is generating the expected output command. Then check the configured output assignment, relay status, external supply voltage, terminal connections and field wiring. If the output is intended to operate an external relay or contactor, inspect the connected device and its coil circuit as well. For persistent problems, checking relay contact continuity can help determine whether the fault is located inside the module or in the external circuit.

7. What types of external loads can be connected to the relay outputs?
The outputs can be used for discrete AC or DC switching applications such as alarm circuits, indication circuits, interposing relays, contactor control and protection-related commands. The selected load must remain within the applicable relay contact voltage and current ratings. For inductive loads, suitable suppression components may be required to reduce switching transients and protect the relay contacts from excessive electrical stress.

8. Where is the ABB 1MRK000614-ABr01 typically used?
The module is intended for ABB protection and control applications where multiple binary relay outputs are needed. Typical applications include electrical substations, power-system protection, circuit breaker control, alarm generation, interlocking and equipment status signaling. It provides an interface between the protection or automation logic and external discrete circuits, making it suitable for systems that require a relatively large number of independent relay outputs.
