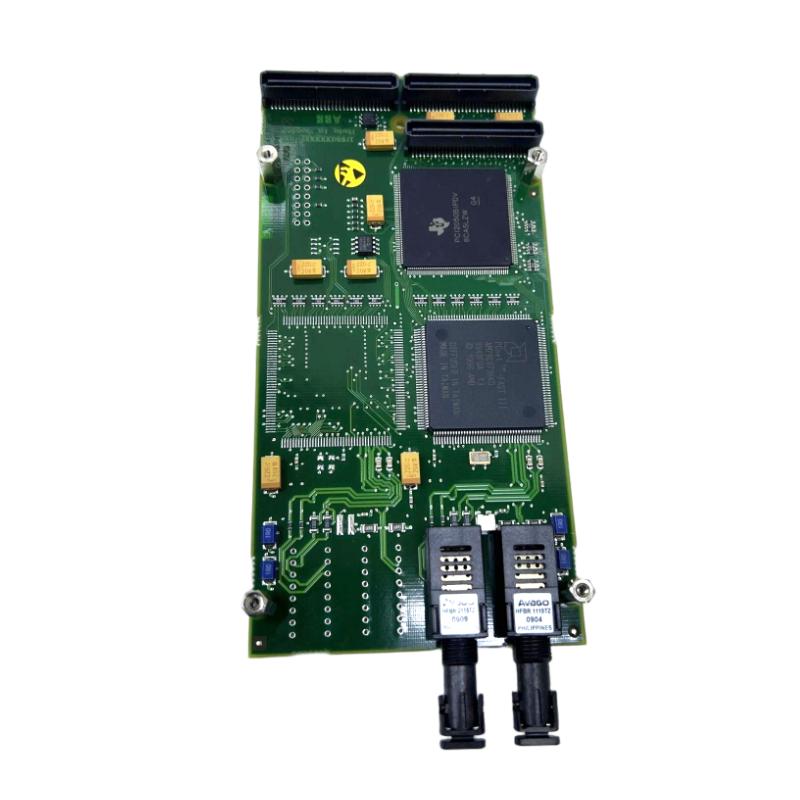

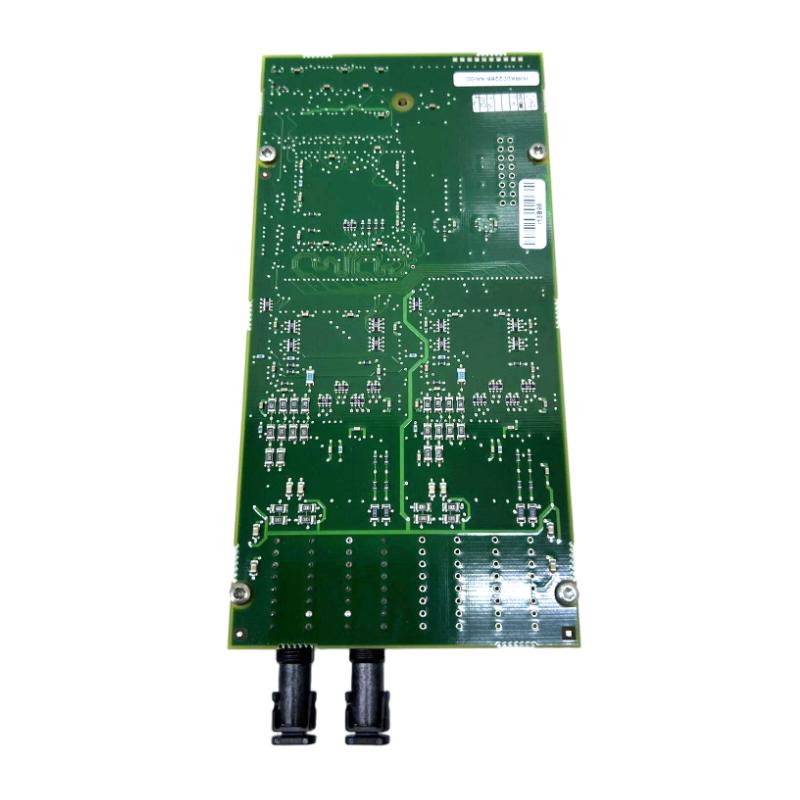

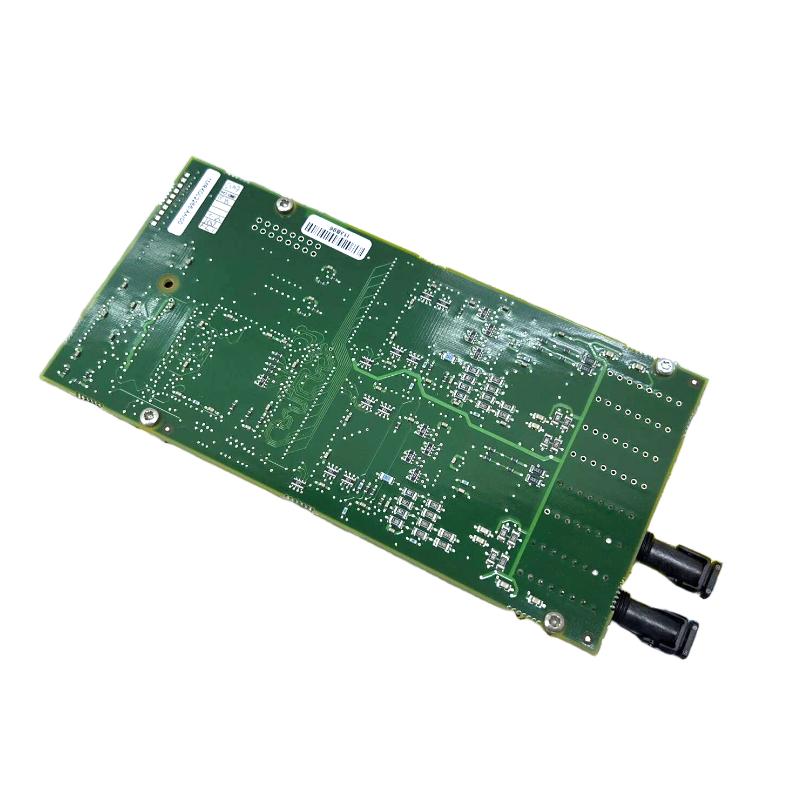

1. What is the primary function of the ABB 1MRK001608-CBr00 Serial Communication Module?
The ABB 1MRK001608-CBr00 is designed to provide serial communication between compatible ABB protection and control equipment and external devices. It acts as a communication interface within the automation system, allowing operational data, device status information, control commands, and monitoring information to be exchanged between connected components. In a substation or industrial automation environment, the module can therefore play an important role in maintaining communication between intelligent electronic devices and the higher-level control architecture.

2. Which communication protocols are supported by the 1MRK001608-CBr00?
The module is associated with communication technologies and protocols including SPA, LON, DNP, and IEC 60870-5-103. The protocol actually used depends on the host ABB equipment, system architecture, and project configuration. Before commissioning, the communication protocol, device addressing, transmission parameters, and other relevant settings should be checked carefully so that the module and the connected equipment use compatible communication configurations.

3. Where is the ABB 1MRK001608-CBr00 typically used?
The module is intended for ABB protection, control, and automation applications, particularly where serial communication is required. Typical applications include substation automation, protection systems, bay control, electrical power automation, and integration of existing serial devices into an automation network. It can be especially useful in systems where different protection or control devices need to exchange operational and status information through established industrial communication protocols.

4. How does the 1MRK001608-CBr00 communicate with external equipment?
The module uses its serial communication interface to exchange data with compatible external equipment. For successful communication, both devices must use compatible communication parameters and protocol settings. Depending on the system configuration, parameters such as device address, communication speed, data format, and protocol mode may need to be configured correctly. Incorrect settings on either side can result in communication errors even when the physical cable and connectors are in good condition.

5. What should be checked if the 1MRK001608-CBr00 cannot communicate with another device?
Troubleshooting should begin with the physical communication path. Check the module installation, connectors, terminal connections, communication cable, and the condition of the connected device. Next, verify the configured protocol, device address, communication speed, and other relevant serial communication parameters. If the physical connection and configuration are correct, check system diagnostic information and communication status indications. When several devices lose communication at the same time, the problem may be related to a common communication path, host device, power supply, or network configuration rather than an individual module.

6. What can cause intermittent communication problems with the 1MRK001608-CBr00?
Intermittent communication can be caused by loose connectors, damaged communication cables, poor contact, electromagnetic interference, incorrect communication parameters, unstable power, or problems with the connected equipment. Communication faults that appear only occasionally should be investigated carefully because they may indicate a marginal physical connection or environmental interference rather than a complete module failure. Checking error records, communication diagnostics, cable routing, connector condition, and parameter consistency can help identify the actual cause.

7. What should be verified before replacing the ABB 1MRK001608-CBr00?
Before replacement, confirm that the replacement module has the exact order number 1MRK001608-CBr00 and is compatible with the associated ABB protection or control equipment. The existing communication configuration should be recorded before removing the original module, including relevant protocol and device settings. After installation, verify that the module is correctly seated and connected, then check system recognition and communication status. A complete communication test with the connected equipment should be performed before returning the system to normal operation.

8. How should the 1MRK001608-CBr00 be maintained for reliable long-term operation?
Routine maintenance should include inspection of the module installation, communication connectors, wiring, and associated equipment. Communication diagnostic information should be reviewed periodically to identify abnormal error rates or recurring communication interruptions. The configured protocol and communication parameters should also be checked whenever connected equipment or system configurations are changed. In critical protection and substation automation applications, communication functionality should be tested as part of the planned maintenance program. Keeping the communication path clean, secure, correctly configured, and free from unnecessary electrical interference can significantly improve long-term communication reliability.
