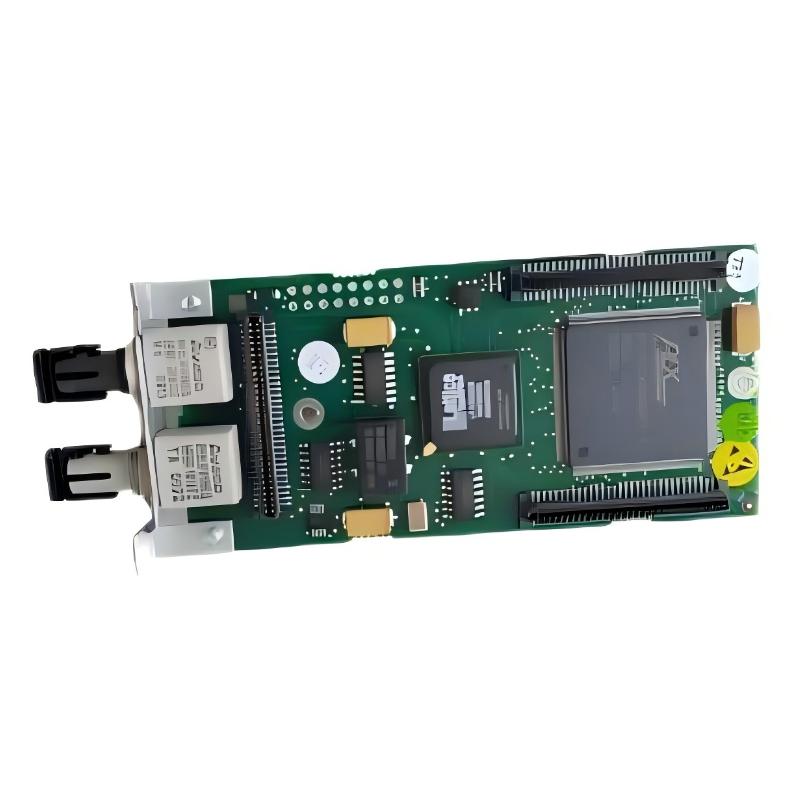

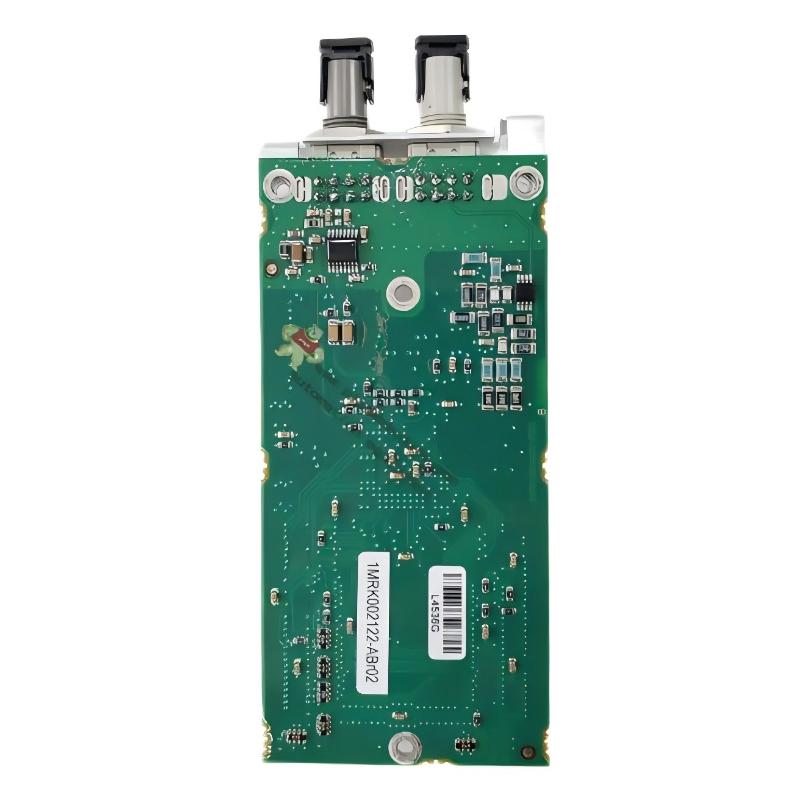

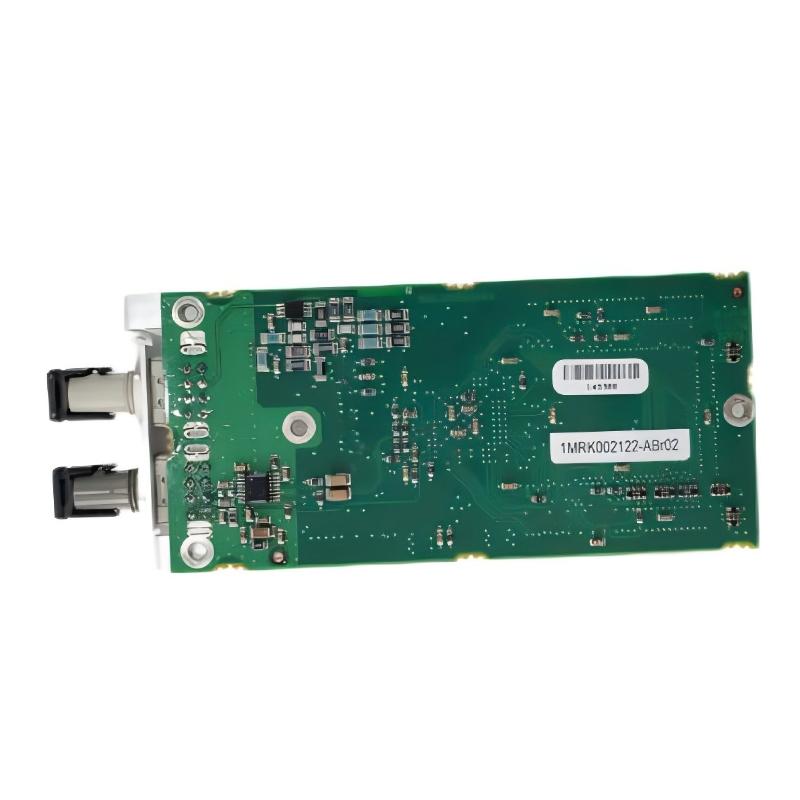

1. What is the main function of the ABB 1MRK002122-ABR02 Binary Output Module?
The ABB 1MRK002122-ABR02 is used to provide binary output signals from the control system to external field equipment. It converts digital commands generated by the control logic into discrete ON/OFF control signals that can be used by compatible external circuits. Typical applications include equipment control, alarm activation, interlocking, relay control, and other applications where a digital command must be transferred from the automation system to a field device.

2. What types of equipment can be controlled by the 1MRK002122-ABR02?
The module can be used with compatible binary-controlled field devices such as relays, contactors, actuators, alarm circuits, and other switching equipment. The actual load that can be connected depends on the electrical characteristics of the associated ABB system and the output circuit. Before connecting a field device, the output specifications and the requirements of the connected load should be checked to ensure that the application is within the permitted operating conditions.

3. How does the 1MRK002122-ABR02 work within an ABB control system?
The module receives digital commands from the control or protection logic of the associated ABB system. When an output command is generated, the corresponding binary output changes state and provides the required control signal to the external circuit. This allows software-based control logic to operate physical equipment in the field. The module therefore forms an important interface between the electronic control system and discrete field-level devices.

4. What should be checked if an output channel of the 1MRK002122-ABR02 does not operate correctly?
Troubleshooting should start by confirming that the control system is actually issuing the required output command. Next, check the module status, wiring, terminals, connectors, and the external load connected to the affected channel. If the control logic indicates that the output should be active but there is no corresponding field response, the field circuit should be tested independently. Comparing the affected channel with a known-good channel can also help determine whether the problem is caused by configuration, wiring, the external load, or the output module itself.

5. What can cause a binary output to remain permanently ON or OFF?
A binary output that remains in one state can be caused by incorrect control logic, configuration errors, damaged wiring, an abnormal external load, a short circuit, or a problem within the output circuit. It is important to distinguish between a command-related problem and a hardware-related problem. The commanded state should first be verified in the control system, followed by inspection of the field wiring and connected equipment. If the command and field circuit are correct but the output still does not change state, the module should be investigated further.

6. Can a faulty field device cause the 1MRK002122-ABR02 to appear defective?
Yes. A problem in the connected field device or its wiring can produce symptoms that look like an output-module failure. For example, a damaged relay coil, shorted wiring, loose terminal, or abnormal load can prevent the controlled equipment from responding even though the module is receiving and processing the correct command. For this reason, troubleshooting should include both the output module and the complete field circuit rather than replacing the module immediately.

7. What should be verified before replacing the ABB 1MRK002122-ABR02?
Before replacement, verify the complete order number 1MRK002122-ABR02 and confirm that the replacement unit is compatible with the existing ABB system. The existing wiring arrangement and configuration should be documented before removing the original module. After installation, verify that all connections are secure and that the control system recognizes the module correctly. Each relevant output should then be tested under controlled conditions to confirm that the expected commands are correctly transferred to the field equipment.

8. How should the 1MRK002122-ABR02 be maintained for reliable operation?
Routine maintenance should include inspection of module connections, terminal wiring, connectors, field circuits, and the condition of connected loads. Output status and system diagnostic information should also be reviewed for abnormal behavior or recurring faults. In critical automation and protection applications, functional testing of important binary outputs should be included in the planned maintenance schedule. Keeping the wiring secure and correctly configured, while identifying abnormal output behavior early, can help prevent intermittent control problems and unnecessary module replacement.
