1. What is the main function of the ABB 1MRK002122-ABr03 Local Communication Module?

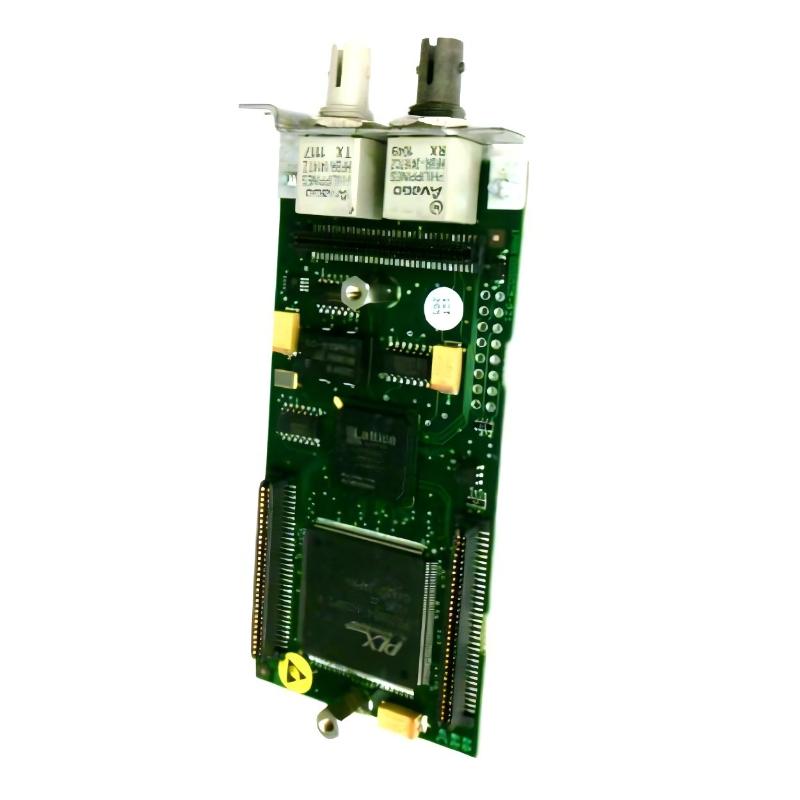

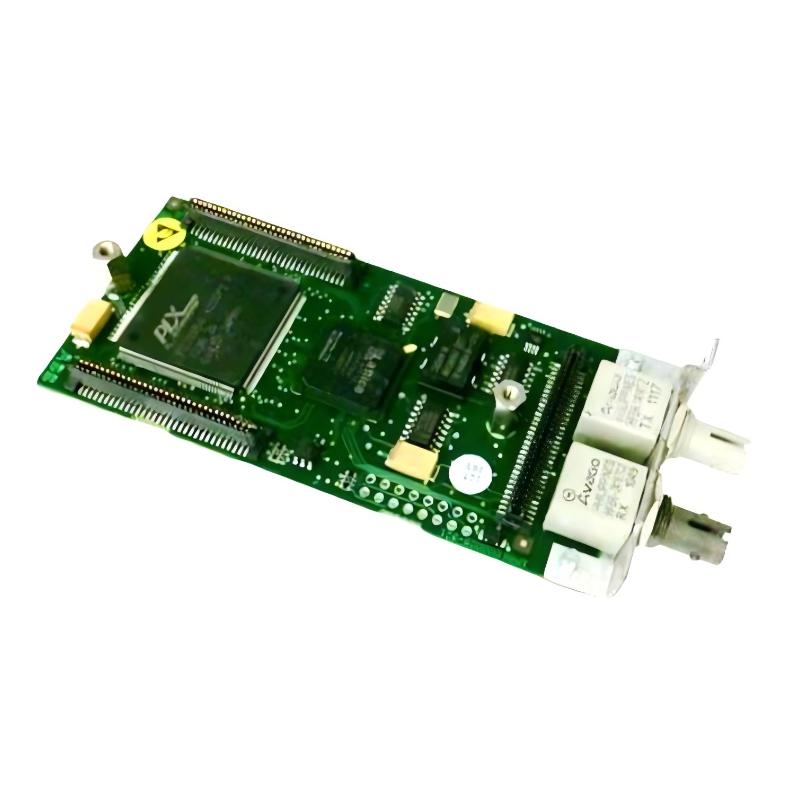

The ABB 1MRK002122-ABr03 is a Local Communication Module designed to provide data communication between compatible ABB protection and control equipment. It supports the exchange of protection information, equipment status, control data, and other operational information within the associated automation architecture. In a substation environment, the module can serve as an important communication interface between protection devices and other control equipment, helping maintain reliable data exchange within the local protection and automation system.

2. Which ABB systems is the 1MRK002122-ABr03 typically used with?
The module is associated with ABB protection and control equipment, particularly systems within the Relion 670 family. It can be used in applications involving protection, bay control, and substation automation. Actual compatibility should always be checked against the complete equipment configuration, hardware version, and system engineering requirements before installation or replacement, since communication modules are normally designed to operate as part of a specific ABB hardware architecture.

3. What type of communication does the 1MRK002122-ABr03 use?
The module uses fiber-optic communication for data transmission. Depending on the system configuration, multimode or single-mode glass fiber may be used. Optical communication is particularly suitable for electrical substations because it provides strong immunity to electromagnetic interference and helps avoid many of the grounding and potential-difference issues associated with metallic communication wiring. This makes fiber communication well suited to protection and automation systems installed in electrically demanding environments.

4. What fiber types can be used with the 1MRK002122-ABr03?
Depending on the application and system configuration, the communication system can use 50/125 μm or 62.5/125 μm multimode glass fiber, as well as 9/125 μm single-mode glass fiber. The correct fiber type should be selected according to the communication architecture and the requirements of the connected ABB equipment. Optical parameters such as wavelength, transmission distance, connector type, and available optical power margin should also be considered when designing or servicing the communication link.

5. How should a communication failure on the 1MRK002122-ABr03 be diagnosed?
Troubleshooting should begin by checking whether the module is correctly installed and whether the fiber connectors are firmly connected and free from contamination. The transmit and receive fiber connections should be verified to ensure that they have not been incorrectly connected. The fiber cable should also be inspected for excessive bending, physical damage, or other conditions that could increase optical attenuation. If the physical link is healthy, system diagnostic information and communication status should then be checked. When several devices lose communication simultaneously, the common fiber link or associated communication equipment should be investigated before replacing the individual module.

6. What can cause intermittent communication problems with the 1MRK002122-ABr03?
Intermittent communication faults can result from contaminated fiber connectors, loose connections, damaged or aging optical fiber, excessive bending, insufficient optical signal margin, or problems with the equipment at the opposite end of the communication link. Changes in system configuration or faults in associated protection equipment can also produce communication interruptions. Because intermittent faults may disappear temporarily after reconnecting a cable, it is important to examine diagnostic records and inspect the complete optical path rather than assuming that the communication module itself is defective.

7. What should be checked before replacing the ABB 1MRK002122-ABr03?
Before replacement, confirm the complete order number 1MRK002122-ABr03 and verify compatibility with the existing ABB protection and control equipment. The existing fiber connections should be documented before removing the original module so that the transmit and receive paths can be restored correctly. After installing the replacement, check that the module is securely installed and that all optical connections are properly seated. The system should then be powered and monitored to confirm that the communication module is recognized correctly and that normal data exchange has been restored.

8. How should the 1MRK002122-ABr03 be maintained for reliable long-term communication?
Routine maintenance should include inspection of the module installation, fiber connectors, optical cables, and communication diagnostics. Fiber connectors should be kept clean because contamination can significantly reduce optical signal quality. Optical cables should be routed with appropriate bend radii and protected from excessive mechanical stress, crushing, or repeated movement. For critical substation protection systems, communication status and diagnostic records should be reviewed regularly. If repeated communication alarms or intermittent link failures occur, the complete optical communication path and the connected ABB equipment should be tested before deciding to replace the module.
