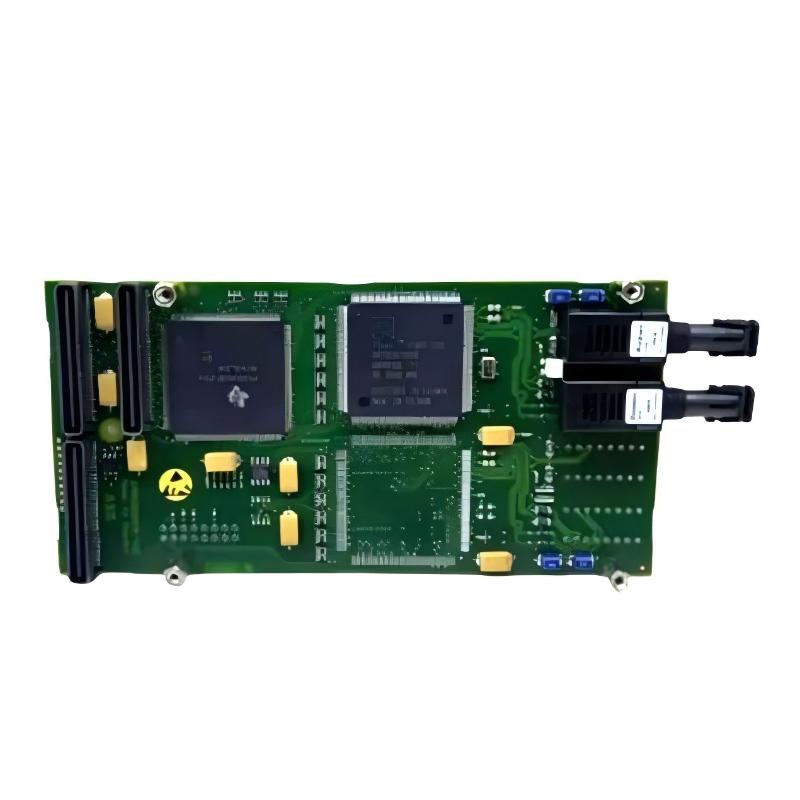

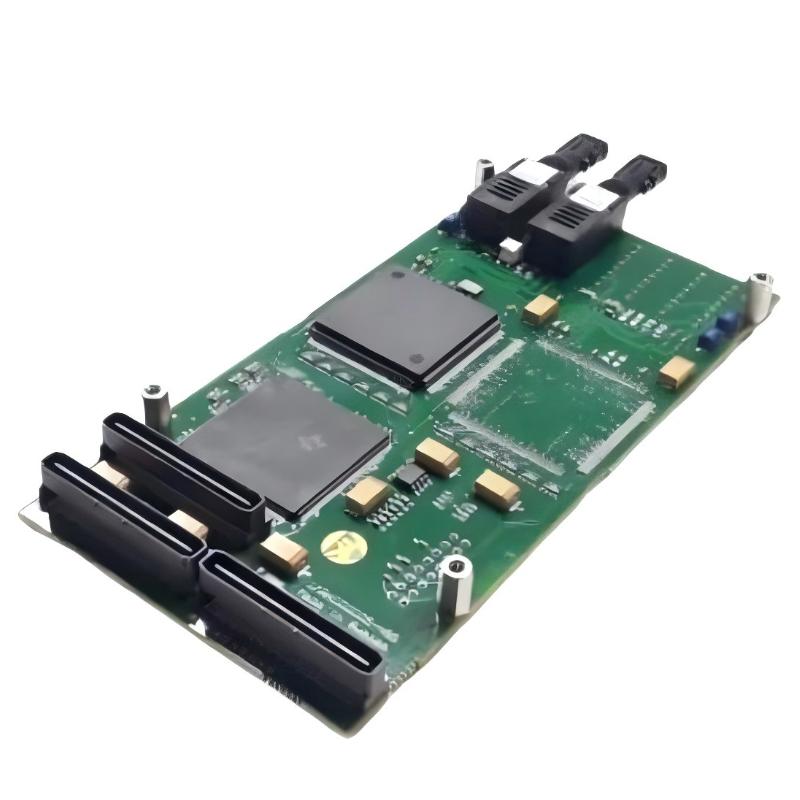

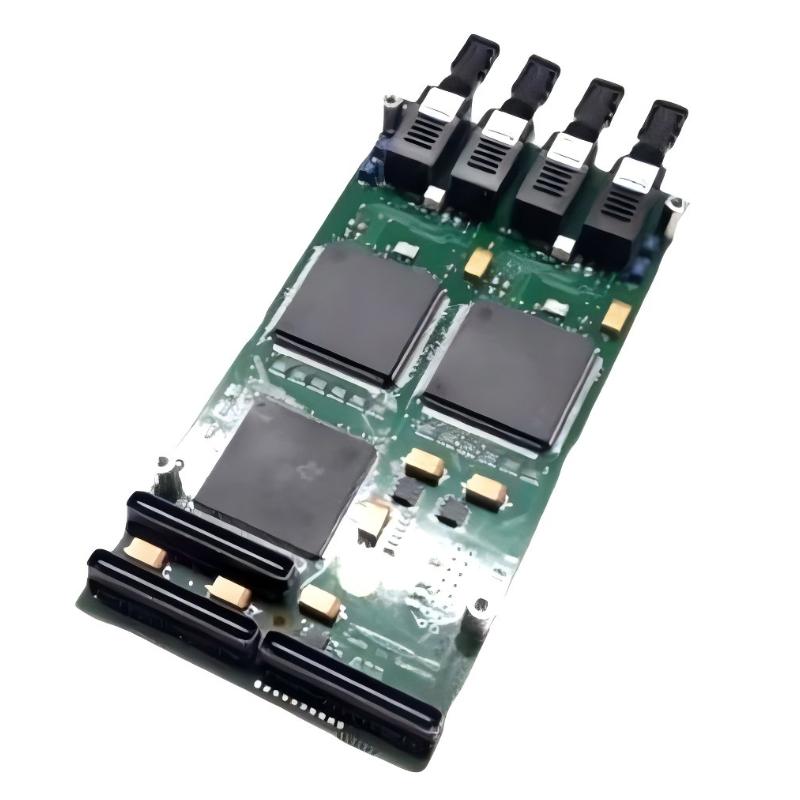

1. What is the main function of the ABB 1MRK002122-ABr08 Binary Input/Output Module?
The ABB 1MRK002122-ABr08 is designed to handle binary signal interfacing within compatible ABB protection and control systems. It processes discrete ON/OFF signals exchanged between the control system and external equipment. Binary inputs can be used to acquire equipment status, switch positions, alarms, and relay conditions, while binary outputs can transmit control commands to compatible field devices. This allows the module to serve as an interface between system logic and field-level equipment.

2. What is the difference between the binary input and binary output functions?
A binary input receives a discrete signal from an external device and makes the corresponding status available to the control or protection system. For example, an input may indicate whether a breaker, switch, relay, or other device is ON or OFF. A binary output operates in the opposite direction by taking a control command generated by the system and transferring it to an external circuit. When troubleshooting, it is therefore important to determine whether the problem is associated with the input circuit, output circuit, field device, or control logic.

3. What types of field signals can be connected to the 1MRK002122-ABr08?
Typical binary input applications include switch contacts, relay status signals, equipment operating states, alarm contacts, and other compatible discrete signals. Binary outputs can be used with compatible control circuits involving relays, contactors, alarms, and other ON/OFF devices. The actual field connection must comply with the electrical requirements of the associated ABB system. Before connecting a field circuit, the signal characteristics and load requirements should be verified to prevent incorrect wiring or excessive loading.

4. What role does the 1MRK002122-ABr08 play in an ABB protection or substation automation system?
The module provides an interface between digital field signals and the higher-level protection or control logic. It allows the system to monitor equipment conditions through binary inputs and execute control commands through binary outputs. In a substation automation application, this may include monitoring equipment status, receiving alarm indications, supporting interlocking functions, and transferring control commands to field equipment. Reliable I/O operation is important because incorrect status information or failed control outputs can affect the operation of the overall protection and automation system.

5. How should the 1MRK002122-ABr08 be troubleshot when a binary input does not change state?
Troubleshooting should begin by confirming that the external field device is actually changing state. The associated wiring, terminals, connectors, and signal path should then be inspected carefully. If the field device and wiring are confirmed to be correct, check the input status reported by the ABB system and review available diagnostic information. Comparing the affected input with a known-good channel can help determine whether the problem originates from the field circuit or the module. If the correct field signal reaches the module but the control system does not recognize the expected state, the module and its configuration should be investigated further.

6. What should be checked if a binary output command is generated but the field device does not respond?
First verify that the control logic has generated the expected command and that the corresponding output channel is actually being activated. Next, inspect the output wiring, terminals, connectors, and external load. A defective relay, contactor, actuator, or damaged field cable can prevent the controlled equipment from responding even when the output module is functioning correctly. If the field circuit is confirmed to be healthy but the output does not behave as commanded, system diagnostic information and the individual output channel should be checked before replacing the module.

7. Can optical communication problems affect the operation of the 1MRK002122-ABr08?
Yes. If the module uses the associated short-range optical communication path to exchange data with the host system, problems in that link can affect communication between the module and the control equipment. Contaminated optical connectors, damaged fiber, loose connections, excessive bending, or abnormal optical-link conditions can cause communication errors or loss of data. If several I/O functions become unavailable simultaneously, the common optical communication path and system backplane should be investigated rather than assuming that multiple individual I/O channels have failed independently.

8. What should be checked before replacing the ABB 1MRK002122-ABr08?
Before replacement, confirm the complete order number 1MRK002122-ABr08 and verify compatibility with the existing ABB protection or control equipment. The original wiring and system configuration should be documented before removing the module. If an optical communication connection is present, the fiber connections and transmit/receive arrangement should also be recorded. After installation, verify that the module is correctly seated and recognized by the system, then perform functional tests on the relevant binary inputs and outputs. The final test should confirm both correct signal acquisition and reliable execution of control commands.
