Technical Specifications

FAQ

1. What is the ABB 1MRK002133-AC used for?

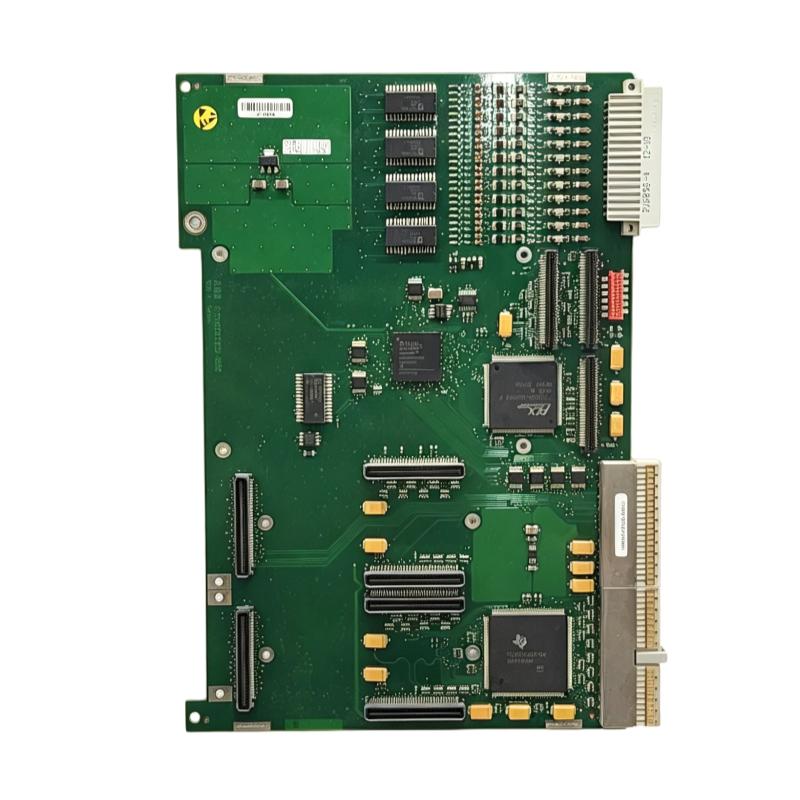

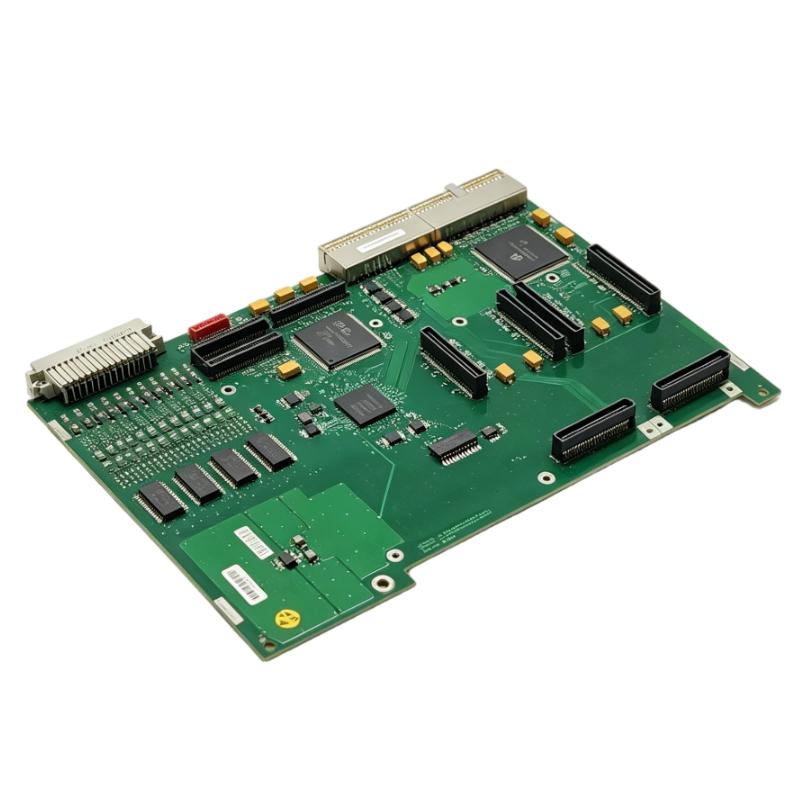

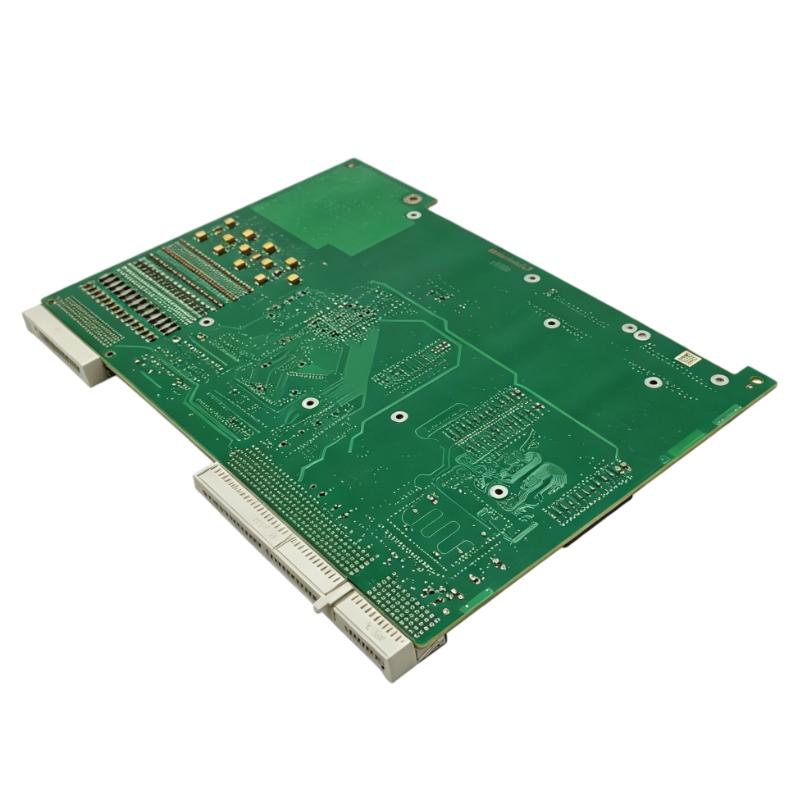

The ABB 1MRK002133-AC is an Analog-To-Digital Conversion Module, also designated as an ADM. Its primary function is to acquire analog measurement signals and convert them into digital data that can be processed by the protection and control system. The module is designed for applications such as electrical measurement, protection, monitoring, and substation automation, where accurate acquisition of analog signals is required.

2. How many channels does the 1MRK002133-AC provide?
The 1MRK002133-AC provides 12 channels. The multi-channel design allows several analog measurement signals to be processed within the same protection and control system. This makes the module suitable for applications where multiple electrical quantities need to be acquired and made available to the numerical processing and protection functions of the host IED.

3. Does the 1MRK002133-AC support time synchronization?
Yes. The 1MRK002133-AC is specified as an analog digital conversion module with time synchronization. Time synchronization is particularly important in power protection and automation applications because measurement data from different channels or devices may need to be associated with a common time reference. This helps improve the coordination and analysis of protection and monitoring functions.

4. What type of signals does the 1MRK002133-AC process?
The module is designed to process analog measurement signals and convert them into digital information for use by the host protection and control system. The actual signal source and measurement configuration depend on the associated transformer input modules, system hardware, and IED configuration. Engineers should verify the complete hardware configuration before connecting field measurement circuits.

5. Where is the ABB 1MRK002133-AC normally installed?
The module is installed in the designated module position of a compatible ABB protection and control IED. It operates as part of the IED’s internal analog measurement and processing architecture rather than functioning as a standalone general-purpose PLC analog input module. Correct installation should follow the hardware configuration and module-position requirements of the host ABB system.

6. What is the role of the 1MRK002133-AC in a protection system?
The module provides the conversion stage between analog measurement signals and the digital processing system. After analog values are acquired and converted, the resulting digital information can be used by protection algorithms, measurement functions, monitoring logic, and automation functions. Reliable analog-to-digital conversion is therefore important for maintaining accurate system measurements and dependable protection operation.

7. What should be checked if the 1MRK002133-AC reports abnormal measurement values?
Troubleshooting should begin with the complete measurement chain rather than immediately replacing the module. Check the associated transformer input module, field wiring, terminal connections, signal source, grounding, and measurement configuration. The IED’s diagnostic information should then be reviewed for channel-related faults or module errors. If the external measurement circuit is confirmed to be normal, the ADM module and its connection to the system backplane should be inspected according to the applicable maintenance procedure.

8. What should be checked before commissioning the 1MRK002133-AC?
Before commissioning, verify that the 1MRK002133-AC is the correct hardware option for the host ABB protection and control IED and that it is installed in the specified module position. Check the associated analog measurement circuits, transformer input configuration, wiring, grounding, and channel assignments. After system startup, verify that all configured measurement channels provide reasonable values and that time synchronization and diagnostic functions operate correctly before the protection system is placed into normal service.
