1. What is the ABB 1MRK002266-BA Optical Ethernet Module used for?

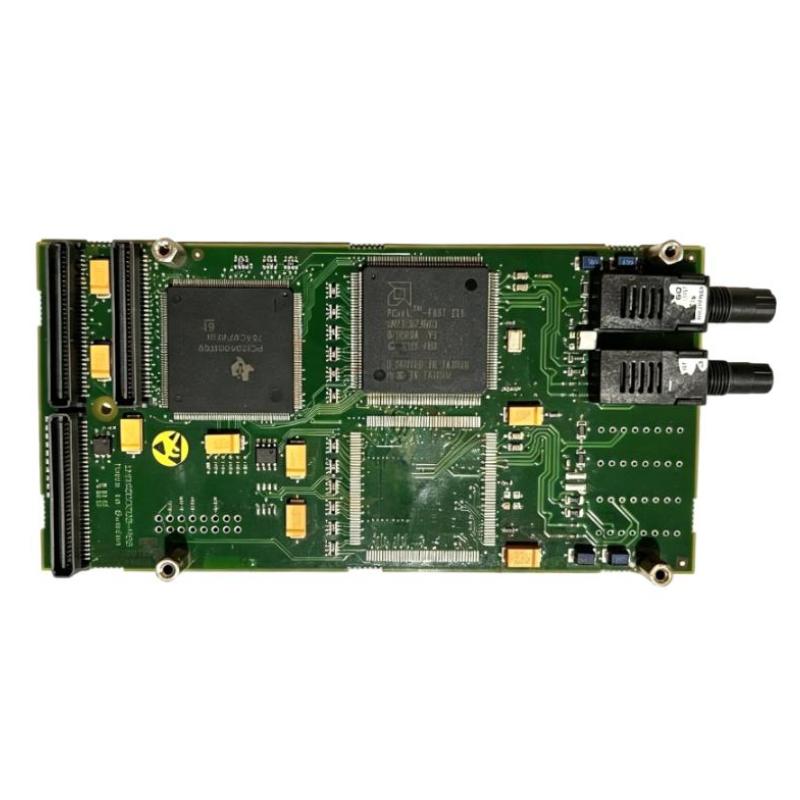

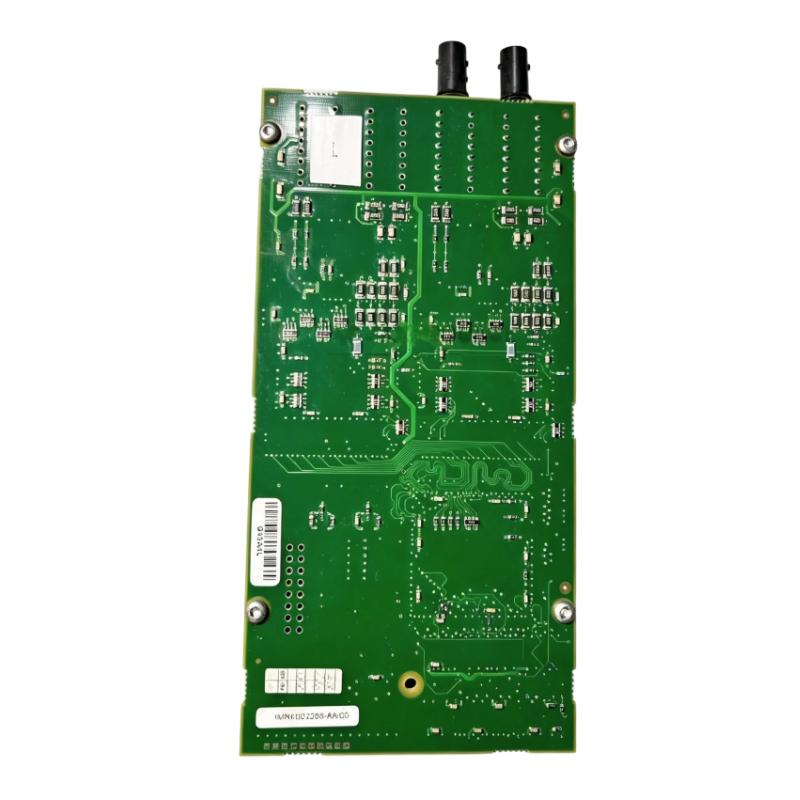

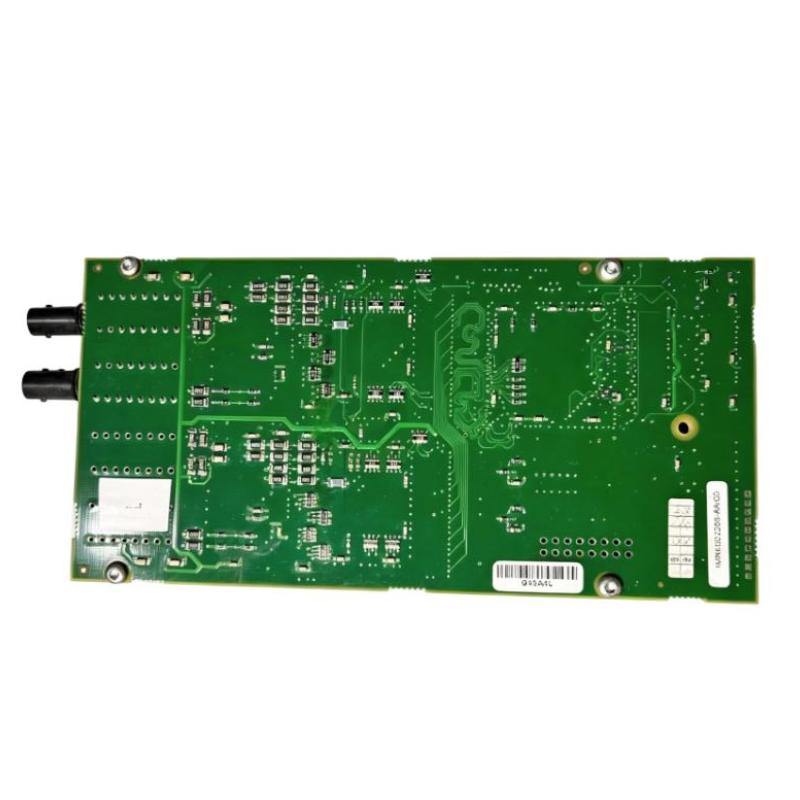

The ABB 1MRK002266-BA is an Optical Ethernet Module designed to provide fiber-optic Ethernet communication for compatible ABB protection and control systems. It can be used to exchange operational data between protection IEDs, control equipment, and station-level automation systems. The module is particularly suitable for substation environments where reliable communication and electrical isolation are important requirements.

2. How many optical communication interfaces does the 1MRK002266-BA provide?
The 1MRK002266-BA is configured with two glass-fiber optical interfaces. This configuration allows the module to be integrated into network architectures that require two optical communication connections. When replacing an existing module, the complete ordering number should be checked carefully because different Optical Ethernet Module variants may have different interface configurations.

3. Which communication standards are associated with the ABB 1MRK002266-BA?
The 1MRK002266-BA is associated with IEC 61850-8-1 and IEC 61850-9-2 communication applications. These standards are widely used for Ethernet-based communication in substation automation systems. Depending on the host IED, software configuration, and installed options, the module can support communication functions required for exchanging protection and control information within an IEC 61850-based system.

4. Which ABB protection and control systems can use the 1MRK002266-BA?
The module is intended for compatible ABB protection and control IED configurations. It is associated with ABB substation automation equipment and can be used in applicable Relion protection and control system configurations. Before installation, engineers should verify the exact host device model, hardware revision, firmware requirements, communication options, and approved module position to ensure that the 1MRK002266-BA is suitable for the intended application.

5. What are the advantages of using the 1MRK002266-BA for substation communication?
The main advantage is the use of fiber-optic Ethernet for communication. Optical transmission provides electrical isolation between connected equipment and has strong resistance to electromagnetic interference. This is valuable in substations and industrial control environments where high-voltage equipment, switching operations, and power cables can create significant electrical noise. The optical interface also supports reliable Ethernet-based communication between protection and automation devices.

6. Can the 1MRK002266-BA be used in an IEC 61850 substation automation network?
Yes, the module is intended for optical Ethernet communication in compatible ABB protection and control systems and is associated with IEC 61850 communication applications. When used in an IEC 61850 network, the complete system configuration should be checked, including the IED communication settings, network topology, IP parameters, IEC 61850 configuration, and required communication services. Correct configuration of both the hardware and engineering software is essential for reliable communication.

7. What should be checked if communication through the 1MRK002266-BA is interrupted?
Troubleshooting should begin with the physical communication path. Check that the optical connectors are properly seated and that the fiber cables are not damaged, contaminated, excessively bent, or incorrectly connected. Next, check the network equipment, link status, communication parameters, IP configuration, and IED diagnostic information. For an IEC 61850 application, engineers should also verify the configured communication services and network settings. If the problem remains, testing the fiber link and comparing the module with a known-good communication path can help isolate whether the problem is related to the module, fiber connection, network equipment, or system configuration.

8. What should be checked before commissioning the ABB 1MRK002266-BA?
Before commissioning, confirm that the 1MRK002266-BA is the correct ordering variant for the host ABB IED and that it is installed in the specified communication module position. Inspect the optical interfaces and fiber cables, verify the network topology, and check all required communication parameters. For IEC 61850 applications, confirm that the engineering configuration corresponds correctly with the actual IED and network configuration. After powering the system, monitor communication diagnostics and network status, verify stable data exchange, and perform functional communication tests before placing the protection or automation system into normal service.
