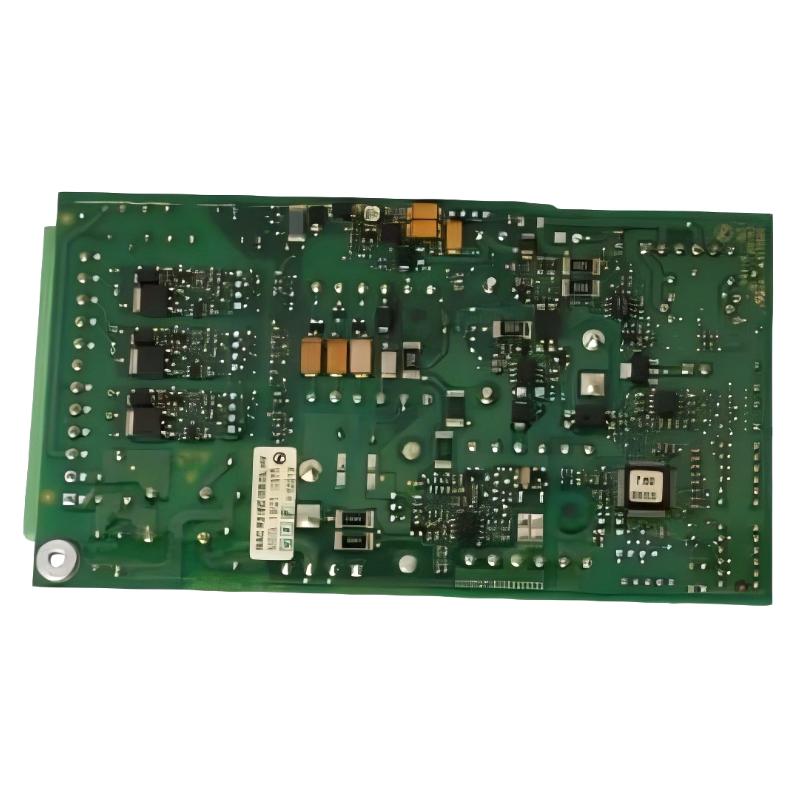

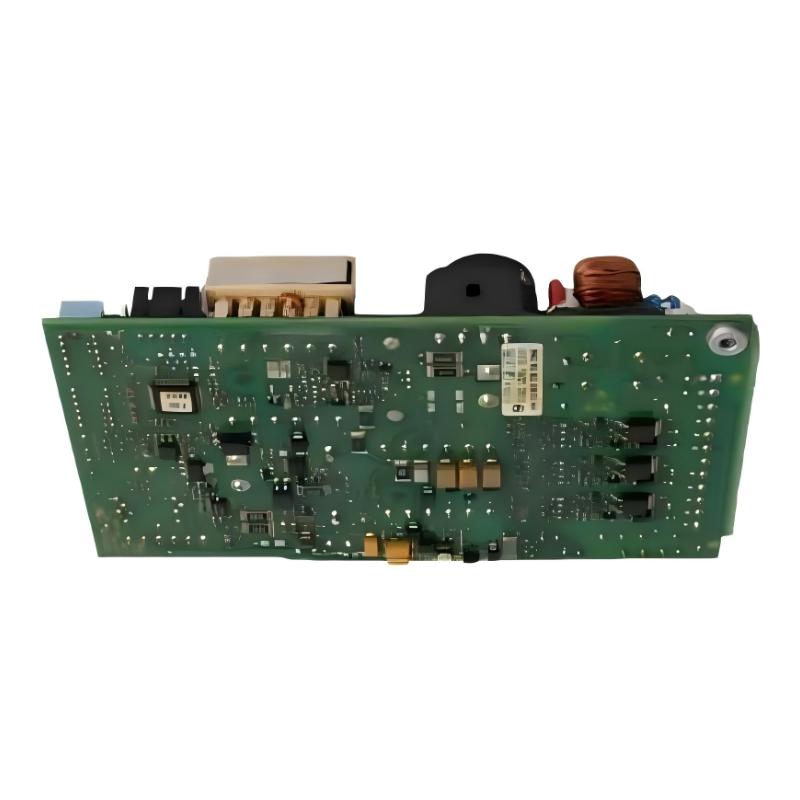

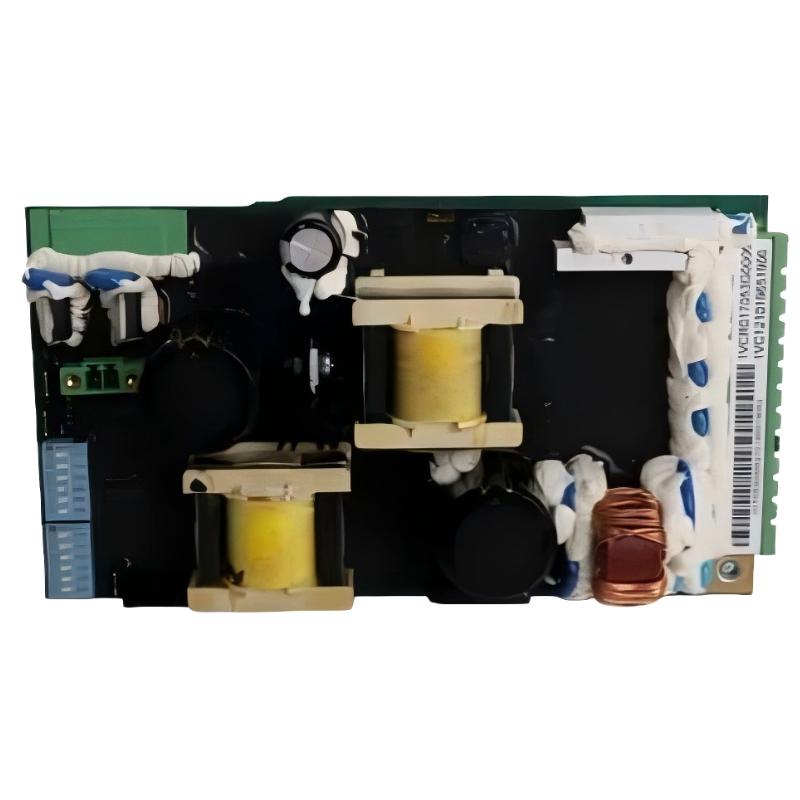

ABB 1VCR017053G0006 Power Supply Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 1VCR017053G0006 |
| Product Type | Power Supply Board |
| Applicable Equipment | ABB V-Contact VSC Medium-Voltage Vacuum Contactors |
| Product Function | Provides regulated power and control functions for the VSC contactor system |
| Input Voltage Range | AC 150–280 V |
| Rated System Voltage | Up to 12 kV |
| Rated Current | Up to 400 A |
| Breaking Capacity | 6 kA unfused; up to 50 kA with appropriate SCPD |
| Rated Frequency | 50 Hz |
| Control Function | Power supply and control of the vacuum contactor operating mechanism |
| Actuator Control | Supports bistable magnetic actuator operation |
| Energy Storage | Capacitor-based energy storage for switching operations |
| Protection | Designed for power-control and switching applications in VSC contactor systems |
| Typical Applications | Motor starting, transformer switching, capacitor bank control and medium-voltage power distribution |
| Mounting | Installed inside the compatible V-Contact VSC contactor assembly |
| Dimensions | 200 × 120 × 50 mm |
| Weight | 0.55 kg |
FAQ
1. What is the ABB 1VCR017053G0006 Power Supply Board used for?
The ABB 1VCR017053G0006 is a dedicated power supply board for ABB V-Contact VSC medium-voltage vacuum contactor systems. It provides the required control power and supports the electronic control functions associated with contactor switching. It is used as an internal control component rather than as a general-purpose industrial power supply.
2. Which equipment is compatible with the 1VCR017053G0006?
The 1VCR017053G0006 is designed for ABB V-Contact VSC series medium-voltage vacuum contactors. Compatibility should be checked against the exact VSC contactor model and system configuration before replacement, because control boards are normally matched to specific contactor architectures and operating circuits.
3. What is the input voltage range of the 1VCR017053G0006?
Available technical information identifies an AC input range of approximately 150–280 V for this power supply board. The board is designed to provide stable internal operating power for the VSC contactor control system. The actual auxiliary supply arrangement should always be checked against the equipment nameplate and applicable ABB documentation before energizing the board.
4. What is the relationship between the power supply board and the VSC contactor?
The board forms part of the electronic control system inside the VSC contactor assembly. It manages the electrical power required by the control and operating mechanism, allowing the vacuum contactor to execute opening and closing commands. A failure of the board can therefore prevent normal contactor operation even when the medium-voltage switching section itself is mechanically intact.
5. Does the 1VCR017053G0006 control a bistable magnetic actuator?
Yes. The board is associated with the bistable magnetic actuator used by V-Contact VSC contactors. In this type of operating mechanism, electrical energy is primarily required during switching transitions, while the magnetic mechanism maintains the contactor state. The power supply and control circuitry therefore play an important role in generating the correct operating sequence.
6. What are common symptoms of a faulty 1VCR017053G0006?
Typical symptoms may include failure of the VSC contactor to close or open correctly, loss of control power, abnormal control indications, or failure of the operating mechanism to respond to a valid command. Before replacing the board, the auxiliary supply, wiring, control signals, connectors, and associated actuator circuit should be checked to distinguish a board fault from an external problem.
7. What precautions are required when replacing the 1VCR017053G0006?
Replacement should only be performed by qualified personnel following the applicable medium-voltage safety procedures. The equipment must be isolated from the relevant power sources, and stored electrical energy in the control circuitry should be allowed to discharge before the board is handled. Proper ESD protection should also be used because the board contains electronic components that can be damaged by electrostatic discharge.
8. Where is the 1VCR017053G0006 typically used?
The board is used in medium-voltage switching applications based on ABB V-Contact VSC vacuum contactors. Typical applications include industrial motor starting, transformer switching, capacitor-bank control and other medium-voltage power distribution systems where reliable electronic control of vacuum contactors is required.
ABB 1VCR017053G0006 Power Supply Board is in stock. Please contact us for a quick quote and competitive pricing.
