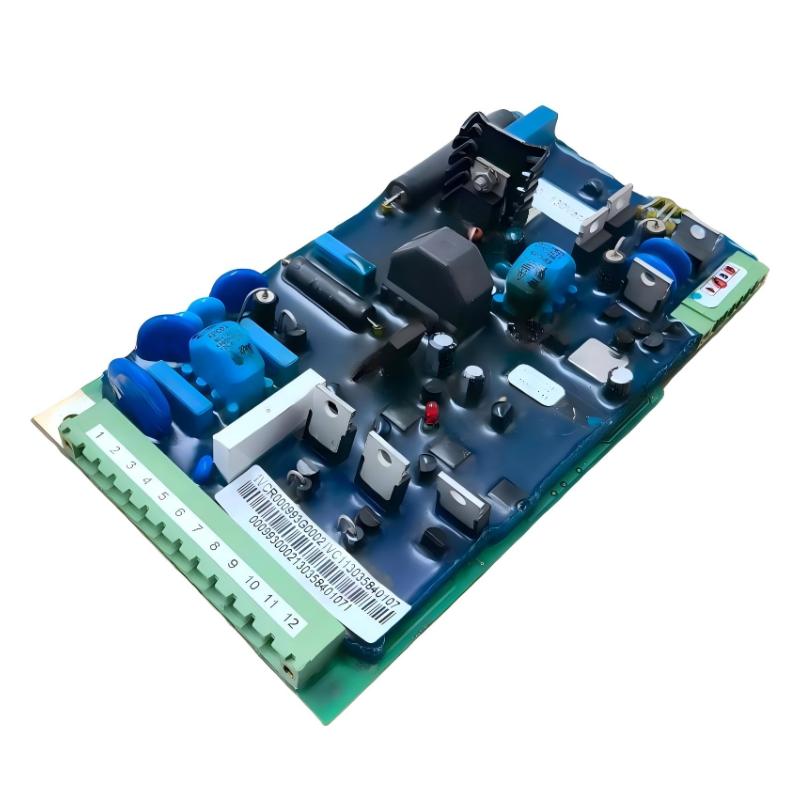

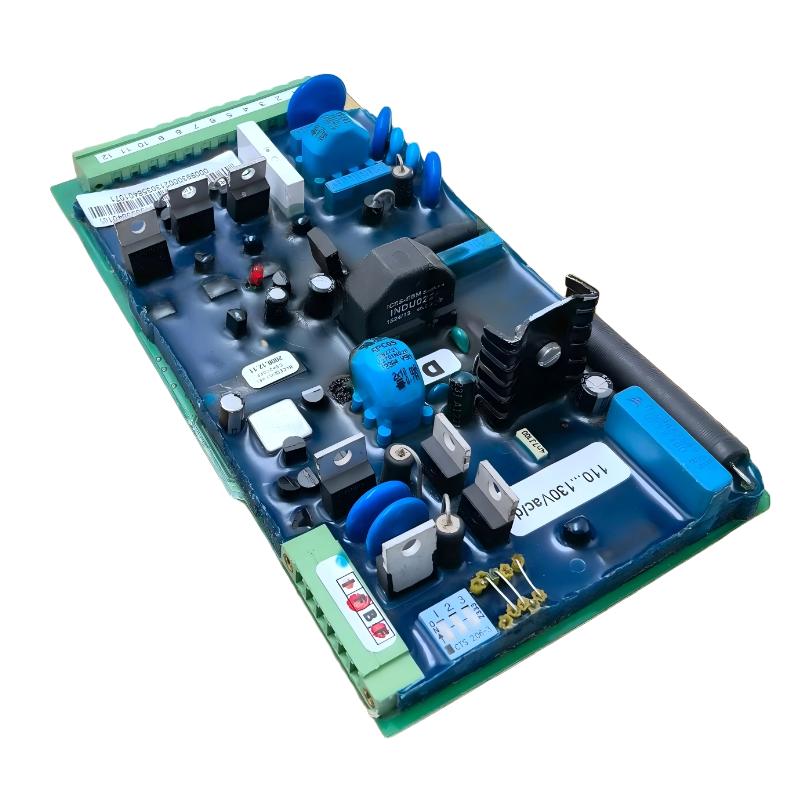

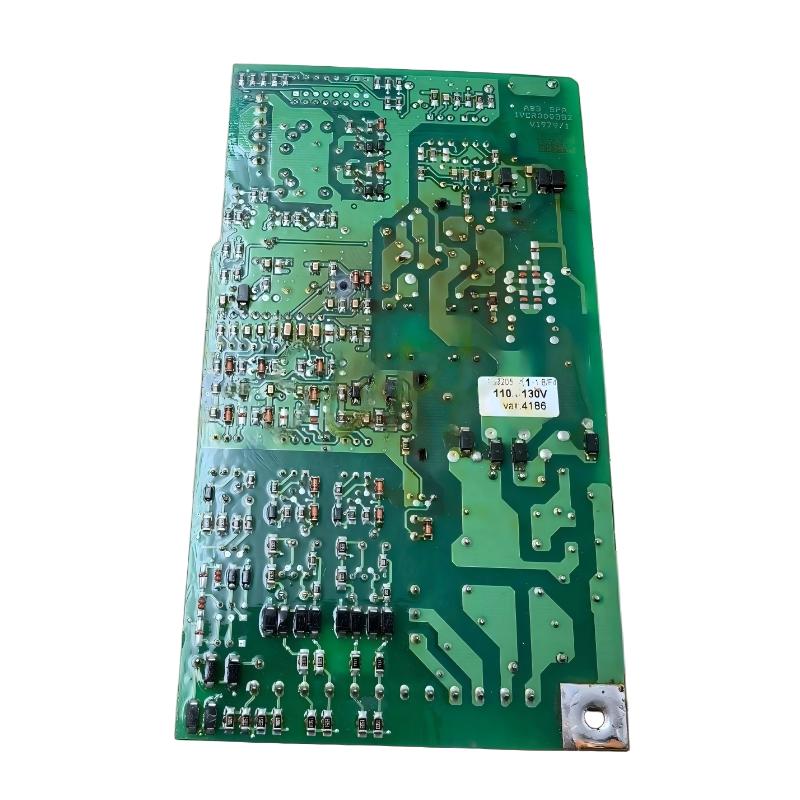

ABB 1VCR000993G0002 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 1VCR000993G0002 |
| Product Type | Power Supply Module |
| Product Function | Provides regulated DC power for industrial control and automation equipment |
| Input Voltage | 85–264 V AC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 V DC |
| Output Current | 10 A |
| Rated Output Power | 240 W |
| Output Regulation | ±1% |
| Line Regulation | ±0.5% |
| Ripple & Noise | <150 mV p-p |
| Efficiency | ≥92% |
| Inrush Current | <30 A at 230 V AC |
| Overvoltage Protection | 28 V DC |
| Overcurrent Protection | 110–130% of rated output current |
| Operating Temperature | -25 to +70°C |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Isolation Voltage | 2.5 kV |
| Installation | Installed in the compatible control equipment or electrical cabinet |
| Typical Application | Industrial automation, control systems and power electronics |
| Dimensions | 160 × 100 × 35 mm |
| Weight | 0.4 kg |
FAQ
1. What is the ABB 1VCR000993G0002 Power Supply Module used for?
The ABB 1VCR000993G0002 is a dedicated industrial power supply module designed to convert the incoming AC supply into regulated 24 V DC power. It can provide stable auxiliary power for control electronics and other compatible industrial equipment where a reliable DC supply is required.
2. What are the input and output specifications of the 1VCR000993G0002?
The module accepts an input voltage of 85–264 V AC at 47–63 Hz and provides a regulated 24 V DC output. The rated output current is 10 A, corresponding to a rated output power of 240 W. The wide input range allows the module to accommodate different AC supply conditions within its specified operating range.
3. Does the 1VCR000993G0002 provide protection against overvoltage and overcurrent?
Yes. The module includes output protection functions designed to protect the power supply and connected electronics. The overvoltage protection level is specified at approximately 28 V DC, while overcurrent protection operates at approximately 110–130% of the rated output current.
4. What is the output stability of the ABB 1VCR000993G0002?
The module is designed to provide a regulated 24 V DC output. The available technical specifications indicate approximately ±1% load regulation and ±0.5% line regulation. Ripple and noise are specified below 150 mV peak-to-peak, which helps maintain a relatively clean DC supply for sensitive control electronics.
5. What should be checked if the 1VCR000993G0002 has no 24 V DC output?
First check whether the AC input voltage is within the specified 85–264 V AC range and whether the input wiring and protective devices are functioning correctly. Then check the output terminals and connected load for short circuits or excessive current demand. If the input is normal but the output remains absent or unstable after removing the external load, the power supply module itself may require further testing or replacement.
6. Can the 1VCR000993G0002 operate continuously in an industrial environment?
The module is intended for industrial applications and has a specified operating temperature range of approximately -25 to +70°C. Proper ventilation and installation are still important because excessive ambient temperature, restricted airflow, dust accumulation, or continuous operation close to the maximum load can increase thermal stress on the power supply.
7. What precautions should be taken when replacing the 1VCR000993G0002?
Before replacement, isolate the incoming AC power and verify that the equipment is in a safe maintenance state. Confirm that the DC output has discharged to a safe level, identify all input and output terminals, and compare the replacement module with the original part number. After installation, check polarity, wiring, input voltage and output voltage before reconnecting the complete load.
8. What are common causes of instability or shutdown of the 1VCR000993G0002?
Possible causes include an input voltage outside the specified range, excessive output current, a short circuit on the 24 V DC load, high ambient temperature, inadequate ventilation, or aging of internal electronic components. A practical troubleshooting sequence is to measure the AC input, disconnect the external load when appropriate, verify the unloaded DC output, and then reconnect the load gradually while monitoring the output voltage.
