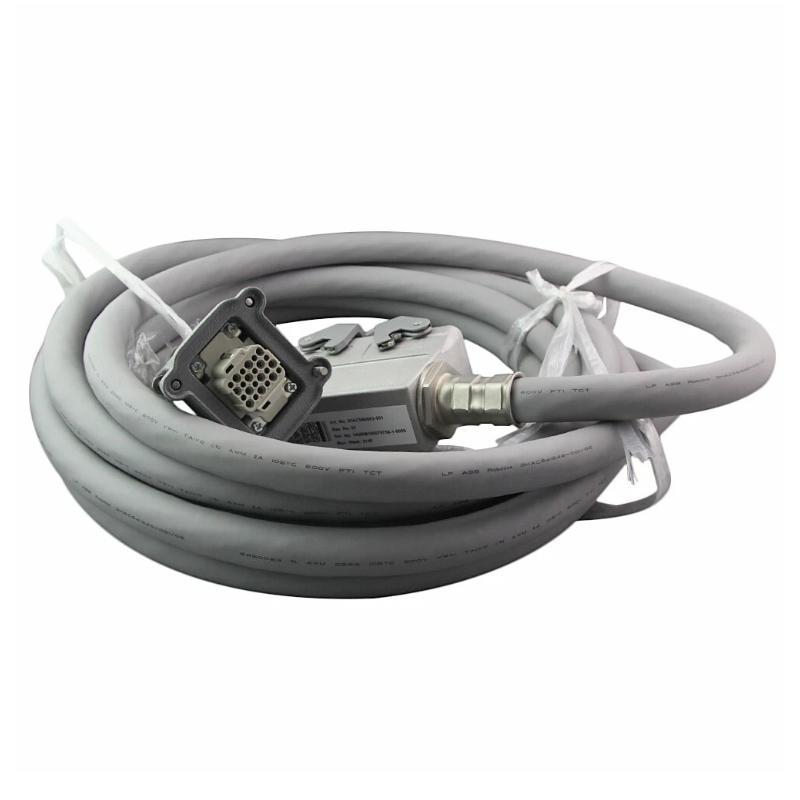

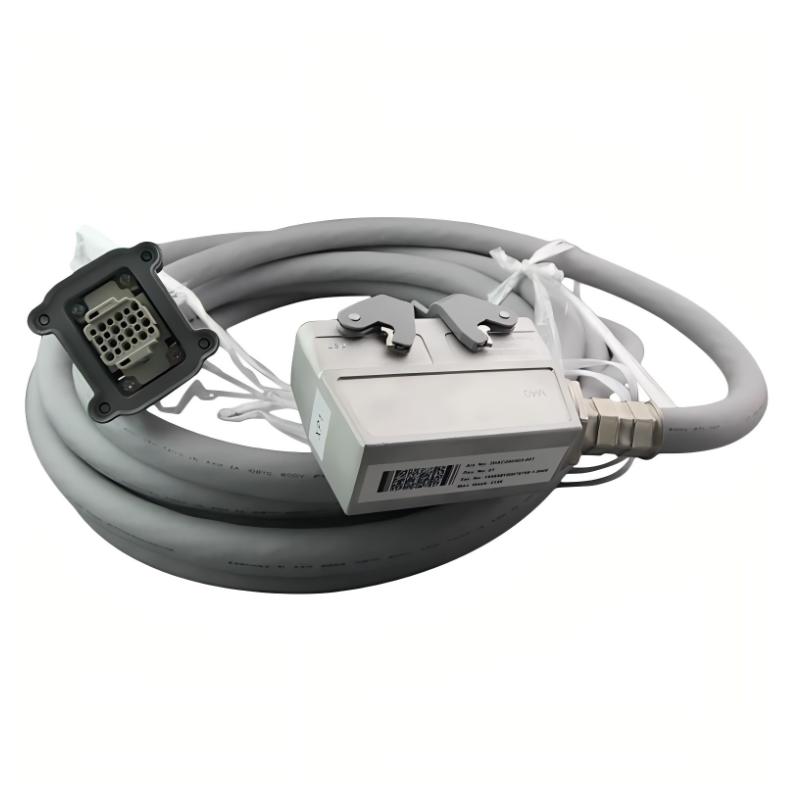

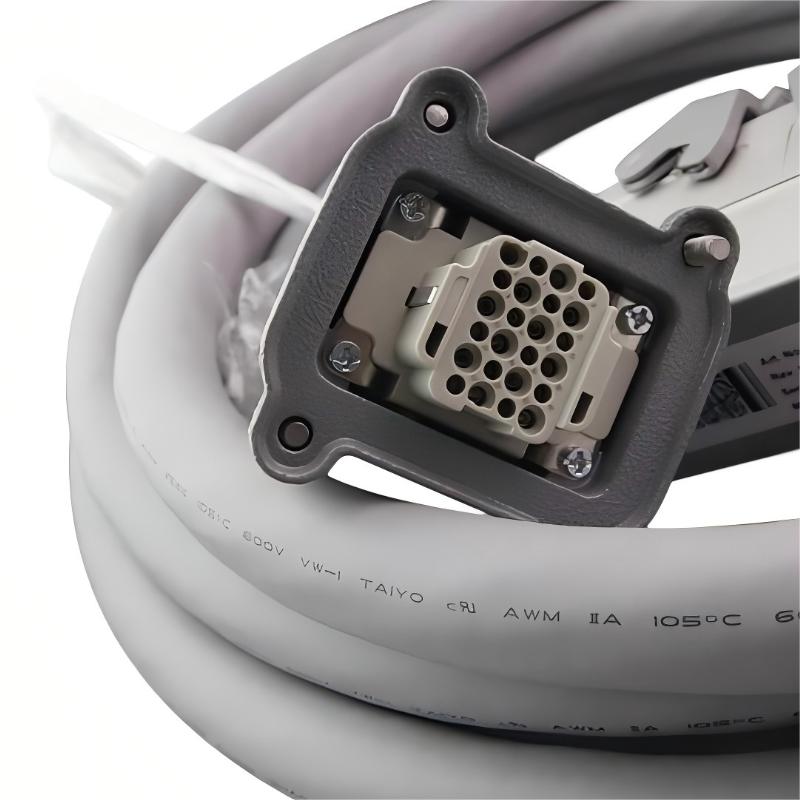

ABB 3HAC040503-001 Control Power Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number | 3HAC040503-001 |
| Brand | ABB |
| Product Type | Control Power Cable |
| Product Description | Control Cable Power 7 m |
| Cable Type | Robot Control Power Cable |
| Cable Length | 7 meters |
| Application | ABB industrial robot power connection |
| Compatible Robot Series | ABB IRB 1200, IRB 1510 and IRB 1520 |
| Controller Compatibility | ABB IRC5 Controller |
| Option Number | 210-2 |
| Main Function | Transfers drive power between the IRC5 controller and robot manipulator |
| Connection | Robot controller to robot power interface |
| Installation | Robot controller cabinet to manipulator connection |
| Typical Application | Industrial robotics, robot motion control, material handling, welding and automated production |
| Related Cable Lengths | 3 m, 15 m, 22 m and 30 m versions are available under different part numbers |
| Spare Part Category | ABB Robotics Spare Part |
| Weight | 7.7 kg |
FAQ
Q1: What is the ABB 3HAC040503-001 used for?
The ABB 3HAC040503-001 is a 7-meter robot control power cable used to connect an ABB IRC5 controller with the robot manipulator and transfer drive power required for robot operation.
Q2: Which ABB robot series use the 3HAC040503-001?
The cable is specified for ABB robot configurations including the IRB 1200, IRB 1510 and IRB 1520 series. The exact robot configuration should be checked before replacement.
Q3: Is the 3HAC040503-001 compatible with an ABB IRC5 controller?
Yes. The 3HAC040503-001 is a control power cable intended for IRC5 controller configurations. It provides the power connection between the controller and the robot manipulator.
Q4: What is the standard cable length of the 3HAC040503-001?
The standard cable length is 7 meters and corresponds to ABB option number 210-2. Other lengths, such as 3 m, 15 m, 22 m and 30 m, use different article numbers and option numbers.
Q5: What is the main function of the 3HAC040503-001?
Its primary function is to transfer drive power from the robot controller to the manipulator. A correct power connection is required for the robot axes and associated drive system to operate properly.
Q6: What should be checked before installing the 3HAC040503-001?
Confirm the robot model, controller type, article number, cable length, connectors and installation routing. The cable should be matched to the specific robot and controller configuration before installation.
Q7: What precautions should be taken when routing the 3HAC040503-001?
Avoid sharp bends, excessive pulling, crushing, twisting and repeated mechanical stress. For static floor cable installation, the minimum bending radius should be maintained at 10 times the cable diameter to reduce the risk of cable damage.
Q8: What are common causes of faults with the 3HAC040503-001?
Common problems include damaged connectors, loose connections, conductor damage, insulation wear, excessive bending and mechanical abrasion. During troubleshooting, inspect both connection points and the complete cable routing before replacing the cable.
ABB 3HAC040503-001 Control Power Cable is in stock. Please contact us for a quick quote and competitive pricing.
