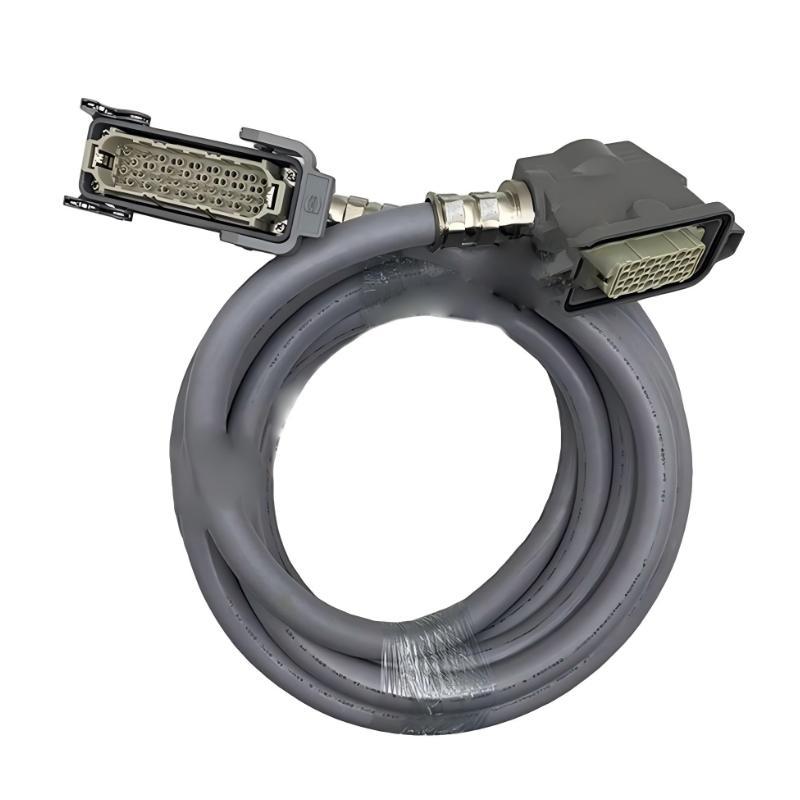

ABB 3HAC9038-1 Control Power Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Order Number | 3HAC9038-1 |
| Brand | ABB |
| Product Type | Control Power Cable |
| Product Description | Control Cable Power 7 m |
| Cable Type | Robot Control Power Cable |
| Cable Length | 7 meters |
| Application | ABB industrial robot power connection |
| Compatible Robot Series | ABB IRB 1400, IRB 1600, IRB 2400 and IRB 260 configurations |
| Controller Compatibility | ABB IRC5 controller systems |
| Application Variant | Standard / Foundry / Wash configurations depending on robot system |
| Option Number | 210-2 |
| Foundry Option | 287-3 |
| Wash Option | 287-5 |
| Main Function | Transfers drive power between the robot controller and manipulator |
| Connection | Robot controller to robot power interface |
| Installation | Controller cabinet to robot manipulator |
| Typical Application | Industrial robotics, robot motion control, material handling, welding and automated production |
| Related Cable Lengths | 15 m, 22 m and 30 m versions are available under different part numbers |
| Cable Selection | Must be matched to the robot connection interface and system configuration |
| Weight | 7.665 kg |
FAQ
Q1: What is the ABB 3HAC9038-1 used for?
The ABB 3HAC9038-1 is a 7-meter control power cable used to provide the power connection between an ABB robot controller and the robot manipulator.
Q2: Which ABB robot series can use the 3HAC9038-1?
The cable is used with ABB robot configurations including IRB 1400, IRB 1600, IRB 2400 and IRB 260. The exact compatibility depends on the robot model and connection interface.
Q3: What is the standard cable length of the 3HAC9038-1?
The cable length is 7 meters. ABB also provides 15-meter, 22-meter and 30-meter versions under the 3HAC9038-2, 3HAC9038-3 and 3HAC9038-4 part numbers.
Q4: What is the difference between the Standard, Foundry and Wash applications?
The 3HAC9038-1 is used in different robot installation environments. Foundry and Wash configurations are intended for applications with specific environmental or installation requirements. The correct option should be selected according to the robot configuration and application environment.
Q5: What option numbers are associated with the 3HAC9038-1?
The 7-meter cable corresponds to option number 210-2. For relevant Foundry configurations, option 287-3 is used, while Wash configurations can use option 287-5 depending on the robot system.
Q6: Why must the robot connection interface be checked before installing the cable?
ABB robot cable selection can depend on the manipulator connection interface and the production date or configuration of the robot. Using the correct cable ensures that the controller and manipulator power interfaces are properly matched.
Q7: What should be checked before replacing the 3HAC9038-1?
Check the complete part number, robot model, controller configuration, connection interface, cable length and application environment. For Foundry or Wash applications, confirm the corresponding option configuration before ordering a replacement.
Q8: What are common causes of faults with the 3HAC9038-1?
Common problems include loose connectors, damaged conductors, insulation wear, excessive bending, mechanical abrasion and poor cable routing. During troubleshooting, inspect the controller-side and manipulator-side connections as well as the complete cable path.
ABB 3HAC9038-1 Control Power Cable is in stock. Please contact us for a quick quote and competitive pricing.
