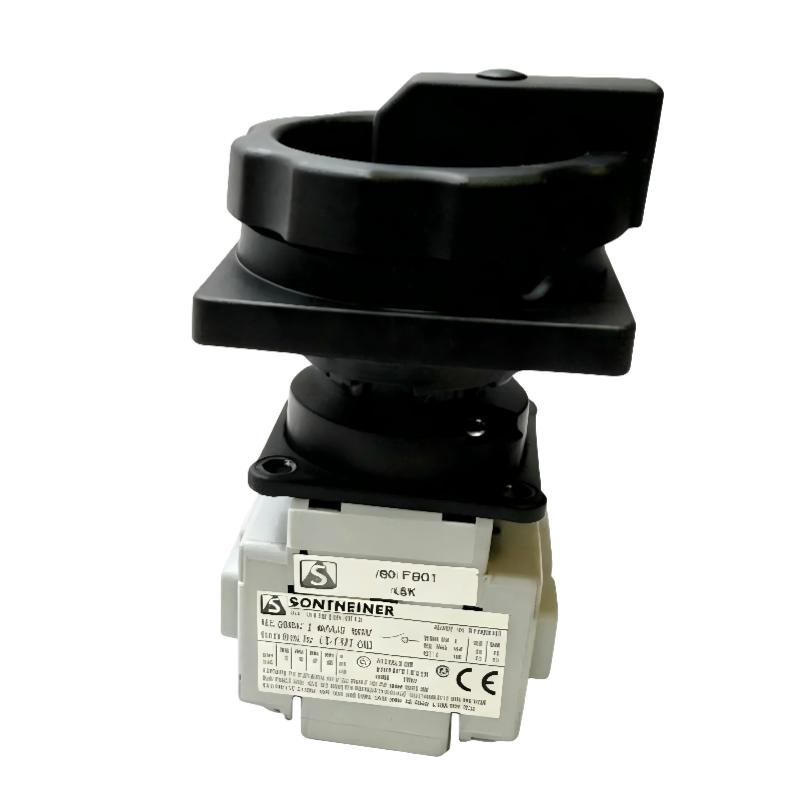

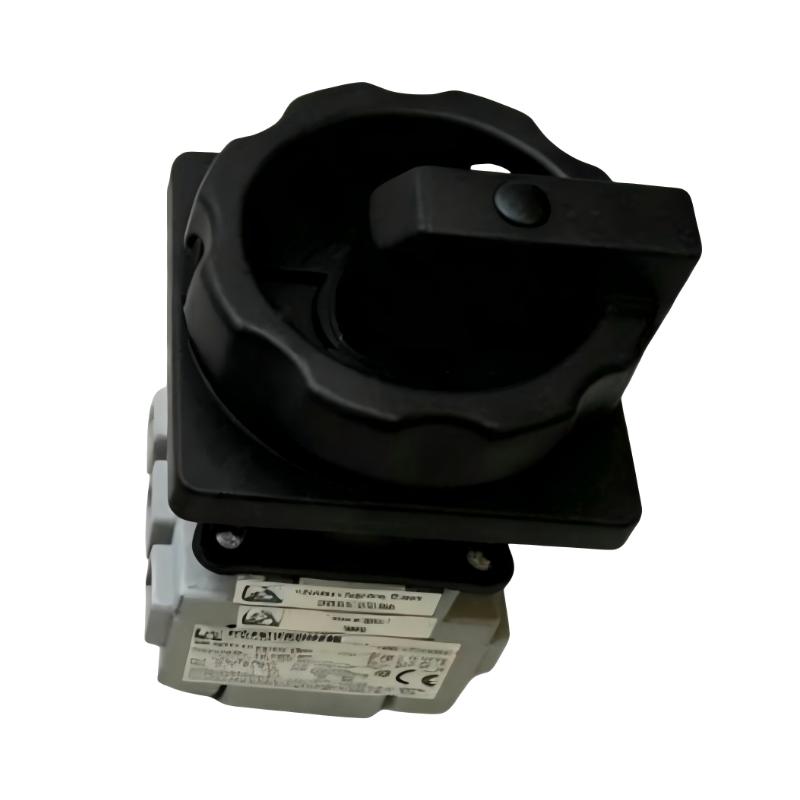

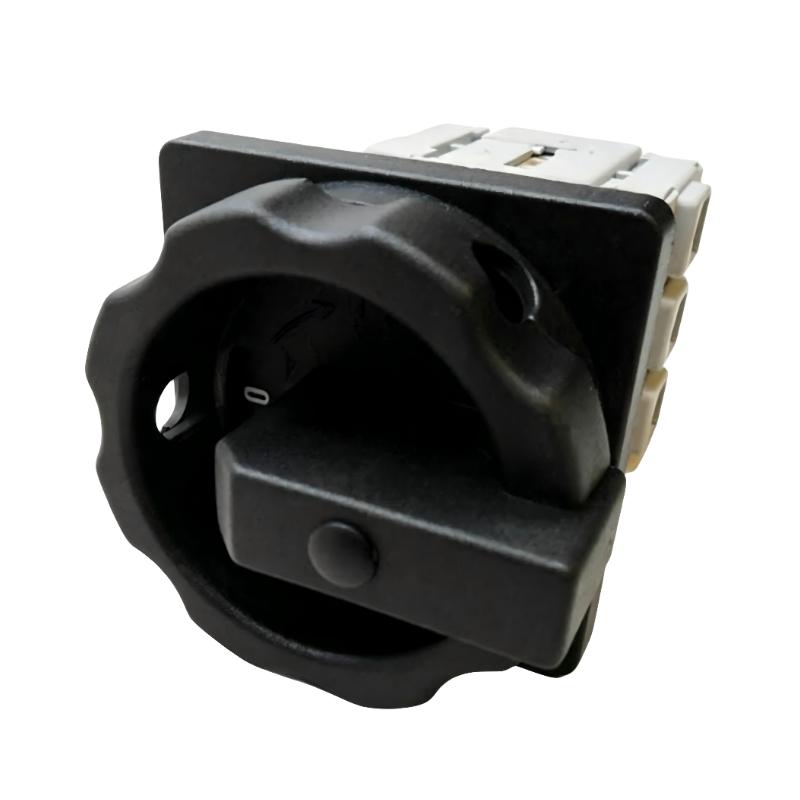

ABB 3HAC8253-1 Three-Phase Main Switch
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Ordering Number | 3HAC8253-1 |
| Product Type | Three-Phase Main Switch |
| Switch Type | 3-Phase Main Switch |
| Rated Current | 40 A |
| Number of Poles | 3 |
| Main Function | Main power isolation and switching for three-phase electrical supply |
| Application | ABB industrial robot control systems |
| Typical Application | Robot controller main power circuit |
| Switching Function | Manual ON/OFF power switching |
| Installation | Electrical control cabinet |
| Electrical Component Type | Main isolating switch |
| Auxiliary Contacts | Not included in the standard 3HAC8253-1 configuration |
| Operation | Manual mechanical operation |
| Maintenance | Inspect terminals, contacts, wiring, insulation and mechanical operation |
| Replacement Requirement | Verify ordering number, current rating, pole configuration and cabinet wiring |
| Dimensions | 380 × 120 × 200 mm |
| Weight | 1.36 kg |
FAQ
1. What is the main function of the ABB 3HAC8253-1?
The 3HAC8253-1 is a three-phase main switch used to manually connect or isolate the main electrical supply of an ABB robot control system. It provides a convenient means of disconnecting the controller from the incoming three-phase power during maintenance or servicing.
2. What is the rated current of the 3HAC8253-1?
The 3HAC8253-1 is a 40 A three-phase main switch. The connected power circuit should be designed so that the operating current remains within the applicable rating of the switch and associated protection devices.
3. How many poles does the 3HAC8253-1 have?
The standard 3HAC8253-1 is a 3-pole switch, allowing the three phases of the main supply to be switched together. Correct phase connection is important when installing the switch in an ABB robot control cabinet.
4. Where is the 3HAC8253-1 typically installed?
It is typically installed in the main power circuit of an ABB industrial robot controller or associated electrical control cabinet. It serves as the primary manual switching and isolation point for the three-phase supply.
5. What symptoms may indicate a faulty 3HAC8253-1?
Common signs include intermittent power loss, failure to maintain a stable connection, abnormal heating at the terminals, visible contact damage, difficulty operating the switch mechanism, or loss of one phase. Loose terminals should also be considered during troubleshooting.
6. How should the 3HAC8253-1 be checked during maintenance?
After isolating the power supply, inspect the switch body, terminals and wiring for overheating, discoloration, loose connections or insulation damage. The mechanical ON/OFF operation should also be checked for smooth and reliable movement. Electrical continuity can be verified with suitable test equipment when the circuit is safely de-energized.
7. Can the 3HAC8253-1 be replaced directly with another three-phase switch?
Replacement should not be based only on appearance or the number of poles. The replacement must match the 40 A current rating, three-phase configuration, electrical characteristics, mounting arrangement and cabinet wiring. The ABB ordering number should be checked before installation.
8. What safety precautions are required when servicing the 3HAC8253-1?
The incoming three-phase power must be completely isolated before servicing. Lockout/tagout procedures should be followed where applicable, and the absence of hazardous voltage must be verified with an appropriate measuring instrument. After wiring or replacement, all terminals should be checked before the robot controller is re-energized.
ABB 3HAC8253-1 Three-Phase Main Switch is in stock. Please contact us for a quick quote and competitive pricing.
