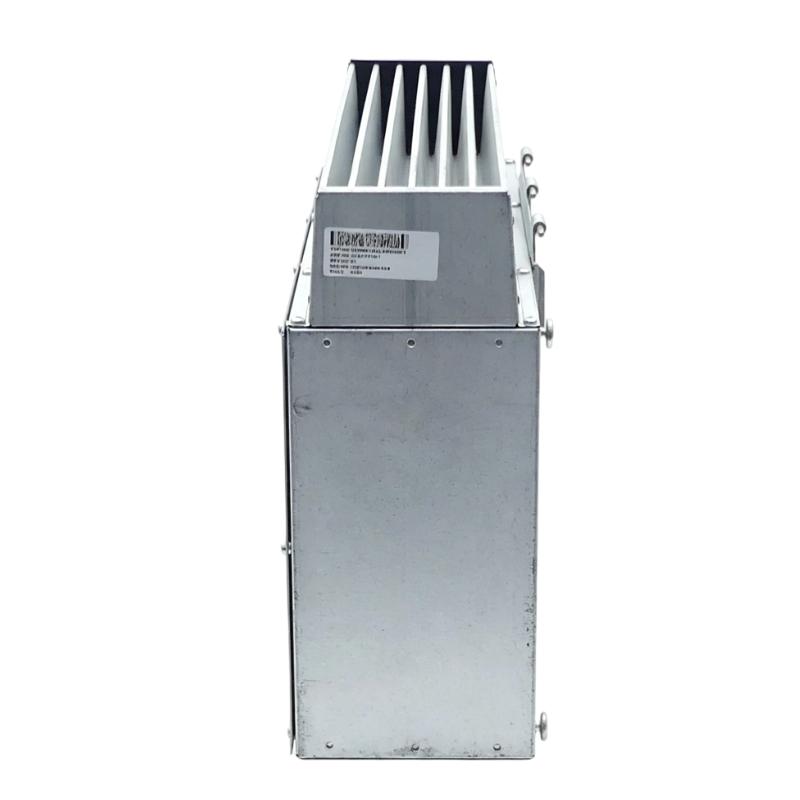

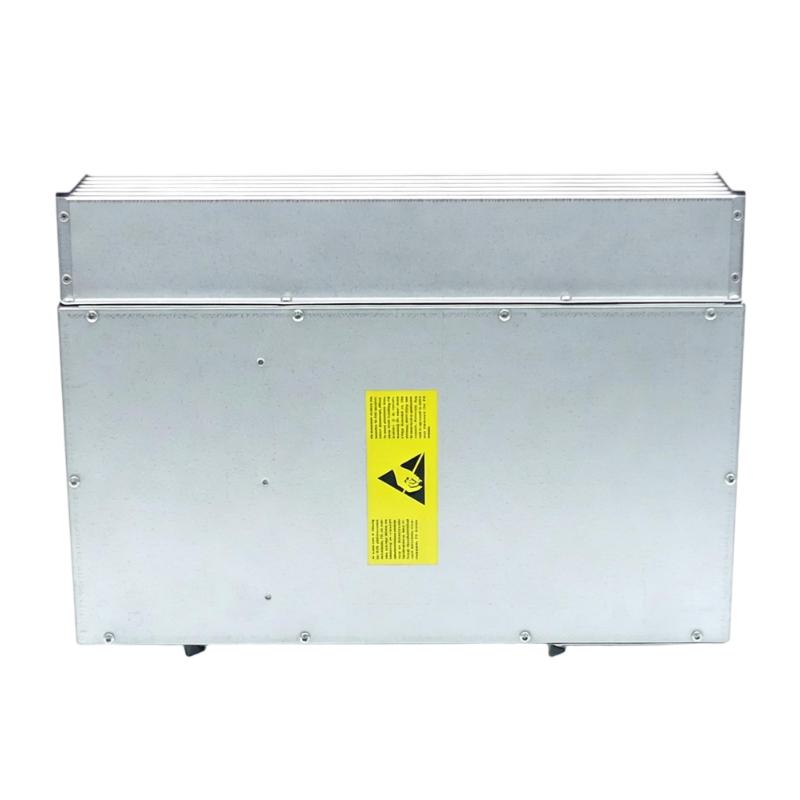

1. What is the main function of the ABB 3HAC9710-1 Heat Exchanger Unit?
The ABB 3HAC9710-1 is a thermal-management component installed in the robot controller cabinet. Its primary purpose is to transfer heat generated by internal electronic components away from the controlled cabinet environment. Maintaining effective heat exchange helps keep the controller operating within an appropriate temperature range and reduces thermal stress on power supplies, control boards, drives, and other heat-sensitive components.

2. Which ABB robot controller systems are associated with the 3HAC9710-1?
The 3HAC9710-1 is associated with ABB S4C+ and early IRC5 robot controller cabinets. It is installed as part of the controller’s cooling arrangement rather than functioning as an independent automation module. Before ordering a replacement, the controller generation and existing heat-exchanger configuration should be checked to ensure the spare part matches the original cabinet design.

3. How does the 3HAC9710-1 work with the robot controller cooling system?
The heat exchanger forms part of the controller’s closed-loop cooling arrangement. Internal cabinet air is circulated through the heat exchanger, where heat is transferred away from the cabinet air and released through the cooling side of the assembly. This arrangement helps limit the accumulation of heat inside the controller without relying solely on direct circulation of unconditioned ambient air through sensitive electronics.

4. What symptoms may indicate a problem with the 3HAC9710-1?
A deteriorated heat exchanger or restricted cooling path can result in gradually increasing cabinet temperature, reduced cooling performance, temperature-related alarms, or controller shutdowns during demanding operation. Other symptoms may include abnormal fan noise, reduced airflow, excessive dust accumulation, or visible contamination around the heat-transfer surfaces. Because these symptoms can also originate from the fan or surrounding cooling system, the complete cooling path should be inspected during troubleshooting.

5. How should the 3HAC9710-1 be inspected during preventive maintenance?
Maintenance should include checking the heat-transfer surfaces for dust, dirt and other contamination that could restrict airflow. The mounting points and associated connections should also be checked for looseness or physical damage. The cooling fan should operate smoothly without unusual noise or vibration. If the controller temperature has increased compared with normal operation, the heat exchanger and fan should be inspected together rather than treating either component as an isolated fault.

6. Can the 3HAC9710-1 be configured through robot controller software?
No. The 3HAC9710-1 is a physical heat-exchange assembly rather than a programmable controller, I/O module or drive. It does not require firmware installation or software parameterization after replacement. The important requirements are correct mechanical installation, proper airflow direction, secure mounting, and correct integration with the controller’s existing cooling arrangement.

7. What can happen if the heat exchanger becomes blocked or heavily contaminated?
Restricted airflow reduces the ability of the cooling system to remove heat from the controller cabinet. As temperature rises, electronic components may operate under greater thermal stress, which can contribute to intermittent faults, temperature alarms, protective shutdowns and reduced component service life. If contamination is severe, simply cleaning the visible surface may not be sufficient; the fan, airflow path and overall controller cooling arrangement should also be checked.

8. What precautions should be taken when replacing the 3HAC9710-1?
The robot controller should be shut down and electrically isolated before replacement. Allow sufficient time for the equipment to reach a safe condition, then remove the existing heat exchanger carefully without damaging the fan connections or surrounding components. The replacement unit should be mounted securely in the correct orientation, with the airflow path unobstructed. After installation, verify fan operation and monitor the controller temperature during startup and normal operation to confirm that cooling performance has returned to the expected level.
