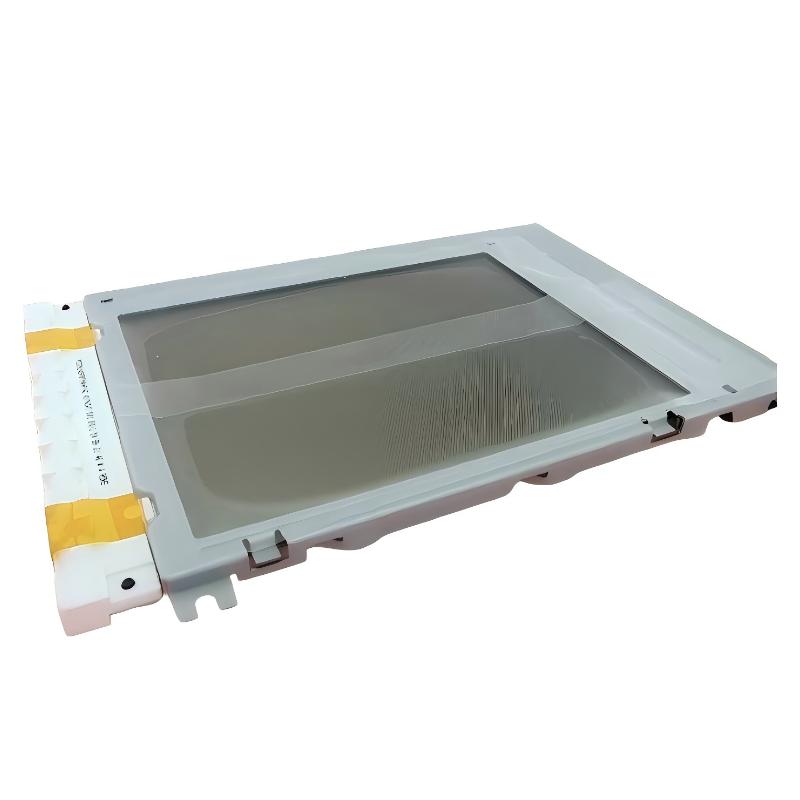

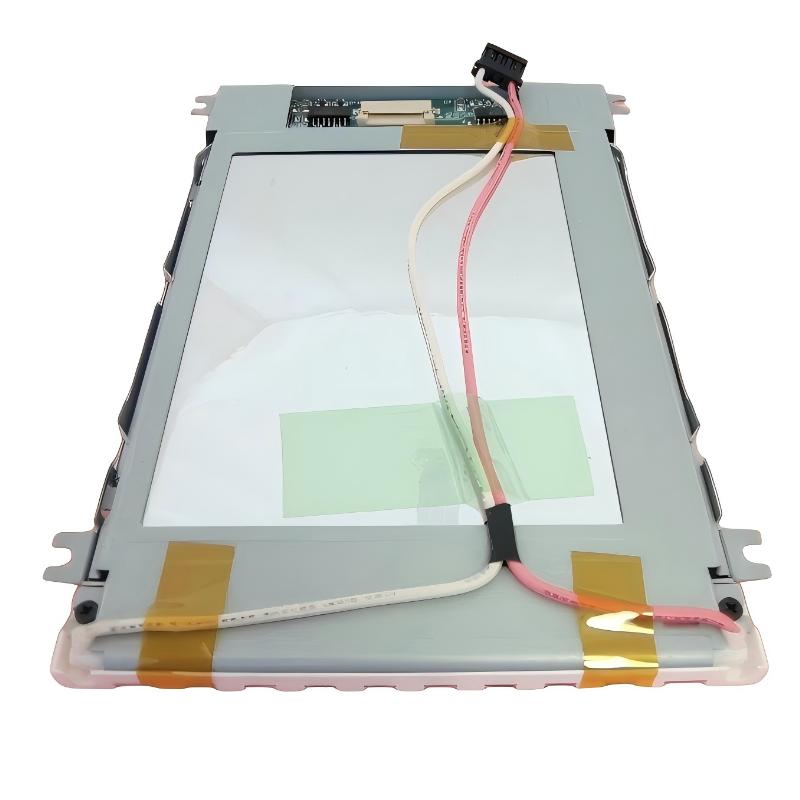

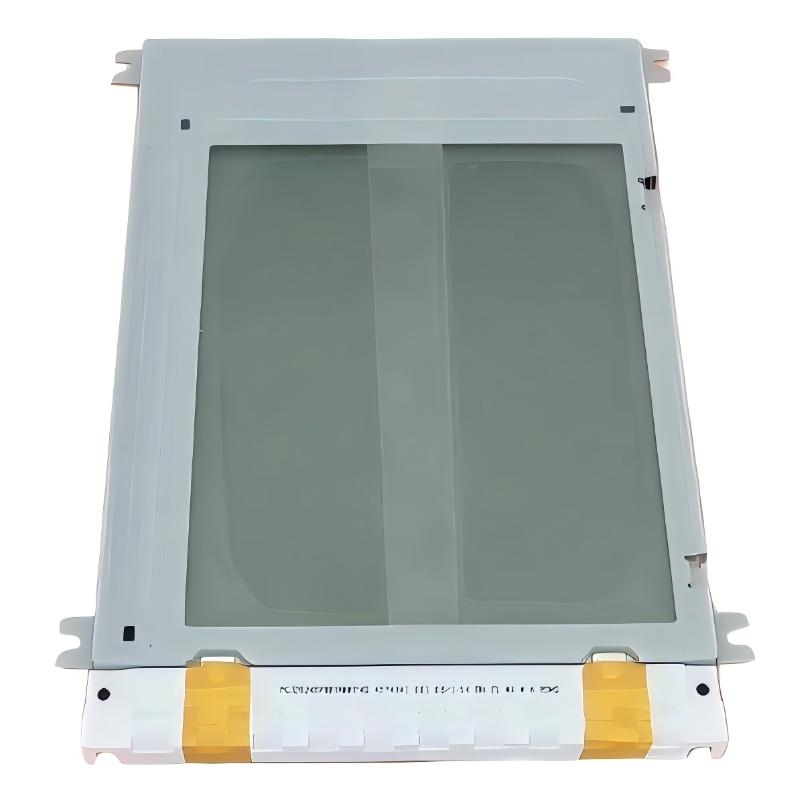

ABB 3HNP04014-1 Backlit LCD Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | Backlit LCD Module |
| Ordering Number | 3HNP04014-1 |
| Display Type | Backlit LCD |
| Main Function | Provides visual display for industrial control and robot system information |
| Application | ABB industrial automation and robot control systems |
| Display Technology | LCD with backlight |
| Interface | System-specific display interface |
| Operating Environment | Industrial control cabinet / operator interface environment |
| Service Function | Status indication, parameter display, alarms, and system information |
| Maintenance | Designed for replacement as an industrial spare module |
| Installation | Compatible system mounting and internal display connection required |
| Product Category | ABB Industrial Automation Spare Part |
| Overall Dimensions | 148 × 8 × 107 mm |
| Weight | 0.16 kg |
FAQ
1. What is the main function of the ABB 3HNP04014-1 Backlit LCD Module?
The 3HNP04014-1 is a backlit LCD display module used to provide visual information such as operating status, parameters, alarms, and system information within compatible ABB industrial automation or robotic equipment.
2. What type of display does the 3HNP04014-1 use?
The module uses an LCD with backlighting, allowing displayed information to remain visible under typical industrial operating conditions and in environments with limited ambient lighting.
3. What information can be displayed by the 3HNP04014-1?
Depending on the host ABB system, the display can be used for status information, operating parameters, diagnostic messages, alarm information, and other system-generated data.
4. How is the ABB 3HNP04014-1 connected to the control system?
The module is designed for connection to the corresponding internal display interface of the compatible ABB equipment. The connector, cable routing, and interface configuration should match the original system before replacement.
5. Can the 3HNP04014-1 be used as a universal industrial LCD?
No. It should be treated as a system-specific ABB spare module. Compatibility should be confirmed against the equipment model, existing display assembly, connector arrangement, and applicable ABB spare-parts documentation.
6. What should be checked before replacing the 3HNP04014-1?
First switch off and isolate the equipment according to the applicable maintenance procedure. Check the existing module’s ordering number, connector condition, cable routing, mounting arrangement, and signs of electrical or mechanical damage before installing the replacement.
7. What are common symptoms of a faulty 3HNP04014-1 LCD module?
Typical symptoms may include a blank display, missing characters, unstable or intermittent display information, uneven backlighting, or abnormal display behavior. The power supply and display connection should be checked before replacing the module.
8. What should be checked if the LCD backlight works but no information is displayed?
Check the display interface connection, communication between the display and control electronics, connector contacts, cable integrity, and the host system’s power and diagnostic status. If the interface and host system are functioning correctly, the LCD module itself may require replacement.
ABB 3HNP04014-1 Backlit LCD Module is in stock. Please contact us for a quick quote and competitive pricing.
