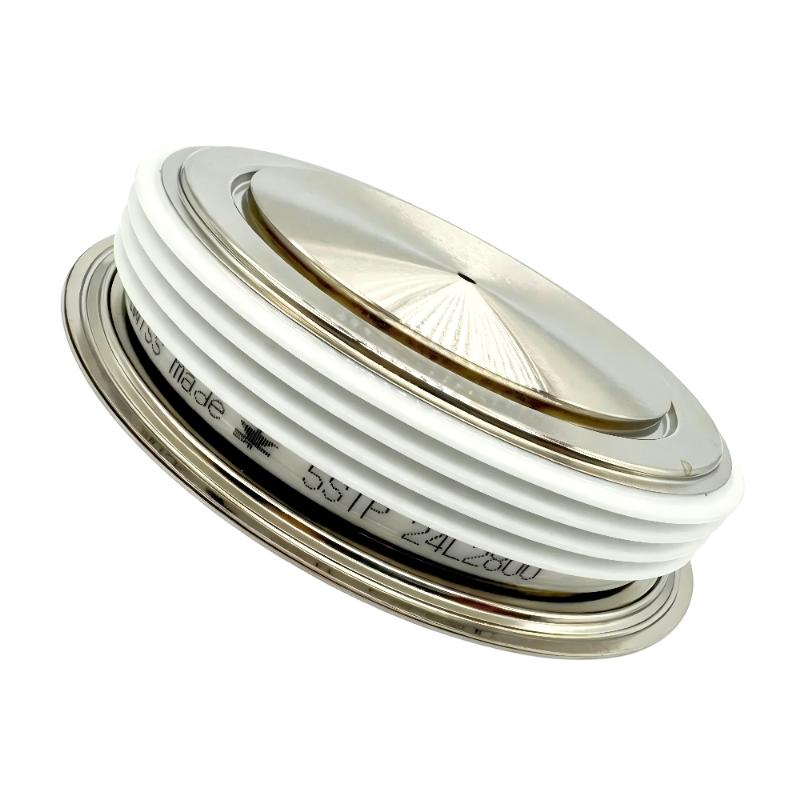

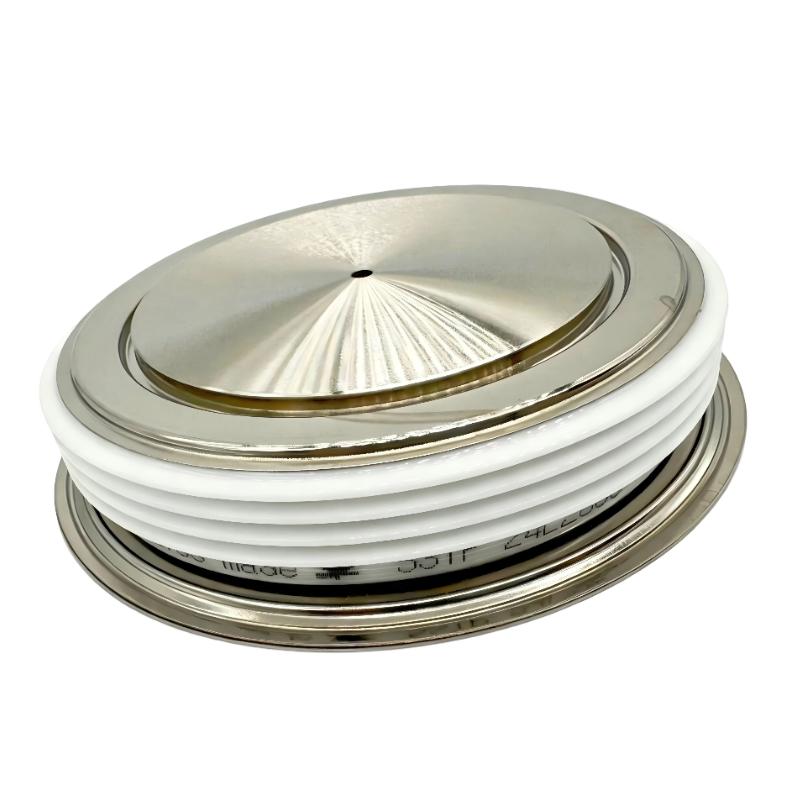

1. What is the main function of the ABB 5STP24L2800?

The ABB 5STP24L2800 is a power thyristor module designed for controlled power conversion applications. It is used as a semiconductor switching and rectifying element in industrial power electronic equipment, particularly in high-power converter and drive systems. The device can control the conduction of electrical current according to the firing signal supplied by the associated control circuit. In applications such as DC drives and controlled rectifiers, the thyristor module forms part of the main power circuit and directly handles the power transferred to the load. Its electrical and thermal operating conditions must be carefully controlled to maintain reliable operation.

2. Where is the 5STP24L2800 commonly used?

The 5STP24L2800 is associated with industrial power conversion equipment and ABB DCS500B drive systems. Typical applications include DC motor drives, controlled rectifier systems, industrial power converters, and other high-power semiconductor assemblies. In these systems, the thyristor module is installed as part of the power stage and works together with firing electronics, control boards, protective components, and a suitable cooling arrangement. Its role is to provide controlled conduction of the power current, allowing the converter to regulate electrical energy delivered to the connected load.

3. What type of semiconductor is the 5STP24L2800?

The 5STP24L2800 is classified as a thyristor power semiconductor module. A thyristor is a controlled semiconductor device that remains in the blocking state until an appropriate gate signal is applied under suitable forward-bias conditions. Once triggered, it can conduct current through the main power path until the current falls below the required holding condition or the circuit provides an appropriate commutation condition. This characteristic makes thyristors suitable for controlled rectification and high-power applications where large electrical loads need to be regulated efficiently.

4. What should be considered when installing a 5STP24L2800?

Installation should focus on correct electrical connections, mechanical mounting, thermal management, and protection. The module must be installed using an appropriate heatsink or cooling arrangement capable of removing the heat generated during operation. The mounting surface should be clean and properly prepared, and the recommended thermal interface method should be followed for the specific assembly. Electrical terminals must be tightened according to the applicable installation requirements without applying excessive mechanical force. The gate and cathode connections must also be connected correctly to the compatible firing circuit. Before energizing the equipment, the complete power circuit should be checked for wiring errors, insulation problems, loose connections, and incorrect polarity.

5. Why is thermal management important for the 5STP24L2800?

Thermal management is critical because the thyristor generates heat whenever current flows through its semiconductor junction. If the junction temperature becomes excessive, the device can experience reduced reliability, increased electrical stress, or permanent semiconductor damage. The 5STP24L2800 should therefore be installed with a suitable heatsink and thermal interface to transfer heat away from the device efficiently. The cooling system must be designed according to the actual load current, duty cycle, ambient temperature, and converter operating conditions. In high-power applications, airflow, heatsink cleanliness, thermal compound condition, and mechanical mounting pressure should all be checked during maintenance.

6. How can a 5STP24L2800 thyristor module be tested during troubleshooting?

Troubleshooting should begin with a visual inspection for cracked housings, discoloration, overheating marks, damaged terminals, or signs of electrical arcing. The power circuit should then be isolated and safely discharged before electrical measurements are performed. A suitable multimeter or semiconductor tester can be used to check the main terminals for abnormal short-circuit conditions. The gate circuit should also be checked for correct wiring and continuity. If the module repeatedly shows a low-resistance or short-circuit condition between the main power terminals when isolated from the circuit, the semiconductor may have failed. However, testing should be performed according to the equipment manufacturer’s maintenance procedure because surrounding components, capacitors, snubber circuits, and parallel semiconductor devices can affect measurement results.

7. What can cause repeated failure of a 5STP24L2800?

Repeated thyristor failures are often caused by conditions outside the semiconductor itself. Common areas to investigate include excessive current, voltage transients, insufficient cooling, incorrect gate triggering, commutation problems, poor electrical connections, and inadequate protection. A faulty firing circuit can cause improper turn-on behavior, while excessive dv/dt or di/dt can place additional stress on the semiconductor. A deteriorated heatsink interface or blocked cooling system can also increase junction temperature. When a replacement module fails shortly after installation, it is important to investigate the complete converter power stage rather than simply replacing the thyristor again. Checking fuses, snubber components, gate-drive circuits, cooling conditions, and load characteristics can help identify the underlying cause.

8. What should be checked when replacing an ABB 5STP24L2800?

Before replacing the module, confirm that the replacement part is the correct 5STP24L2800 type and is compatible with the converter’s electrical and mechanical configuration. The equipment must be completely de-energized, isolated, and discharged before work begins. Inspect the heatsink surface and thermal interface, and clean or replace the thermal interface material as required. Check the power terminals, gate connections, firing circuit, protective components, and surrounding semiconductor devices for damage. After installation, verify that all connections are secure and that the cooling system is operating correctly. Before applying full load, the converter should preferably be tested under controlled conditions while monitoring current, voltage, temperature, and gate-drive behavior. This helps confirm that the new thyristor is operating correctly and that the original fault has not been left unresolved.
