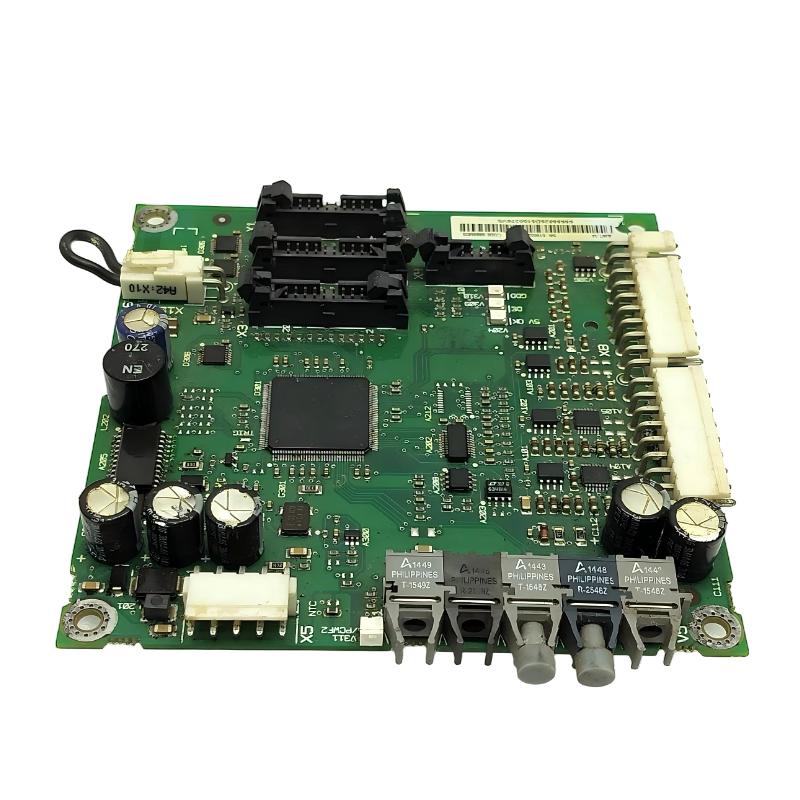

1. What is the main function of the ABB AINT-14 68685826?

The ABB AINT-14 68685826 is a main circuit interface board designed for compatible ABB industrial drive and power electronic systems. Its primary function is to provide the electrical interface between the main power circuit and the control electronics. The power section handles high electrical energy, while the control electronics manage operating commands, feedback signals, and protection functions. The AINT-14 provides the necessary signal and electrical connections between these sections, allowing the drive control system and power stage to operate together correctly. It is commonly associated with ABB ACS800-related drive and inverter assemblies.

2. Which ABB systems can use the AINT-14 68685826 interface board?

The 68685826 is associated with ABB industrial drive and power conversion equipment, particularly certain ACS800-related inverter and power module assemblies. However, compatibility should always be confirmed against the complete drive model, hardware configuration, and revision before replacement. Different drive versions can use different circuit-board configurations even when the general board function appears similar. When sourcing a replacement, technicians should verify the original board marking, ABB type designation, order number, and the drive’s complete configuration to ensure that the replacement AINT-14 is electrically and mechanically compatible.

3. What does the AINT-14 board do in an ABB drive?

The AINT-14 provides an interface between the drive’s main circuit and its control electronics. These two sections perform different functions but must exchange information accurately during normal operation. The control electronics determine how the power stage should operate, while the main circuit performs the actual electrical power conversion. The interface board provides the required electrical signal paths between these sections. If the board or its associated connections develop a fault, the drive may experience missing feedback, internal control errors, power-stage-related faults, or abnormal operating behavior. Therefore, the AINT-14 should be considered part of the overall control and power interface rather than an isolated circuit board.

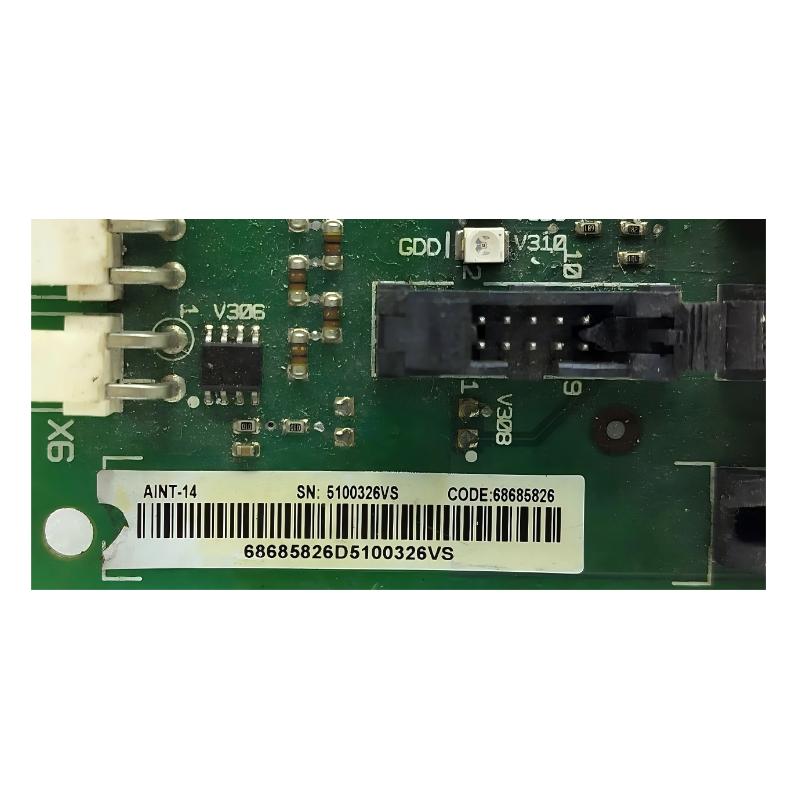

4. What does the AINT-14C designation mean for order number 68685826?

The ABB type designation associated with order number 68685826 is AINT-14C. The model is commonly identified as AINT-14, while AINT-14C represents the corresponding ABB type designation. The board is a main circuit interface board used within compatible ABB drive systems. When ordering a replacement, it is important to verify both the product designation and the order number because similar AINT interface boards may have different versions or configurations. Using the exact 68685826 identification provides a more reliable way to match the replacement with the original drive hardware.

5. Why is the AINT-14 68685826 important for drive operation?

The interface between the main circuit and control electronics is essential for coordinated drive operation. The control system needs information from the power section, while the power section must receive the appropriate control signals. The AINT-14 provides the interface required for this exchange. A malfunction can therefore affect several drive functions at the same time and may result in internal control faults, missing feedback signals, abnormal power-stage behavior, or failure to start. When diagnosing a drive problem, the AINT-14 should be evaluated together with the connected control boards, cables, connectors, and power electronics rather than being treated as an independent component.

6. How can a faulty AINT-14 68685826 be diagnosed?

Troubleshooting should begin with the complete drive fault history and a visual inspection. After the equipment has been safely isolated, inspect the AINT-14 for damaged connectors, loose connections, contamination, discoloration, overheating marks, or other visible abnormalities. The cables and connectors connecting the board to other control and power assemblies should also be checked carefully. If the drive reports an internal interface or power-stage fault, the associated control boards and signal paths should be tested before concluding that the AINT-14 has failed. When handling or removing the board, appropriate ESD protection should be used to prevent additional damage to sensitive electronic components.

7. What should be checked before replacing the AINT-14 68685826?

Before replacement, verify the complete identification: AINT-14, AINT-14C, and 68685826. The drive model, power-stage configuration, hardware revision, and existing board arrangement should also be confirmed. The original board should be inspected for evidence of overheating, connector damage, contamination, wiring faults, or failures in neighboring components. If the surrounding power or control circuit has an unresolved problem, installing a new interface board without addressing the original cause could result in another failure. During replacement, use suitable ESD protection and carefully identify every connector before removing the original board. After installation, all connections should be checked before the drive is energized.

8. What precautions are important when installing an AINT-14 68685826?

The drive must be completely isolated from its power source and properly discharged before accessing the circuit board. Technicians should use appropriate ESD protection and avoid unnecessary contact with electronic components. Before removing the original AINT-14, the position of each cable and connector should be recorded to ensure the replacement is wired identically. Inspect mating connectors for bent contacts, contamination, loose terminals, or overheating. After installing the replacement board, confirm that it is securely mounted and all connectors are fully seated. The drive should then be restarted under controlled conditions, with fault indications, control signals, feedback signals, and power-stage operation monitored during commissioning. This procedure helps confirm that the replacement board is functioning correctly and that no underlying fault remains in the drive system.
