Technical Specifications

FAQ

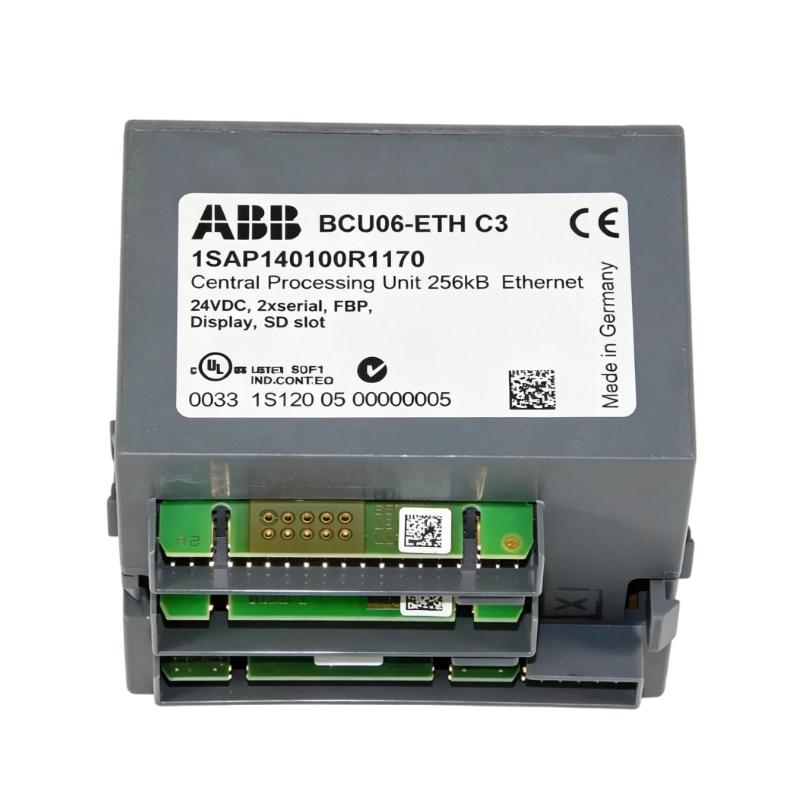

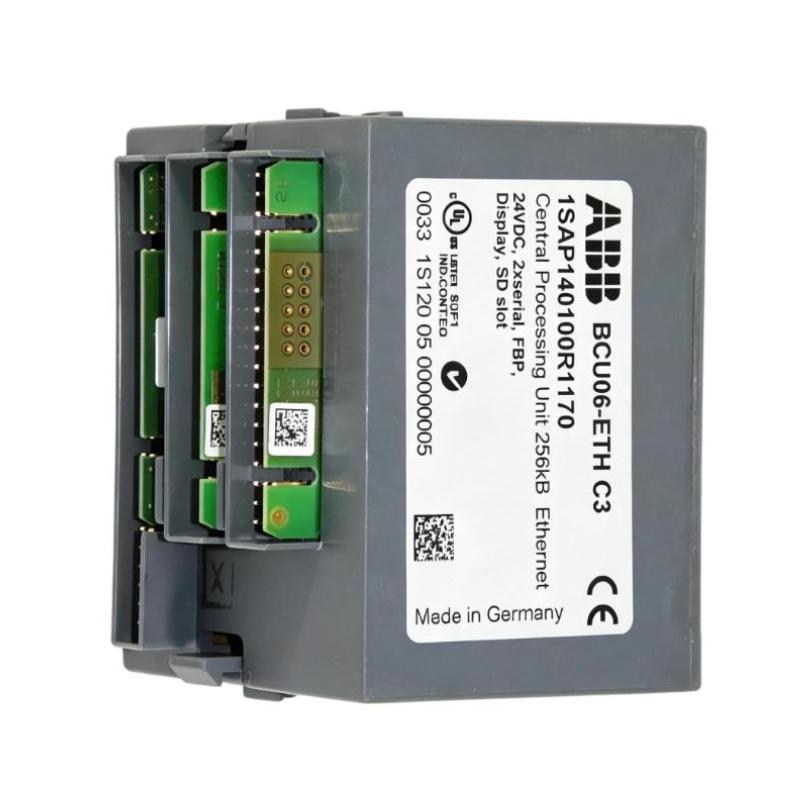

1. What is the primary function of the ABB BCU06-ETH C3 1SAP140100R1170 CPU?

The BCU06-ETH C3 is a CPU and control unit designed for industrial automation applications. Its primary role is to execute the user control program, process input information, generate output commands, and coordinate communication with connected automation components. In a modular control architecture, the CPU acts as the central processing element while additional I/O and communication modules provide field-level interfaces. The controller can therefore be used as part of a larger automation system where reliable program execution and communication between the control program and connected devices are required.

2. Which programming environment is used with the BCU06-ETH C3?

The BCU06-ETH C3 is configured and programmed using ABB B&R Automation Studio. Automation Studio provides the engineering environment for creating the application program, configuring hardware, managing communication parameters, and performing controller diagnostics. During commissioning, the engineering software can also be used to monitor variables, check system status, download application programs, and identify configuration or communication problems. The exact programming method depends on the application and controller configuration, so the project should be created using the hardware configuration appropriate for the installed BCU06-ETH C3.

3. What type of communication interface does the BCU06-ETH C3 provide?

The BCU06-ETH C3 provides Ethernet communication for integration with industrial automation networks and connected control equipment. The Ethernet interface can be used for controller-to-device communication, engineering access, data exchange, and integration with other automation components depending on the system configuration. During commissioning, the IP configuration, network parameters, cable connection, and communication settings should be checked carefully. Network conflicts or incorrect addressing can prevent the controller from communicating with external devices even when the CPU itself is operating correctly.

4. Can the BCU06-ETH C3 be used with modular I/O systems?

Yes. The BCU06-ETH C3 is intended for use within a modular automation architecture and can coordinate with compatible I/O components. The CPU processes the application logic and exchanges data with connected I/O modules so that field signals can be incorporated into the control program and output commands can be sent to actuators or other devices. When expanding an installation, the selected I/O modules should be verified against the controller’s supported hardware configuration and the Automation Studio project. Correct module order, configuration, addressing, and communication parameters are important for reliable system startup.

5. What power supply is required for the BCU06-ETH C3?

The BCU06-ETH C3 uses a 24 VDC control power supply. A stable and properly protected power source is important because fluctuations or interruptions can cause the CPU to restart, enter a fault state, or lose communication with connected components. During troubleshooting, technicians should measure the supply voltage at the controller terminals rather than relying only on the cabinet power-supply indication. Wiring polarity, terminal tightness, grounding, and protection devices should also be checked. If the controller repeatedly resets, the power supply should be investigated together with the application and communication system.

6. What should be checked if the BCU06-ETH C3 does not start the application program?

If the controller does not start the application program, first check whether the CPU is receiving the correct 24 VDC supply and whether the controller reports a hardware or configuration fault. The Automation Studio project should then be checked to ensure that the correct CPU type and hardware configuration have been selected. Application-program status, controller diagnostics, and configuration consistency should also be reviewed. If the program has been downloaded incorrectly or the hardware configuration does not match the physical installation, the controller may remain in a diagnostic or stopped state. Communication problems with connected modules should also be checked if the CPU starts but the application cannot operate normally.

7. How can communication problems with the BCU06-ETH C3 be diagnosed?

Communication troubleshooting should begin by identifying whether the problem occurs between the CPU and an external Ethernet device or between the CPU and connected automation modules. For Ethernet communication, check the network cable, connector condition, link status, IP address, subnet configuration, and device addressing. The Automation Studio diagnostics can then be used to determine whether the controller recognizes the configured hardware and whether communication errors are being reported. If multiple devices lose communication at the same time, the network infrastructure and common power supply should be investigated rather than replacing the CPU immediately. A single-device communication failure usually requires closer inspection of that device’s configuration and network connection.

8. What precautions should be taken when installing or replacing the BCU06-ETH C3?

Before installing or replacing the BCU06-ETH C3, the control cabinet should be placed in a safe maintenance state and the appropriate power-isolation procedure should be followed. The 24 VDC supply should be disconnected before handling the controller unless an approved maintenance procedure specifically requires otherwise. ESD precautions should be used when handling the CPU because its electronic circuitry can be affected by static discharge. Before replacement, record the existing hardware configuration, network settings, program version, and connected module arrangement. After installation, verify power polarity and terminal connections, confirm Ethernet wiring and network parameters, and check that the controller hardware configuration matches the Automation Studio project. The application should then be downloaded or restored as required, followed by controlled commissioning and verification of I/O and communication functions.
