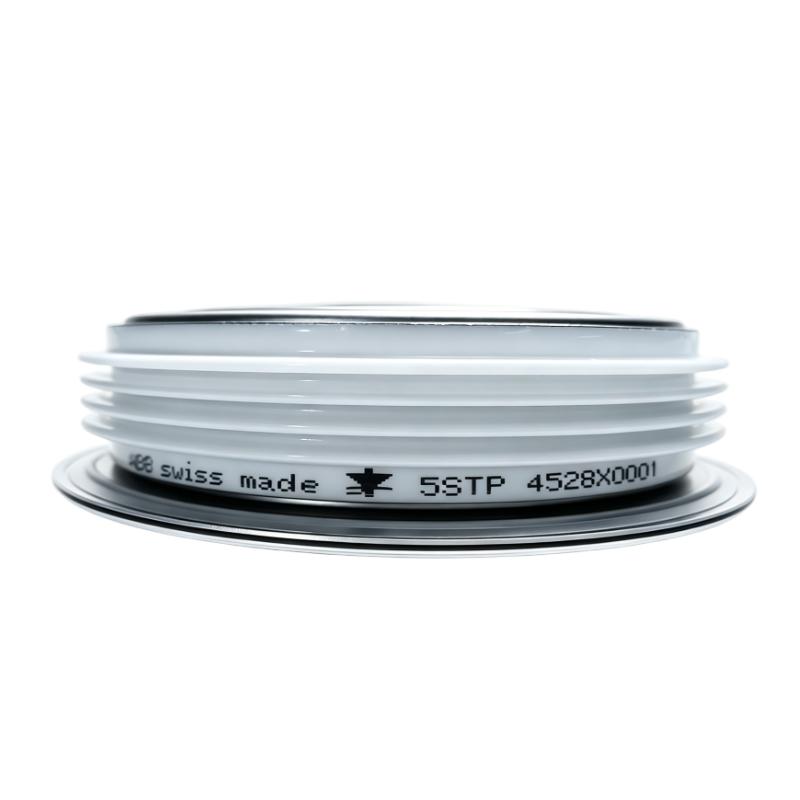

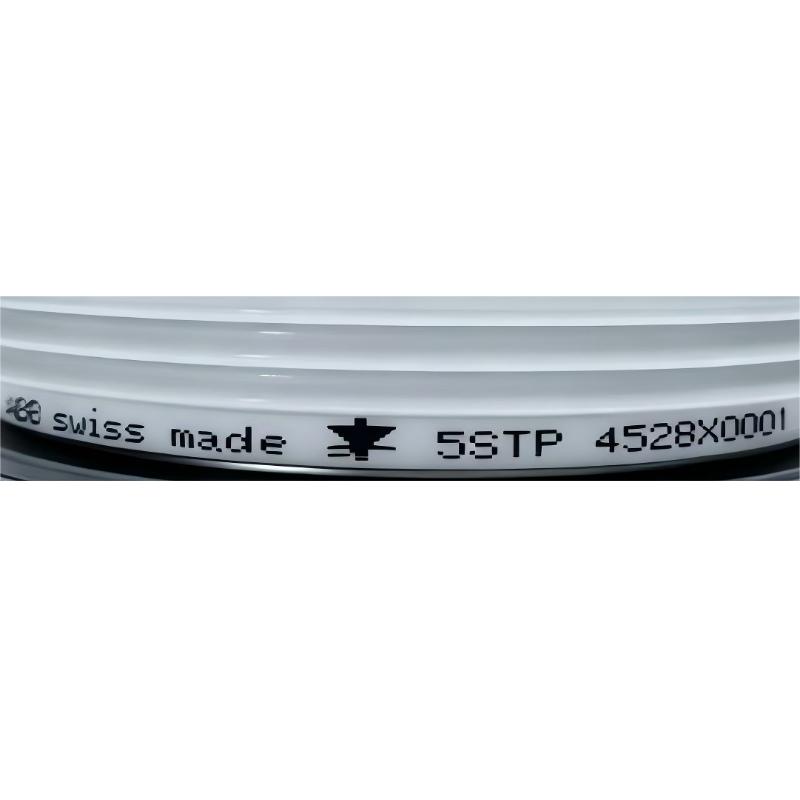

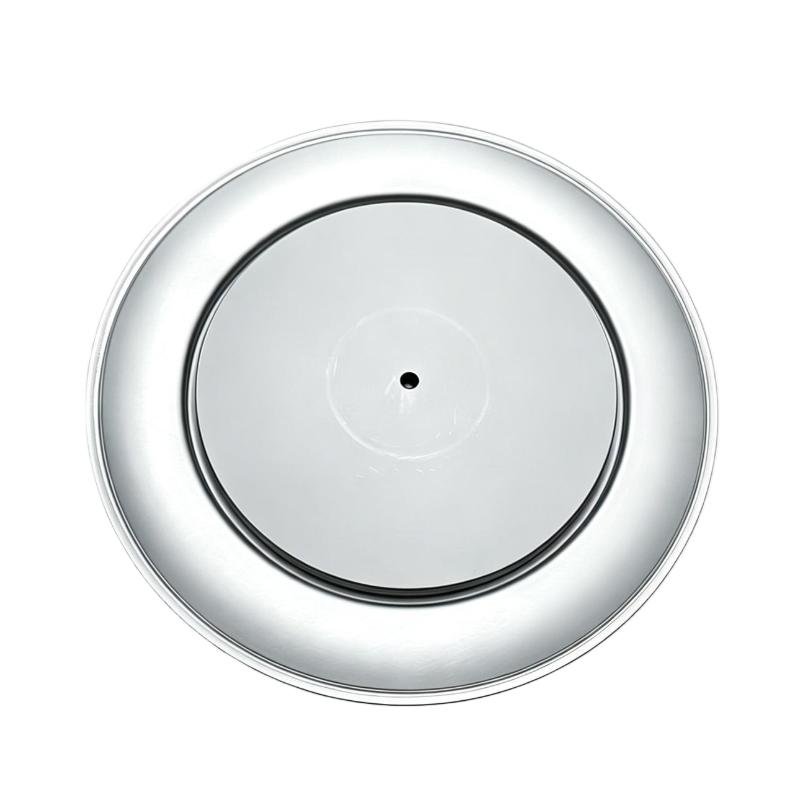

ABB 5STP4528X0001 Thyristor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model / Order Number | 5STP4528X0001 |
| Product Name | Thyristor |
| Product Type | Power Semiconductor Device |
| Semiconductor Type | Phase-Control Thyristor |
| Main Function | Controlled switching of electrical current and power |
| Operating Principle | Turns on when triggered by a suitable gate signal and continues conducting until the current falls below the holding level under appropriate circuit conditions |
| Typical Applications | Industrial power converters, controlled rectifiers, and power regulation systems |
| Power Conversion | Used in compatible power electronic circuits for controlled AC-to-DC conversion |
| Industrial Use | High-power electrical control and conversion equipment |
| Installation Type | Press-pack mounting may apply to compatible ABB phase-control thyristor designs; confirm the exact package and mounting requirements for this part |
| Cooling Requirements | Requires an appropriate thermal-management arrangement designed for the electrical load |
| Electrical Compatibility | Verify blocking voltage, current ratings, gate-triggering requirements, and circuit configuration against the original technical documentation |
| Replacement Requirements | Match the complete part number and confirm the device’s electrical, mechanical, and thermal specifications |
| Dimensions | 130 × 26 × 100 mm |
| Weight | 2.9 kg |
FAQ
Q1: What is the ABB 5STP4528X0001 Thyristor used for?
The ABB 5STP4528X0001 is identified as a power thyristor. Thyristors are used in power electronic circuits that require controlled switching of electrical current, including industrial converters, controlled rectifiers, and power regulation equipment. The specific application should be confirmed against the equipment’s original parts list.
Q2: How does a thyristor control electrical power?
A thyristor is a semiconductor switching device with an anode, cathode, and gate. When suitable forward voltage is applied and a triggering signal is supplied to the gate, the device can enter its conducting state. It generally remains on until the current falls below its holding-current level or the circuit otherwise commutates it off.
Q3: What electrical ratings should be checked before using the ABB 5STP4528X0001?
Verify the repetitive peak off-state and reverse voltages, average and RMS on-state currents, surge-current capability, gate-triggering parameters, and thermal limits. These values must be obtained from the correct datasheet for the exact part number rather than estimated from the model designation.
Q4: Can the ABB 5STP4528X0001 be used in a controlled rectifier?
Thyristors are commonly used in controlled rectifier circuits, where their triggering timing determines when current begins to flow during an electrical cycle. Whether this specific device is suitable depends on its verified electrical ratings, circuit topology, operating frequency, cooling arrangement, and the requirements of the rectifier.
Q5: What can cause a thyristor to fail?
Common causes include excessive current, overvoltage, inadequate cooling, excessive junction temperature, improper gate triggering, and transient electrical disturbances. Incorrect mounting pressure or poor thermal contact can also contribute to failure in press-pack devices. The complete power circuit should be inspected before installing a replacement.
Q6: How can the ABB 5STP4528X0001 be tested for faults?
A qualified technician can inspect the device and associated connections, then perform suitable semiconductor tests using equipment and procedures appropriate for the thyristor type. In-circuit measurements may be affected by parallel components, so the device may need to be isolated. High-power functional testing should only be performed using an approved test setup.
Q7: What installation precautions are important for this thyristor?
Follow the manufacturer’s requirements for mounting, contact-surface preparation, clamping force where applicable, electrical connections, and cooling. Ensure the power circuit is isolated and stored energy has been safely discharged before handling the device. Incorrect mounting or thermal contact can lead to overheating and premature failure.
Q8: Can another ABB thyristor replace the 5STP4528X0001?
Not automatically. A replacement must meet the original device’s voltage, current, surge, gate-control, thermal, package, and mounting requirements. Even devices from the same product family may have different electrical characteristics. Confirm the approved replacement reference with the equipment documentation or ABB technical support before substitution.
ABB 5STP4528X0001 Thyristor is in stock. Please contact us for a quick quote and competitive pricing.
