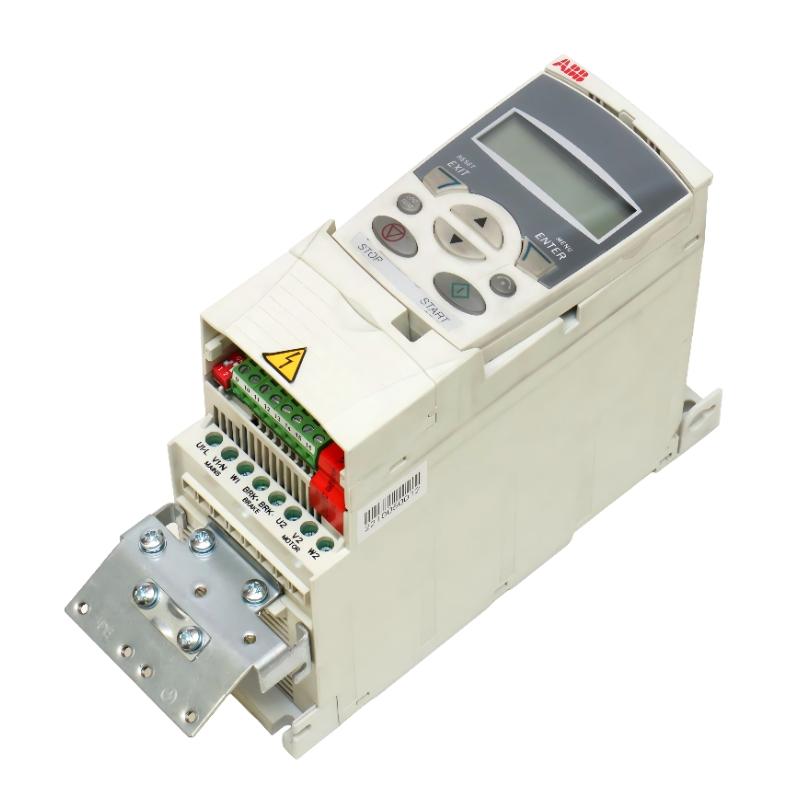

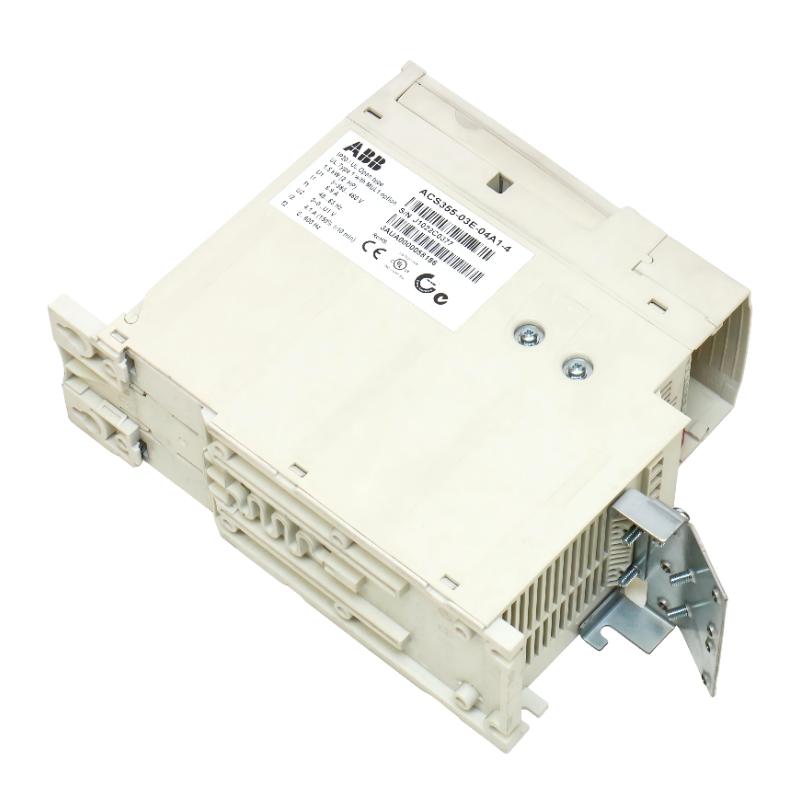

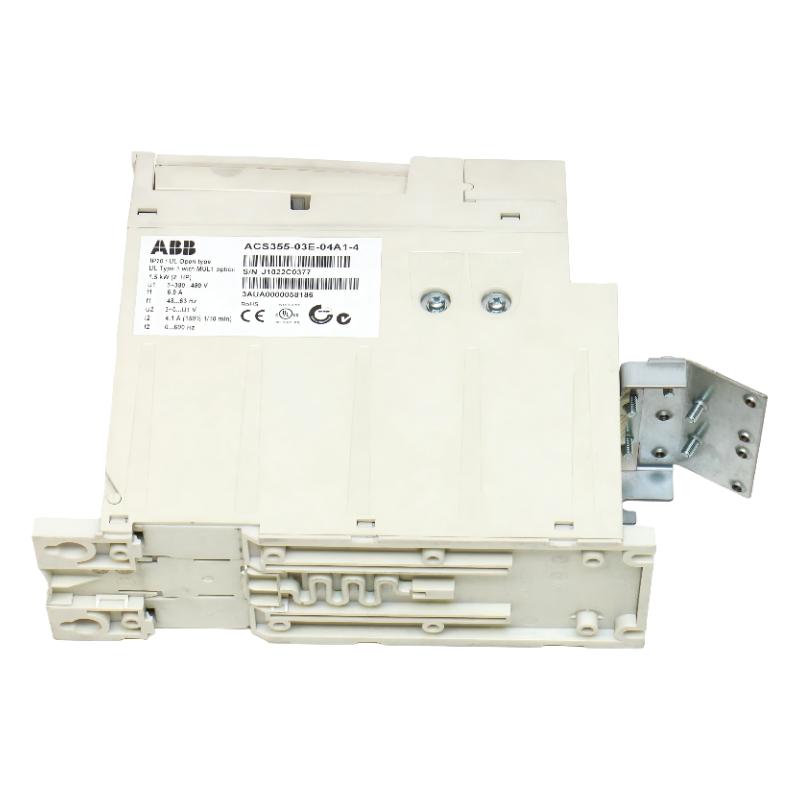

1. What industrial applications is the ABB ACS355-03E-04A1-4 best suited for?

The ABB ACS355-03E-04A1-4 is designed for a broad range of industrial automation applications requiring accurate motor speed control and dependable performance. It is widely used in conveyor systems, centrifugal pumps, ventilation fans, compressors, mixers, packaging equipment, woodworking machinery, textile machines, printing equipment, and material handling systems. Thanks to its compact design and flexible programming capabilities, the drive is particularly suitable for OEM machine builders and retrofit projects where installation space is limited. Its built-in sensorless vector control provides stable torque across a wide speed range, making it an excellent choice for applications that demand consistent performance under varying load conditions while also improving energy efficiency and reducing mechanical wear.

2. How should the ACS355-03E-04A1-4 be commissioned before normal operation?

Successful commissioning begins with verifying that the incoming power supply matches the drive’s rated voltage and frequency specifications. After confirming all power and motor wiring connections, users should enter the complete motor nameplate data, including rated voltage, current, frequency, speed, and power. The appropriate motor control mode should then be selected based on the application requirements. Input and output terminals must be configured according to the intended control method, whether local keypad operation, digital I/O, analog reference signals, or PLC communication. Before placing the equipment into production, it is recommended to perform a no-load test followed by a gradual loaded test while monitoring output current, motor temperature, and acceleration performance. Proper commissioning significantly improves long-term reliability and minimizes unexpected operational issues.

3. What factors commonly cause overvoltage faults in the ACS355 drive?

Overvoltage faults usually occur when regenerative energy generated by the motor cannot be dissipated quickly enough into the power supply. This frequently happens during rapid deceleration, sudden load removal, or when high-inertia equipment is stopped abruptly. High incoming supply voltage may also contribute to DC bus overvoltage conditions. To minimize these faults, users should increase deceleration time, install an appropriate braking resistor if regenerative braking is required, and verify that the incoming power supply remains within ABB’s specified operating range. Regular monitoring of supply voltage stability and proper drive parameter configuration can effectively reduce unnecessary overvoltage trips and improve system availability.

4. How can communication reliability be improved when using Modbus RTU with a PLC?

Reliable Modbus RTU communication depends on proper network design as well as correct parameter configuration. The PLC and drive must use identical communication settings, including baud rate, slave address, parity, stop bits, and data format. High-quality shielded twisted-pair communication cables should be used, with shielding grounded at the appropriate location to reduce electromagnetic interference. Communication wiring should be routed separately from motor power cables and high-voltage conductors whenever possible. In larger industrial networks, proper RS-485 termination resistors and bias resistors help maintain signal integrity. Periodically checking communication error counters and monitoring response times can also help identify developing network issues before they affect production.

5. Why does the drive sometimes trip on overload even though the motor appears to be operating normally?

An overload trip does not always indicate a drive malfunction. In many cases, the drive detects sustained motor current above its configured protection threshold due to mechanical load variations, incorrect motor parameters, inadequate cooling, or frequent acceleration cycles. If the motor nameplate values were entered incorrectly during commissioning, the electronic thermal protection may calculate an inaccurate thermal model and trigger premature overload alarms. Poor ventilation around the drive or elevated ambient temperatures can further increase internal temperatures and reduce overload capacity. Reviewing motor current trends, checking airflow around the drive, verifying mechanical load conditions, and confirming parameter settings are effective methods for resolving recurring overload events.

6. What maintenance procedures should be performed to maximize the service life of the ACS355?

Preventive maintenance is essential for maintaining reliable operation throughout the drive’s service life. Cooling fans and ventilation passages should be inspected regularly and cleaned to prevent dust accumulation that could restrict airflow. All power terminals, control terminals, and grounding connections should be checked periodically for looseness or signs of overheating. Operators should monitor ambient temperature and humidity to ensure the installation environment remains within ABB’s recommended limits. During scheduled maintenance, communication wiring, insulation condition, and external protective devices should also be inspected. Maintaining backup copies of drive parameters allows rapid replacement or restoration if maintenance or hardware replacement becomes necessary, minimizing production downtime.

7. How does the sensorless vector control function improve motor performance?

Sensorless vector control continuously calculates the motor’s magnetic flux and torque based on measured electrical parameters without requiring an external encoder. Compared with conventional V/F control, this technology provides faster dynamic response, improved speed accuracy, stronger low-speed torque, and more stable operation during changing load conditions. As a result, machinery experiences smoother acceleration and deceleration, reduced speed fluctuations, and improved process consistency. Applications such as conveyors, mixers, packaging equipment, and material handling systems particularly benefit from the enhanced torque control and precise speed regulation offered by the ACS355 sensorless vector control algorithm.

8. What is the recommended troubleshooting procedure when the drive repeatedly reports faults during production?

When repeated faults occur, operators should first document the displayed fault code, operating frequency, output current, motor load, and supply voltage at the moment the fault appears. Reviewing the drive’s fault history can reveal whether the issue follows a recurring pattern or is associated with a specific operating condition. Electrical inspections should include verification of power quality, motor cable insulation, grounding integrity, and control signal stability. Mechanical equipment should also be examined for excessive friction, bearing wear, or sudden load changes that may trigger protective functions. After correcting the identified issue, operators should clear the fault, perform functional testing under both unloaded and normal production conditions, and continue monitoring operating parameters to confirm that the problem has been permanently resolved.
