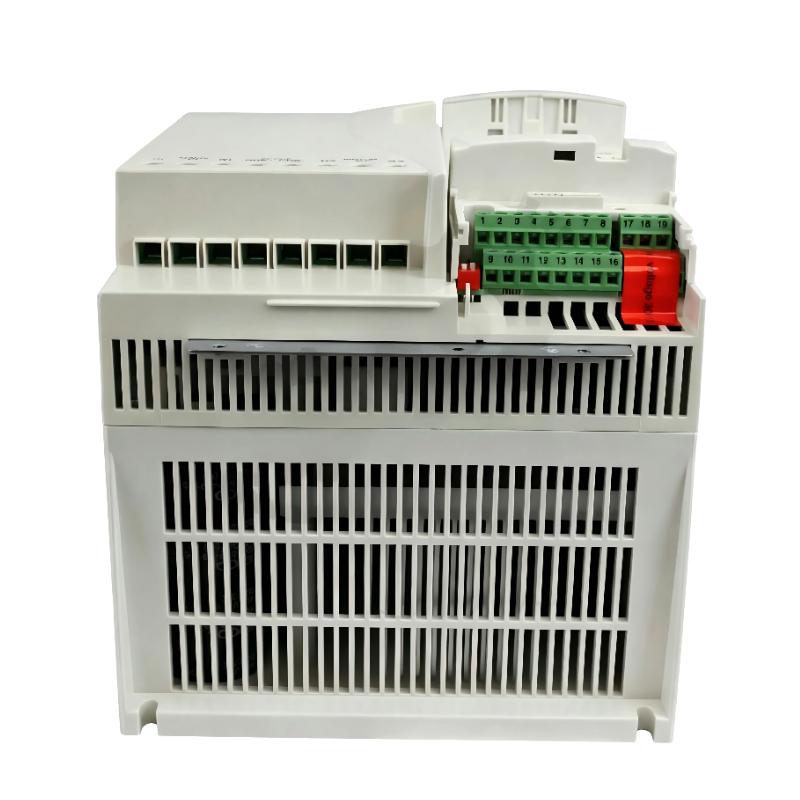

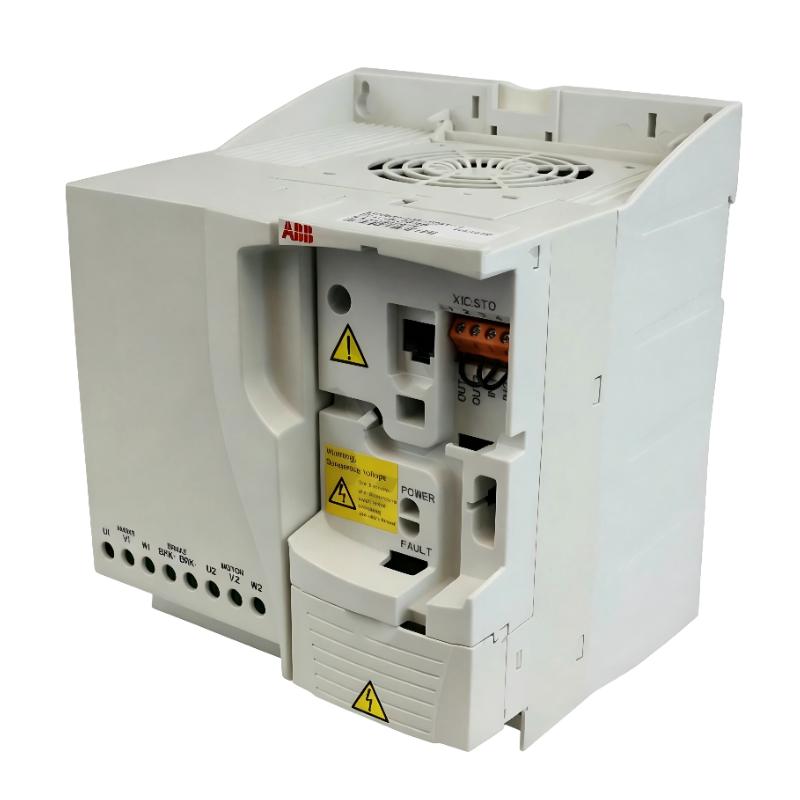

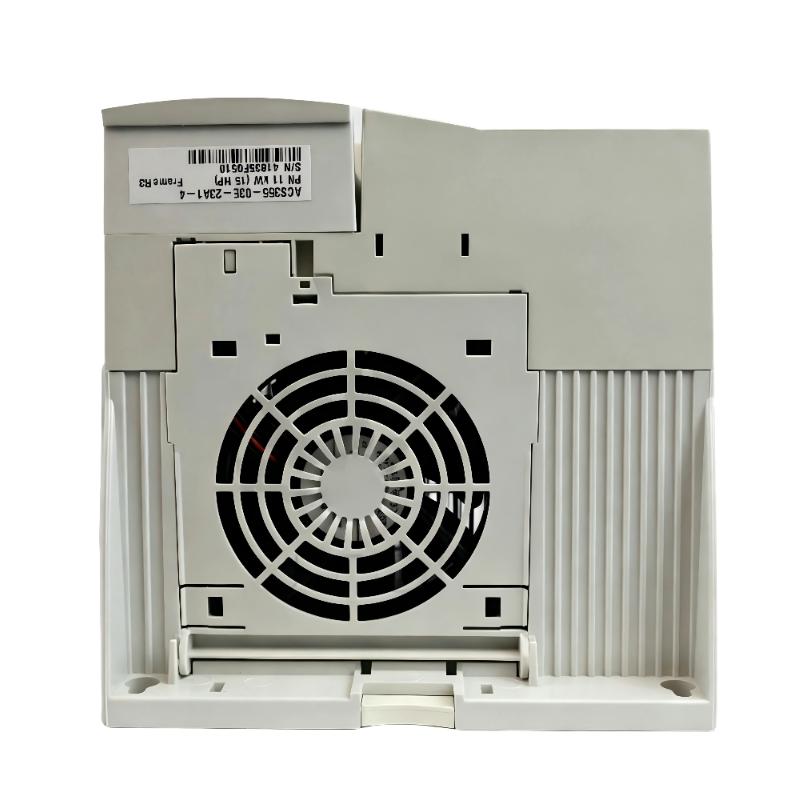

1. What industrial applications are suitable for the ABB ACS355-03E-23A1-4 Variable Frequency Drive?

The ABB ACS355-03E-23A1-4 is a general-purpose variable frequency drive designed for industrial machinery applications that require reliable motor speed control, stable torque performance, and efficient operation. With a rated output current of 23.1 A and an 11 kW motor power capacity, this drive is widely used in conveyor systems, packaging machines, pumps, fans, compressors, mixers, textile machinery, food processing equipment, printing machines, and OEM automation systems. The drive supports both induction motors and selected permanent magnet motors, allowing engineers to select the most suitable motor technology according to application requirements. With flexible parameter configuration, multiple control modes, and industrial communication capabilities, the ACS355-03E-23A1-4 can be easily integrated into PLC, DCS, and SCADA-based automation environments to improve system efficiency and production stability.

2. What parameters should be configured during the initial commissioning of the ACS355-03E-23A1-4?

During the initial commissioning process, several critical motor and application parameters must be configured correctly to ensure reliable operation. The installer should enter the motor nameplate data, including rated voltage, rated current, rated frequency, rated speed, and motor power. Accurate parameter settings allow the drive to calculate the correct motor control characteristics and provide optimized torque and speed regulation. After entering the basic motor data, it is recommended to perform the motor identification or automatic tuning procedure to improve control accuracy. Additional settings such as acceleration time, deceleration time, start/stop commands, control source selection, and communication parameters should also be configured according to the application requirements. Proper commissioning reduces the risk of overload, unstable operation, and unnecessary fault alarms during production.

3. What are the common causes of overcurrent faults on the ABB ACS355-03E-23A1-4?

Overcurrent faults on the ACS355-03E-23A1-4 are usually caused by excessive motor load, incorrect parameter settings, motor cable problems, or mechanical failures in the driven equipment. For example, blocked machinery, damaged bearings, excessive friction, or sudden load increases can force the motor to produce higher torque, resulting in increased current consumption. Electrical issues such as short circuits, poor insulation, or incorrect wiring between the drive and motor may also trigger overcurrent protection. During troubleshooting, technicians should inspect the mechanical system, verify motor cable conditions, check motor insulation resistance, and confirm that the programmed motor parameters match the actual motor specifications. Adjusting acceleration settings and eliminating abnormal mechanical resistance can effectively prevent repeated overcurrent trips.

4. What are the advantages of Sensorless Vector Control in the ACS355-03E-23A1-4?

Sensorless Vector Control is one of the key performance features of the ABB ACS355 series. Unlike traditional V/f control, this technology can achieve improved motor speed regulation and torque control without requiring an external encoder. It continuously calculates motor operating conditions and adjusts output characteristics to maintain stable performance under changing loads. This control method provides stronger starting torque, better low-speed operation, faster response during load changes, and smoother acceleration and deceleration. In applications such as conveyors, packaging equipment, processing machinery, and automated production lines, Sensorless Vector Control helps reduce mechanical stress, improve process accuracy, and maintain consistent machine performance without increasing system complexity.

5. Which communication protocols are supported by the ABB ACS355-03E-23A1-4, and how can it be integrated into automation systems?

The ABB ACS355-03E-23A1-4 includes a built-in RS-485 interface with Modbus RTU communication capability, allowing direct connection to PLCs, HMIs, SCADA systems, and industrial controllers. For applications requiring advanced network communication, optional fieldbus adapters can extend compatibility with protocols such as PROFIBUS DP, PROFINET, EtherNet/IP, CANopen, and DeviceNet. Through these communication interfaces, users can remotely monitor drive operating data, read fault information, adjust parameters, control start and stop functions, and perform diagnostic operations. This flexible communication structure allows the ACS355-03E-23A1-4 to be integrated into both standalone machines and complex industrial automation systems, supporting modern factory monitoring and control requirements.

6. How can the operational reliability of the ABB ACS355-03E-23A1-4 be improved?

Improving the long-term reliability of the ACS355-03E-23A1-4 requires proper installation, regular maintenance, and suitable operating conditions. The cooling system should be inspected periodically to ensure that the fan, ventilation channels, and heat dissipation areas remain clean and unobstructed. Electrical connections should be checked regularly to prevent loose terminals, overheating, or signal instability. It is also important to monitor fault history and operating parameters to identify potential issues before they cause unexpected downtime. For critical industrial applications, maintaining parameter backups and following a preventive maintenance schedule can significantly reduce equipment failures. Proper grounding, stable power supply quality, and a clean installation environment also contribute to longer service life and improved drive performance.

7. How should overload alarms on the ACS355-03E-23A1-4 be diagnosed and resolved?

When the ACS355-03E-23A1-4 displays an overload alarm, the first step is to determine whether the motor is operating under abnormal load conditions. Mechanical problems such as excessive friction, blocked components, increased process loads, or incorrect machine operation can cause the motor to consume more current than expected. The motor parameters stored in the drive should also be checked to confirm they match the actual motor ratings. In addition, acceleration and deceleration settings should be reviewed because overly short ramp times may increase current demand. If the overload condition continues after parameter optimization and mechanical inspection, the application load requirements should be evaluated to determine whether a higher-capacity drive is required.

8. What advantages does the ABB ACS355-03E-23A1-4 provide in industrial automation systems?

The ABB ACS355-03E-23A1-4 provides a combination of advanced motor control technology, flexible communication options, and reliable operation for industrial automation applications. Its support for V/f control and Sensorless Vector Control enables precise motor speed adjustment and stable torque output under different operating conditions. The built-in Modbus RTU interface, expandable fieldbus communication options, and programmable I/O configuration make system integration simple and efficient. Compared with traditional motor control methods, the use of a variable frequency drive helps reduce energy consumption, minimize mechanical stress, and improve production efficiency. The ACS355-03E-23A1-4 is therefore widely used as a reliable drive solution for modern manufacturing equipment, automated production lines, and industrial process control systems.
