1. What motor control methods are supported by the ABB ACS510-01-012A-4 Variable Frequency Drive?

The ABB ACS510-01-012A-4 supports both Scalar (V/f) Control and Sensorless Vector Control, allowing it to accommodate a wide range of industrial motor applications. Scalar control is ideal for centrifugal fans, pumps, conveyors, and other variable torque loads where smooth speed regulation is required. Sensorless Vector Control provides improved torque performance, especially during low-speed operation, without requiring an external encoder. This control method enables more stable motor performance, faster dynamic response, and greater efficiency in demanding industrial environments. Users can easily select the appropriate control mode through the drive’s parameter settings to optimize performance according to the connected motor and application requirements.

2. Why does the ACS510-01-012A-4 display a fault immediately after power-up and refuse to start?

A startup fault may result from several factors, including incorrect input power wiring, insufficient supply voltage, missing start commands, improperly configured control terminals, or incorrect motor parameter settings. Before troubleshooting, verify that the three-phase input voltage matches the drive’s specifications and that all power connections are secure. Next, check whether the digital inputs or communication commands are correctly configured to provide the run signal. It is also important to confirm that the motor nameplate parameters, such as rated voltage, current, frequency, and speed, have been entered accurately during commissioning. Reviewing the fault code stored in the drive’s diagnostic menu can significantly reduce troubleshooting time by identifying the specific condition that triggered the alarm.

3. How can the ACS510-01-012A-4 improve energy efficiency in HVAC, fan, and pump applications?

The ACS510 series is specifically designed for energy-saving applications such as HVAC systems, centrifugal fans, and water pumps. By continuously adjusting motor speed according to actual process demand, the drive eliminates unnecessary full-speed operation, which significantly reduces electricity consumption. The built-in PID controller allows direct connection to pressure, flow, or temperature sensors, enabling closed-loop control without requiring an external PLC. Features such as the Energy Optimizer, Sleep/Wake function, and Multi-Pump Control further enhance system efficiency by minimizing idle operation and balancing workload among multiple pumps. Proper parameter tuning, including acceleration time, deceleration time, and minimum operating frequency, can further improve overall system performance and reduce operating costs.

4. What should be checked if the motor overheats during operation?

Motor overheating can be caused by excessive mechanical load, inadequate ventilation, incorrect motor parameter configuration, prolonged low-speed operation, or excessive output current. Begin by comparing the actual operating current with the motor’s rated current to determine whether the motor is overloaded. Ensure that cooling fans on both the motor and the drive are functioning properly and that ventilation openings are free from dust or debris. If the motor frequently operates at low speeds, an independent cooling fan may be necessary because the motor’s shaft-mounted fan provides reduced airflow at low RPM. Additionally, excessively high carrier frequency settings can increase motor heating, so adjusting the carrier frequency within the recommended range may improve thermal performance while maintaining acceptable noise levels.

5. Can the ACS510-01-012A-4 communicate with PLC and industrial automation systems?

Yes. The ACS510-01-012A-4 includes an integrated RS-485 communication interface supporting the Modbus RTU protocol, allowing seamless integration with most industrial PLCs and SCADA systems. It is compatible with automation platforms from ABB, Siemens, Schneider Electric, Mitsubishi Electric, Omron, Rockwell Automation, and many other manufacturers. For applications requiring additional industrial communication protocols, optional fieldbus adapters are available to support PROFIBUS DP, PROFINET, DeviceNet, CANopen, EtherNet/IP, and several other networks. Through these communication interfaces, operators can remotely monitor operating status, modify parameters, start or stop the drive, read diagnostic information, and integrate the drive into centralized plant control systems for improved productivity and maintenance efficiency.

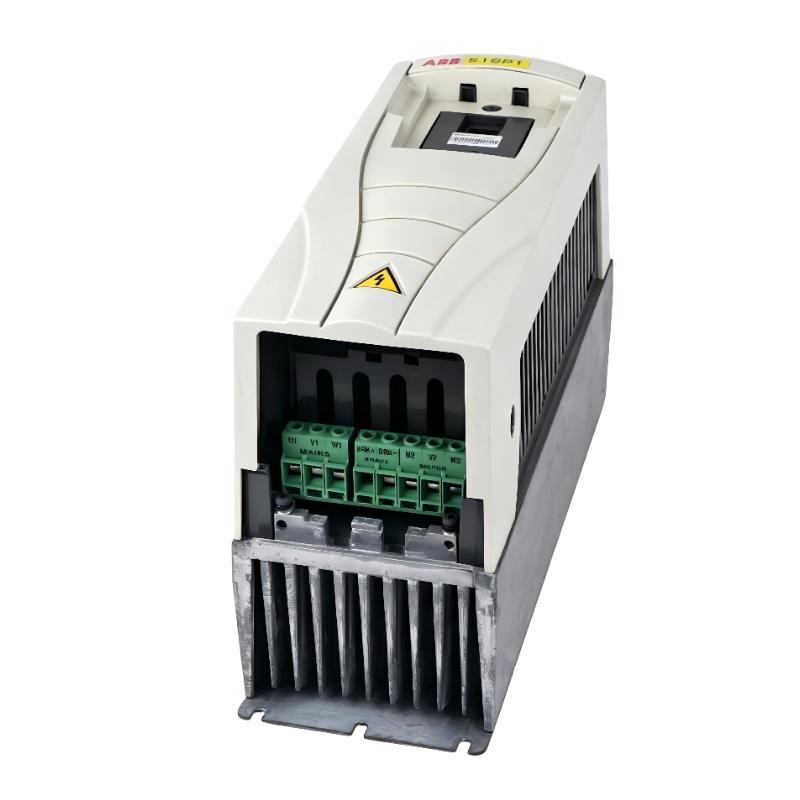

6. How can electromagnetic interference (EMI) be minimized when installing the ACS510-01-012A-4?

Proper installation practices are essential for minimizing electromagnetic interference and ensuring reliable system operation. The drive, motor, and control cabinet should all be connected to a low-impedance protective earth to provide effective grounding. Power cables and control cables should be routed separately to prevent electrical noise from affecting sensitive control signals. Shielded motor cables are recommended for installations with long cable runs, and the cable shields should be grounded according to ABB installation guidelines. When motor cable lengths exceed the recommended limits, output reactors or dv/dt filters can help reduce voltage reflections and high-frequency interference. Maintaining proper cable routing and grounding practices significantly improves electromagnetic compatibility and overall system reliability.

7. What protection functions are integrated into the ACS510-01-012A-4?

The ACS510-01-012A-4 incorporates a comprehensive range of protection features designed to safeguard both the drive and the connected motor. These include overcurrent protection, overvoltage protection, undervoltage protection, motor overload protection, drive overtemperature protection, output short-circuit protection, earth fault detection, motor stall protection, phase loss monitoring, and communication fault detection. When an abnormal operating condition is detected, the drive automatically generates an alarm or trips to prevent equipment damage. Detailed fault logs and diagnostic information are stored within the drive, enabling maintenance personnel to identify the root cause quickly and reduce equipment downtime. Proper configuration of protection parameters can further enhance operational safety and long-term reliability.

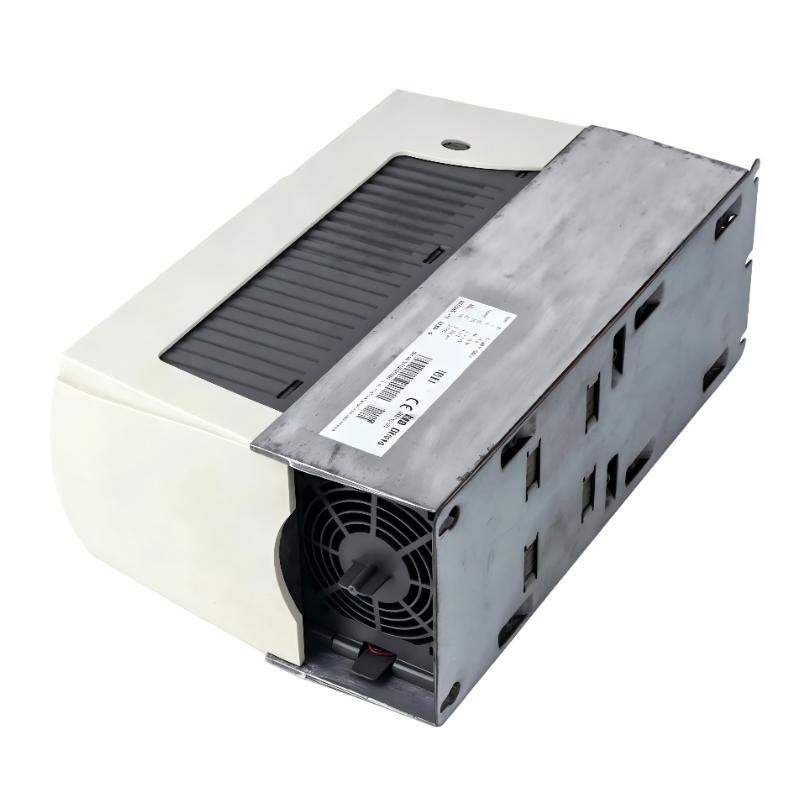

8. What maintenance practices are recommended to maximize the service life of the ACS510-01-012A-4?

Preventive maintenance plays a critical role in ensuring long-term reliability and stable performance of the ACS510-01-012A-4. Regularly inspect the cooling fan, heat sink, and ventilation channels to remove accumulated dust and maintain efficient heat dissipation. Periodically tighten all power and control terminals to prevent loose connections that may generate excessive heat or intermittent faults. It is also recommended to back up parameter settings after commissioning so they can be restored quickly if replacement or maintenance becomes necessary. Maintenance personnel should routinely review operating history and fault records to identify recurring issues before they develop into serious failures. For installations operating continuously in demanding industrial environments, scheduled replacement of wear components such as cooling fans and electrolytic capacitors can significantly extend the drive’s operational life while reducing the risk of unexpected downtime.
