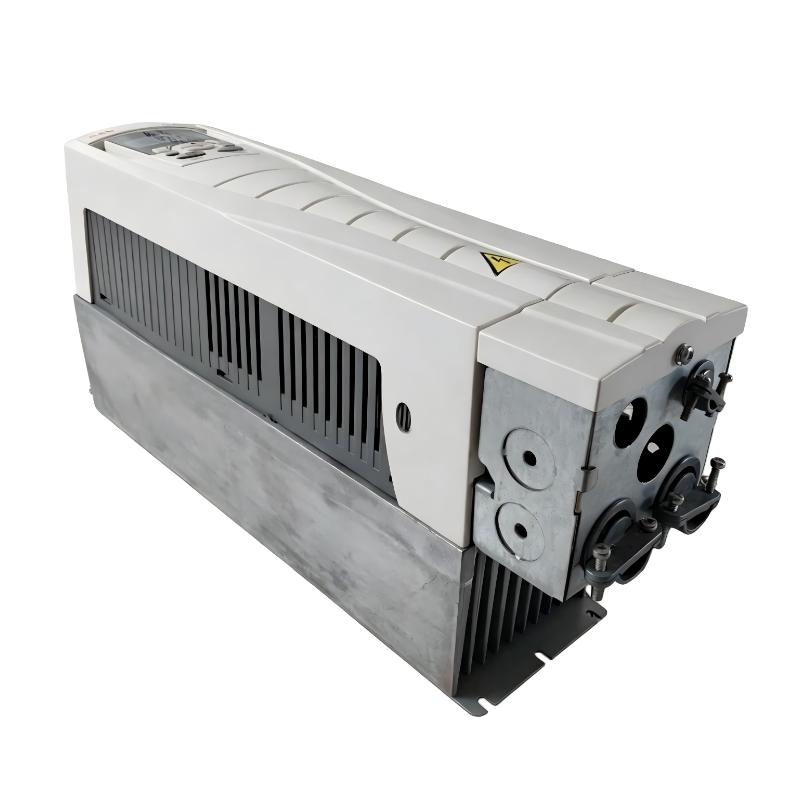

1. What types of motors can the ABB ACS510-01-025A-4 control?

The ABB ACS510-01-025A-4 is designed primarily for controlling three-phase AC induction motors used in industrial and commercial applications. It performs exceptionally well in variable torque applications such as centrifugal pumps, ventilation fans, cooling towers, compressors, air handling units, and water treatment systems. Through both Scalar (V/f) Control and Sensorless Vector Control, the drive provides smooth acceleration, stable speed regulation, and reliable torque output across a broad operating range. When the motor parameters are configured correctly during commissioning, the drive can optimize motor efficiency, improve process stability, and reduce mechanical stress on connected equipment. Its flexible control capabilities make it suitable for both standalone installations and integrated automation systems.

2. What should be checked if the drive frequently reports overcurrent faults?

Frequent overcurrent trips can result from several electrical or mechanical conditions that should be investigated systematically. First, inspect the driven equipment for excessive mechanical load, seized bearings, blocked pumps, or conveyor jams that may require unusually high motor torque. Next, verify that the acceleration time is not set too short, as rapid acceleration can produce high inrush currents. Motor parameters should also be compared with the motor nameplate to ensure correct configuration. In addition, technicians should examine motor cables for insulation damage, loose terminals, or short circuits. If the application involves long motor cable runs, installing an output reactor may help reduce transient current peaks and improve overall system stability. Reviewing the fault history can provide valuable information for identifying recurring operating conditions that trigger the alarm.

3. How does the ACS510-01-025A-4 improve overall energy efficiency?

The ACS510 series has been specifically developed for energy-saving applications where motor speed varies according to process demand. Rather than allowing motors to operate continuously at full speed, the drive dynamically adjusts output frequency to match the required flow, pressure, or ventilation level. In centrifugal fan and pump applications, relatively small speed reductions can produce substantial energy savings due to the affinity laws governing fluid systems. The integrated PID controller enables direct process regulation without requiring an external controller, while the Energy Optimizer continuously adjusts motor magnetization for maximum efficiency. Additional features such as Multi-Pump Control, automatic Sleep/Wake operation, and optimized acceleration profiles further reduce unnecessary energy consumption, helping facilities lower operating costs and improve overall sustainability.

4. What are the most important commissioning steps before placing the drive into operation?

Successful commissioning begins with confirming that all power wiring, grounding connections, and motor terminals are correctly installed according to electrical standards. After energizing the drive, technicians should enter all motor nameplate information, including rated voltage, current, frequency, power, and speed, to ensure accurate motor control. The appropriate control mode should then be selected based on the application requirements, followed by configuration of acceleration and deceleration times, minimum and maximum frequencies, protection settings, and communication parameters if the drive will operate within an automation network. Before full production begins, it is advisable to perform a no-load functional test followed by a gradual load test while monitoring output current, operating temperature, and diagnostic information. This commissioning procedure helps ensure reliable long-term operation and minimizes the likelihood of unexpected faults.

5. Can the ACS510-01-025A-4 be integrated into modern industrial automation systems?

Yes. The ACS510-01-025A-4 is designed for seamless integration into modern automation environments. It includes a built-in RS-485 interface supporting the Modbus RTU protocol, enabling direct communication with PLCs, HMIs, DCS platforms, and SCADA systems. The drive is widely integrated with automation controllers from ABB, Siemens, Schneider Electric, Mitsubishi Electric, Omron, Rockwell Automation, and other major manufacturers. For more advanced networking requirements, optional communication adapters support PROFIBUS DP, PROFINET, EtherNet/IP, CANopen, DeviceNet, and additional industrial fieldbus protocols. These communication capabilities allow centralized monitoring, remote diagnostics, parameter modification, preventive maintenance, alarm management, and real-time performance analysis across the entire production system.

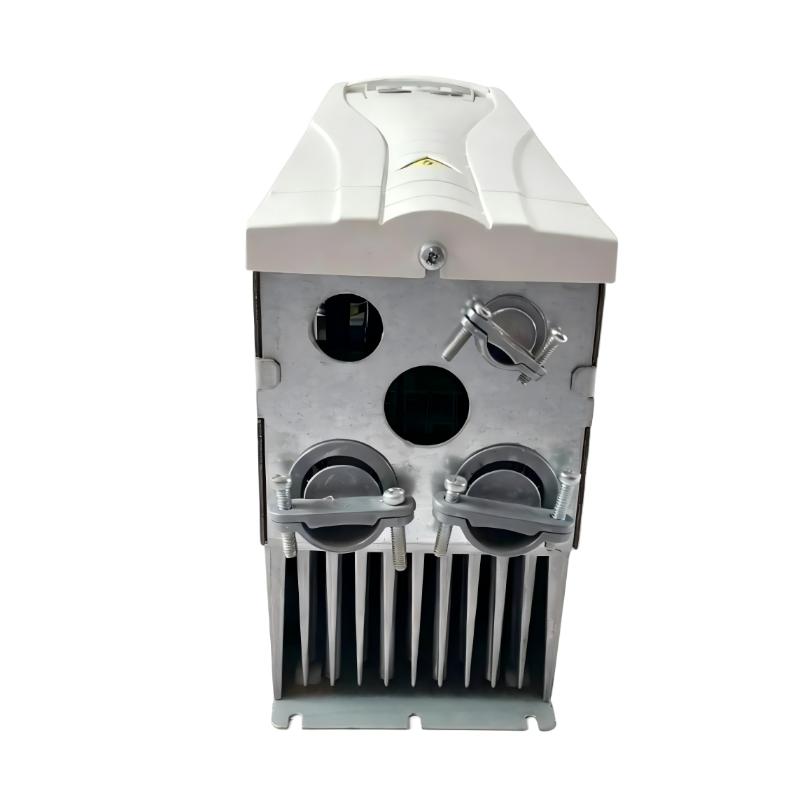

6. How can electromagnetic interference be reduced during installation?

Minimizing electromagnetic interference requires careful installation and cable management. The drive, motor, and control cabinet should all be connected to a low-resistance protective grounding system to provide an effective return path for electrical noise. Power cables should be routed separately from low-voltage control and communication cables to prevent electromagnetic coupling. Shielded motor cables are strongly recommended, especially when cable lengths are significant or when the drive is installed near sensitive electronic equipment. Proper termination of cable shields according to ABB installation recommendations is equally important. Where motor cable lengths exceed recommended values, output reactors or dv/dt filters can effectively reduce reflected voltage, harmonic distortion, and high-frequency emissions, thereby improving both system reliability and electromagnetic compatibility.

7. What protective functions are included in the ACS510-01-025A-4?

The ACS510-01-025A-4 incorporates a comprehensive range of built-in protective functions that continuously monitor both the drive and the connected motor. These include overcurrent protection, overvoltage protection, undervoltage protection, motor overload monitoring, inverter overtemperature protection, output short-circuit protection, earth fault detection, motor stall protection, phase loss monitoring, communication fault supervision, and automatic fault diagnostics. When abnormal operating conditions occur, the drive immediately generates warning messages or initiates a protective shutdown to prevent equipment damage. Detailed diagnostic records and fault history logs are stored internally, allowing maintenance personnel to identify root causes efficiently and restore normal operation with minimal production downtime.

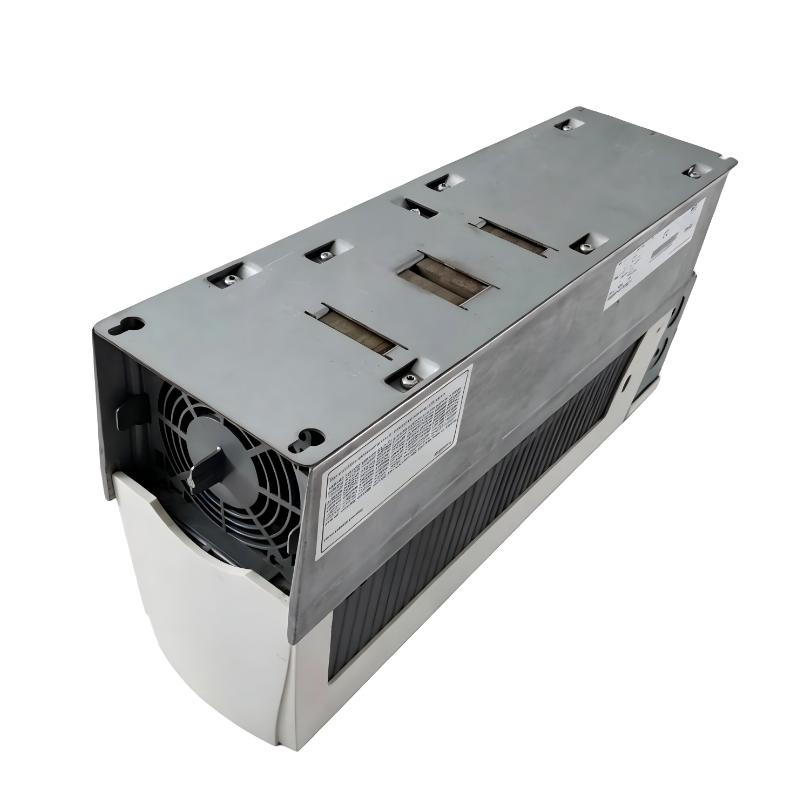

8. What maintenance practices are recommended to maximize the reliability of the ACS510-01-025A-4?

Regular preventive maintenance is essential for ensuring reliable long-term operation in demanding industrial environments. Cooling fans, heat sinks, and ventilation channels should be cleaned periodically to prevent dust accumulation that could reduce cooling efficiency and increase internal temperatures. Electrical terminals should be inspected regularly for signs of loosening, overheating, oxidation, or insulation degradation. Operators are also encouraged to back up all parameter settings after commissioning so configuration data can be restored quickly if maintenance or hardware replacement becomes necessary. Routine review of operating logs, warning messages, and fault history allows maintenance teams to identify developing issues before they become serious failures. In continuous-duty applications, replacing wear components such as cooling fans and electrolytic capacitors according to preventive maintenance schedules helps extend equipment life, improve operational reliability, and significantly reduce the risk of unexpected production downtime.
