1. What applications is the ABB ACS510-01-046A-4 Variable Frequency Drive designed for?

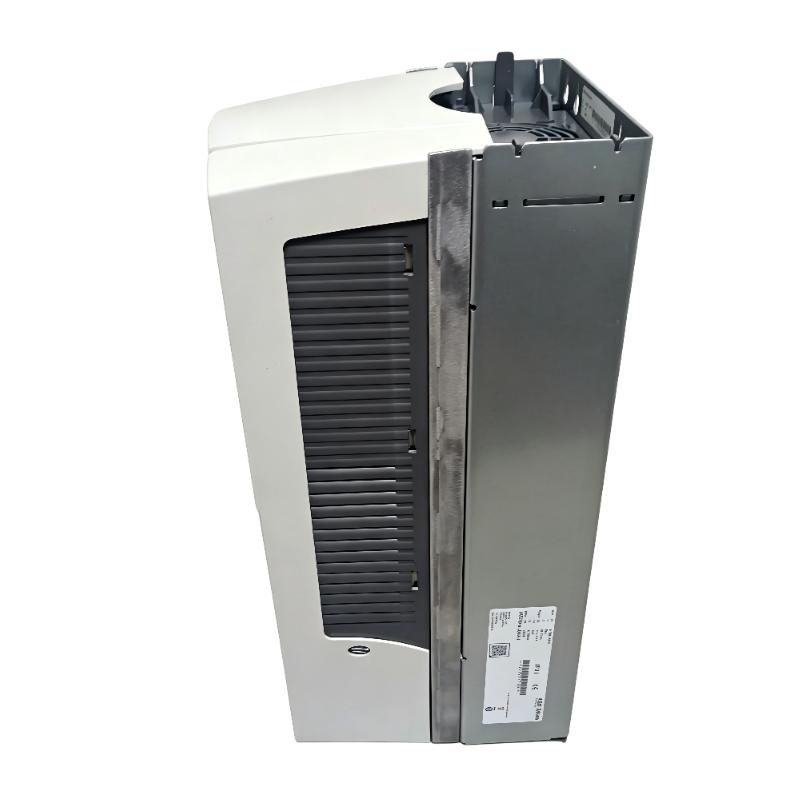

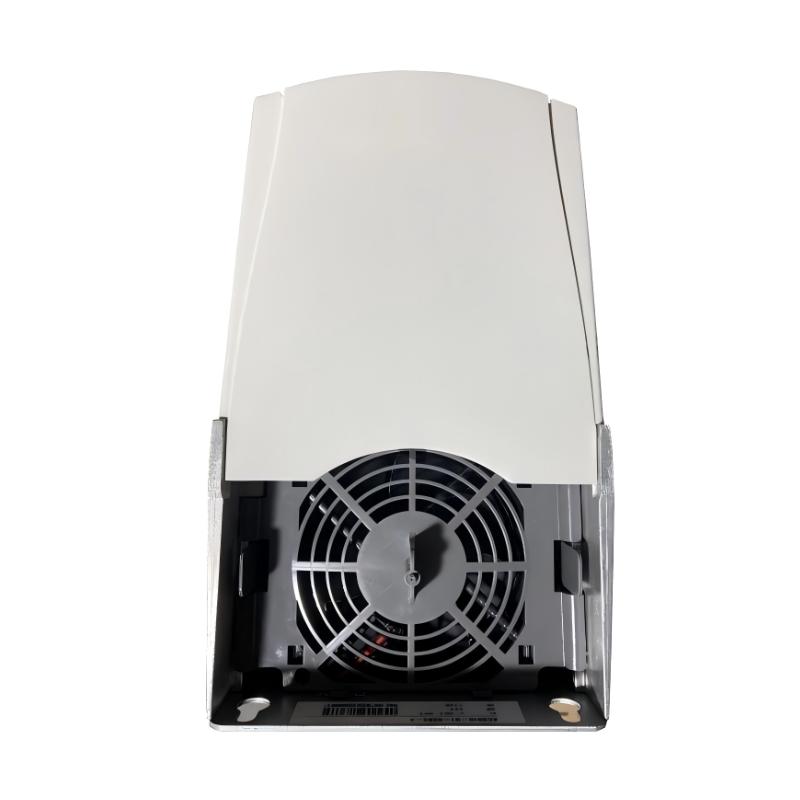

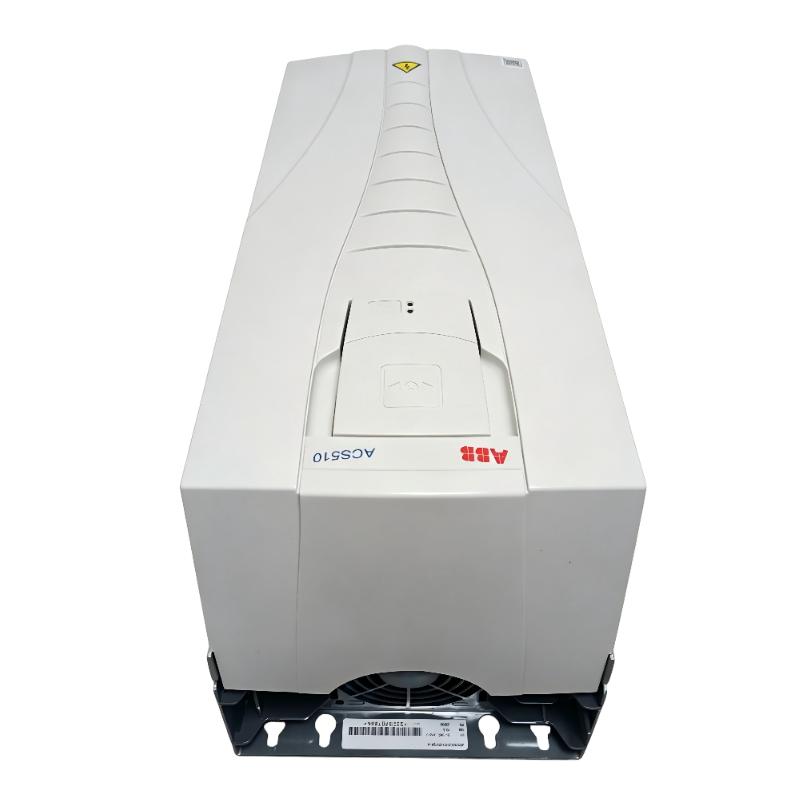

The ABB ACS510-01-046A-4 is a high-performance general-purpose variable frequency drive designed for controlling three-phase AC induction motors in industrial environments. With a rated output current of 46 A and a 22 kW power rating, it is suitable for medium-power motor applications requiring stable speed control, energy efficiency, and reliable operation.

This drive is widely used in HVAC systems, centrifugal pumps, ventilation equipment, cooling towers, compressors, water treatment plants, and industrial process machinery. The ACS510 series is optimized for variable torque applications, especially systems where motor speed needs to change according to process demand.

By automatically adjusting motor speed, the drive helps reduce energy consumption compared with traditional fixed-speed operation. It also provides smoother motor acceleration and deceleration, reducing mechanical stress on connected equipment. This makes the ACS510-01-046A-4 a suitable solution for industrial automation systems that require continuous operation, accurate control, and improved energy management.

2. What are the main causes of overcurrent faults on the ACS510-01-046A-4 and how should they be diagnosed?

Overcurrent faults on the ABB ACS510-01-046A-4 generally occur when the motor current exceeds the drive’s protection limit. The cause may come from mechanical overload, incorrect motor parameter settings, wiring problems, or unsuitable operating conditions.

The first step in troubleshooting is to inspect the mechanical system connected to the motor. Problems such as blocked pumps, overloaded equipment, damaged bearings, or excessive friction can increase motor torque requirements and cause current levels to rise above normal values.

The electrical system should also be checked carefully. Motor cables, terminals, and connections should be inspected for short circuits, insulation damage, loose wiring, or incorrect phase connections. Incorrect motor data settings are another common cause. The configured motor voltage, current, frequency, and power values must match the actual motor specifications.

If the fault occurs during startup, the acceleration time should be reviewed. Extremely short acceleration settings can create high current peaks. By checking mechanical conditions, electrical connections, and drive parameters together, technicians can identify the root cause and restore stable operation.

3. How does the ACS510-01-046A-4 improve energy efficiency in industrial motor systems?

The ABB ACS510-01-046A-4 improves energy efficiency by controlling motor speed according to actual process requirements. Instead of operating motors continuously at full speed, the drive adjusts output frequency based on system demand, reducing unnecessary power consumption.

This energy-saving capability is especially effective in applications such as pumps and fans, where power consumption changes significantly with speed variation. When the process demand decreases, the drive reduces motor speed, allowing the system to operate more efficiently without affecting required performance.

The integrated PID controller enables automatic closed-loop regulation using feedback signals such as pressure, flow, temperature, or liquid level. This allows precise control without additional external controllers. The drive also includes energy optimization functions that reduce motor losses during operation.

For applications with multiple motors, Multi-Pump Control helps coordinate operation between different units, while Sleep/Wake functions reduce energy waste during low-demand periods. These features make the ACS510-01-046A-4 an effective solution for reducing operating costs and improving long-term system efficiency.

4. What commissioning procedures should be followed when installing the ACS510-01-046A-4?

Proper commissioning ensures that the ACS510-01-046A-4 operates safely and efficiently. Before startup, the installation should be inspected to confirm that power connections, motor wiring, grounding, and control circuits are correctly installed.

The first configuration step is entering accurate motor nameplate data into the drive. Important information includes motor rated voltage, current, frequency, power, and speed. Correct motor data allows the drive to optimize control performance and provide accurate protection.

After basic motor configuration, application parameters should be adjusted according to operating requirements. These include minimum and maximum frequency limits, acceleration and deceleration times, control mode selection, and protection settings.

For systems connected to PLC, DCS, or SCADA platforms, communication parameters such as protocol type, network address, and communication speed must also be configured.

After completing setup, technicians should perform a no-load test to verify motor direction, speed response, and protection functions. The load should then be increased gradually while monitoring current, temperature, and fault information to confirm stable operation before full production use.

5. Can the ABB ACS510-01-046A-4 communicate with PLC, DCS, and SCADA systems?

Yes. The ABB ACS510-01-046A-4 is designed for integration into industrial automation networks and includes a built-in RS-485 communication interface supporting Modbus RTU protocol.

Through communication networks, users can remotely monitor operating status, read motor parameters, adjust frequency references, control start and stop commands, and access diagnostic information. This reduces the need for manual operation and improves equipment management efficiency.

The drive can be integrated with various automation platforms from ABB, Siemens, Schneider Electric, Mitsubishi Electric, Omron, Rockwell Automation, and other manufacturers. For advanced industrial communication requirements, optional fieldbus modules support PROFIBUS DP, PROFINET, EtherNet/IP, CANopen, and DeviceNet protocols.

These communication capabilities allow the ACS510-01-046A-4 to be easily integrated into modern manufacturing systems, enabling centralized monitoring, remote maintenance, and real-time data exchange between field devices and control systems.

6. How can electromagnetic interference be reduced when using the ACS510-01-046A-4?

Electromagnetic interference control is important when installing variable frequency drives because high-speed switching inside the inverter can generate electrical noise. Proper installation methods can significantly improve system reliability.

The drive, motor, and control cabinet should be connected to a reliable grounding system. Good grounding provides an effective path for high-frequency interference currents and reduces the impact on other electronic equipment.

Power cables and control cables should be routed separately to prevent motor power signals from affecting sensitive control wiring. For longer motor cable installations, shielded cables are recommended, and cable shielding should be properly connected.

In environments with strict electromagnetic compatibility requirements, additional components such as output reactors or dv/dt filters can be installed to reduce voltage spikes and harmonic interference.

Following correct installation practices helps prevent communication errors, unstable control signals, and unwanted equipment behavior, ensuring reliable operation of the entire automation system.

7. What protection functions are included in the ABB ACS510-01-046A-4?

The ABB ACS510-01-046A-4 includes multiple protection functions designed to protect both the drive and the connected motor. These functions include overcurrent protection, overvoltage protection, undervoltage protection, motor overload protection, inverter overtemperature protection, output short-circuit protection, earth fault detection, phase loss monitoring, motor stall protection, and communication fault monitoring.

When abnormal operating conditions are detected, the drive automatically generates warning messages or performs protective shutdown actions depending on the severity of the fault. This prevents further damage to electrical components and mechanical equipment.

The built-in diagnostic system records fault codes and operating information, allowing maintenance personnel to quickly identify problems and perform corrective actions.

These protection features improve system safety, reduce unexpected downtime, and help maintain reliable operation in demanding industrial environments. Correct parameter configuration ensures that protection functions respond accurately while maintaining stable operation during normal working conditions.

8. What maintenance practices are recommended for the ACS510-01-046A-4 to ensure reliable operation?

Regular preventive maintenance is essential for maintaining the long-term reliability of the ABB ACS510-01-046A-4. The cooling system should be inspected periodically, including checking fan operation and cleaning dust from ventilation areas to ensure proper heat dissipation.

Electrical connections should be checked regularly, including power terminals, motor wiring, control connections, and grounding points. Loose or damaged connections can increase resistance, create heat, and lead to unexpected failures.

After commissioning, it is recommended to save a backup copy of all drive parameters. This allows quick recovery of settings after maintenance or replacement procedures.

Maintenance personnel should also review fault history, alarm messages, and operating data to identify potential issues before they become serious problems. In environments with high temperature, humidity, or dust, maintenance frequency should be increased.

By following a preventive maintenance program, users can extend the service life of the drive, reduce unexpected shutdowns, and improve the overall reliability of industrial automation systems.
