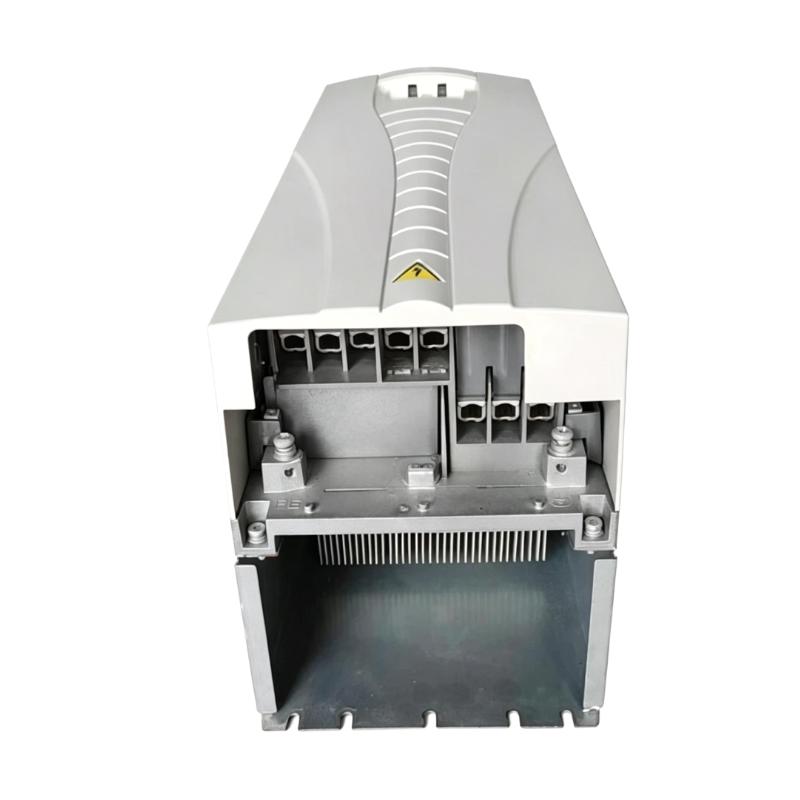

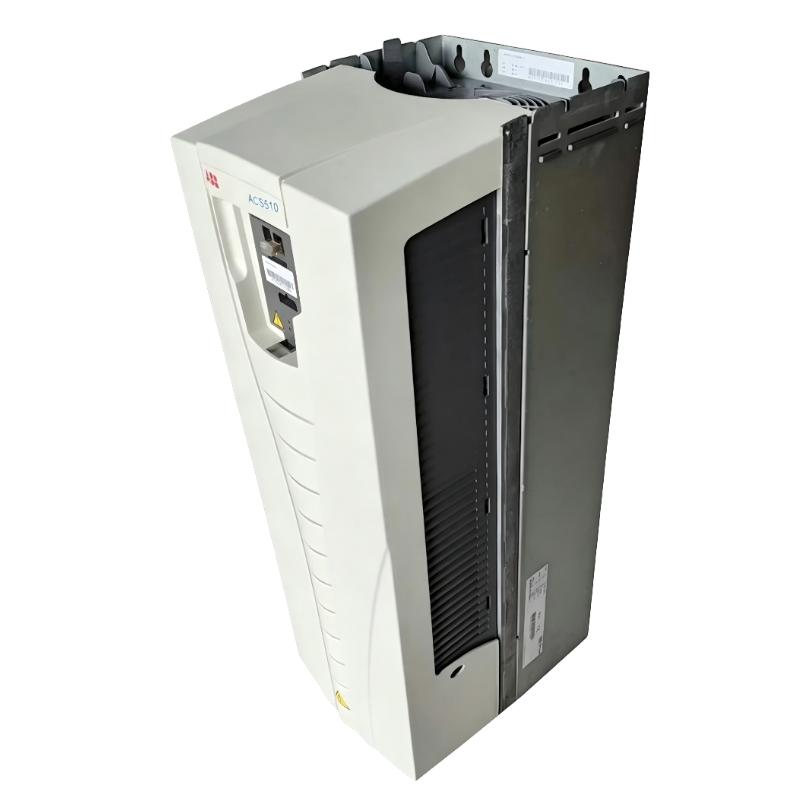

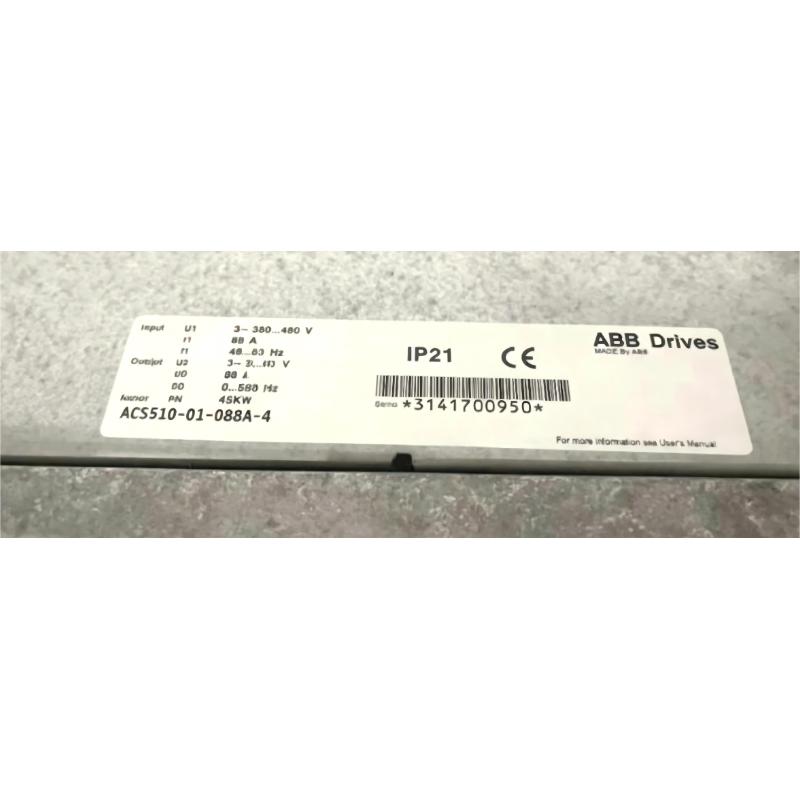

1. What applications is the ABB ACS510-01-088A-4 Variable Frequency Drive suitable for?

The ABB ACS510-01-088A-4 is a medium-to-high power AC variable frequency drive designed for industrial motor control applications that require stable speed regulation, energy efficiency, and reliable long-term operation. It is widely used in large fans, pumps, HVAC systems, cooling equipment, compressors, conveyors, water treatment facilities, and industrial automation systems. The drive is optimized for variable torque applications and can automatically adjust motor speed according to actual process requirements. With built-in PID control functions, it can accurately regulate pressure, flow, and air volume, making it ideal for continuous-duty industrial applications where operational efficiency and system reliability are important.

2. How should an overcurrent fault on the ACS510-01-088A-4 be diagnosed and resolved?

When an overcurrent fault occurs on the ACS510-01-088A-4, troubleshooting should begin by checking the mechanical load, motor condition, wiring, and parameter settings. First, verify whether the driven equipment has mechanical problems such as blockage, excessive load, bearing damage, or abnormal resistance that may increase motor current. Next, check whether the motor parameters configured in the drive match the actual motor nameplate data, including rated voltage, current, frequency, power, and speed. The output cables should also be inspected for short circuits, grounding faults, or insulation deterioration. If the motor requires high starting torque, increasing the acceleration time and optimizing torque boost settings can help reduce startup current and prevent repeated overcurrent protection trips.

3. How can the ACS510-01-088A-4 parameter settings be optimized for better efficiency?

To improve the operating efficiency of the ACS510-01-088A-4, the drive parameters should be configured according to the characteristics of the connected motor and application load. Accurate motor data entry allows the drive to achieve better torque and speed control. For fan and pump applications, the built-in PID controller can automatically adjust the output frequency based on pressure, flow, or temperature feedback signals, reducing unnecessary energy consumption caused by constant-speed operation. Acceleration time, deceleration time, frequency limits, and protection parameters should also be adjusted according to actual operating conditions. Maintaining stable input power quality, proper cabinet ventilation, and regular equipment inspections further improve system efficiency and extend the service life of the drive.

4. How does the ACS510-01-088A-4 communicate with PLC, DCS, or SCADA systems?

The ACS510-01-088A-4 features an integrated RS-485 communication interface with Modbus RTU support, allowing easy integration into industrial automation systems. During commissioning, communication parameters such as slave address, baud rate, data bits, stop bits, and parity settings must be configured correctly and matched with the PLC or DCS controller. Once communication is established, the control system can monitor important operating information including output frequency, output current, output voltage, operating status, alarms, and fault codes. Remote commands such as start, stop, speed adjustment, parameter modification, and fault reset can also be executed through the communication network. Using shielded twisted-pair cables with proper grounding and termination helps ensure reliable communication in industrial environments.

5. What causes motor speed fluctuations during operation, and how can they be corrected?

Motor speed fluctuations during operation can be caused by unstable reference signals, incorrect motor parameters, improper PID tuning, electromagnetic interference, or changing mechanical loads. The first step is to check whether the analog input signal or communication reference signal remains stable and whether the control wiring is properly installed and protected against interference. The motor parameters should be verified to ensure they match the actual motor specifications. For systems using PID control, the proportional and integral parameters should be adjusted according to process requirements to achieve a balance between response speed and stability. If the load changes frequently, optimizing acceleration and deceleration settings can reduce speed variation and improve overall motor control performance.

6. How should an overheating alarm on the ACS510-01-088A-4 be handled?

When the ACS510-01-088A-4 generates an overheating alarm, the first step is to check whether the installation environment meets operating requirements, including ambient temperature, cabinet ventilation, and airflow conditions. The cooling fan should be inspected to ensure proper operation, and dust or debris should be removed from the heat sink, ventilation openings, and cooling passages. If the drive has been operating under continuous heavy load conditions, the actual load level should be evaluated to determine whether additional cooling measures or load reduction is required. After corrective actions are completed, allow the temperature to return to normal before resetting the fault and restarting the drive. Monitoring operating current and temperature after restart helps confirm that the problem has been fully resolved.

7. What maintenance procedures are recommended for the ABB ACS510-01-088A-4?

To ensure reliable long-term operation of the ACS510-01-088A-4, a preventive maintenance schedule should be established. Maintenance activities should include checking power terminals, output connections, control wiring, and grounding points to ensure secure electrical connections. The cooling fan, heat sink, and ventilation channels should be cleaned regularly to maintain effective heat dissipation. Motor cables, communication lines, and insulation conditions should also be inspected to identify possible aging or connection problems. It is recommended to save a backup copy of the drive parameters after commissioning and periodically review fault records and operating conditions. This helps identify potential issues early, reduce unexpected downtime, and improve the overall reliability of the automation system.

8. What is the correct troubleshooting procedure after an ACS510-01-088A-4 fault occurs?

When the ACS510-01-088A-4 experiences a fault, the first step is to record the fault code and operating conditions at the time of failure, including output current, operating frequency, motor load, and power supply status. Avoid repeatedly resetting the drive without identifying the actual cause. Troubleshooting should include checking the input power supply, motor condition, output wiring, control signals, and parameter configuration according to the fault information. After the problem has been corrected, the fault can be reset through the keypad or remote control system, and the drive should be restarted while monitoring operating performance. If the same fault continues to appear, historical alarm records and operating data should be analyzed to determine the root cause and implement effective corrective actions. This ensures safe, stable, and continuous operation of the complete automation system.
