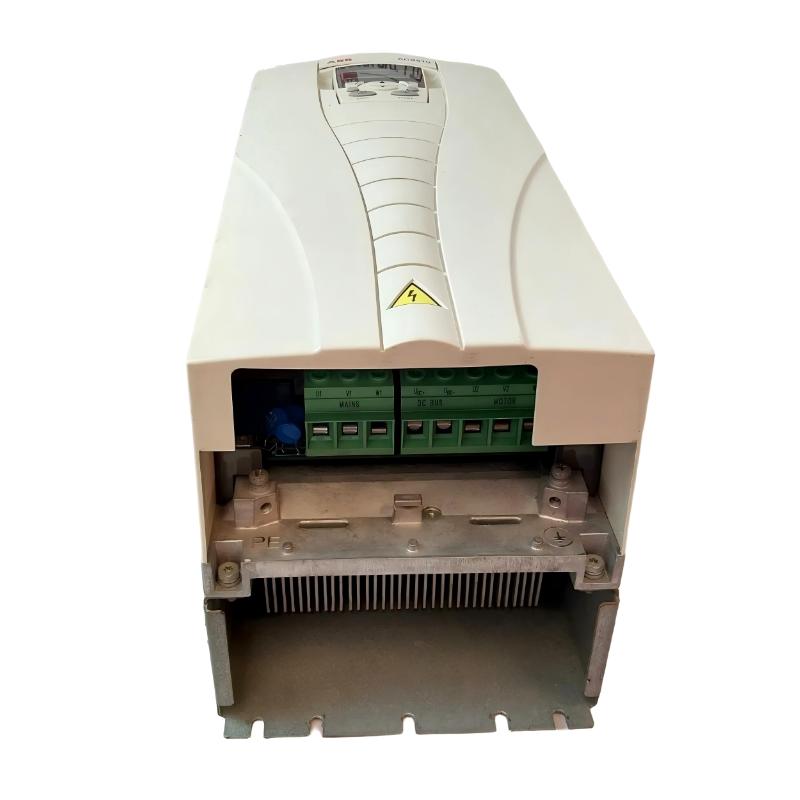

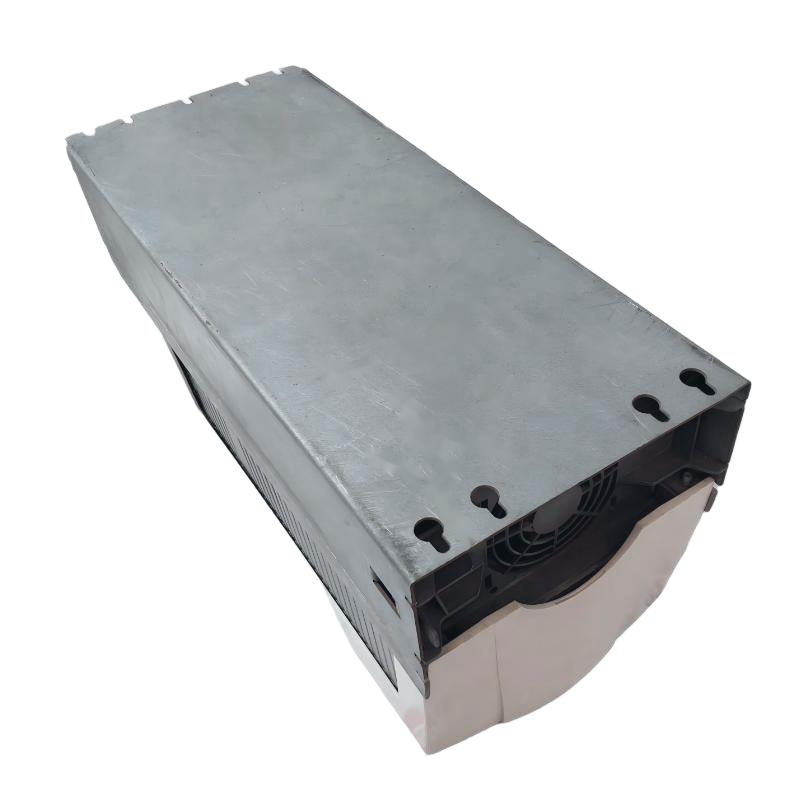

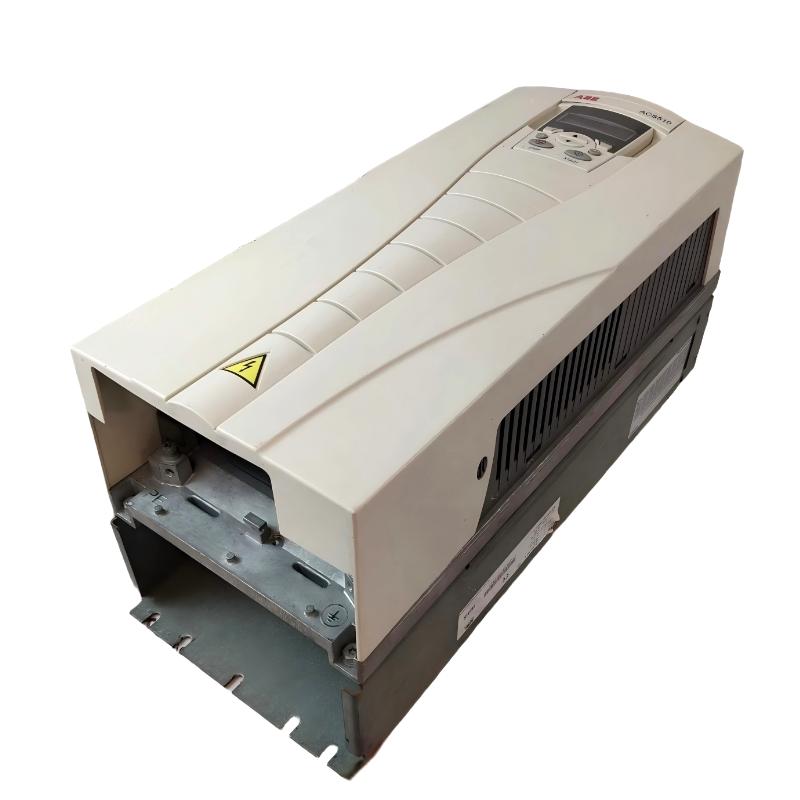

Q1: What are the primary applications of the ABB ACS510-01-195A-4 Frequency Converter?

A: The ABB ACS510-01-195A-4 is specifically designed for variable torque applications such as fans, pumps, air handling units, cooling towers, water distribution systems, wastewater treatment facilities, and HVAC installations. Unlike general-purpose drives, the ACS510 includes dedicated features optimized for fluid-handling processes, making it an ideal solution for commercial buildings, industrial facilities, and infrastructure projects. Its ability to provide precise speed control helps improve process efficiency, reduce operating costs, and enhance system reliability in applications that require continuous operation.

Q2: How does the ACS510 improve energy efficiency in motor-driven systems?

A: Energy savings are one of the most significant advantages of the ACS510. In fan and pump applications, motor power consumption decreases dramatically when speed is reduced. Instead of controlling flow through dampers, valves, or throttling devices while the motor runs at full speed, the ACS510 adjusts motor speed according to actual process demand. This allows the system to consume only the energy required for the application. In many HVAC and water management systems, users achieve substantial reductions in electricity consumption, resulting in lower operating expenses and a faster return on investment.

Q3: What benefits does the built-in PID controller provide?

A: The integrated PID controller enables the drive to maintain process variables such as pressure, flow rate, temperature, or liquid level without requiring an external control device. By continuously comparing feedback signals with setpoints, the ACS510 automatically adjusts motor speed to maintain stable operating conditions. This simplifies system design, reduces hardware costs, and improves overall control performance. The PID functionality is particularly useful in constant-pressure water supply systems, ventilation systems, and temperature-controlled processes where precise regulation is essential.

Q4: What protection features are included in the ACS510-01-195A-4?

A: The drive incorporates a comprehensive range of protection functions designed to safeguard both the motor and the drive itself. These include overcurrent protection, overvoltage protection, undervoltage monitoring, motor overload protection, ground fault detection, overtemperature protection, and phase-loss monitoring. When abnormal operating conditions are detected, the drive can generate alarms, limit output, or safely stop operation to prevent equipment damage. These protective capabilities significantly improve system reliability and reduce maintenance requirements.

Q5: How can the ACS510 be integrated into industrial automation systems?

A: The ACS510 supports Modbus communication as standard and can be expanded to support additional industrial communication protocols through optional modules. This allows seamless integration with PLCs, DCS platforms, SCADA systems, building management systems (BMS), and other automation networks. Operators can remotely monitor drive status, adjust operating parameters, access diagnostics, collect performance data, and perform centralized control functions. This connectivity improves operational visibility and enables more efficient system management.

Q6: Why is the ACS510 particularly popular in HVAC applications?

A: The ACS510 was developed with HVAC applications as a primary focus. It includes specialized software functions such as PID control, sleep mode operation, automatic restart, energy optimization algorithms, and pump-and-fan-specific parameter settings. These features simplify commissioning and optimize performance for air handling units, chilled water systems, cooling towers, and ventilation equipment. As a result, facility managers can achieve improved comfort control, reduced energy consumption, and enhanced equipment longevity while minimizing maintenance efforts.

Q7: What maintenance practices are recommended to ensure long-term reliability?

A: To maximize reliability and service life, regular maintenance should include inspection of cooling fans, air filters, ventilation paths, power terminals, and control wiring. Dust accumulation should be removed periodically to maintain proper airflow and cooling efficiency. Operators should also review fault histories, monitor operating temperatures, and verify parameter settings during routine inspections. Preventive maintenance not only reduces the likelihood of unexpected failures but also helps maintain optimal drive performance throughout its operational life.

Q8: What advantages does the ACS510 offer compared to conventional motor control methods?

A: Traditional motor control methods often rely on direct-on-line starters, mechanical throttling devices, or fixed-speed operation, which can lead to excessive energy consumption, mechanical stress, and limited process flexibility. The ACS510 provides precise speed and torque control, soft starting and stopping capabilities, reduced mechanical wear, lower starting currents, and improved process efficiency. Additionally, its integrated application-specific features, advanced protection functions, and communication capabilities make it a highly effective solution for modern energy-conscious industrial and commercial installations.
