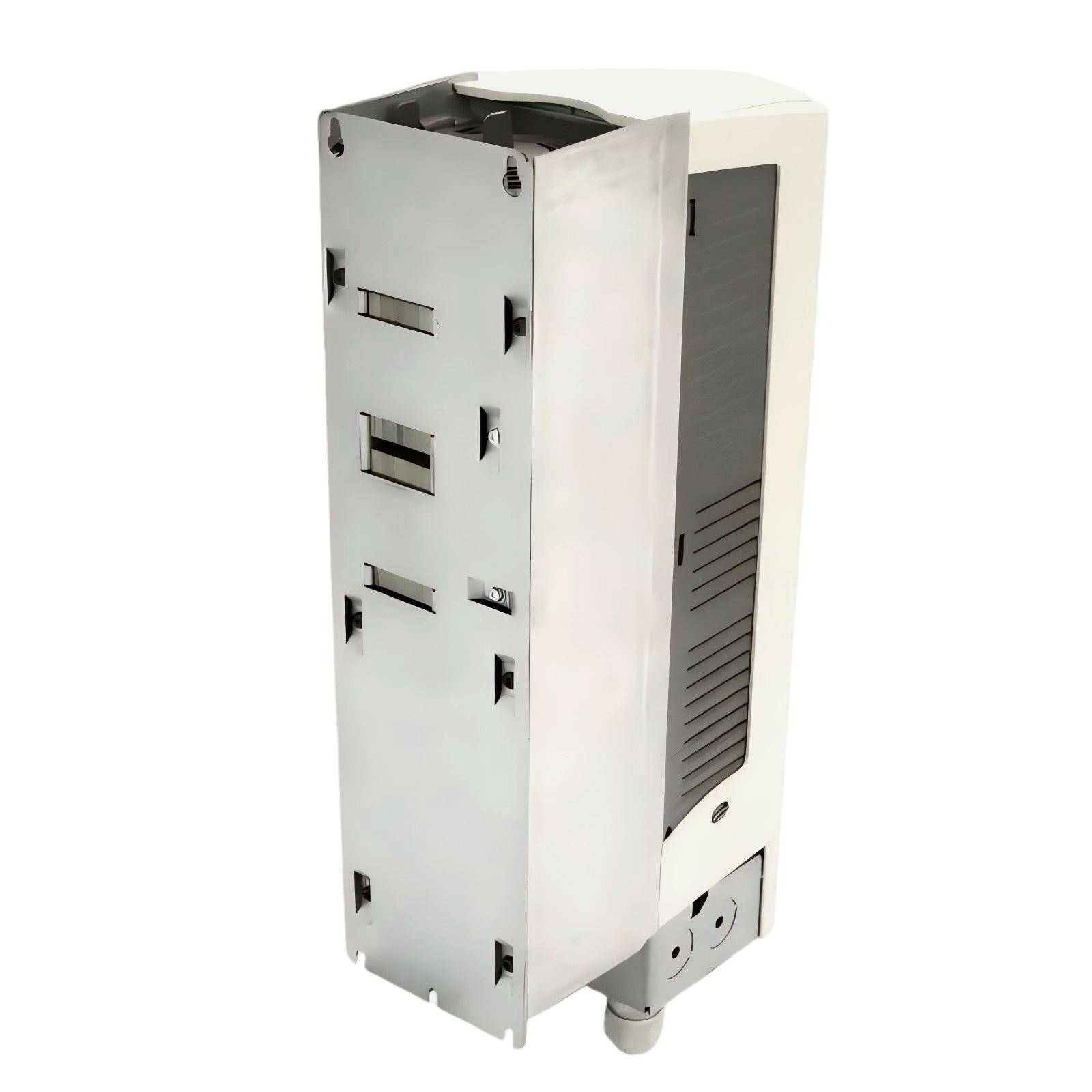

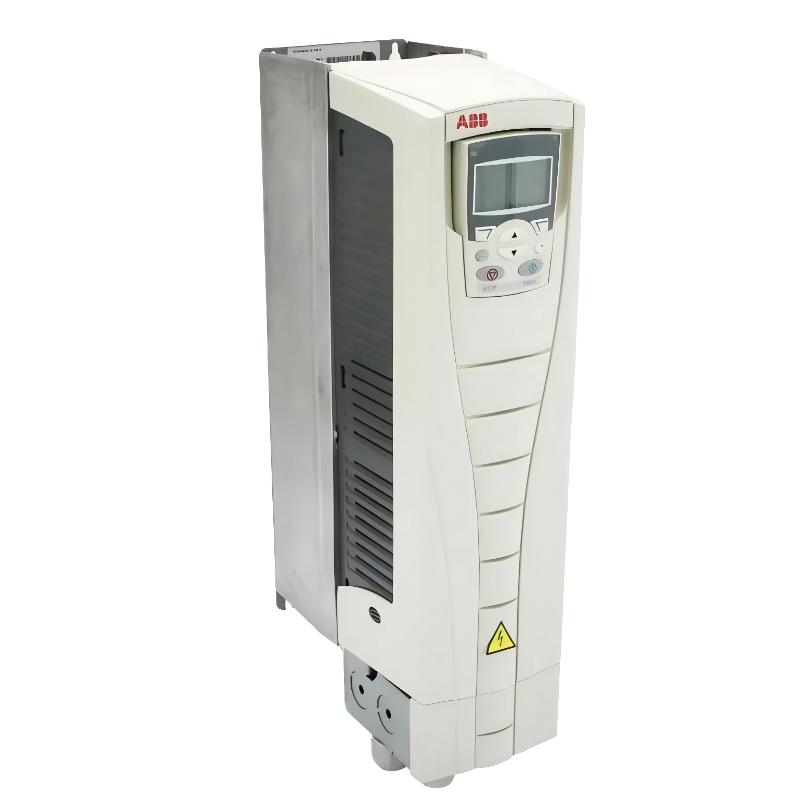

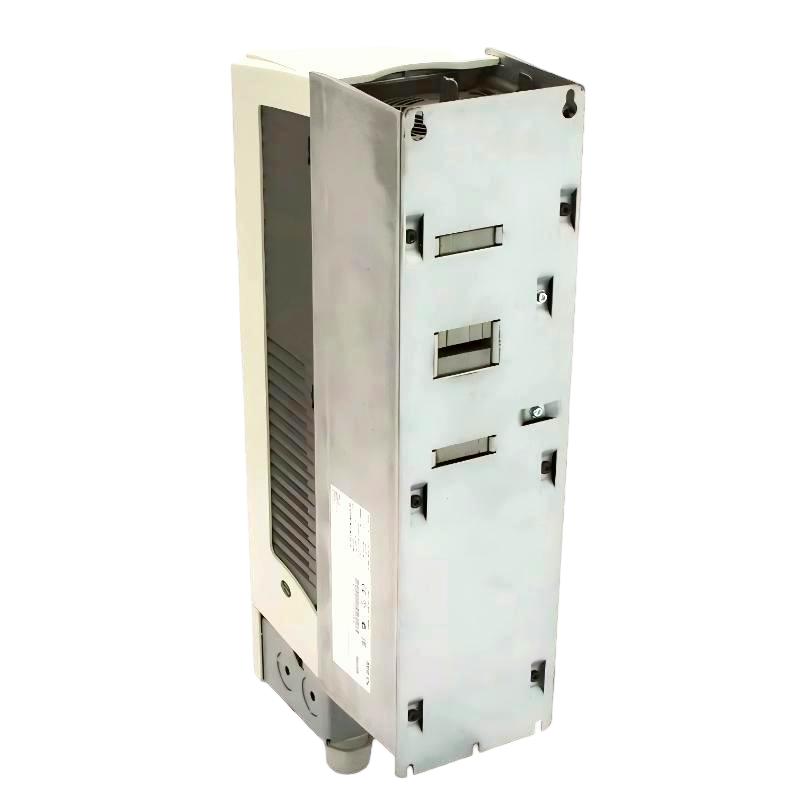

Q1: What is the primary function of the ABB ACS550-01-015A-4 Frequency Converter?

A: The ABB ACS550-01-015A-4 is designed to provide precise speed and torque control for AC motors by adjusting the frequency and voltage supplied to the motor. Instead of operating at a fixed speed directly from the power grid, the drive continuously adapts motor performance to match actual process requirements. This allows industrial systems to achieve greater efficiency, smoother operation, lower energy consumption, and improved process control. The ACS550 is widely used in applications where reliable motor regulation and long-term operational stability are essential.

Q2: Which applications are best suited for the ACS550-01-015A-4?

A: The ACS550 is particularly suitable for pumps, fans, compressors, conveyors, HVAC equipment, water treatment facilities, and general industrial machinery. It is frequently installed in commercial buildings, manufacturing plants, utility facilities, and infrastructure projects where motor-driven equipment operates continuously. Its versatile control capabilities allow it to handle both variable torque and constant torque applications while maintaining excellent efficiency and process performance.

Q3: How does the ACS550 help reduce energy consumption?

A: The ACS550 incorporates advanced energy optimization technology that automatically adjusts motor speed according to real-time load requirements. In applications such as fans and pumps, reducing motor speed by even a small percentage can significantly lower power consumption. Rather than relying on mechanical throttling devices such as valves or dampers, the drive electronically regulates motor output, resulting in substantial energy savings, lower operating costs, and reduced environmental impact over the lifetime of the installation.

Q4: What advantages does the built-in PID controller provide?

A: The integrated PID controller enables the ACS550 to perform closed-loop process control without requiring additional external control equipment. By continuously monitoring feedback signals such as pressure, temperature, flow, or liquid level, the drive can automatically adjust motor speed to maintain the desired process setpoint. This simplifies system architecture, reduces installation costs, improves process accuracy, and enhances overall operational efficiency. The feature is especially valuable in water distribution, ventilation, and process automation systems.

Q5: What protection features are included in the ACS550?

A: The ACS550 includes a comprehensive set of protection functions designed to maximize equipment safety and reliability. These functions typically include overcurrent protection, overvoltage protection, undervoltage monitoring, motor overload protection, overtemperature protection, ground fault detection, and phase-loss supervision. When abnormal conditions occur, the drive can generate warnings, activate protective responses, or safely stop operation to prevent damage to both the drive and the connected motor. This contributes significantly to reducing downtime and maintenance expenses.

Q6: How can the ACS550 be integrated into an automation system?

A: The drive supports Modbus RTU communication as a standard feature and can be expanded with optional communication modules for integration into a wide variety of industrial networks. This enables seamless communication with PLCs, DCS systems, SCADA platforms, HMIs, and building management systems. Operators can remotely monitor operating conditions, modify parameters, access diagnostic information, and implement centralized control strategies, making the ACS550 an effective component in modern automated facilities.

Q7: What maintenance practices are recommended to ensure reliable operation?

A: Regular preventive maintenance is essential for maximizing the performance and lifespan of the ACS550. Maintenance activities should include inspecting cooling fans, cleaning ventilation channels, checking power and control terminals, verifying grounding connections, and reviewing fault history records. Monitoring operating temperatures and ensuring adequate airflow around the drive can help prevent overheating. By identifying potential issues early, maintenance personnel can reduce the likelihood of unexpected failures and maintain optimal drive performance.

Q8: Why is the ACS550 widely used in industrial and commercial facilities?

A: The ACS550 has earned a strong reputation due to its combination of reliability, energy efficiency, ease of commissioning, and application flexibility. It offers a wide range of built-in functions specifically designed for common industrial processes, reducing the need for additional hardware and simplifying system design. Its robust protection features, advanced motor control capabilities, and compatibility with automation systems make it a preferred choice for facility operators seeking dependable performance, reduced energy costs, and long-term operational reliability across a broad spectrum of applications.
