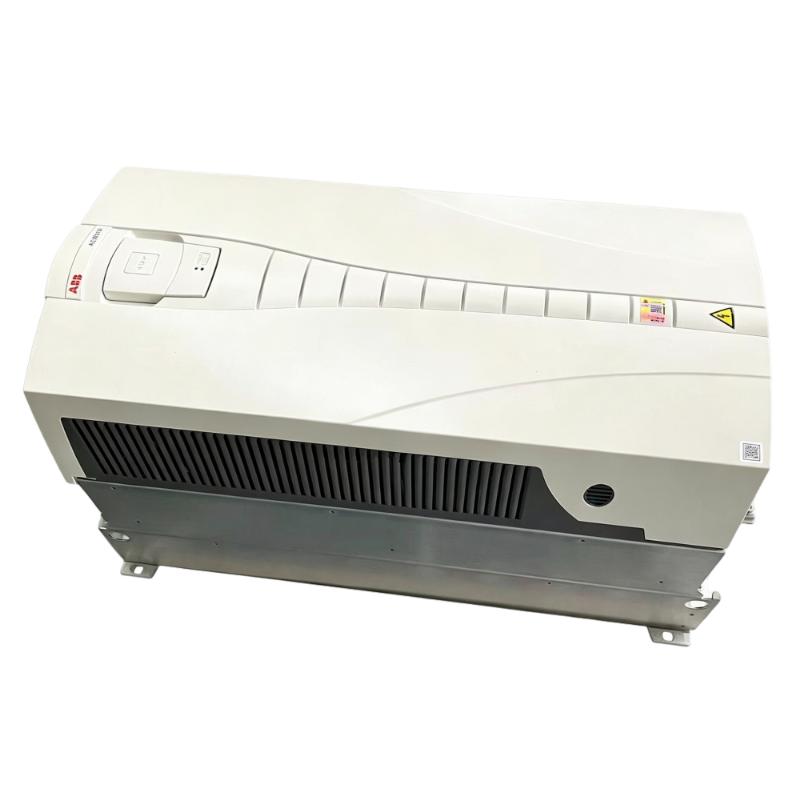

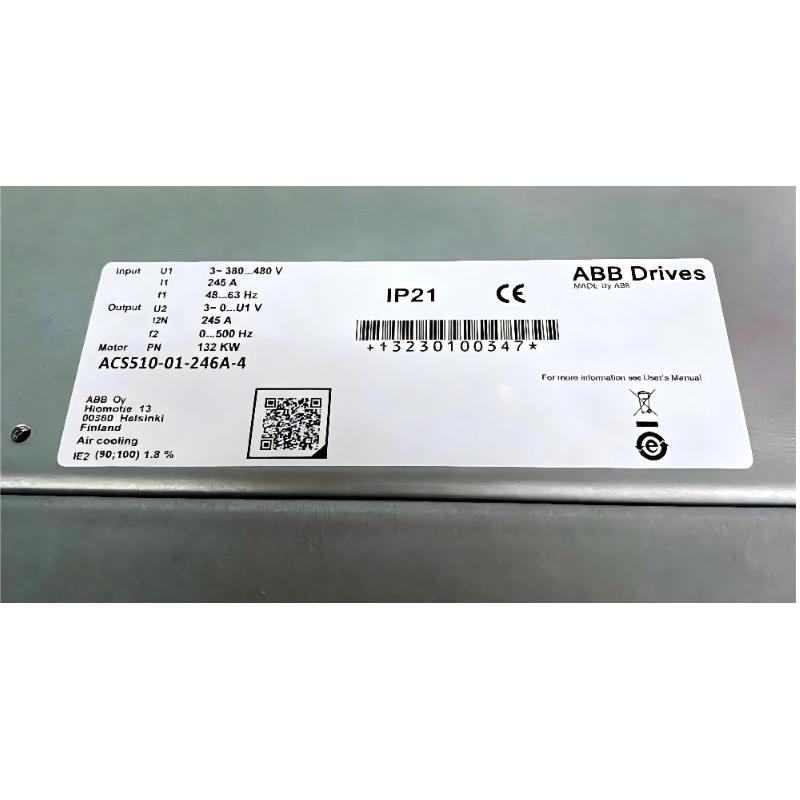

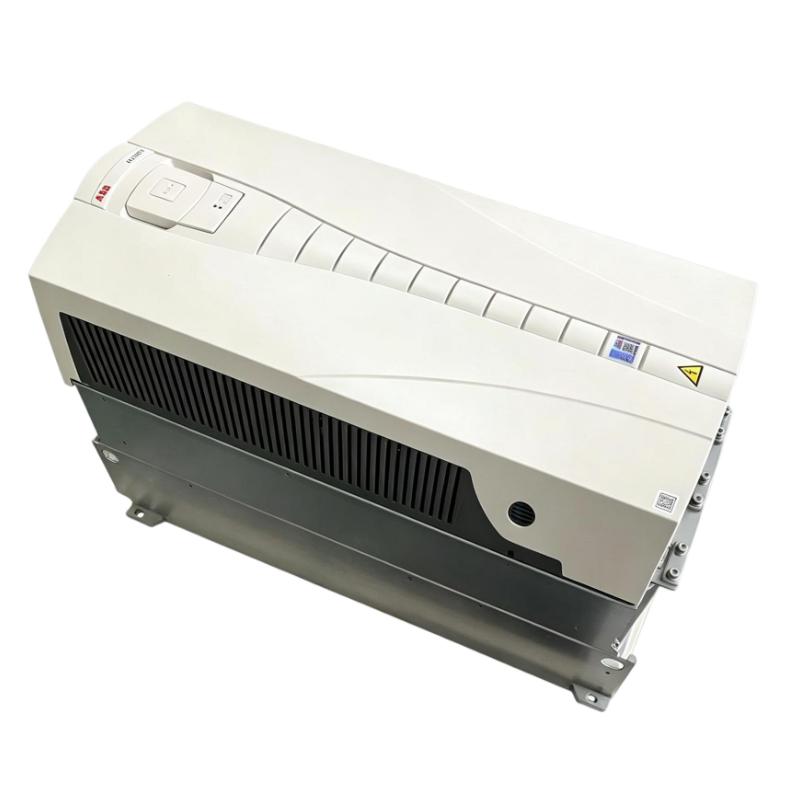

1. What applications is the ABB ACS510-01-246A-4 Variable Frequency Drive commonly used for?

The ABB ACS510-01-246A-4 is designed for high-power motor control applications that require stable operation, energy efficiency, and reliable speed regulation. It is widely used in large industrial fans, centrifugal pumps, HVAC systems, cooling towers, compressors, water treatment equipment, and conveyor applications. The drive is particularly suitable for variable torque loads, where motor speed can be adjusted according to process requirements. By controlling motor speed instead of operating equipment continuously at full capacity, the drive helps reduce energy consumption, decrease mechanical stress, and improve the overall efficiency of industrial systems. Its robust control performance makes it suitable for continuous-duty applications in manufacturing plants, infrastructure projects, and industrial automation environments.

2. How can the ACS510-01-246A-4 be connected to PLC, DCS, or SCADA systems?

The ACS510-01-246A-4 includes an integrated RS-485 communication interface with Modbus RTU protocol support, allowing direct connection with PLC systems, DCS platforms, HMIs, and SCADA monitoring systems. Through communication networks, operators can remotely control motor start and stop commands, adjust speed references, monitor operating status, read fault information, and modify selected parameters. During system integration, communication settings such as device address, baud rate, and parity must be configured correctly to ensure stable data exchange. For applications requiring other industrial communication standards, optional fieldbus modules can be installed to support additional protocols and improve compatibility with different automation architectures.

3. What parameters should be configured before commissioning the ACS510-01-246A-4?

Before commissioning, accurate motor information must be entered according to the motor nameplate, including rated voltage, rated current, rated frequency, rated power, and rated speed. These parameters allow the drive to calculate motor operating characteristics and provide optimized control performance. In addition, users should configure application-related settings such as acceleration time, deceleration time, minimum frequency, maximum frequency, start and stop control mode, and input/output signal functions. After completing parameter configuration, it is recommended to perform a no-load test followed by a normal-load test to verify motor rotation direction, current level, speed response, and protection functions before placing the equipment into continuous operation.

4. What causes overcurrent and overload faults in the ACS510-01-246A-4?

Overcurrent and overload faults may occur due to excessive mechanical load, motor blockage, pump or fan obstruction, damaged cables, poor motor insulation, incorrect motor parameters, or unsuitable acceleration settings. For example, if acceleration time is too short, the motor may require excessive current during startup, causing the protection system to activate. When a fault occurs, maintenance personnel should first inspect the mechanical load condition, check motor and cable insulation, verify electrical connections, and review the stored fault history. Adjusting operating parameters, correcting motor data, or resolving mechanical issues can usually eliminate repeated fault occurrences and restore stable operation.

5. How can the operational reliability of the ACS510-01-246A-4 be improved?

To maintain reliable long-term operation, regular inspection and preventive maintenance should be performed. Cooling fans, ventilation paths, and heat dissipation areas should be cleaned periodically to prevent overheating caused by dust accumulation. Power terminals, control connections, and grounding points should also be checked to ensure secure electrical contact. In addition, operators should monitor supply voltage quality, operating current, and environmental conditions. For equipment operating continuously in industrial environments, scheduled inspection of internal components such as cooling fans and capacitors is recommended. Proper maintenance helps reduce unexpected downtime, improves system stability, and extends the service life of the variable frequency drive.

6. What should be checked when the ACS510-01-246A-4 cannot start the motor?

When the drive fails to start the motor, troubleshooting should begin by checking whether the incoming power supply is available and within the required voltage range. Next, verify that the selected control source is correct, including keypad control, terminal control, or communication control mode. The status of digital inputs, safety circuits, emergency stop signals, and external control wiring should also be inspected. If an alarm appears on the control panel, the fault code and historical records should be reviewed to identify the possible cause. Checking motor parameters, control commands, and external devices systematically can help locate the problem quickly and restore normal operation.

7. What protection functions does the ACS510-01-246A-4 provide?

The ACS510-01-246A-4 is equipped with multiple protection functions to improve operational safety and prevent equipment damage. These include overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overtemperature protection, short-circuit protection, ground fault protection, and motor stall protection. The drive continuously monitors electrical and operating conditions during operation. When abnormal conditions are detected, it can issue alarms or stop operation automatically to protect the motor and drive system. The stored fault history provides valuable diagnostic information, helping maintenance engineers analyze problems more efficiently and reduce troubleshooting time.

8. What steps are required after replacing an ACS510-01-246A-4 drive?

After replacing the drive, all original application settings should be restored to ensure the new unit operates correctly within the existing system. If parameter backup data is available, it should be transferred to the replacement drive. Otherwise, technicians should manually configure motor parameters, communication settings, I/O assignments, control modes, and protection parameters according to the original configuration. After setup is completed, perform testing in stages, starting with basic control verification and no-load operation, followed by normal-load testing. During commissioning, monitor output current, frequency response, communication status, and fault behavior to confirm stable operation. A complete replacement and commissioning procedure helps minimize downtime and ensures reliable integration with the industrial automation system.
