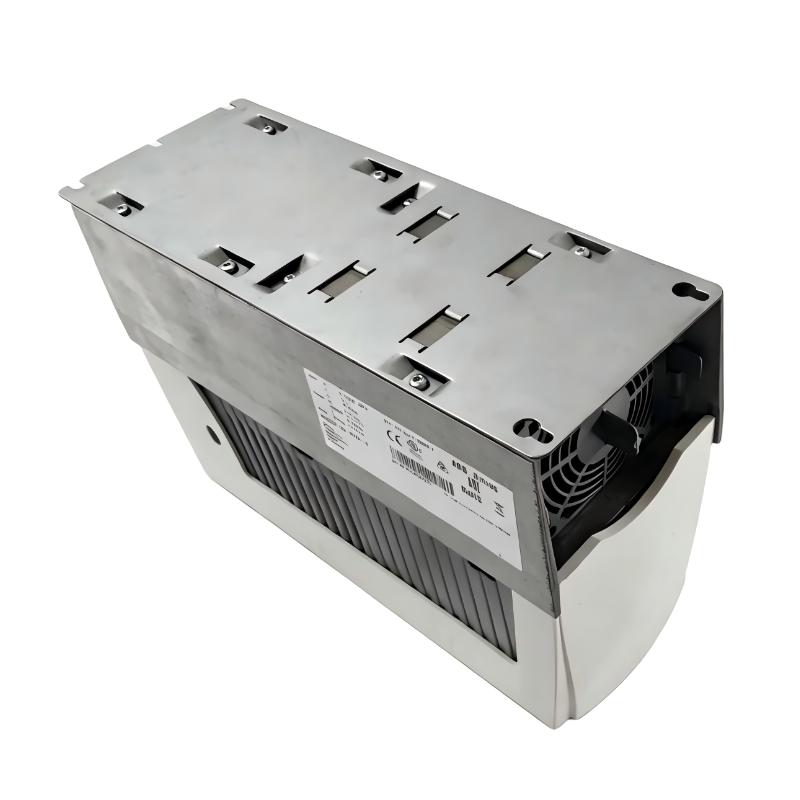

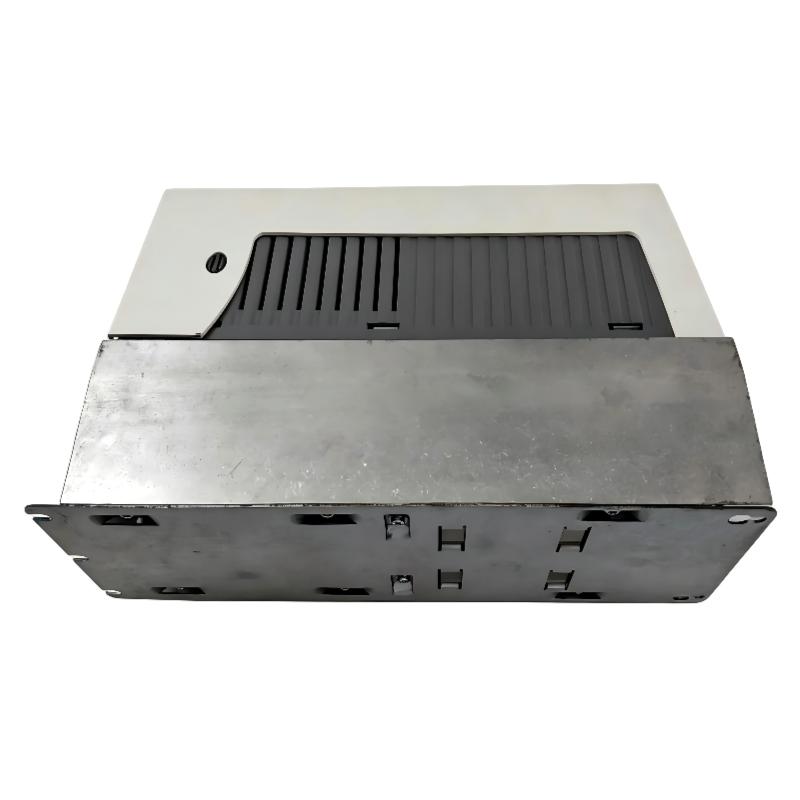

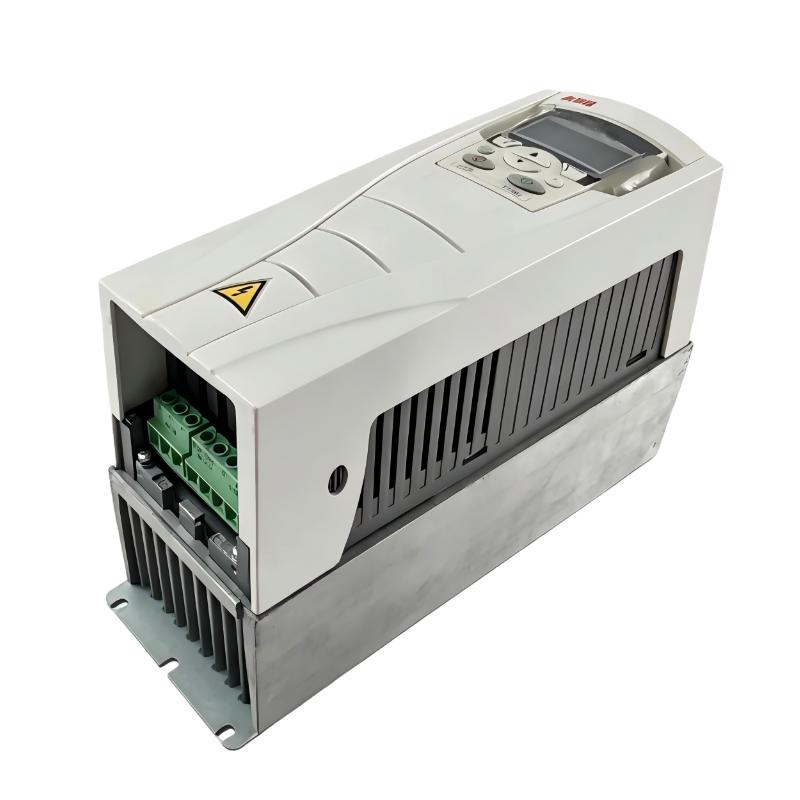

1. What applications is the ABB ACS550-01-012A-4 Variable Frequency Drive suitable for?

The ABB ACS550-01-012A-4 is a compact and reliable variable frequency drive designed for controlling small and medium-power motors in industrial automation applications. It is commonly used in pumps, fans, conveyors, compressors, material handling equipment, HVAC systems, and general machine automation applications. The drive provides accurate motor speed control and energy-saving operation by adjusting motor frequency according to actual process requirements. Compared with traditional fixed-speed motor operation, the ACS550-01-012A-4 can reduce unnecessary energy consumption, improve mechanical system performance, and minimize wear caused by frequent direct starting. Its flexible control functions and reliable protection features make it suitable for a wide range of industrial environments.

2. How can the ACS550-01-012A-4 be integrated with PLC and industrial control systems?

The ACS550-01-012A-4 includes a built-in RS-485 communication interface and supports Modbus RTU communication, allowing easy connection with PLC systems, HMIs, SCADA platforms, and other automation controllers. Through communication networks, users can remotely control motor start and stop commands, adjust speed references, monitor operating parameters, and read fault information. During integration, communication parameters such as device address, baud rate, and control mode should be configured correctly according to the automation system requirements. The drive also supports programmable digital and analog inputs, providing flexible options for connecting external sensors, switches, and control devices. This makes it suitable for both standalone machine control and larger industrial automation systems.

3. What parameters should be configured during the commissioning process of ACS550-01-012A-4?

During commissioning, the first step is to enter accurate motor nameplate data, including motor voltage, current, frequency, power, and speed values. Correct motor parameter configuration allows the drive to provide stable control performance and accurate motor protection. Additional settings should be adjusted according to the application requirements, including acceleration time, deceleration time, minimum frequency, maximum frequency, start and stop commands, control source selection, and input/output functions. After completing the configuration, technicians should perform a test run to verify motor rotation direction, operating current, speed response, and communication functions. Proper commissioning ensures efficient operation and prevents unnecessary alarms caused by incorrect settings.

4. What are the common causes of ACS550-01-012A-4 overcurrent faults?

Overcurrent faults in the ACS550-01-012A-4 are usually caused by excessive mechanical load, motor blockage, short circuits in output wiring, incorrect motor parameter settings, insufficient acceleration time, or motor-related electrical problems. When the motor requires more current than the configured protection limit, the drive will trigger an alarm to prevent damage. Troubleshooting should begin by checking the mechanical load condition and ensuring that the motor can rotate freely. The motor cable connections, insulation condition, and parameter settings should also be inspected carefully. Reviewing the fault history stored in the drive can help identify whether the problem is caused by startup conditions, continuous overload, or external equipment issues. Correct parameter adjustment and proper maintenance can effectively reduce repeated faults.

5. How can the ACS550-01-012A-4 improve energy efficiency in industrial systems?

The ACS550-01-012A-4 improves energy efficiency by controlling motor speed according to actual process demand instead of allowing the motor to run continuously at full speed. In applications such as fans and pumps, reducing motor speed slightly can significantly lower energy consumption because power requirements are strongly related to operating speed. The drive provides precise frequency control, allowing equipment to operate closer to its optimal working point. In addition, smooth acceleration and deceleration reduce mechanical stress and eliminate frequent direct motor starts, which helps extend equipment service life. By optimizing motor operation, the ACS550-01-012A-4 contributes to lower operating costs and improved overall system efficiency.

6. What should be checked if the ACS550-01-012A-4 cannot start the motor?

If the ACS550-01-012A-4 fails to start the motor, the troubleshooting process should begin by checking the incoming power supply and confirming that the drive is receiving the correct voltage. The selected control mode should then be verified, including whether the system uses local keypad control, terminal control, or communication control. External start signals, digital input settings, safety circuits, and control wiring should also be inspected. If the drive displays an alarm code, the fault message and stored history should be reviewed to identify the possible cause. In addition, motor parameters should be checked to ensure they match the connected motor. A complete inspection of power supply, control signals, parameters, and external devices can quickly restore normal operation.

7. What protection functions does the ABB ACS550-01-012A-4 provide?

The ACS550-01-012A-4 is equipped with multiple protection functions to ensure safe and reliable operation. These include overvoltage protection, undervoltage protection, overcurrent protection, overload protection, short circuit protection, ground fault protection, motor overtemperature protection, and motor stall protection. During operation, the drive continuously monitors electrical conditions and motor performance. If abnormal conditions are detected, the drive can generate warnings or stop operation automatically to prevent equipment damage. The internal diagnostic system records fault information, helping maintenance personnel quickly identify problems and perform corrective actions. These protection features improve system reliability and reduce unexpected downtime in industrial applications.

8. What procedures should be followed after replacing an ACS550-01-012A-4 Variable Frequency Drive?

After replacing an ACS550-01-012A-4, the replacement unit should be configured according to the original system settings to ensure compatibility with the existing application. Important parameters such as motor data, control mode, communication settings, acceleration and deceleration times, and I/O configurations should be restored before operation. After configuration, technicians should perform functional tests to verify start and stop commands, speed control response, and communication performance. The motor should first be tested without load and then under normal operating conditions while monitoring current, frequency, and fault status. A complete commissioning process ensures that the replacement drive operates correctly and provides stable performance within the industrial automation system.
