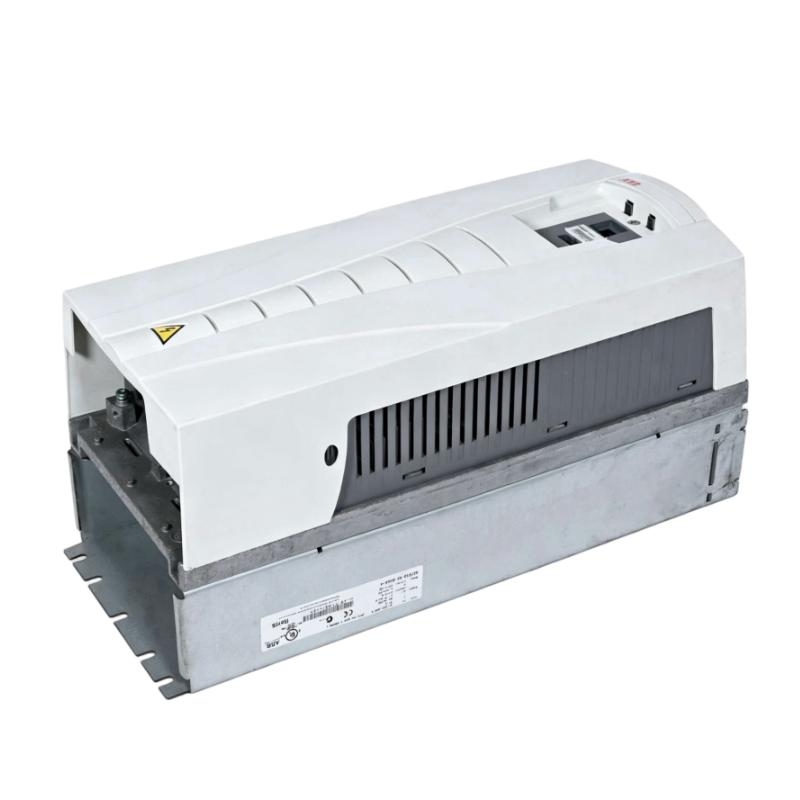

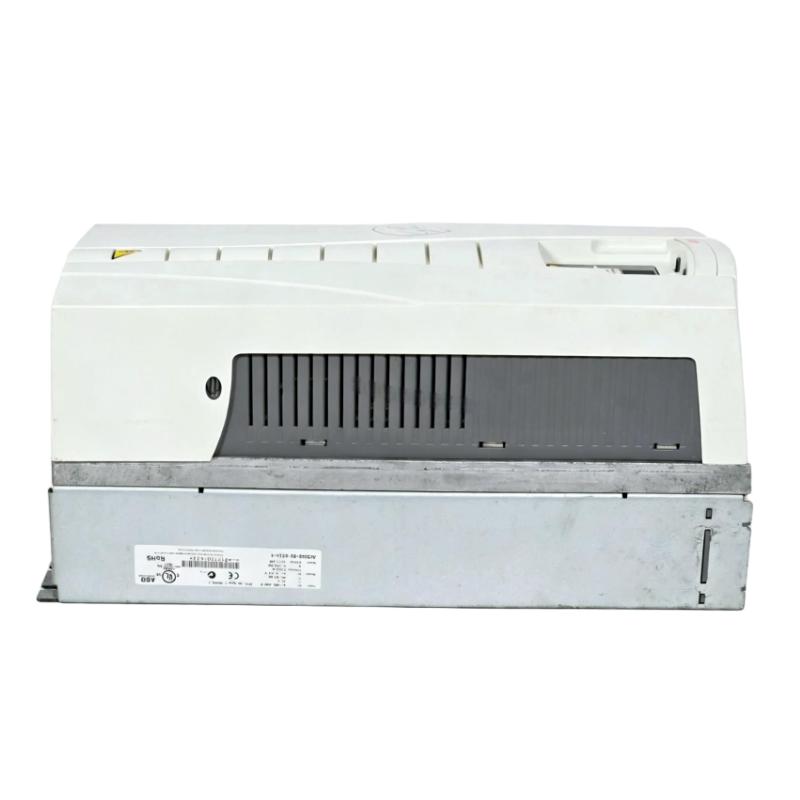

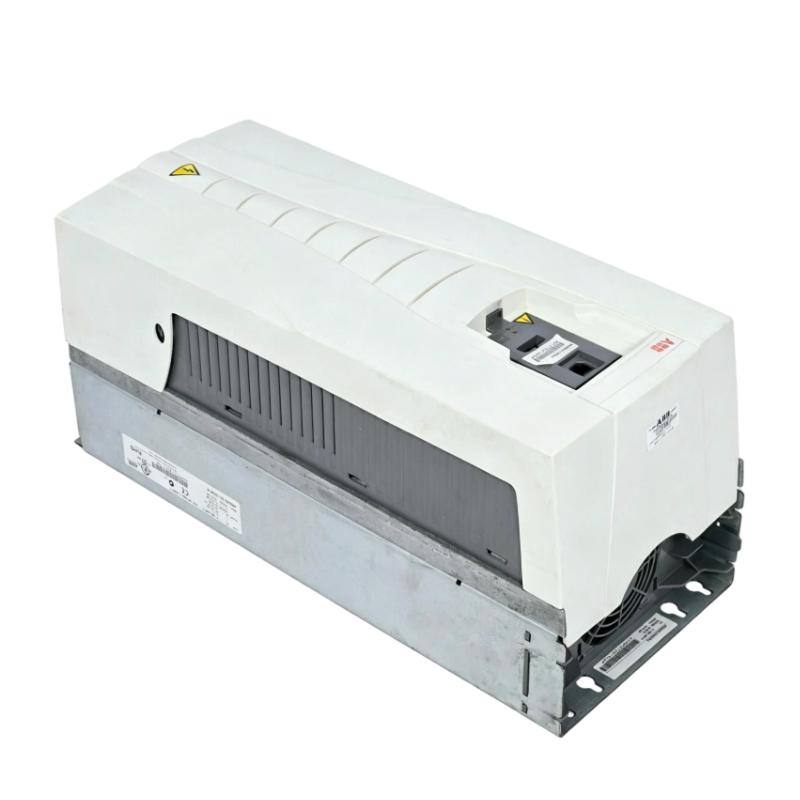

1. What applications is the ABB ACS550-01-031A-4 Variable Frequency Drive designed for?

The ABB ACS550-01-031A-4 is a versatile general-purpose variable frequency drive engineered for a wide range of industrial motor control applications. It is particularly suitable for centrifugal pumps, HVAC systems, cooling towers, air handling units, fans, compressors, conveyors, mixers, and other variable or constant torque loads. The drive features integrated energy optimization functions and advanced motor control algorithms that help reduce energy consumption while maintaining stable process performance. Its user-friendly parameter structure and built-in application macros also simplify commissioning, making it an excellent choice for both new installations and retrofit projects in industrial and commercial facilities.

2. What motor control technologies are supported by the ACS550-01-031A-4?

The drive supports both traditional Voltage/Frequency (V/f) control and ABB’s Sensorless Vector Control technology. V/f control is ideal for standard applications where simple speed regulation is sufficient, while Sensorless Vector Control delivers improved torque performance, particularly at low speeds, without requiring an external encoder. This allows the drive to provide smoother acceleration, better speed stability under changing loads, and enhanced process control for demanding applications such as conveyors, mixers, and material handling equipment. These control methods also contribute to reduced mechanical stress and extended equipment service life.

3. What should be checked if the drive frequently reports overcurrent faults?

Frequent overcurrent faults should be investigated systematically. First, verify that the driven equipment is free from mechanical binding, excessive load, or sudden load changes. Inspect the motor cables for insulation damage, short circuits, or grounding faults. Confirm that the motor nameplate parameters entered into the drive match the actual motor specifications, as incorrect settings can lead to improper current regulation. Acceleration and deceleration times should also be reviewed because extremely short ramp times can generate excessive current during motor startup or stopping. If the application involves high-inertia loads, increasing the acceleration time or enabling suitable torque control parameters may significantly improve operation. Finally, inspect the output power stage and motor condition if electrical faults continue after parameter adjustments.

4. How can communication problems between the drive and a PLC or SCADA system be resolved?

Communication failures generally result from incorrect configuration, wiring issues, or network interference. Begin by confirming that the communication protocol, baud rate, parity, stop bits, and node address are configured identically on both the drive and the master controller. Inspect the RS-485 wiring to ensure correct polarity, proper cable shielding, reliable grounding, and appropriate termination resistors at the ends of the communication network. If optional fieldbus adapters are installed, verify that the communication module is securely connected and recognized by the drive. Diagnostic parameters available through the drive keypad can also help identify communication status and error codes, allowing technicians to quickly isolate configuration or hardware-related problems.

5. How can the ACS550-01-031A-4 improve energy efficiency in industrial systems?

The ACS550 incorporates several intelligent features specifically designed to minimize energy consumption. By continuously adjusting motor speed to match actual process demand instead of operating at full speed, the drive can significantly reduce power usage in fan and pump applications according to the affinity laws. The integrated PID controller enables automatic pressure, flow, or temperature regulation without requiring an external controller, while the energy optimization function continuously adjusts motor magnetization to maximize efficiency under partial-load conditions. Additional features such as sleep mode, automatic wake-up, and programmable operating schedules further reduce unnecessary motor operation, lowering overall operating costs and extending equipment lifespan.

6. What are the most common causes of overheating alarms, and how can they be prevented?

Overheating alarms are commonly associated with poor ventilation, blocked cooling paths, excessive ambient temperatures, or prolonged operation under heavy load. Maintenance personnel should regularly inspect the cooling fan to ensure it operates correctly and clean the heatsink and ventilation openings to remove accumulated dust and debris. The drive should be installed with adequate clearance to allow unrestricted airflow, and cabinet ventilation should meet ABB installation recommendations. Continuous operation above the rated output current or installation in environments exceeding the specified operating temperature may require load derating or additional cooling equipment. Preventive maintenance, including periodic cleaning and inspection, is the most effective method for avoiding thermal-related shutdowns.

7. What parameters should be configured after replacing the motor connected to the drive?

Whenever a new motor is installed, all motor-related parameters should be updated according to the motor nameplate. This includes rated voltage, rated current, rated frequency, rated speed, rated power, and power factor where applicable. After entering the correct values, it is recommended to perform the drive’s motor identification or auto-tuning procedure, allowing the control algorithm to accurately model the motor characteristics. Once commissioning is complete, the motor should be tested under both no-load and full-load conditions to verify smooth starting, stable speed regulation, correct current levels, and proper response during acceleration and deceleration. Proper parameter configuration ensures maximum efficiency, reliable protection, and optimal control performance.

8. What maintenance practices are recommended to maximize the service life of the ACS550-01-031A-4?

To ensure long-term reliability, the drive should be included in a routine preventive maintenance program. Maintenance activities should include cleaning dust from cooling passages and heatsinks, verifying cooling fan operation, checking terminal tightness, inspecting grounding connections, and reviewing the fault history for recurring warnings. Environmental conditions should also be monitored to prevent exposure to excessive humidity, corrosive gases, vibration, or conductive dust. Firmware should be updated when recommended by ABB to improve functionality and reliability. Components subject to wear, such as cooling fans, should be replaced according to the manufacturer’s maintenance intervals. Performing these preventive measures consistently can significantly reduce unexpected downtime, improve operational stability, and extend the overall service life of both the drive and the connected motor system.
