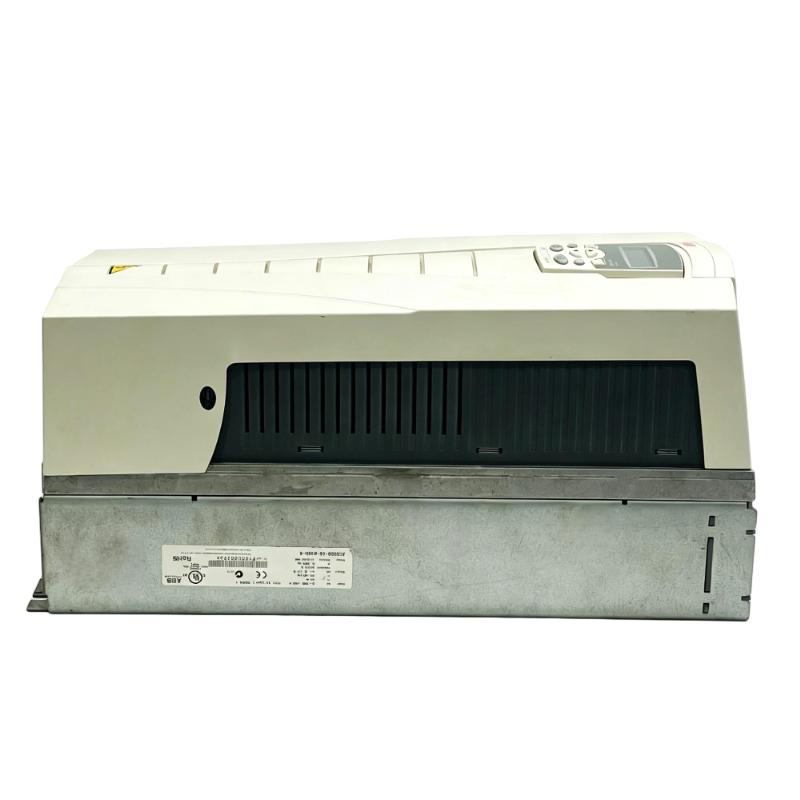

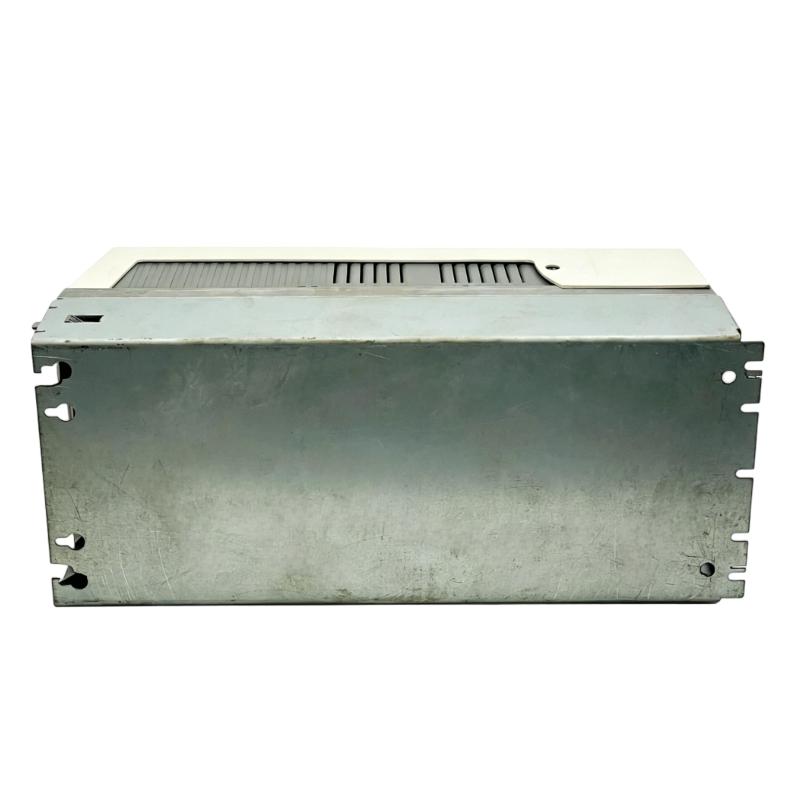

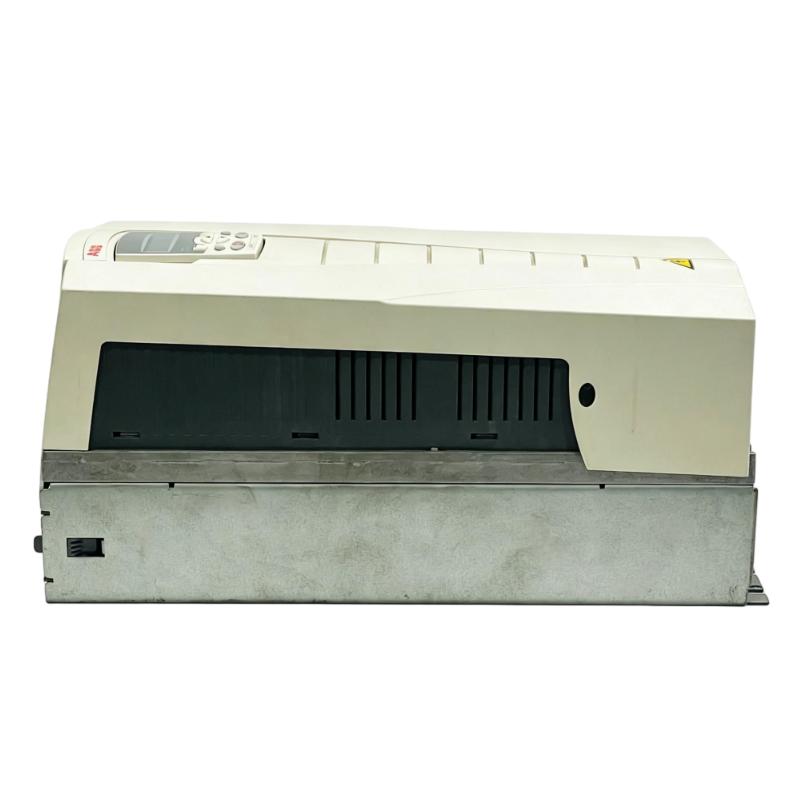

1. What industrial applications is the ABB ACS550-01-045A-4 Variable Frequency Drive designed for?

The ABB ACS550-01-045A-4 is a high-performance general-purpose variable frequency drive engineered for medium-power industrial motor control applications. It is commonly used with centrifugal pumps, ventilation fans, compressors, conveyors, mixers, cooling towers, packaging equipment, HVAC systems, and numerous process automation applications. Its flexible control capabilities make it suitable for both variable torque and constant torque loads, allowing users to improve production efficiency while reducing overall energy consumption. The drive is frequently installed in industries such as water treatment, food and beverage processing, chemical plants, mining, power generation, pulp and paper, manufacturing, and commercial building automation. Its robust hardware, advanced motor control technology, and comprehensive protection features ensure reliable operation even in demanding industrial environments where continuous uptime is essential.

2. What motor control methods are supported by the ACS550-01-045A-4, and what benefits do they provide?

The ACS550-01-045A-4 supports both traditional Voltage/Frequency (V/f) control and ABB’s advanced Sensorless Vector Control technology. V/f control is ideal for conventional applications such as fans and pumps where simple and reliable speed regulation is sufficient. Sensorless Vector Control continuously calculates motor flux and torque without requiring a feedback encoder, providing excellent speed stability and high starting torque even at very low operating speeds. This technology enables smoother acceleration and deceleration, faster response to load changes, and significantly improved process accuracy. For conveyors, mixers, packaging machinery, and other equipment with rapidly changing loads, Sensorless Vector Control minimizes speed fluctuations while reducing mechanical stress on bearings, gearboxes, belts, and couplings. These advantages contribute to improved machine reliability, higher production quality, and lower maintenance costs throughout the equipment lifecycle.

3. What troubleshooting procedure should be followed if the drive repeatedly reports overcurrent faults?

When repeated overcurrent alarms occur, troubleshooting should begin with a complete inspection of both the driven equipment and the electrical installation. Mechanical components should first be checked for seized bearings, blocked shafts, overloaded machinery, or excessive friction that could require abnormal motor torque. The motor cables should then be inspected for insulation deterioration, loose connections, short circuits between phases, or ground faults. Technicians should verify that all motor nameplate parameters—including rated voltage, rated current, rated frequency, rated power, and rated speed—have been entered correctly into the drive. Incorrect motor data can negatively affect current regulation and protective functions. Acceleration and deceleration times should also be reviewed because short ramp settings often generate excessive starting currents, particularly with high-inertia loads. If necessary, acceleration times should be increased and torque control parameters optimized. When no external cause can be identified, additional testing of the inverter output stage, IGBT power modules, DC bus components, and motor windings should be carried out to determine whether an internal hardware fault exists.

4. How can communication problems between the ACS550-01-045A-4 and PLC, DCS, or SCADA systems be resolved?

Communication problems should be diagnosed by verifying both software configuration and physical network integrity. First, ensure that the drive and the host controller use identical communication parameters, including protocol type, baud rate, parity, stop bits, and station address. The RS-485 communication wiring should be carefully inspected for correct polarity, secure terminal connections, proper cable shielding, and effective grounding to minimize electromagnetic interference. For long communication networks, termination resistors should be installed according to the network topology to prevent signal reflections. If optional communication adapters such as PROFIBUS, DeviceNet, CANopen, or other fieldbus modules are installed, verify that the modules are properly recognized by the drive and correctly configured within the automation controller. The ACS550 provides comprehensive communication diagnostics through its control panel, allowing engineers to monitor communication status, identify timeout conditions, detect network errors, and quickly isolate hardware or configuration issues. Combining these diagnostics with PLC or SCADA communication logs can significantly reduce troubleshooting time and improve system availability.

5. How does the ACS550-01-045A-4 improve energy efficiency and reduce operating costs?

Energy efficiency is one of the primary advantages of the ACS550 series. Instead of operating motors continuously at full speed, the drive continuously adjusts output frequency according to the actual process demand, allowing the motor to operate only at the speed required by the application. For centrifugal pumps and fans, even a relatively small reduction in motor speed can result in substantial reductions in power consumption because energy usage follows the affinity laws. The integrated PID controller automatically regulates process variables such as pressure, flow, liquid level, or temperature without requiring an external controller, improving both process stability and energy efficiency. The built-in Energy Optimization function further enhances efficiency by automatically adjusting motor magnetization under partial-load conditions, minimizing electrical losses while maintaining sufficient torque. Additional functions including programmable sleep mode, automatic wake-up, timer operation, multi-speed control, and automatic restart help eliminate unnecessary motor operation, enabling industrial facilities to achieve significant long-term reductions in electricity consumption, maintenance expenses, and overall operating costs.

6. What are the most common causes of overheating alarms, and how can they be prevented?

Overheating alarms are generally caused by restricted airflow, excessive ambient temperatures, cooling fan deterioration, dust accumulation on heatsinks, or prolonged operation above the drive’s rated output capacity. Preventive maintenance should include routine cleaning of ventilation passages, cooling fans, and heatsink surfaces to maintain effective heat dissipation. The drive should always be installed with sufficient clearance to allow unrestricted airflow, particularly when multiple drives are mounted inside enclosed control cabinets. Cabinet ventilation systems or air-conditioning equipment should be inspected regularly to ensure that ambient temperatures remain within ABB’s recommended operating limits. Engineers should also verify that the drive is not continuously operating above its rated output current, and derating should be applied whenever required by environmental conditions. Cooling fans should be replaced proactively based on accumulated operating hours because fan efficiency gradually decreases with age. Establishing a preventive thermal maintenance program can significantly improve operational reliability, reduce unexpected shutdowns, and extend the service life of both the drive and the connected motor.

7. Why should motor parameters be reconfigured and motor identification performed after replacing the motor?

Whenever a replacement motor is installed, all motor-specific parameters must be updated using the information provided on the new motor’s nameplate. These parameters include rated voltage, rated current, rated frequency, rated power, rated speed, and power factor where applicable. Since every motor has unique electrical characteristics, incorrect parameter settings can reduce control accuracy, increase operating current, or trigger unnecessary protective trips. After entering the correct motor data, ABB recommends performing the motor identification or auto-tuning procedure. During this process, the drive measures the motor’s electrical characteristics and develops an optimized mathematical model for the Sensorless Vector Control algorithm. This greatly improves torque production, speed regulation, current control, and dynamic response during operation. After commissioning, the complete drive system should be tested under both unloaded and fully loaded conditions to verify smooth acceleration, stable speed regulation, proper current levels, reliable protective operation, and overall system performance before returning the equipment to continuous production.

8. What maintenance practices are recommended to maximize the long-term reliability of the ACS550-01-045A-4?

Long-term reliability depends on implementing a comprehensive preventive maintenance program rather than waiting for failures to occur. Maintenance personnel should periodically clean ventilation openings, cooling fans, heatsinks, and electrical cabinets to prevent dust accumulation that can reduce cooling performance. Power terminals, control wiring, and grounding connections should be inspected regularly and tightened according to ABB’s recommended torque specifications. Engineers should monitor input power quality, review the drive’s fault history, and analyze operating logs to identify recurring alarms before they develop into serious equipment failures. Wear components such as cooling fans and DC bus capacitors should be replaced according to recommended maintenance intervals instead of waiting until they fail unexpectedly. The drive should always be installed in a clean, dry environment protected from excessive humidity, conductive dust, corrosive gases, vibration, and extreme temperatures. When firmware updates become available, they should be evaluated and applied where appropriate to improve functionality, reliability, and compatibility with modern automation systems. Regular insulation testing of the motor, inspection of communication networks, and verification of protective devices should also form part of scheduled maintenance. By combining routine inspections, predictive maintenance, environmental management, and timely replacement of aging components, users can significantly reduce unexpected downtime, improve equipment availability, extend the operational life of the drive system, and maximize the overall return on investment.
