1. What industrial applications is the ABB ACS550-01-059A-4 Variable Frequency Drive suitable for?

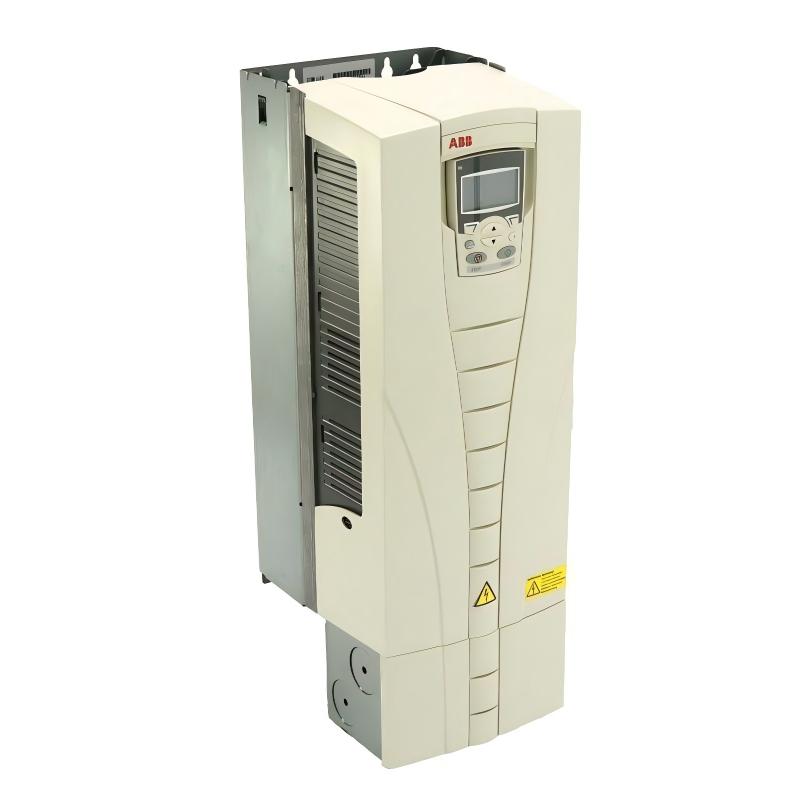

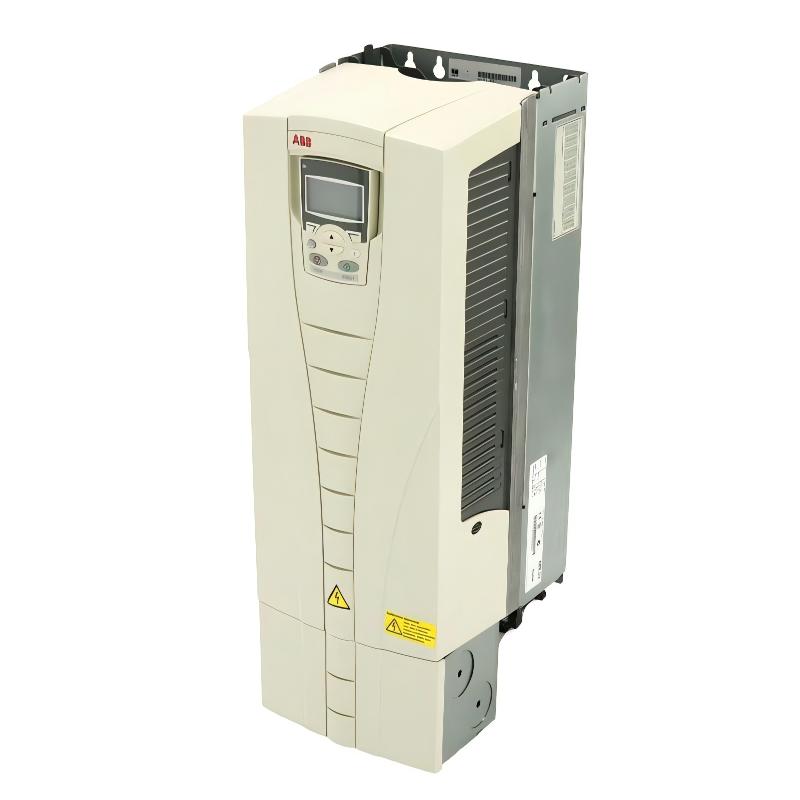

The ABB ACS550-01-059A-4 is a 30 kW general-purpose variable frequency drive designed for medium-power motor control applications in industrial automation systems. It is widely used for controlling motors in pumps, fans, compressors, conveyors, mixers, cooling systems, HVAC equipment, and various production line machines. With the advanced motor control technology of the ACS550 series, this drive can adjust motor speed according to actual process requirements, improving operational efficiency while reducing unnecessary energy consumption. It is commonly applied in industries such as water treatment, manufacturing, power generation, chemical processing, food and beverage, metallurgy, and building automation. The drive provides stable performance, flexible configuration options, and comprehensive protection functions, making it suitable for applications that require continuous operation, reliable speed regulation, and long-term system stability.

2. What control methods are supported by the ACS550-01-059A-4, and what are the advantages of each method?

The ACS550-01-059A-4 supports both V/f control and Sensorless Vector Control to meet different application requirements. V/f control maintains a constant voltage-to-frequency ratio and provides simple, stable motor speed regulation. It is suitable for applications such as fans, pumps, and other equipment where precise torque control is not required. Sensorless Vector Control uses advanced motor modeling algorithms to calculate motor flux and torque without requiring an encoder, providing improved speed accuracy and dynamic response. This control method delivers higher starting torque, better low-speed performance, and faster compensation when load conditions change. For applications such as conveyors, mixers, and industrial machinery with variable loads, Sensorless Vector Control improves process stability, reduces mechanical stress, and enhances overall equipment performance. Selecting the correct control mode allows users to achieve better efficiency, smoother operation, and improved reliability.

3. How should overcurrent faults on the ACS550-01-059A-4 be diagnosed and corrected?

When the ACS550-01-059A-4 experiences an overcurrent fault, troubleshooting should include mechanical inspection, electrical testing, and parameter verification. First, check whether the driven equipment has mechanical problems such as blocked movement, excessive friction, bearing failure, or sudden load increases. These conditions can force the motor to generate higher torque and cause current levels to exceed normal limits. Next, inspect motor cables and terminals for short circuits, grounding faults, damaged insulation, or loose connections. The motor parameters programmed in the drive should also be verified, including rated voltage, rated current, rated power, frequency, and speed, to ensure they match the actual motor specifications. Incorrect parameter settings may cause inaccurate current control and unnecessary protection trips. If acceleration or deceleration times are too short, excessive current may occur during starting or stopping, and adjusting ramp times can help solve the problem. If external causes are eliminated, further inspection of the inverter power section, IGBT modules, and output circuits may be necessary.

4. How can communication issues between the ACS550-01-059A-4 and PLC or DCS systems be resolved?

Communication problems should be analyzed by checking parameter configuration, wiring connections, and automation system settings. First, confirm that the drive and PLC or DCS controller use the same communication protocol and that communication parameters such as address, baud rate, parity, and data format are correctly configured. For RS-485 networks, verify that the communication wires are correctly connected, shielding is properly grounded, and the network is protected from electromagnetic interference. If optional fieldbus communication modules are installed, check that the modules are correctly mounted and configured within the control system. The PLC program should also be reviewed to ensure that control words, status words, and data addresses match the drive configuration. By reviewing the ACS550 diagnostic parameters and communication status information, engineers can quickly identify whether the problem is caused by wiring errors, incorrect settings, or communication timeouts. Proper installation and configuration are essential for maintaining stable industrial communication.

5. How does the ABB ACS550-01-059A-4 help industrial systems achieve energy savings?

The ACS550-01-059A-4 improves energy efficiency by adjusting motor speed according to actual process requirements instead of allowing motors to operate continuously at full speed. In traditional fixed-speed systems, motors often consume unnecessary energy when the process demand is lower than the maximum operating capacity. By controlling motor frequency, the drive allows equipment to operate only at the required speed, significantly reducing energy waste. This is especially effective in fan and pump applications where energy consumption changes significantly with speed adjustment. The built-in PID controller enables automatic regulation of pressure, flow, temperature, or other process variables without requiring additional external controllers. The drive also includes energy optimization functions that reduce motor losses during partial-load operation. Combined with automatic restart, multi-speed control, and programmable operating functions, the ACS550-01-059A-4 helps reduce electricity costs, improve system efficiency, and extend equipment operating life.

6. What are the common causes of overheating alarms on the ACS550-01-059A-4, and how can they be prevented?

Overheating alarms are usually related to insufficient cooling, high ambient temperature, poor ventilation, excessive load conditions, or inadequate maintenance. Common causes include cooling fan failure, blocked ventilation paths, dust accumulation on heat sinks, and continuous operation above the rated output capacity. When overheating occurs, the cooling system should be inspected to ensure that fans are operating correctly and airflow paths are not restricted. The installation environment should also be checked to confirm that the control cabinet provides sufficient ventilation and heat dissipation. If the drive operates in a high-temperature environment, appropriate derating measures should be considered. Regular cleaning of cooling components and monitoring of operating temperature can help prevent thermal-related failures. Maintaining proper installation conditions and performing scheduled maintenance significantly improves the reliability and service life of the drive.

7. Why is parameter configuration required after replacing the motor connected to the ACS550-01-059A-4?

Motor replacement requires new parameter configuration because each motor has different electrical characteristics, including rated voltage, current, power, frequency, speed, and magnetic properties. If the previous motor parameters remain unchanged, the drive may not be able to control the new motor correctly, which can lead to unstable operation, excessive current, insufficient torque, or unnecessary protection alarms. After installing a new motor, the correct motor nameplate data should be entered into the drive parameters. Performing motor identification or automatic tuning is recommended because it allows the drive to measure motor characteristics and optimize its control algorithm. Proper parameter configuration improves torque performance, speed regulation accuracy, and energy efficiency. Completing the commissioning process correctly ensures smooth startup, stable operation, and reliable performance of the entire motor drive system.

8. How can the long-term reliability of the ABB ACS550-01-059A-4 be improved?

To maximize the operational reliability of the ACS550-01-059A-4, a comprehensive preventive maintenance program should be implemented. Regular maintenance should include checking cooling fans, cleaning ventilation areas, inspecting power and control terminals, verifying grounding connections, and reviewing fault history to detect potential problems early. For equipment operating continuously, aging components should be inspected according to operating hours and replaced before failure occurs. The installation environment should remain clean and dry, avoiding excessive dust, humidity, corrosive gases, and strong vibration that may affect electronic components. Correct configuration of motor parameters, acceleration and deceleration settings, and control modes also reduces operating stress on the drive. Regular monitoring, timely maintenance, and proper operating practices can significantly reduce unexpected downtime, extend equipment service life, and improve the reliability of the complete motor control system.
