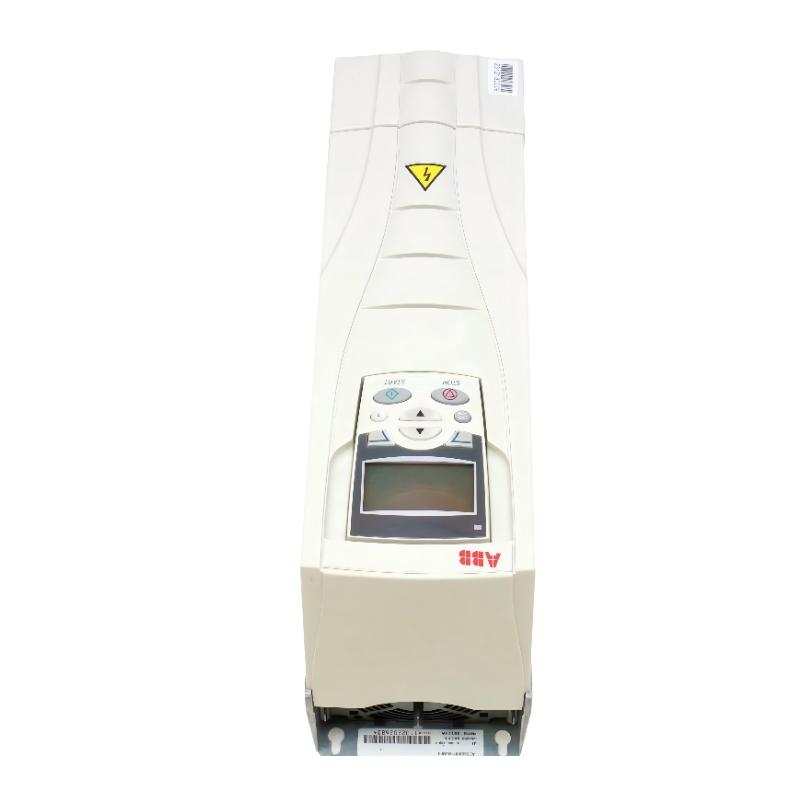

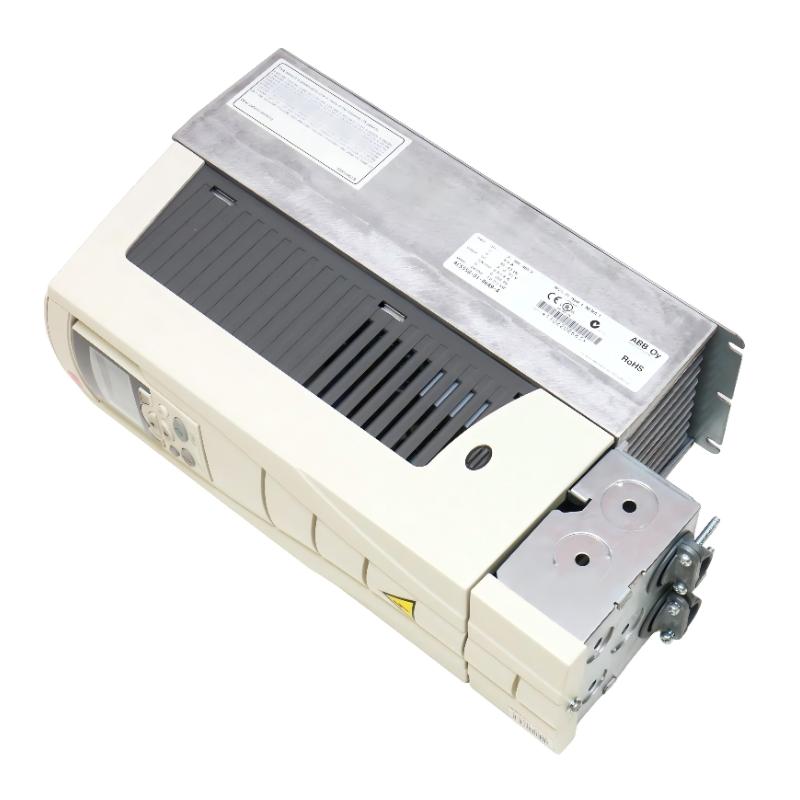

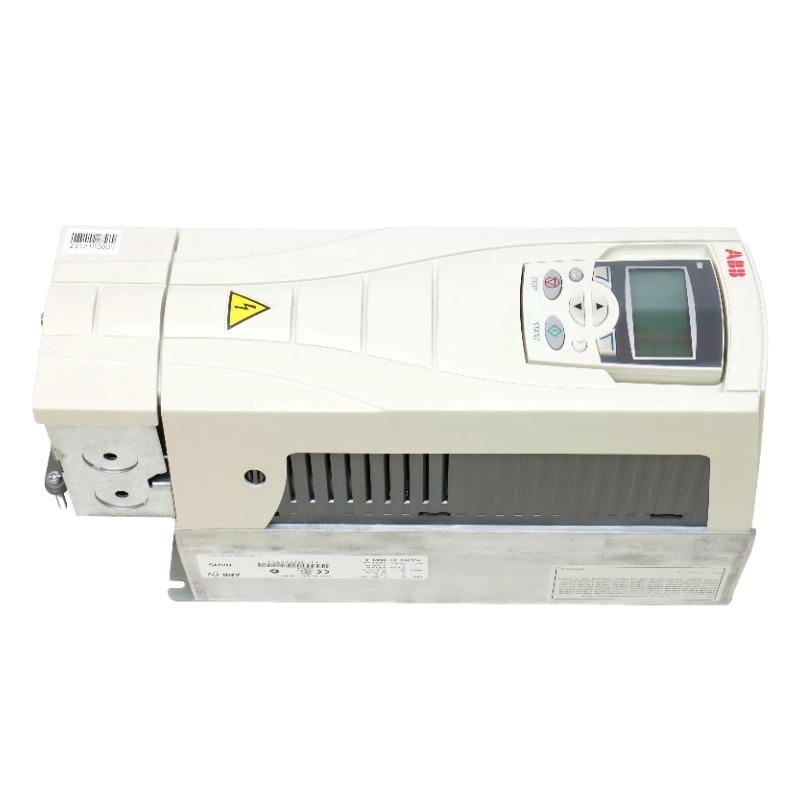

1. What industrial applications is the ABB ACS550-01-06A9-4 Variable Frequency Drive suitable for?

The ABB ACS550-01-06A9-4 is a general-purpose variable frequency drive designed for reliable speed and torque control of three-phase AC motors in industrial automation applications. This model is commonly used in pumps, fans, conveyors, compressors, mixers, HVAC systems, and various machine-building equipment. It provides flexible motor control functions that allow users to adjust motor speed according to actual process requirements, improving energy efficiency and reducing mechanical stress. The ACS550 series is widely adopted in industries such as manufacturing, water treatment, food processing, packaging, material handling, and building automation because of its stable operation, easy commissioning, and comprehensive protection functions. It is suitable for applications that require accurate speed regulation, smooth motor operation, and long-term continuous performance.

2. What control modes are available in the ACS550-01-06A9-4 and how do they improve motor performance?

The ACS550-01-06A9-4 supports both V/f control and Sensorless Vector Control modes. V/f control maintains a stable relationship between voltage and frequency, providing reliable and simple motor speed adjustment. It is suitable for applications such as fans and pumps where the load characteristics are relatively stable and advanced torque control is not required. Sensorless Vector Control provides enhanced motor performance by using internal algorithms to estimate motor speed and torque without requiring an external encoder. This control method improves starting torque, low-speed operation, and response speed when the load changes. For applications such as conveyors, mixers, and industrial machines with variable loads, Sensorless Vector Control helps maintain smoother operation, improves speed accuracy, and reduces mechanical impact on connected equipment.

3. How can an overcurrent fault on the ACS550-01-06A9-4 be diagnosed and fixed?

When an overcurrent fault occurs on the ACS550-01-06A9-4, troubleshooting should begin with checking the motor load, wiring condition, and drive parameters. First, inspect the mechanical system connected to the motor and confirm that there are no problems such as shaft blockage, excessive friction, bearing damage, or sudden load increases. Mechanical resistance can force the motor to draw higher current than normal. Next, check motor cables and terminals for short circuits, insulation damage, grounding problems, or loose connections. The motor parameters configured in the drive should also be compared with the actual motor nameplate information, including rated voltage, current, frequency, and speed. Incorrect parameter settings may result in unstable current control. If acceleration or deceleration times are too short, the drive may experience current spikes during startup or stopping, and adjusting these parameters can help solve the issue. If the problem continues, further inspection of the power section and motor condition may be required.

4. How should communication faults between the ACS550-01-06A9-4 and PLC or DCS systems be handled?

Communication faults should be checked from three aspects: communication parameters, physical wiring, and control system configuration. First, confirm that the ACS550-01-06A9-4 and the PLC or DCS system use the same communication protocol and matching settings, including communication address, baud rate, parity, and data format. For RS-485 communication, check that the A and B signal lines are correctly connected and that cable shielding is properly grounded to reduce electromagnetic interference. If an optional fieldbus module is installed, verify that the module configuration matches the automation system settings. The PLC program should also be checked to ensure that control commands, status feedback, and register addresses correspond correctly with the drive parameters. Reviewing communication diagnostics and fault history can help identify whether the problem is caused by wiring errors, incorrect settings, or network interruptions.

5. How does the ACS550-01-06A9-4 improve energy efficiency in motor-driven systems?

The ACS550-01-06A9-4 improves energy efficiency by adjusting motor speed based on actual operating requirements instead of running motors continuously at full speed. In many industrial applications, especially pumps and fans, the required output varies during operation. By reducing motor speed when full capacity is not needed, the drive can significantly decrease power consumption. The built-in PID controller allows automatic adjustment based on feedback signals such as pressure, flow, or temperature, maintaining stable process conditions while minimizing energy usage. The energy optimization function further improves efficiency during partial-load operation by reducing unnecessary motor losses. With features such as automatic restart, multi-speed control, and programmable operation settings, the ACS550-01-06A9-4 helps industries reduce operating costs while maintaining reliable equipment performance.

6. What are the main causes of overheating in the ACS550-01-06A9-4 and how can they be prevented?

Overheating problems in the ACS550-01-06A9-4 are usually related to insufficient cooling, poor installation conditions, excessive load, or lack of maintenance. Common causes include blocked ventilation openings, cooling fan failure, dust accumulation on heat dissipation surfaces, and high ambient temperatures. When overheating occurs, users should first check whether the cooling fan is operating normally and clean any dust or debris that may restrict airflow. The surrounding installation environment should also be inspected to ensure sufficient ventilation. If the drive is installed inside an electrical cabinet, proper cabinet cooling design is required to remove generated heat effectively. Long-term operation above the rated load should be avoided because excessive current increases internal temperature and accelerates component aging. Regular maintenance and temperature monitoring can help prevent overheating-related failures.

7. Why is correct motor parameter setting important when commissioning the ACS550-01-06A9-4?

Correct motor parameter configuration is essential for achieving stable and efficient operation of the ACS550-01-06A9-4. Each motor has different electrical characteristics, including rated voltage, current, power, frequency, and speed. If incorrect motor data is entered, the drive may not control the motor accurately, resulting in unstable speed, insufficient torque, excessive current, or unnecessary protection trips. During commissioning, users should input the motor nameplate data into the drive parameters and perform motor identification or automatic tuning when required. This allows the drive to obtain accurate motor characteristics and optimize its control algorithm. Proper configuration improves motor response, increases control accuracy, and ensures that protection functions operate correctly. A complete commissioning process helps achieve reliable operation and prevents unnecessary downtime.

8. What maintenance methods can improve the reliability of the ABB ACS550-01-06A9-4?

To maintain reliable long-term operation of the ACS550-01-06A9-4, regular preventive maintenance should be performed. Maintenance activities should include checking cooling fan operation, cleaning ventilation areas, inspecting power and control connections, verifying grounding quality, and reviewing fault history. The installation environment should be kept clean and dry to prevent dust, moisture, corrosive substances, and vibration from affecting internal electronic components. For equipment running continuously, periodic inspection of cooling components and electrical connections is recommended to reduce unexpected failures. Proper parameter configuration, suitable acceleration and deceleration settings, and correct operating procedures also help reduce stress on the drive. Through regular inspection and timely maintenance, users can extend the service life of the variable frequency drive, improve system stability, and reduce production interruptions.
