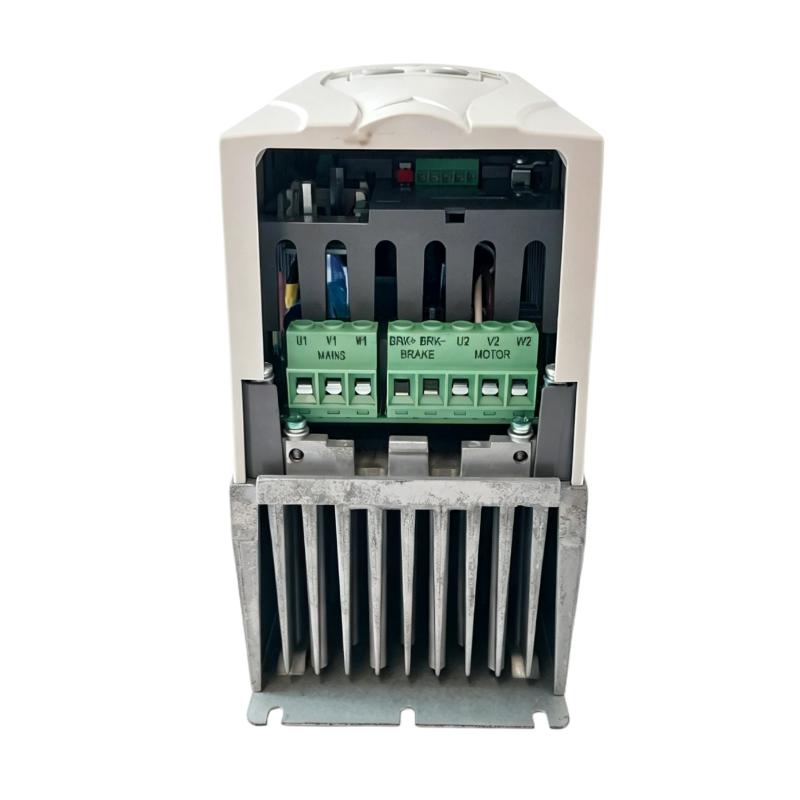

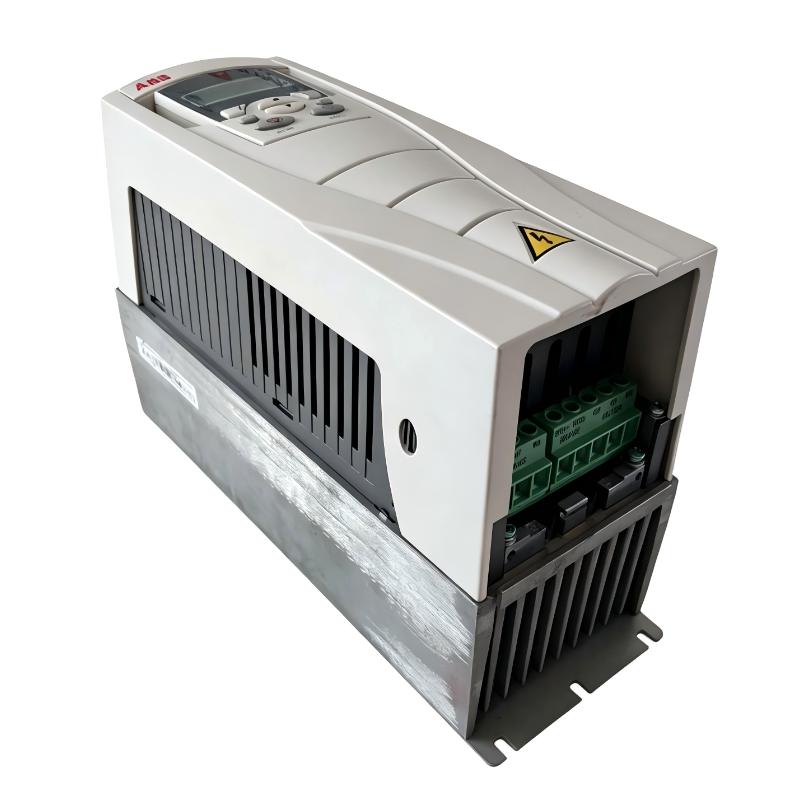

1. What control technologies are supported by the ABB ACS550-01-08A8-4 Variable Frequency Drive?

The ABB ACS550-01-08A8-4 supports both traditional V/F (Voltage/Frequency) control and advanced Sensorless Vector Control, allowing it to deliver reliable performance across a wide range of industrial applications. V/F control is ideal for centrifugal pumps, fans, and HVAC systems where precise torque control is not essential, while Sensorless Vector Control significantly improves starting torque, speed accuracy, and dynamic response without requiring an external encoder. This makes the drive suitable for conveyors, mixers, compressors, packaging machines, and other equipment that experiences varying load conditions. Users can easily switch between control modes according to the application requirements through the drive’s parameter settings.

2. What are the most common causes of an Overcurrent fault, and how can it be resolved?

An Overcurrent fault is typically caused by excessive mechanical load, incorrect motor wiring, short circuits at the motor terminals, insufficient acceleration time, or improperly configured motor parameters. To troubleshoot the issue, first disconnect power and inspect the motor cables for insulation damage or phase-to-phase short circuits. Verify that the motor nameplate data entered into the drive matches the actual motor specifications. Increasing the acceleration time can help reduce the inrush current during startup, especially for high-inertia loads. It is also recommended to inspect the driven equipment for mechanical binding or seized bearings. If the fault persists after these checks, the output IGBT module and power stage should be tested by qualified service personnel.

3. Why does the drive display an Overvoltage alarm during deceleration?

An Overvoltage alarm generally occurs when the motor operates as a generator during rapid deceleration. The regenerated energy flows back into the DC bus, causing the internal DC voltage to rise beyond the allowable limit. To minimize this condition, users should increase the deceleration time so that regenerative energy is dissipated more gradually. For applications requiring frequent stopping or rapid deceleration, installing a braking chopper and braking resistor is highly recommended. In addition, verify that the incoming supply voltage remains within the specified operating range, as excessive line voltage can also contribute to DC bus overvoltage conditions.

4. How can the ACS550-01-08A8-4 communicate with a PLC or SCADA system?

The drive is equipped with a built-in RS-485 communication interface supporting the Modbus RTU protocol, making it easy to integrate with PLCs, HMIs, and SCADA systems. To establish communication, configure the communication address, baud rate, parity, data bits, and stop bits so they match the controller settings. Once communication has been established successfully, users can remotely start and stop the drive, adjust frequency references, monitor output current, motor speed, operating status, fault history, and process values. Additional communication modules are also available to support industrial protocols such as PROFIBUS, DeviceNet, CANopen, Ethernet/IP, and PROFINET for more advanced automation systems.

5. Why is the output frequency unstable during operation?

Unstable output frequency may result from fluctuating analog input signals, electrical interference, incorrect parameter configuration, unstable incoming power supply, or rapidly changing mechanical loads. Begin by checking the quality of the analog reference signal and ensure that signal cables are properly shielded and grounded separately from power cables. Verify that the motor parameters, control mode, and acceleration/deceleration settings are correctly configured. If PID control is being used, fine-tuning the proportional, integral, and derivative parameters may be necessary to eliminate oscillation. Regular maintenance of both the electrical installation and the driven equipment can also improve overall speed stability.

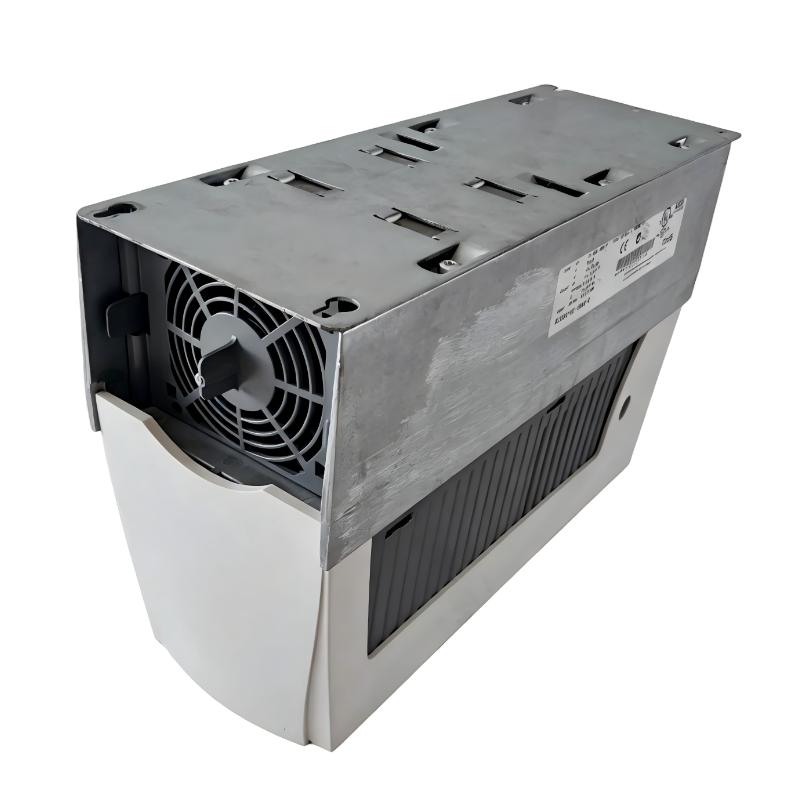

6. What maintenance practices help maximize the service life of the ACS550-01-08A8-4?

Preventive maintenance plays a critical role in ensuring long-term reliability. Periodically clean the cooling fan, air ducts, and heat sink to prevent dust accumulation that could reduce cooling efficiency. Inspect all power and control terminals for loose connections, corrosion, or signs of overheating. Monitor operating temperature and verify that adequate ventilation is maintained around the drive enclosure. It is also recommended to review the fault history regularly to identify recurring issues before they become serious failures. For installations operating continuously in demanding industrial environments, scheduled inspection and replacement of cooling fans and DC bus capacitors can significantly extend the service life of the drive while reducing unexpected downtime.

7. Can this drive be used for both variable torque and constant torque applications?

Yes. The ABB ACS550-01-08A8-4 is designed primarily for variable torque applications such as fans, pumps, HVAC equipment, and water treatment systems, where it delivers excellent energy-saving performance through optimized motor control and built-in PID functionality. However, it can also be successfully applied to many constant torque applications, including conveyors, mixers, compressors, textile machinery, and material handling equipment, provided that the drive is properly sized for the required load. Advanced motor control functions ensure stable torque output, smooth acceleration, and reliable operation even under changing process conditions.

8. How should an Undervoltage fault be diagnosed and corrected?

An Undervoltage fault usually indicates that the DC bus voltage has fallen below the acceptable operating level. This condition may be caused by low incoming supply voltage, excessive voltage drop due to undersized cables, loose power connections, momentary utility power interruptions, or faults within the drive’s rectifier section. Begin troubleshooting by measuring the three-phase input voltage and confirming that all phases are balanced and within the specified tolerance. Inspect circuit breakers, contactors, fuses, and cable connections for signs of wear or overheating. If the external power supply is stable but the fault continues to occur, further diagnosis of the internal rectifier, DC bus capacitors, and power supply circuitry should be carried out by qualified maintenance personnel. Performing routine power quality assessments can also help prevent recurring undervoltage conditions and improve overall system reliability.
