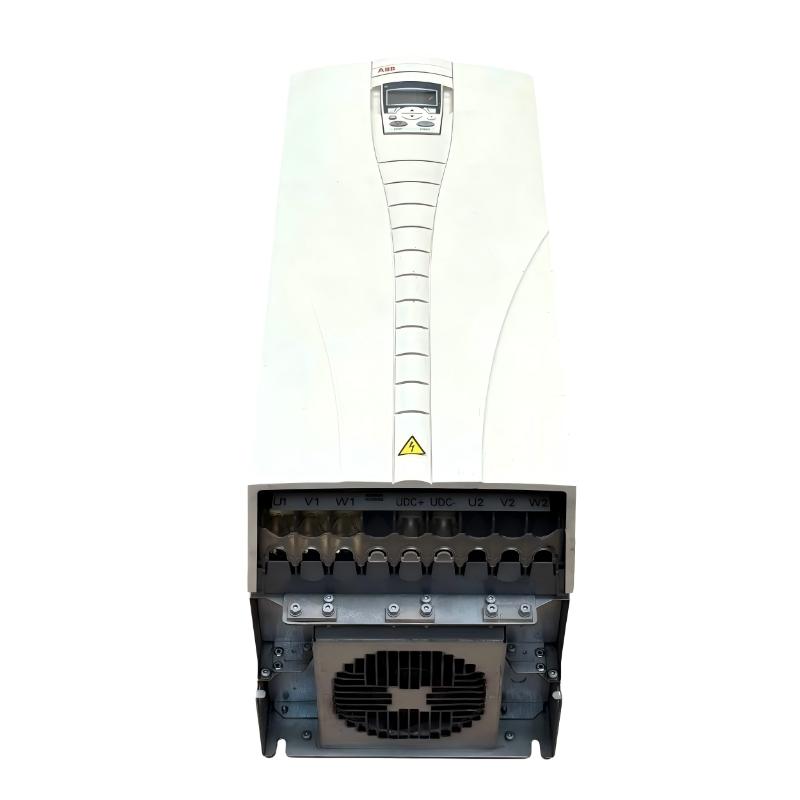

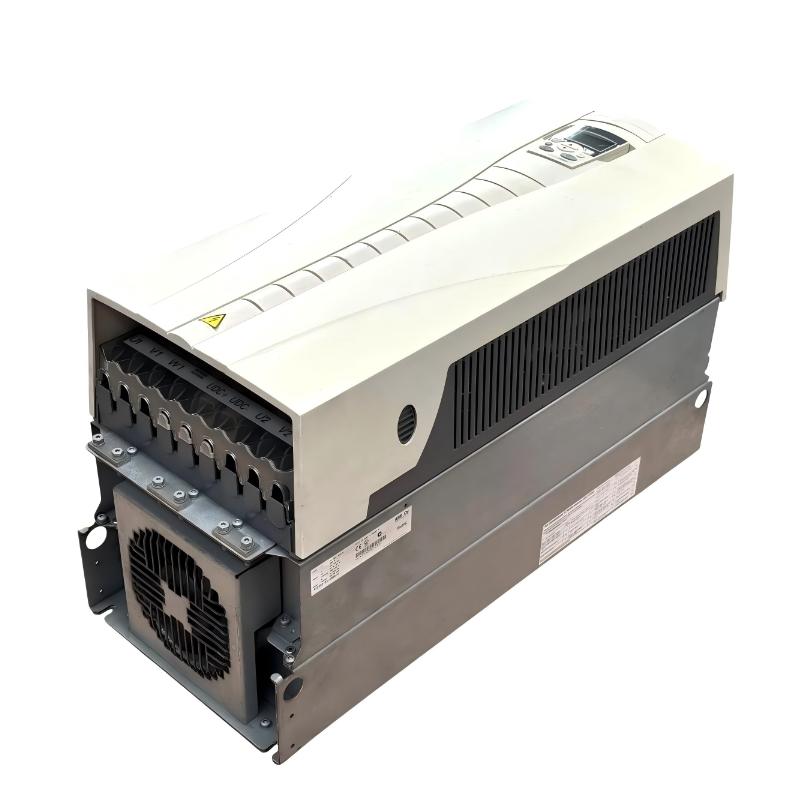

1. What industrial applications are suitable for the ABB ACS550-01-180A-4 Variable Frequency Drive?

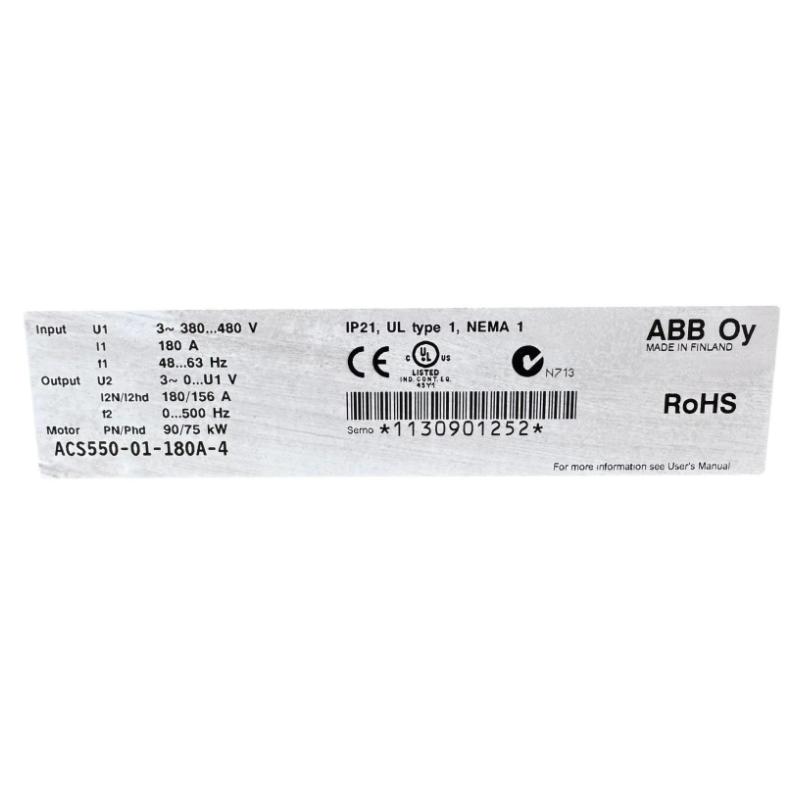

The ABB ACS550-01-180A-4 is a high-performance general-purpose variable frequency drive designed for medium and high-power motor control applications. With a rated output current of 180 A and a power rating of 90 kW, it is suitable for demanding industrial equipment that requires reliable speed regulation, energy efficiency, and stable operation.

This drive is widely used in applications such as large fans, pumps, compressors, conveyors, mixers, HVAC systems, water treatment equipment, and manufacturing production lines. By accurately controlling motor speed and torque, the ACS550-01-180A-4 can reduce unnecessary energy consumption, improve process efficiency, and minimize mechanical stress during motor starting and stopping.

The built-in PID controller, energy optimization function, automatic torque boost, and comprehensive protection features allow the drive to operate effectively in complex industrial environments where continuous and reliable motor control is required.

2. How should an overcurrent fault on the ACS550-01-180A-4 be diagnosed and corrected?

An overcurrent fault indicates that the output current of the drive has exceeded the allowable protection limit. Common causes include excessive motor load, short circuits in motor cables, incorrect motor parameter settings, insufficient acceleration time, or mechanical problems within the driven equipment.

The first step is to inspect the motor power cables and terminals to ensure there are no insulation failures, phase-to-phase short circuits, or grounding problems. The motor parameters configured in the drive should also be checked carefully to confirm that the rated voltage, current, frequency, and speed values match the actual motor nameplate data.

If the fault occurs during startup, increasing the acceleration time can reduce the initial current demand and allow the motor to reach operating speed more smoothly. For heavy-inertia loads, it is important to check whether the mechanical system has excessive resistance, blocked components, damaged bearings, or abnormal load conditions.

If all external components are confirmed to be normal but the fault continues, further inspection of the drive’s power module, output circuit, and internal switching components may be required.

3. Why does the ACS550-01-180A-4 generate an overvoltage alarm during deceleration?

An overvoltage alarm during deceleration usually occurs because the motor generates regenerative energy when slowing down. During this process, the motor acts as a generator and feeds energy back into the DC bus of the variable frequency drive. If this energy cannot be absorbed quickly enough, the DC bus voltage rises and activates the protection function.

This problem is common in applications with high inertia, such as large fans, centrifuges, conveyors, and heavy rotating equipment. The simplest solution is to increase the deceleration time, allowing the drive to reduce speed more gradually and control the regenerated energy more effectively.

For applications that require frequent braking or rapid stopping, an external braking resistor and braking unit can be installed to dissipate excess energy safely. It is also recommended to check whether the incoming power supply voltage is stable, because excessive input voltage can further increase the risk of overvoltage conditions.

4. How can the ABB ACS550-01-180A-4 be integrated with a PLC or SCADA system?

The ACS550-01-180A-4 includes a built-in RS-485 communication interface with Modbus RTU support, allowing direct integration with PLCs, HMIs, and SCADA systems for remote monitoring and control.

During communication setup, users need to configure matching communication parameters between the drive and the control system, including slave address, baud rate, parity, data bits, and stop bits. Once communication is established, the PLC can send commands such as start, stop, speed adjustment, and frequency reference control.

The automation system can also read important operating information from the drive, including output frequency, motor current, voltage, power consumption, operating status, warning messages, and fault history. For larger industrial networks, optional communication adapters can be used to support protocols such as PROFIBUS, PROFINET, EtherNet/IP, and CANopen, improving integration flexibility in advanced automation systems.

5. What causes unstable motor speed during operation of the ACS550-01-180A-4?

Unstable motor speed can be caused by several factors, including incorrect parameter settings, unstable reference signals, electrical interference, incorrect motor data, poor power quality, or changing mechanical loads.

First, check whether the speed reference signal is stable. If an analog input is used, ensure that the signal wiring is properly shielded and separated from high-power cables to reduce electromagnetic interference. The motor parameters programmed into the drive should also be verified, because incorrect motor data can reduce speed control accuracy.

If the application uses PID control, the control parameters may require adjustment to achieve stable process regulation. Incorrect proportional, integral, or derivative settings can cause speed oscillation or slow response.

Mechanical factors should also be considered, including loose belts, worn couplings, unstable loads, or transmission problems. A complete inspection of both electrical and mechanical systems is often required to identify the actual cause of speed fluctuations.

6. What maintenance procedures are recommended for the ACS550-01-180A-4 to ensure long-term reliability?

Regular preventive maintenance is essential for maintaining stable operation and extending the service life of the ABB ACS550-01-180A-4. The cooling system should be inspected periodically, including cleaning the ventilation channels, cooling fan, and heat sink to prevent overheating caused by dust accumulation.

All power terminals, control terminals, and grounding connections should be checked regularly to ensure they remain tight and free from corrosion or overheating. Loose electrical connections can create additional resistance and lead to abnormal heating or unexpected failures.

It is also recommended to review the drive’s fault history regularly to identify repeated alarms and potential system problems before they become serious failures. For equipment operating continuously in industrial environments, monitoring cooling fan performance, capacitor condition, and electrical parameters can significantly reduce unexpected downtime.

A structured maintenance program improves system reliability, reduces repair costs, and helps maintain consistent production performance.

7. Can the ACS550-01-180A-4 be used for both constant torque and variable torque applications?

Yes. The ABB ACS550-01-180A-4 can be applied to both variable torque and constant torque loads when properly configured.

For variable torque applications such as fans and pumps, the drive can optimize motor speed according to actual process requirements, significantly reducing energy consumption compared with fixed-speed operation. This makes it an excellent choice for HVAC systems, water supply systems, and industrial ventilation equipment.

For constant torque applications such as conveyors, mixers, compressors, and material handling systems, the drive’s Sensorless Vector Control provides stable torque output and reliable low-speed performance without requiring an external encoder.

By adjusting control parameters, acceleration and deceleration settings, and motor data configuration, the ACS550-01-180A-4 can meet the requirements of different industrial machines while improving efficiency and operational stability.

8. How should an undervoltage fault on the ACS550-01-180A-4 be resolved?

An undervoltage fault means that the DC bus voltage inside the drive has dropped below the required operating level. This condition is usually related to insufficient input voltage, unstable power supply, excessive voltage drop, insufficient power capacity, or internal electrical problems.

The troubleshooting process should begin by measuring the three-phase input voltage and confirming that it is within the specified operating range and properly balanced. The incoming circuit breaker, contactor, fuse, and power terminals should also be inspected for loose connections, overheating, or signs of damage.

If the drive is installed far away from the main power source, the size and length of the power cables should be checked to ensure that voltage drop under heavy load conditions remains within acceptable limits.

If the external power supply is confirmed to be normal but undervoltage alarms continue to occur, further inspection of the internal rectifier section, DC bus capacitors, and power supply circuits may be necessary. Proper power quality monitoring and regular electrical inspections can help prevent repeated undervoltage failures and improve overall system availability.
