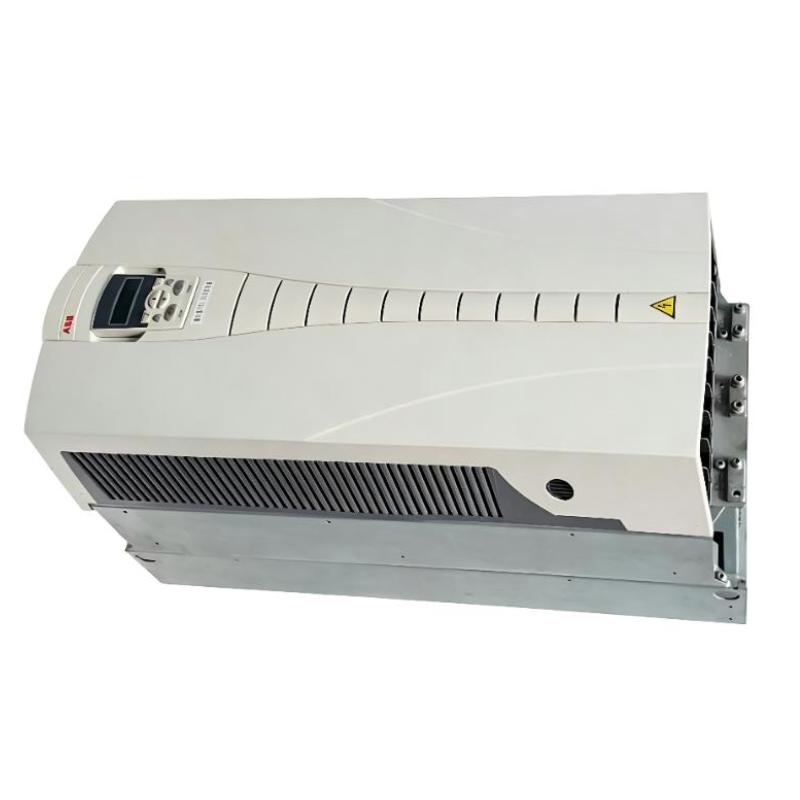

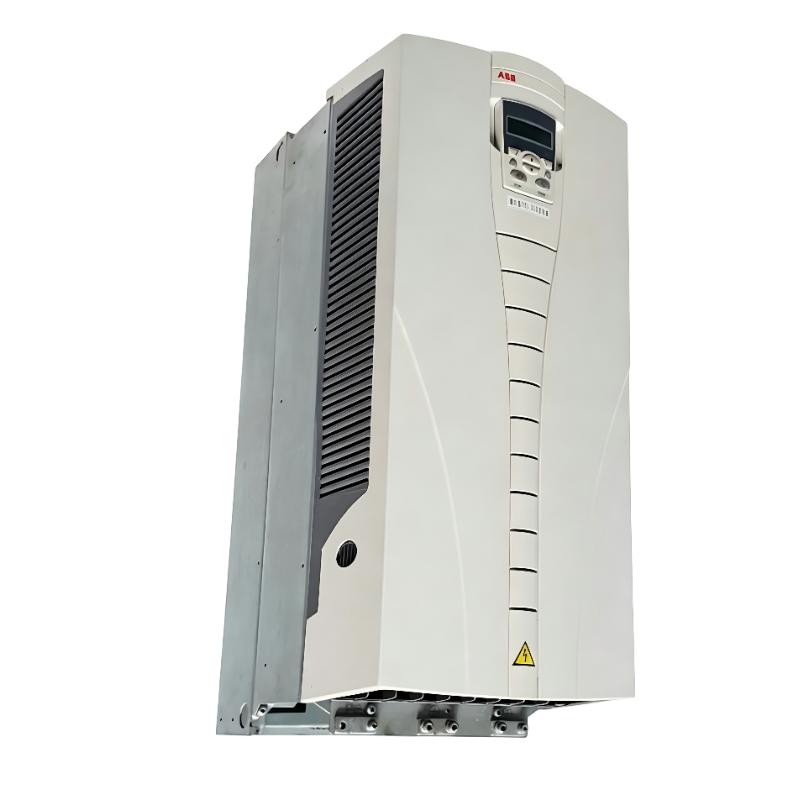

1. What are the main applications of the ABB ACS550-01-246A-4 Variable Frequency Drive?

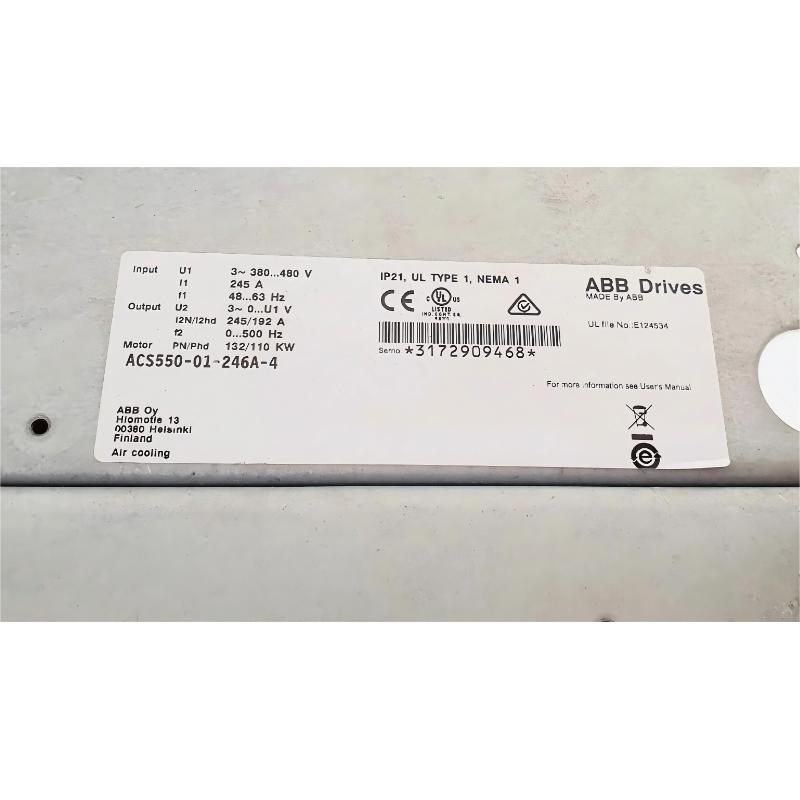

The ABB ACS550-01-246A-4 is a high-power AC variable frequency drive designed for industrial applications requiring reliable control of large three-phase induction motors. With a rated output current of 246 A and a power rating of 132 kW under normal duty operation, this drive is suitable for heavy industrial equipment that requires stable speed regulation, efficient energy management, and long-term continuous operation.

Typical applications include large centrifugal pumps, industrial fans, compressors, HVAC systems, water treatment equipment, conveyors, mixers, and production machinery. In pump and fan applications, the drive can adjust motor speed according to process requirements, reducing energy consumption and improving system efficiency. For constant torque applications such as conveyors and mixers, it provides stable torque output and smooth acceleration performance.

The ACS550 series also includes built-in PID control, energy optimization, and multiple protection functions, making it suitable for a wide range of industrial automation environments where reliability and operational flexibility are important.

2. How should an overcurrent fault on the ACS550-01-246A-4 be diagnosed and repaired?

An overcurrent fault indicates that the output current from the drive has exceeded the allowable protection limit. This fault is usually caused by excessive mechanical load, motor cable problems, incorrect motor parameter settings, insufficient acceleration time, or abnormal conditions in the driven equipment.

The first step in troubleshooting is to check the motor power cables and terminals for insulation damage, short circuits, loose connections, or grounding problems. The motor parameters stored in the drive should also be verified to ensure they match the actual motor nameplate values, including voltage, current, frequency, and rated speed.

If the fault occurs during motor startup, the acceleration time may need to be increased to reduce the initial current surge. For high-inertia loads, inspect the mechanical system for blocked components, damaged bearings, excessive friction, or sudden load increases.

If all external equipment is operating normally but the fault continues, further inspection of the drive’s output power section, IGBT modules, and current detection circuit may be required by qualified maintenance personnel.

3. Why does the ACS550-01-246A-4 experience an overvoltage fault during braking or deceleration?

An overvoltage fault during braking occurs because the motor generates regenerative energy while slowing down. During deceleration, the rotating load transfers energy back to the drive’s DC bus, causing the internal voltage level to rise.

If the regenerated energy exceeds the drive’s absorption capability, the DC bus voltage will reach the protection limit and trigger an overvoltage alarm. This situation is common in applications with large rotating inertia, including heavy conveyors, centrifuges, large fans, and lifting equipment.

To solve this problem, users can increase the deceleration time so that the motor slows down more gradually. For applications requiring frequent braking or rapid stopping, an external braking resistor and braking unit should be installed to safely dissipate excess energy.

It is also necessary to check whether the incoming power supply voltage is within the specified range, because unstable or excessive input voltage can increase the possibility of overvoltage conditions.

4. How can the ABB ACS550-01-246A-4 be connected to PLC and SCADA systems?

The ACS550-01-246A-4 provides a built-in RS-485 communication interface with Modbus RTU support, allowing integration with PLC controllers, HMIs, and SCADA systems for centralized automation control.

During commissioning, communication parameters such as drive address, baud rate, parity, stop bits, and communication settings must be configured correctly to match the control system. Once communication is established, the PLC can send commands including start, stop, speed reference adjustment, and operating mode selection.

The automation system can also monitor important drive parameters, including output frequency, motor current, voltage, power consumption, operating status, warning messages, and fault history. For larger industrial networks, optional communication modules can extend compatibility with protocols such as PROFIBUS, PROFINET, EtherNet/IP, and CANopen.

This communication capability allows the ACS550-01-246A-4 to be integrated into modern industrial automation systems for improved monitoring and process control.

5. What causes unstable motor operation when using the ACS550-01-246A-4?

Unstable motor operation can be caused by incorrect parameter settings, unstable reference signals, electrical interference, inaccurate motor data, power supply problems, or mechanical load fluctuations.

First, check whether the frequency reference signal is stable. If analog input control is used, ensure that signal cables are properly shielded and separated from power cables to minimize electromagnetic interference.

The motor parameters configured in the drive should also be checked carefully. Incorrect motor data can reduce control accuracy and affect torque performance. If PID control is used, improper PID settings may cause speed oscillation, slow response, or unstable process regulation.

Mechanical factors should also be investigated, including uneven loads, loose transmission components, worn couplings, or damaged bearings. A complete inspection of both electrical and mechanical systems is often necessary to identify the actual cause of unstable operation.

6. What maintenance steps are recommended for the ABB ACS550-01-246A-4?

Regular maintenance is essential to ensure reliable operation and extend the service life of the ACS550-01-246A-4. The cooling system should be inspected periodically, including cleaning the ventilation channels, cooling fan, and heat sink to prevent overheating caused by dust accumulation.

All power connections, control terminals, and grounding points should be checked regularly to ensure they are tight and free from corrosion or overheating. Loose electrical connections can increase resistance and cause abnormal heating or unexpected failures.

It is also recommended to review the drive’s fault history and operating data regularly. Repeated alarms may indicate problems in the motor, power supply, or mechanical system that should be corrected before causing major downtime.

For continuous industrial operation, scheduled inspection of cooling components, electrical connections, and internal components can significantly improve system reliability and reduce maintenance costs.

7. Can the ACS550-01-246A-4 be used for both pump/fan loads and constant torque applications?

Yes. The ABB ACS550-01-246A-4 can be applied to both variable torque and constant torque applications when properly configured.

For variable torque loads such as pumps and fans, the drive can adjust motor speed according to process demand, significantly reducing energy consumption compared with fixed-speed operation. This makes it highly suitable for water systems, ventilation equipment, and HVAC applications.

For constant torque applications such as conveyors, mixers, compressors, and industrial processing equipment, the drive provides stable torque output through Sensorless Vector Control technology. This allows reliable low-speed operation and improved dynamic response without requiring an external encoder.

By selecting suitable motor parameters, acceleration settings, and control modes, the ACS550-01-246A-4 can provide efficient and stable performance across different industrial applications.

8. How should an undervoltage fault on the ACS550-01-246A-4 be handled?

An undervoltage fault means that the internal DC bus voltage has dropped below the required operating level. This problem is usually related to insufficient input voltage, unstable power supply, excessive voltage drop, inadequate electrical capacity, or internal drive circuit issues.

The troubleshooting process should begin by measuring the three-phase input voltage and confirming that it is within the specified operating range. The balance between phases should also be checked to ensure stable power supply conditions.

Inspect the incoming circuit breaker, contactor, fuse, and power terminals for loose connections, overheating, or damage. If the drive is installed far from the power source, verify that the cable size is suitable to prevent excessive voltage drop during high-load operation.

If the external power supply is confirmed to be normal but undervoltage alarms continue, further inspection of the internal rectifier section, DC bus capacitors, and power supply circuits may be necessary.

Regular power quality monitoring and preventive maintenance can help reduce repeated undervoltage faults and improve the reliability of the complete motor control system.
