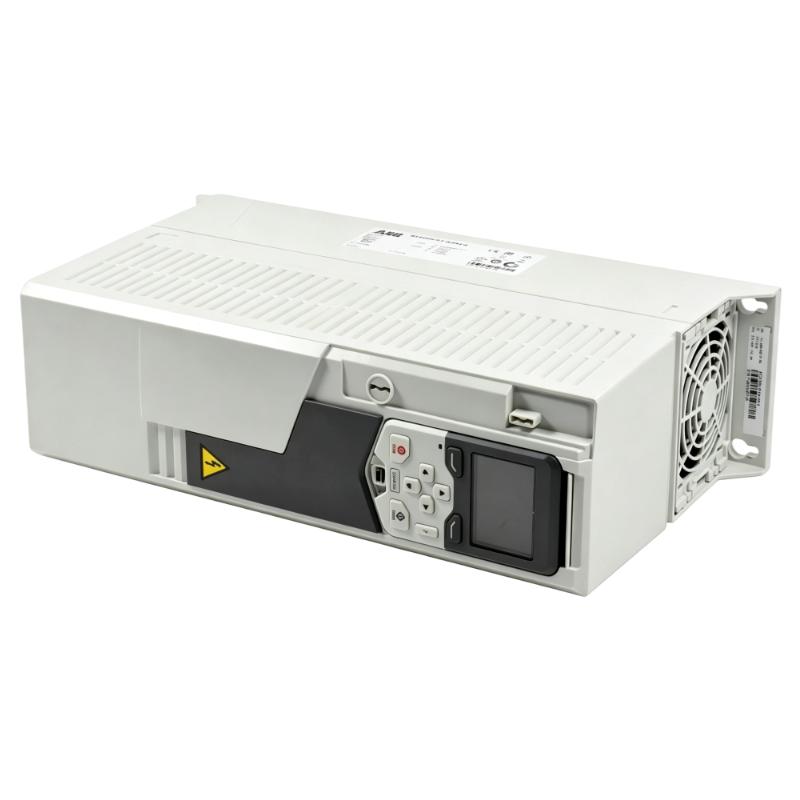

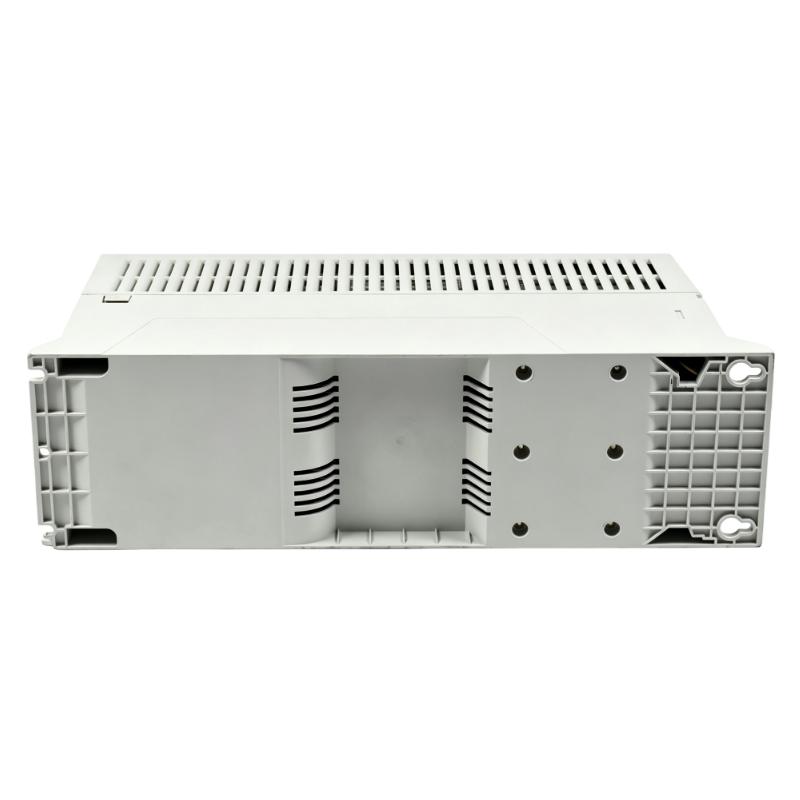

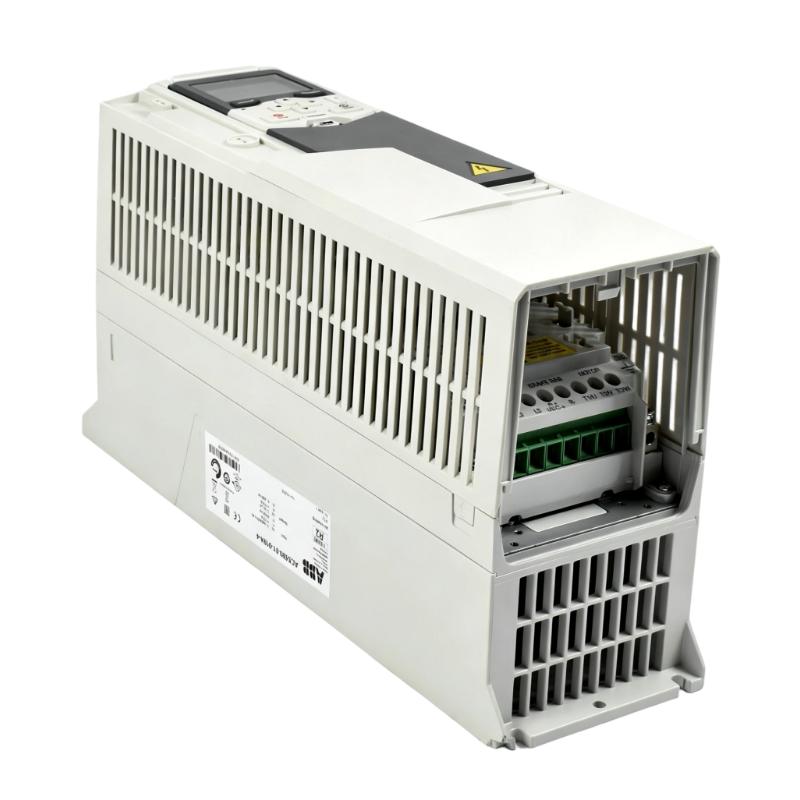

1. What are the main applications of the ABB ACS580-01-018A-4 Variable Frequency Drive?

The ABB ACS580-01-018A-4 is a general-purpose variable frequency drive designed for controlling three-phase AC motors in industrial automation and process applications. With an 18 A rated output current and a 7.5 kW power capacity, it is suitable for small and medium industrial equipment that requires reliable speed regulation, energy efficiency, and stable motor control.

This model is commonly used in applications such as pumps, fans, conveyors, compressors, mixers, HVAC systems, and production machinery. For pump and fan applications, the ACS580-01-018A-4 can adjust motor speed according to process requirements, reducing unnecessary energy consumption and improving system efficiency.

For conveyor and processing equipment, the drive provides smooth acceleration and deceleration control, reducing mechanical stress and improving equipment operating life. With built-in PID control, energy optimization functions, and comprehensive protection features, it can easily integrate into various industrial automation systems.

2. How should an overcurrent fault on the ACS580-01-018A-4 be checked and resolved?

An overcurrent fault occurs when the output current from the ABB ACS580-01-018A-4 exceeds the allowable operating limit. This problem is commonly caused by excessive motor load, incorrect motor parameters, damaged motor cables, short circuits, or improper acceleration settings.

The first troubleshooting step is to inspect the connection between the drive and motor. Check whether the power cables have insulation damage, phase-to-phase short circuits, grounding problems, or loose terminals.

The motor parameters configured inside the drive should also be verified. Parameters such as rated voltage, rated current, frequency, and motor speed must match the actual motor specifications. Incorrect parameter settings can reduce control accuracy and cause abnormal current increases.

If the fault appears during motor startup, increasing the acceleration time can reduce the starting current impact. For mechanical equipment with high inertia, check whether there are blocked components, excessive friction, bearing damage, or abnormal load conditions.

If external equipment is operating normally but the fault remains, further inspection of the drive power components and current measurement circuit may be required.

3. Why does the ACS580-01-018A-4 generate an overvoltage fault during deceleration?

An overvoltage fault during deceleration is usually caused by regenerative energy produced by the motor. When a motor slows down while driving a load with high inertia, it can operate as a generator and send energy back to the drive’s DC bus.

If this regenerated energy exceeds the absorption capability of the drive, the DC bus voltage increases and activates the overvoltage protection function.

To solve this issue, the deceleration time can be extended to allow the motor to slow down gradually. For applications requiring frequent braking or rapid stopping, an external braking resistor may be installed to dissipate excess energy.

It is also necessary to check the stability of the incoming power supply. High input voltage or unstable electrical conditions can increase the possibility of overvoltage alarms. Proper parameter adjustment and suitable braking solutions can improve system reliability.

4. How can the ABB ACS580-01-018A-4 communicate with PLC and automation systems?

The ACS580-01-018A-4 supports industrial communication through its built-in RS-485 interface with Modbus RTU protocol. It can be connected with PLC controllers, HMIs, and SCADA systems for remote operation and monitoring.

During commissioning, communication parameters such as device address, baud rate, parity, and communication format should be configured correctly to match the control system.

After successful communication, the PLC can control functions such as start, stop, speed reference adjustment, and operating mode selection. At the same time, the automation system can read important information including output frequency, motor current, voltage, operating status, alarms, and fault history.

For larger automation networks, optional communication modules can extend compatibility with industrial protocols such as PROFIBUS, PROFINET, EtherNet/IP, and CANopen.

5. What causes unstable motor operation when using the ACS580-01-018A-4?

Unstable motor operation can be caused by incorrect parameter settings, unstable control signals, electrical interference, inaccurate motor data, power supply problems, or mechanical load fluctuations.

First, check whether the frequency reference signal is stable. If analog input control is used, ensure that signal cables are properly shielded and separated from power cables to reduce electromagnetic interference.

The motor parameters stored in the drive should also be checked carefully. Incorrect motor data can affect the accuracy of motor control and cause speed fluctuations or insufficient torque performance.

If PID control is used, the control parameters should be adjusted according to the actual process requirements. Improper PID settings may result in oscillation, slow response, or unstable operation.

Mechanical conditions should also be inspected, including loose couplings, damaged bearings, uneven loads, or transmission problems.

6. What maintenance procedures are recommended for the ABB ACS580-01-018A-4?

Regular maintenance helps ensure reliable operation and extends the service life of the ACS580-01-018A-4.

The cooling system should be inspected periodically. Dust and dirt should be removed from ventilation areas and cooling components to maintain proper heat dissipation.

Electrical connections should also be checked regularly, including power terminals, control wiring, and grounding connections. Loose connections may cause overheating, abnormal operation, or unexpected shutdowns.

Operators should review fault history and operating data to identify potential problems before equipment failure occurs. Regular inspection of the drive environment, wiring conditions, and cooling performance can significantly improve system reliability.

7. Can the ACS580-01-018A-4 be used for energy-saving applications?

Yes. The ABB ACS580-01-018A-4 is designed with energy efficiency functions that help reduce power consumption in variable speed applications.

For equipment such as pumps and fans, energy consumption is closely related to motor speed. By adjusting motor speed according to actual process demand, the drive can reduce unnecessary energy usage compared with traditional fixed-speed operation.

The built-in energy optimization function improves motor efficiency during partial-load operation. This makes the ACS580-01-018A-4 suitable for applications where energy saving and operating cost reduction are important.

In addition, accurate motor control reduces mechanical stress and improves overall equipment performance.

8. How should an undervoltage fault on the ACS580-01-018A-4 be handled?

An undervoltage fault indicates that the internal DC bus voltage of the drive has dropped below the required operating level. This condition is usually caused by insufficient input voltage, unstable power supply, loose electrical connections, or excessive voltage drop.

The first step is to measure the three-phase input voltage and confirm that it is within the normal operating range. The voltage balance between phases should also be checked.

Inspect the incoming power components, including circuit breakers, contactors, fuses, and terminals, for loose connections or overheating problems.

If the power supply distance is long, verify that the cable size is suitable for the operating current to prevent excessive voltage drop.

If the external power supply is normal but undervoltage faults continue, the internal rectifier circuit, DC bus components, and power supply section should be inspected by qualified maintenance personnel.

Proper electrical design and preventive maintenance can effectively reduce undervoltage failures and improve the stability of industrial motor control systems.
