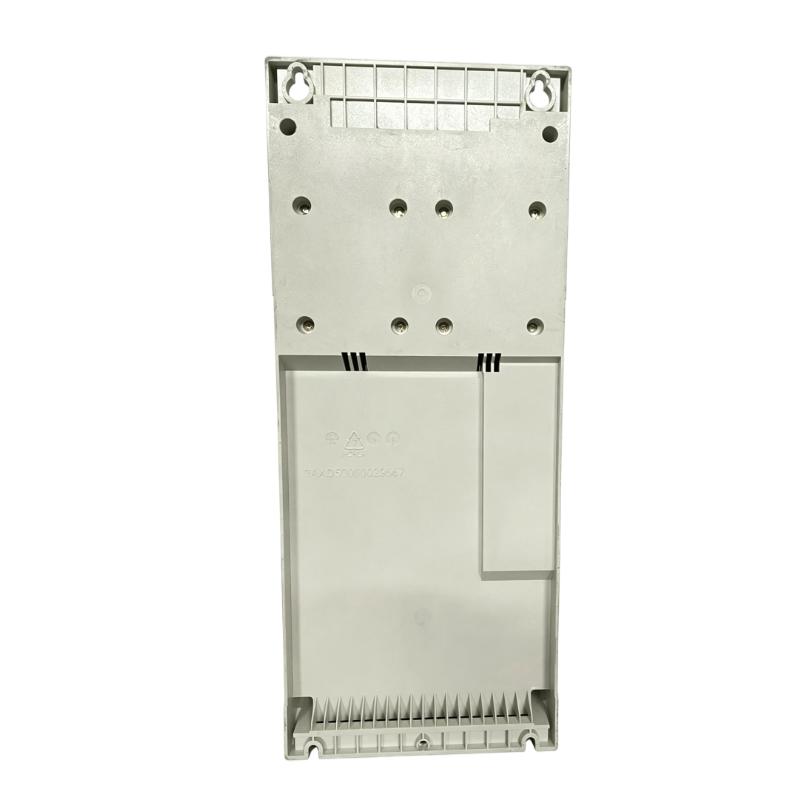

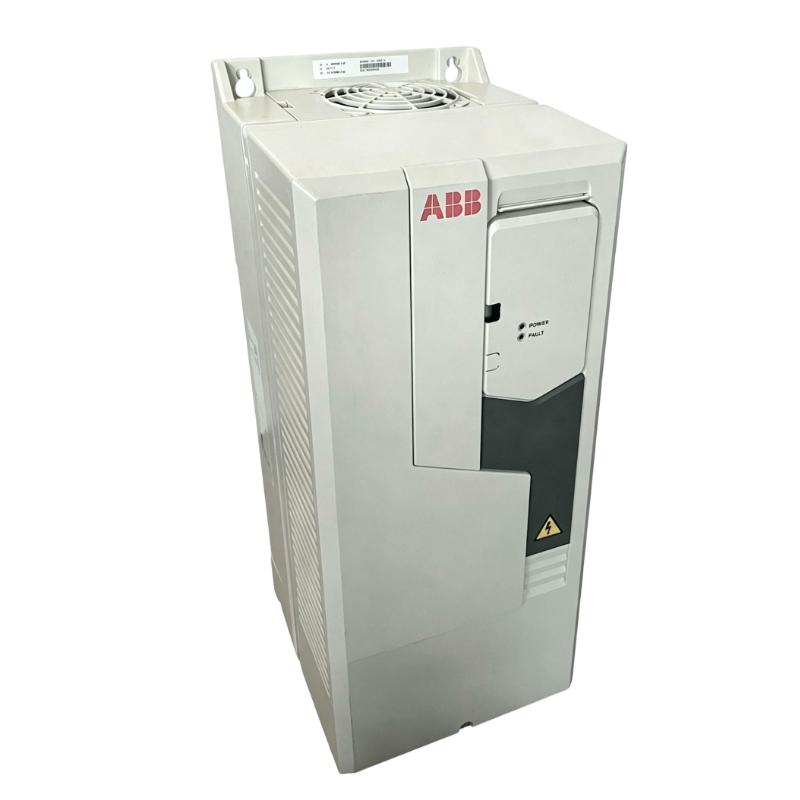

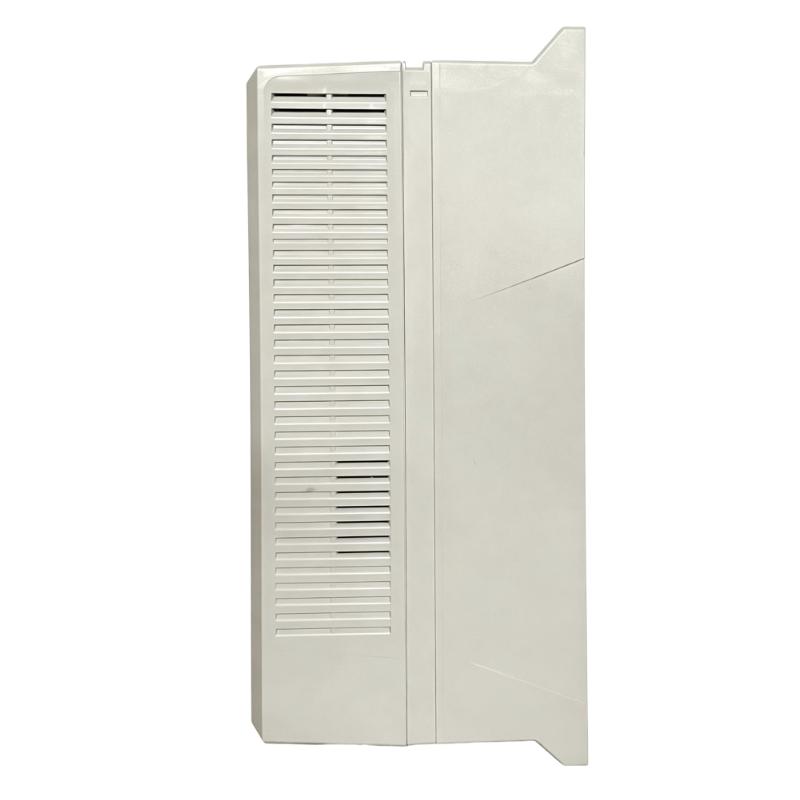

1. What is the ABB ACS580-01-033A-4 used for?

The ABB ACS580-01-033A-4 is a general-purpose variable frequency drive designed for controlling three-phase AC motors in industrial applications. With a rated output current of 33 A, it is suitable for medium-power motor applications where adjustable speed, controlled acceleration and deceleration, and reliable motor protection are required. Typical applications include pumps, fans, conveyors, compressors, mixers and various production machines. By adjusting the motor frequency according to process requirements, the drive can provide smoother starting and stopping while allowing the motor to operate at an appropriate speed instead of running continuously at a fixed speed.

2. What are the main electrical ratings of the ACS580-01-033A-4?

The ACS580-01-033A-4 is designed for a three-phase 380–480 V AC power supply with a 50/60 Hz input frequency. Its rated output current is 33 A, and its typical motor power rating is 18.5 kW. The 33 A output-current rating is particularly important when matching the drive with a motor. The motor nameplate rated current should be compared with the drive output current under the actual operating duty. Motor power alone should not be used as the only selection criterion because current requirements vary according to motor design and load characteristics. Applications involving frequent acceleration, high starting torque or continuous heavy loads should be evaluated carefully before final selection.

3. What motor parameters should be entered during initial commissioning?

During initial commissioning, the motor nameplate information should be entered accurately into the drive. Important parameters normally include motor rated voltage, rated current, rated frequency, rated speed and rated power. These settings are used by the drive for motor control and protection, so incorrect values can lead to unstable operation, excessive current, insufficient torque or unnecessary protective trips. After entering the motor data, the control source, frequency reference, start/stop logic and direction commands should also be verified. If external terminal control is used, the digital and analog signal wiring should be checked. For PLC or DCS applications, the command and reference signals should be tested before the motor is placed into normal service.

4. What should be checked if the ACS580-01-033A-4 develops an overcurrent fault?

An overcurrent fault should first be investigated from the mechanical side. Check whether the driven equipment has excessive friction, mechanical blockage, bearing problems, abnormal load or a sudden increase in torque demand. Next, inspect the motor cable and terminal connections for phase-to-phase short circuits, ground faults or incorrect wiring. If the motor and wiring are normal, check the acceleration time because an excessively short acceleration period can cause a large current demand, particularly with high-inertia loads. The motor rated current and all relevant motor parameters should also be checked against the actual motor nameplate. If the fault happens only during startup, acceleration or a specific process condition, monitoring motor current and output frequency during the event can help identify the cause.

5. Why might the motor fail to start even though the ACS580-01-033A-4 is powered?

If the drive is powered but the motor does not start, first confirm that there is no active fault, alarm, start inhibit or external interlock. The source of the start command should then be checked. For local operation, verify that the correct run command has been issued. For terminal control, inspect the digital input signals, control wiring and relevant enable conditions. When a PLC or DCS is controlling the drive, check the communication status, run command and frequency reference. The frequency reference should also be checked to make sure it is not zero. Emergency-stop circuits, safety interlocks and external permissive signals can also prevent motor operation. If all control signals are correct, the motor connection and output circuit should then be inspected.

6. How can overheating be prevented when operating the ABB ACS580-01-033A-4?

Reliable cooling is important when the ACS580-01-033A-4 is operating under continuous or high-load conditions. The drive should be installed in a location with sufficient airflow and should not be placed near high-temperature equipment or inside an enclosure with inadequate ventilation. Continuous operation at high current increases internal heat generation, so the ambient temperature and actual load should be considered when determining whether output derating is necessary. During routine maintenance, the cooling fan and ventilation passages should be checked for dust accumulation or obstruction. If the drive repeatedly reports overtemperature despite normal loading and acceptable ambient conditions, the cooling system, airflow and temperature monitoring functions should be inspected rather than simply resetting the alarm.

7. How should acceleration and deceleration times be configured for this ACS580 drive?

Acceleration and deceleration times should be configured according to the motor characteristics, load inertia, mechanical system and process requirements. If acceleration is set too aggressively, the motor can demand a high current while attempting to build torque rapidly, which may result in an overcurrent fault. During deceleration, an excessively short time can cause regenerative energy to raise the DC bus voltage and potentially produce an overvoltage condition. A practical commissioning approach is to start with moderate acceleration and deceleration settings and then gradually optimize them according to motor current, machine response and process requirements. For high-inertia loads or applications involving frequent rapid stopping, the braking requirements should also be evaluated.

8. Can the ABB ACS580-01-033A-4 be integrated with PLC and DCS systems?

Yes. The ACS580-01-033A-4 can be integrated into industrial automation systems using its available digital and analog control interfaces and suitable communication options. Digital signals can be used for basic commands such as start, stop and direction, while analog signals can provide speed or frequency references. For more advanced PLC or DCS integration, an appropriate fieldbus communication module can be used to exchange commands and operating information. The automation controller can send start, stop and speed commands while receiving drive status, actual frequency, current and fault information. During commissioning, communication parameters, control sources, reference scaling, control words and status feedback should be verified. The complete sequence should also be tested for normal operation, fault response, communication interruption and external safety interlocks.
