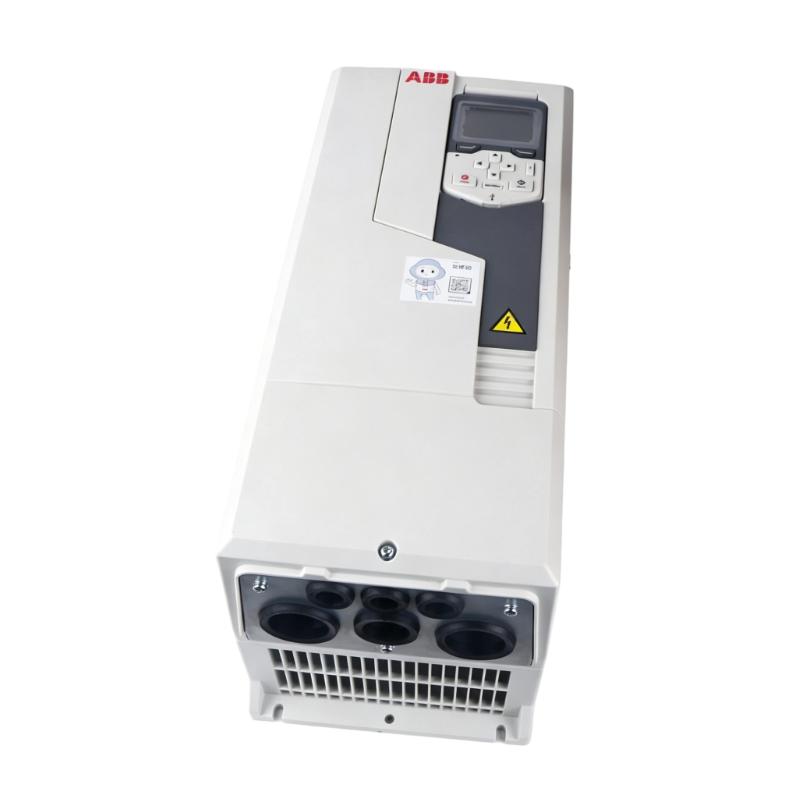

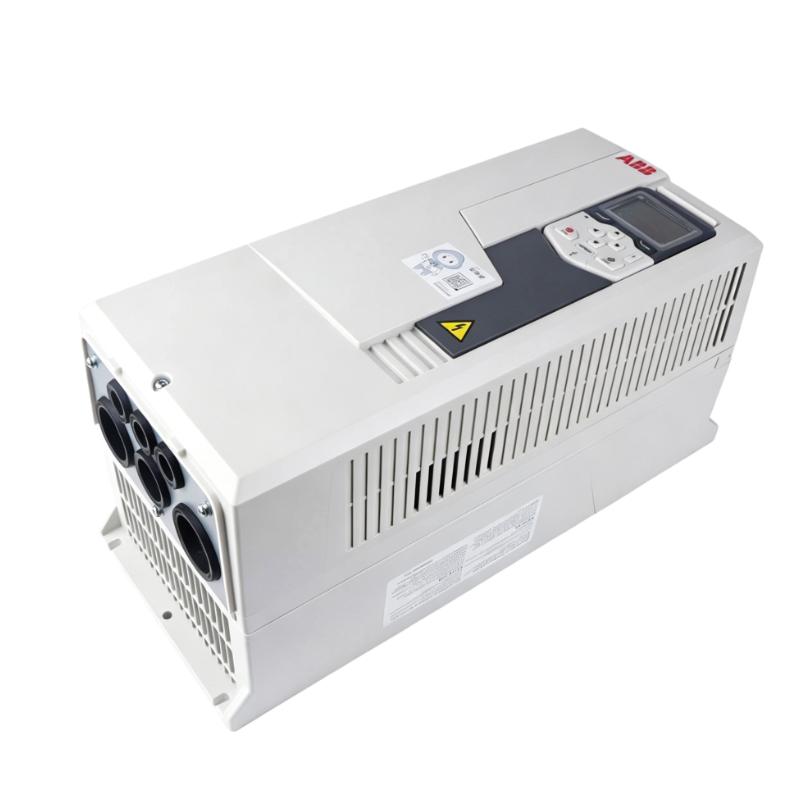

1. What applications is the ABB ACS580-01-046A-4 Variable Frequency Drive suitable for?

The ABB ACS580-01-046A-4 is a general-purpose variable frequency drive designed for controlling the speed, torque, acceleration and deceleration of industrial AC motors. With a rated power of 22 kW, it is suitable for a wide range of industrial machinery where stable motor speed control and improved energy efficiency are required. Typical applications include pumps, fans, conveyors, compressors, mixers, material handling equipment and other process machinery. For pump and fan systems, the drive can adjust motor speed according to the actual process demand, helping reduce unnecessary energy consumption compared with fixed-speed operation. For machinery requiring more controlled acceleration, speed regulation or torque response, the ACS580-01-046A-4 can also be configured with appropriate motor control parameters to match the mechanical characteristics of the application.

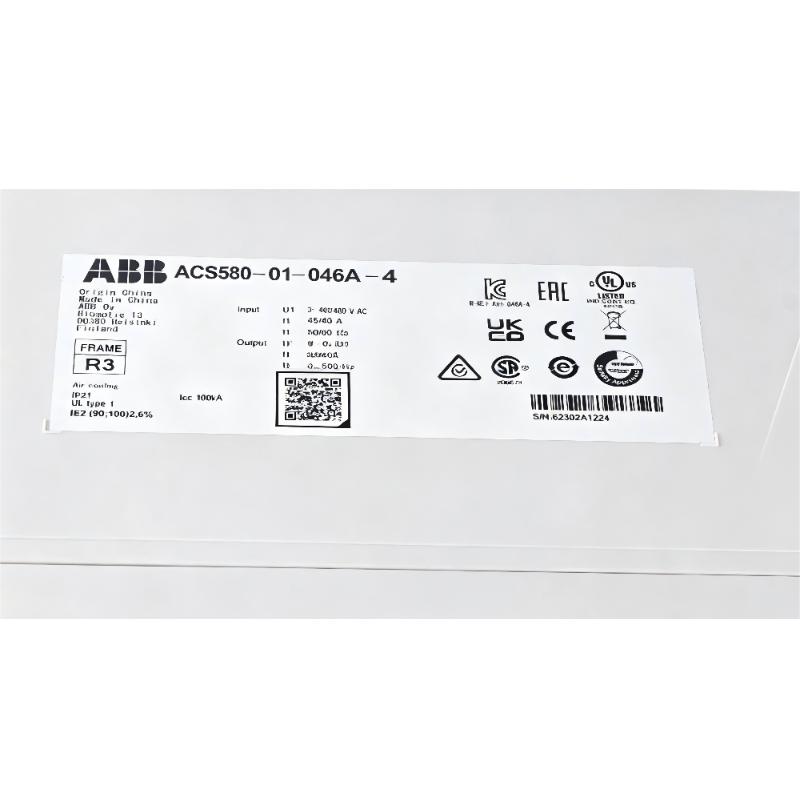

2. What are the rated power and output current of the ACS580-01-046A-4?

The ABB ACS580-01-046A-4 is a 22 kW variable frequency drive, with a rated output current of approximately 45 A at a 400 V supply condition. When selecting this drive for an application, the motor rated current should be checked carefully against the drive’s applicable current rating rather than selecting the VFD based only on motor horsepower or kilowatt rating. The actual selection should also consider whether the load is a normal-duty, light-duty or heavy-duty application, because different types of machinery can require different overload capabilities. For applications involving high starting torque, frequent acceleration and deceleration, sudden load changes or continuous operation near rated load, the drive should be evaluated according to the motor’s actual current demand and the required overload characteristics to ensure reliable long-term operation.

3. Which motor control methods are supported by the ABB ACS580-01-046A-4?

The ACS580-01-046A-4 supports control methods intended for common industrial motor applications, including scalar control and vector-oriented control. Scalar control can be suitable for applications such as pumps and fans where the primary requirement is straightforward speed regulation and the dynamic response requirements are relatively moderate. Vector control can be more appropriate when the application requires improved speed stability, torque response and more precise motor behavior. During commissioning, the correct motor control method should be selected according to the motor type, mechanical load, required speed range and process requirements. Accurate motor nameplate information is also important because the drive uses these parameters to establish the motor control characteristics. Incorrect motor data can lead to unstable operation, insufficient torque, excessive current or unsatisfactory speed regulation.

4. How should the motor parameters be configured on the ACS580-01-046A-4?

Before starting the ACS580-01-046A-4 for the first time, the installer should verify the incoming power supply, motor wiring, grounding, control connections and overall installation condition. The motor nameplate information should then be entered into the drive configuration, including rated voltage, rated current, rated frequency, rated power and rated speed. Depending on the application, additional parameters such as minimum frequency, maximum frequency, acceleration time, deceleration time, start command source and speed reference source should also be configured. For applications using vector-based motor control, accurate motor nameplate data is particularly important because the drive needs reliable motor information to achieve appropriate control performance. After configuration, the motor should initially be operated under controlled conditions and the direction of rotation, acceleration, current, speed and load response should be checked before placing the equipment into normal continuous operation.

5. How can an overcurrent fault on the ACS580-01-046A-4 be diagnosed?

If the ACS580-01-046A-4 reports an overcurrent fault, the first step is to check the drive’s displayed fault information and fault history to identify when and under what operating condition the fault occurred. The motor and mechanical system should then be inspected for excessive load, mechanical obstruction, seized bearings, transmission problems or sudden increases in process resistance. The motor cable and terminal connections should also be checked for short circuits, incorrect wiring, insulation problems or grounding faults. If the mechanical and electrical systems appear normal, the acceleration time should be reviewed because an excessively short acceleration time can cause the motor current to rise rapidly, particularly when the driven load has high inertia. Motor nameplate parameters and the selected control mode should also be verified. If necessary, acceleration and deceleration parameters can be adjusted after confirming that the change is compatible with the machine’s process requirements.

6. What is the purpose of the Safe Torque Off (STO) function on the ACS580-01-046A-4?

The Safe Torque Off (STO) function is a safety-related function designed to prevent the motor from producing torque when the relevant safety circuit is activated. In an industrial machine, STO can be incorporated into a safety system associated with functions such as emergency stopping, safety doors or protective interlocks. When correctly implemented, STO provides a means of stopping torque generation without relying solely on a normal software-based stop command. However, STO should not be treated as a replacement for electrical isolation during maintenance work. STO prevents the drive from generating motor torque, but it does not necessarily remove hazardous electrical energy from the drive or connected equipment. When personnel need to access electrical components, the appropriate power isolation, lockout/tagout and verification procedures must still be followed in accordance with the machine’s safety requirements and applicable regulations.

7. How can the ACS580-01-046A-4 help improve motor energy efficiency?

The ACS580-01-046A-4 can contribute to energy savings by allowing the motor to operate at a speed appropriate to the actual process requirement instead of continuously running at full speed. This is particularly beneficial in variable-torque applications such as pumps and fans, where reducing motor speed can significantly reduce the power required by the driven equipment. The drive’s control and energy optimization capabilities can be configured to suit the operating characteristics of the motor and process. However, the actual energy-saving performance depends on factors such as the load profile, motor efficiency, operating hours, mechanical system design and required process output. For this reason, the best results are normally obtained by evaluating the complete motor-driven system rather than treating the VFD as an independent energy-saving component. Proper parameter configuration and operation within the appropriate speed range are also important for maintaining both efficiency and reliable motor performance.

8. Can the ACS580-01-046A-4 be integrated with a PLC or DCS automation system?

Yes. The ABB ACS580-01-046A-4 can be integrated into industrial automation systems where a PLC, DCS or other supervisory controller needs to monitor and control the motor drive. Depending on the system architecture and required communication protocol, the drive can exchange operating commands and status information with the control system through supported communication interfaces and optional fieldbus solutions. Typical data exchanged between the drive and PLC or DCS can include start and stop commands, speed or frequency references, actual output frequency, motor current, operating status, warning information and fault information. During commissioning, the communication address, communication settings, data mapping and control/status information must be configured consistently on both sides. It is also important to verify whether the PLC or DCS is intended to provide the primary start command and speed reference, because conflicts between local control, terminal control and fieldbus control can cause unexpected operating behavior. A structured communication test should therefore be completed before the drive is placed into automatic process operation.
