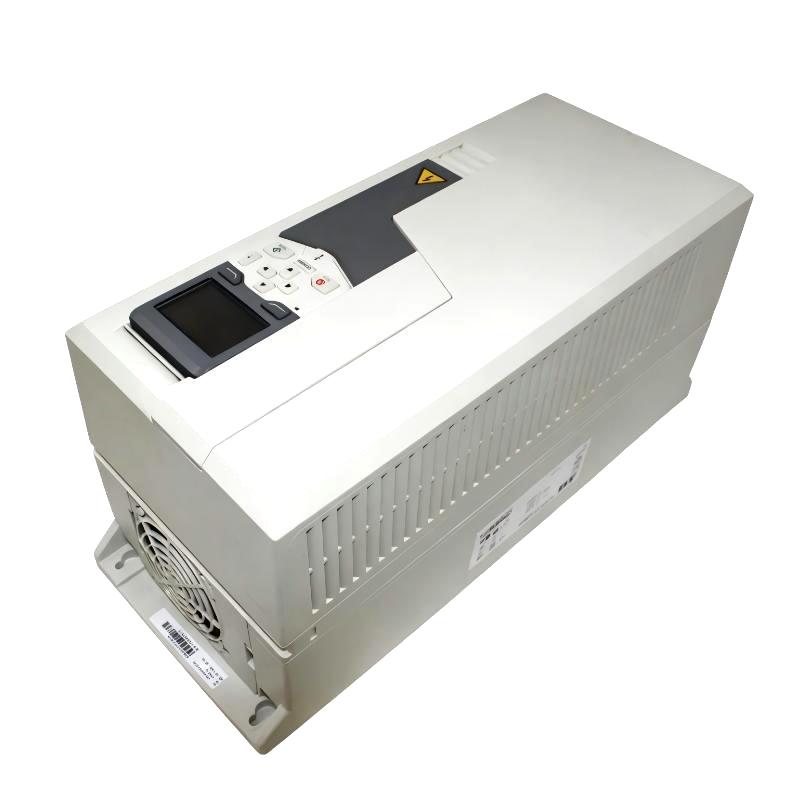

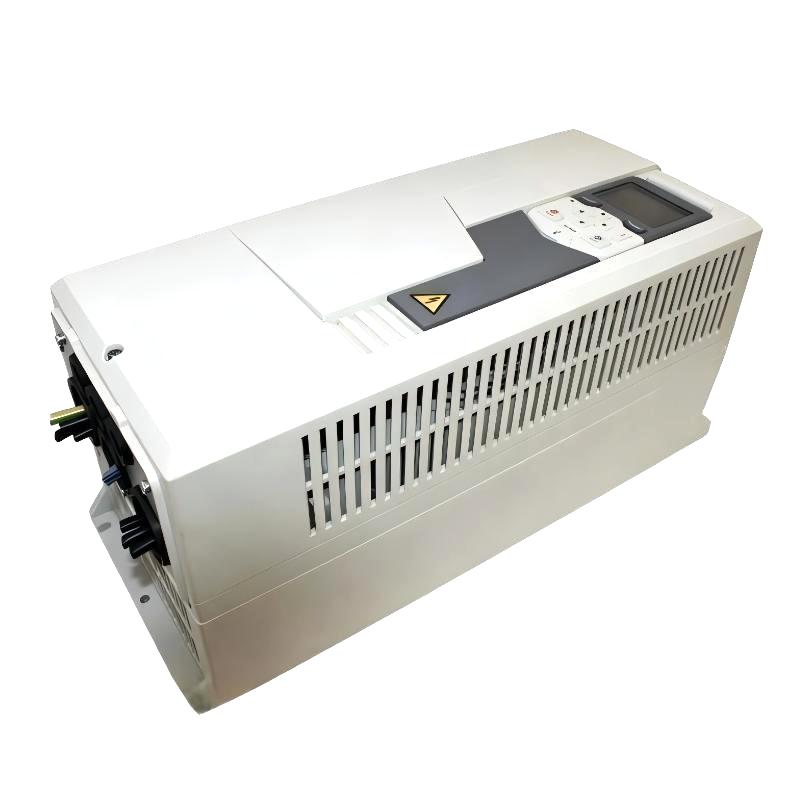

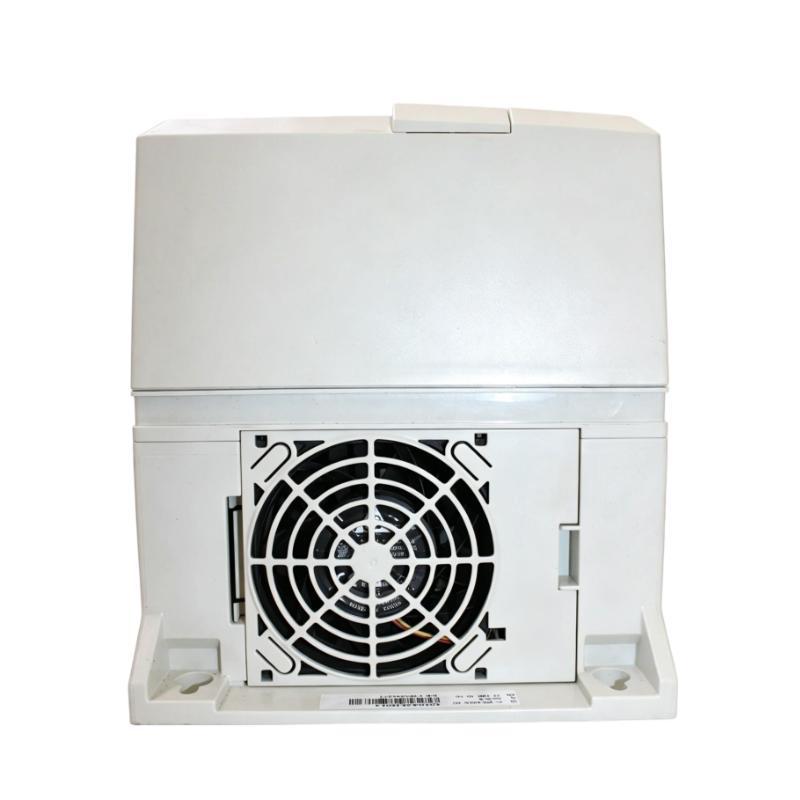

1. What is the ABB ACS580-01-046A-4 Variable Frequency Drive mainly used for?

The ABB ACS580-01-046A-4 is a general-purpose variable frequency drive designed to provide reliable speed and torque control for three-phase AC motors in industrial applications. It can be used for equipment such as pumps, fans, conveyors, compressors, mixers, material handling machinery and other motor-driven systems where variable-speed operation is required. By adjusting the motor frequency and voltage according to the operating requirements, the drive can provide controlled acceleration, deceleration and continuous speed regulation. In applications where the mechanical load does not need to operate at full speed all the time, using a VFD can also help reduce unnecessary energy consumption. The ACS580 platform is particularly suitable for applications that require practical commissioning, flexible motor control and integration with industrial automation systems.

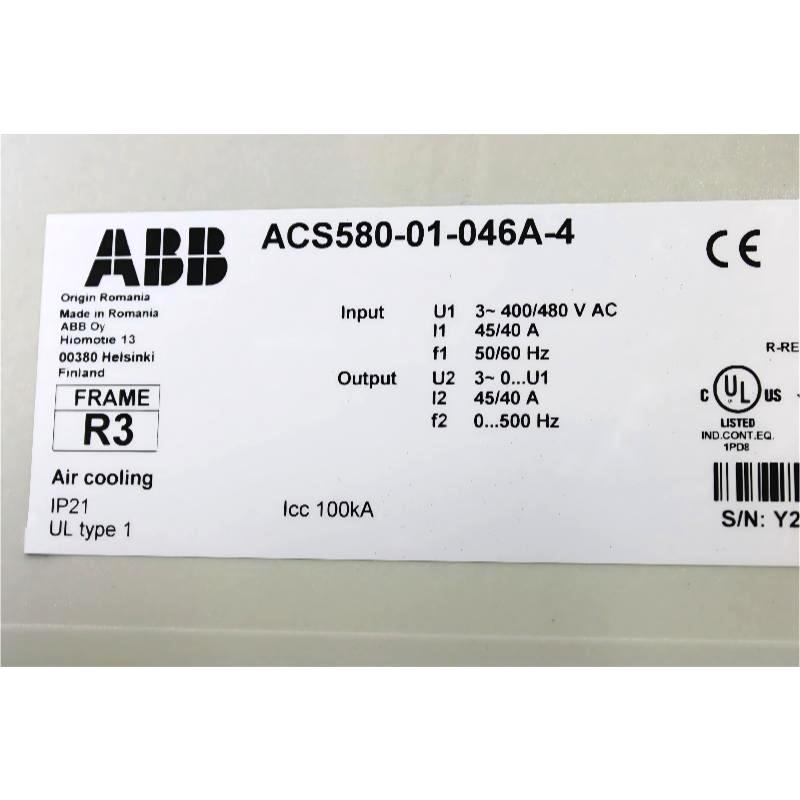

2. What are the main electrical specifications of the ACS580-01-046A-4?

The ABB ACS580-01-046A-4 is designed for three-phase 380–480 V AC power systems and operates with a nominal 400 V AC supply. The model belongs to the 22 kW class and provides an output current rating suitable for driving appropriately selected industrial motors. The input frequency is normally 50/60 Hz, while the available output frequency range can be configured according to the motor and application requirements. When selecting this drive for a replacement or new installation, engineers should compare the motor nameplate current with the applicable drive current rating rather than selecting the VFD based only on the motor’s kW rating. The actual load type, overload requirement, ambient conditions, acceleration profile and operating duty should also be considered to ensure that the drive has sufficient capacity for the intended application.

3. How should the motor parameters be configured before starting the ACS580-01-046A-4?

Before commissioning the ACS580-01-046A-4, the motor nameplate data should be entered accurately into the drive configuration. Typical information includes motor rated voltage, rated current, rated frequency, rated power and rated speed. The correct acceleration and deceleration times should then be selected according to the mechanical characteristics of the connected equipment. The installer should also determine whether the start command and speed reference will come from the local control panel, digital or analog control terminals, or an automation system such as a PLC. Accurate motor data is especially important when vector-oriented control is used because the drive relies on the configured motor information to establish suitable control behavior. After configuration, the motor should be operated initially under controlled conditions so that rotation direction, current, speed response, acceleration and load behavior can be verified before normal automatic operation begins.

4. What should be checked if the ACS580-01-046A-4 experiences an overcurrent fault?

An overcurrent fault should first be investigated by checking the fault code and fault history recorded by the drive. The timing of the fault can provide useful information; for example, a fault occurring immediately during starting may indicate incorrect motor wiring, an unsuitable motor parameter setting, excessive starting torque demand or a mechanical problem. If the fault occurs during acceleration, the acceleration time may be too short for the connected load, particularly when the machine has high inertia. The motor cable, terminals and insulation should also be inspected for short circuits, grounding problems or incorrect connections. In addition, the driven machine should be checked for mechanical blockage, excessive friction, bearing problems or an unexpected increase in process load. Parameter changes should only be made after identifying the likely cause, because simply increasing current-related limits without resolving the underlying mechanical or electrical problem can create additional risks.

5. Can the ACS580-01-046A-4 be used with both pumps and fans?

Yes. The ACS580-01-046A-4 is suitable for many pump and fan applications where variable-speed control is required. These applications often benefit from VFD control because the motor does not need to run continuously at full speed when the process demand is lower. For example, a pump can be operated at a speed corresponding to the required flow or pressure instead of using a fixed-speed motor together with a throttling valve. Similarly, a fan can adjust its operating speed according to the required airflow. When configuring the drive, the engineer should consider the actual pump or fan load curve, required minimum and maximum speeds, acceleration and deceleration requirements, process control method and motor characteristics. Correct configuration is important not only for energy efficiency but also for avoiding undesirable operating conditions such as excessive mechanical stress, insufficient cooling or unstable process control.

6. What communication options are available for integrating the ACS580-01-046A-4 with a PLC or DCS?

The ACS580-01-046A-4 can be incorporated into an industrial automation system for centralized motor control and status monitoring. Depending on the control architecture, communication can be implemented through supported interfaces such as Modbus, while optional fieldbus solutions can be used when a specific industrial network is required. A PLC or DCS can typically exchange information such as start and stop commands, speed references, actual frequency, motor current, operating status, warnings and fault information with the drive. During commissioning, the communication address, network parameters, data mapping and control source must be configured consistently between the VFD and the automation controller. Engineers should also verify whether the drive is receiving commands from the communication network or from local terminals, because an incorrect control-source configuration can prevent the PLC or DCS from taking effective control of the motor.

7. What is the function of the STO safety feature on the ABB ACS580-01-046A-4?

The Safe Torque Off (STO) function is intended to prevent the motor from producing torque when the relevant safety circuit is activated. It can be incorporated into machine safety systems associated with functions such as emergency stopping, safety gates, protective devices and safety interlocks. When STO is activated correctly, the drive prevents the motor from generating torque without relying solely on a normal software stop command. This makes STO useful in applications where controlled safety functions are required as part of the overall machine design. However, STO should not be confused with complete electrical isolation. Activation of STO does not necessarily remove all hazardous electrical voltage from the drive or its terminals. Therefore, when maintenance personnel need to access electrical components, the appropriate isolation, lockout/tagout and voltage verification procedures must still be followed according to the equipment safety requirements and applicable regulations.

8. What are the most important factors to consider when replacing an existing VFD with the ACS580-01-046A-4?

When replacing an existing variable frequency drive with the ACS580-01-046A-4, the motor’s rated voltage, rated current, power, frequency and speed should first be compared with the capabilities of the new drive. The incoming power system and three-phase supply voltage should also be verified before installation. In addition to the electrical ratings, engineers should review the existing control architecture, including digital inputs, analog signals, relay outputs, communication networks and PLC or DCS control logic. The motor cable arrangement, grounding method, braking requirements and EMC considerations should also be checked. After installation, the motor parameters need to be configured correctly rather than simply copying values without verifying their compatibility with the new drive. Finally, the complete system should be tested progressively, including local start/stop operation, speed reference, rotation direction, acceleration, deceleration, fault handling and automatic PLC/DCS control, before the equipment is returned to continuous production.
