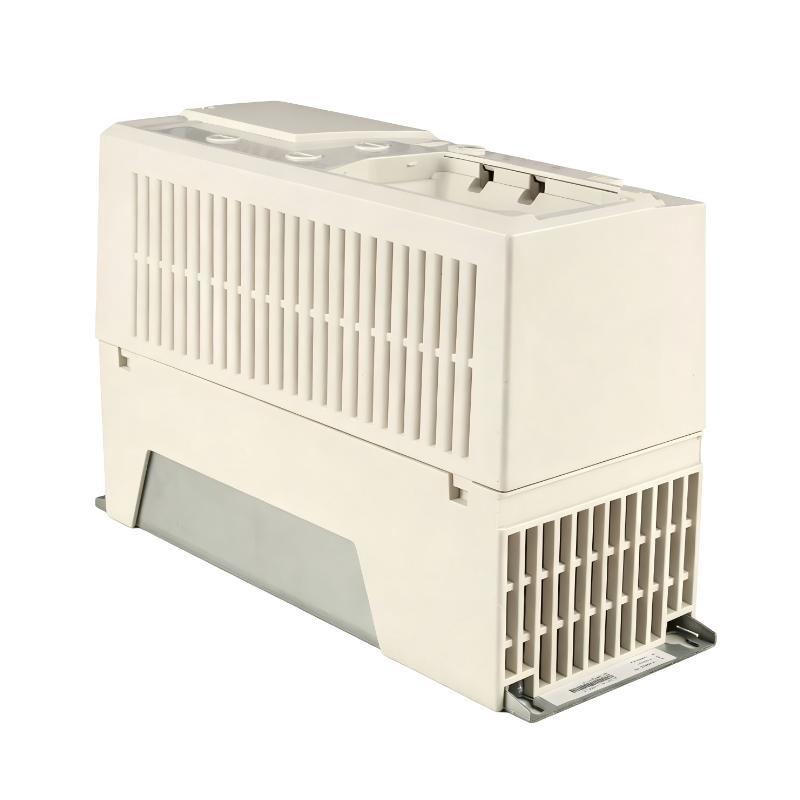

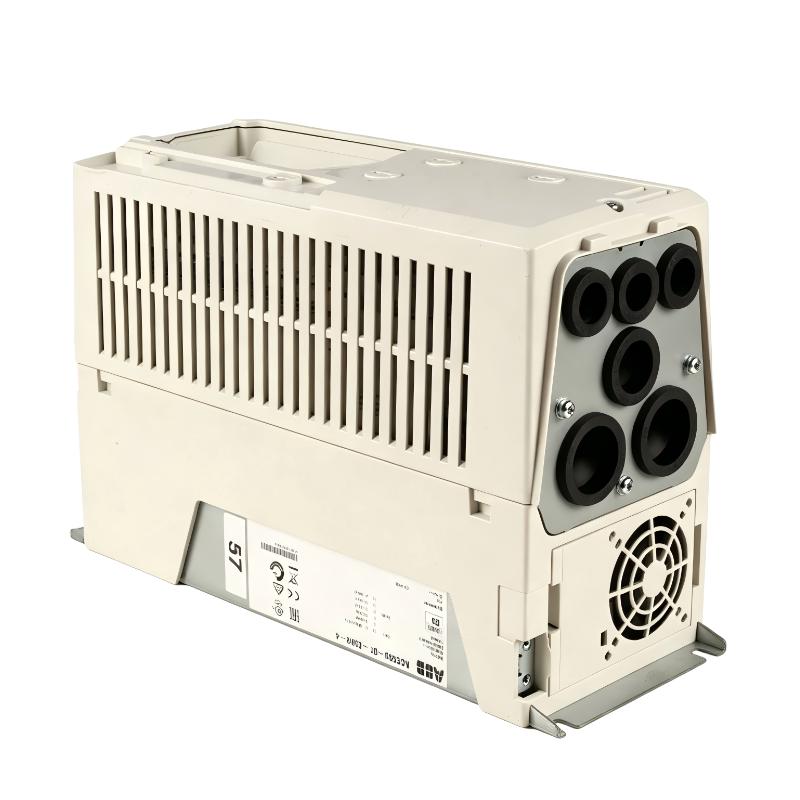

1. What is the ABB ACS580-01-05A6-4 mainly used for?

The ABB ACS580-01-05A6-4 is a general-purpose variable frequency drive designed to control the speed, acceleration, deceleration and operating performance of three-phase AC motors. With a rated power of 2.2 kW and a rated output current of 5.6 A, it can be used in a wide range of industrial motor applications. Typical equipment includes pumps, fans, conveyors, compressors, mixers and other machinery requiring adjustable motor speed. By regulating the output frequency and voltage supplied to the motor, the drive allows the motor to operate according to actual process requirements instead of continuously running at a fixed speed. This can improve speed control, provide smoother starting and stopping, and potentially reduce energy consumption in applications where the motor does not need to operate continuously at full speed.

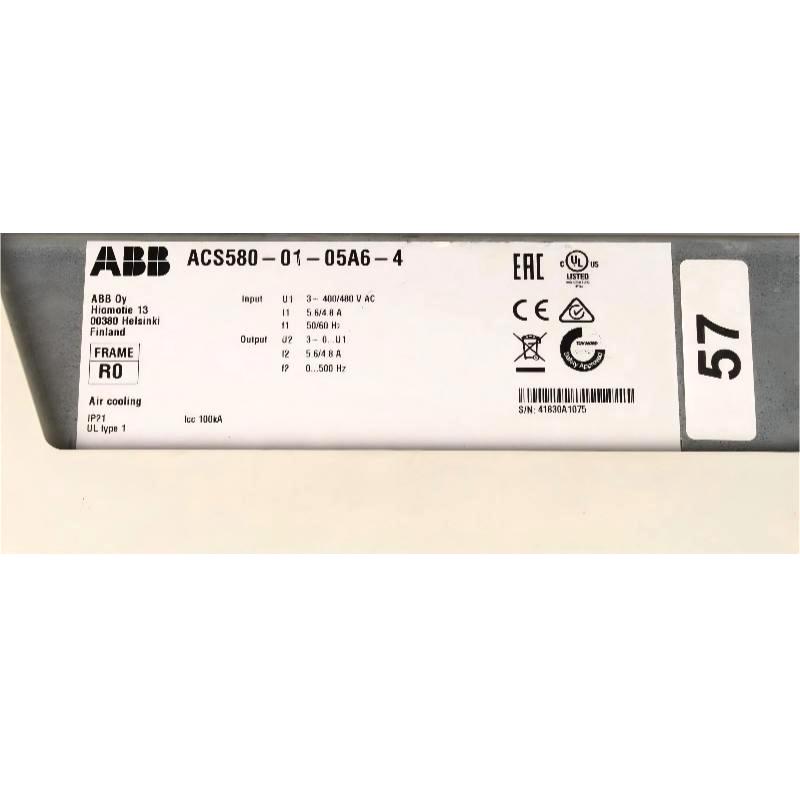

2. What are the main electrical specifications of the ACS580-01-05A6-4?

The ACS580-01-05A6-4 is designed for three-phase 380–480 V AC input power and 50/60 Hz input frequency. It has a rated power of 2.2 kW and a rated output current of 5.6 A. The output frequency can be configured according to the connected motor and application requirements, with the actual operating range depending on the selected control mode and parameter settings. When selecting this VFD, the motor should not be matched only according to its power rating. The motor nameplate current should also be compared with the applicable output-current rating of the drive. Load type, starting torque, acceleration requirements, duty cycle and overload conditions should also be considered. For conveyors, mixers and other equipment with high starting resistance, verifying the required starting current and torque is particularly important before installation.

3. Which motor control methods can be used with the ACS580-01-05A6-4?

The ACS580-01-05A6-4 supports control methods suitable for general industrial motor applications, including scalar V/f control and vector control. V/f control can be used for applications where straightforward frequency-based speed regulation is sufficient, while vector control can provide improved speed stability and torque response when the application requires more dynamic motor performance. The appropriate control method should be selected according to the motor type, load characteristics and required control accuracy. During commissioning, accurate motor nameplate data should be entered, including rated voltage, rated current, rated frequency, rated power and rated speed. Correct motor data allows the drive to establish appropriate operating characteristics and can help prevent excessive current, unstable speed or insufficient torque during startup and normal operation.

4. How should the ACS580-01-05A6-4 be commissioned after installation?

Before initial commissioning, the three-phase power supply, motor connections, protective grounding, control wiring and protection devices should be inspected carefully. The motor nameplate parameters should then be entered into the drive, including rated voltage, current, frequency, power and speed. Application-specific parameters such as minimum frequency, maximum frequency, acceleration time and deceleration time should be configured according to the mechanical characteristics of the equipment. The start command source and speed reference source must also be selected correctly. If the drive is controlled by a PLC or DCS, the remote control and communication settings should be checked before testing. After configuration, the motor should first be operated at low speed to verify rotation direction, current, speed response and mechanical behavior. Once the system is confirmed to be stable, the operating speed and load can be increased gradually. This procedure helps identify wiring, parameter and mechanical problems before continuous automatic operation begins.

5. How should an overcurrent or overload fault on the ACS580-01-05A6-4 be diagnosed?

When an overcurrent or overload fault occurs, the fault code and fault history should be checked first to determine when and under what operating condition the fault occurred. If the fault appears immediately during startup, possible causes include incorrect motor parameters, incorrect wiring, excessive starting resistance or insufficient starting torque. If the fault occurs during acceleration, the acceleration time may be too short for the mechanical inertia of the connected machine. If the fault occurs during normal operation, the mechanical load should be checked for excessive resistance, blocked components, bearing problems, abnormal friction or sudden process-load increases. The motor cable and terminal connections should also be inspected for short circuits, grounding faults, insulation problems and loose connections. After the physical inspection, motor parameters and the selected control mode should be verified. If the system is mechanically and electrically healthy, acceleration and operating parameters can be adjusted according to the actual load characteristics. Protection limits should not simply be increased without identifying the underlying cause of the fault.

6. Can the ACS580-01-05A6-4 communicate with a PLC or DCS system?

Yes. The ACS580-01-05A6-4 can be integrated into industrial automation systems using PLCs, DCS controllers or other supervisory equipment. RS-485 communication with Modbus RTU can be used to exchange control and monitoring information, while optional fieldbus solutions can be selected when a specific industrial communication network is required. Depending on the system architecture, a PLC or DCS can send start, stop and speed-reference commands while receiving operating information such as output frequency, motor current, drive status, warnings and fault conditions. Hardwired digital and analog signals can also be used where required by the control design. During commissioning, the communication address, communication parameters, control source and speed reference source should be checked carefully. If the PLC sends a start command but the motor does not operate, the drive’s active control source, fault status, interlocks and run-enable conditions should be checked before changing other parameters.

7. What is the purpose of the STO function on the ACS580-01-05A6-4?

STO, or Safe Torque Off, is a safety function designed to prevent the motor from generating torque when the associated safety circuit is activated. It can be incorporated into industrial machine safety systems involving emergency-stop circuits, safety doors, protective guards and other safety-related interlocks. When correctly implemented, STO helps prevent unintended motor torque without relying solely on a normal software stop command. However, STO should not be regarded as equivalent to completely disconnecting the drive from the electrical supply. Hazardous voltage may still be present in the drive and its power connections after STO is activated. For maintenance work involving electrical components, the power supply must still be isolated and the required lockout/tagout and absence-of-voltage procedures must be followed. STO should be incorporated into the overall machine safety design and should not replace the electrical isolation procedures required for maintenance.

8. What should be checked when replacing an existing VFD with the ACS580-01-05A6-4?

When replacing an existing VFD with the ACS580-01-05A6-4, the motor’s rated voltage, current, power, frequency and speed should first be compared with the applicable ratings of the new drive. The three-phase 380–480 V AC power supply, motor cable, grounding arrangement and protective devices should also be inspected. The control wiring requires particular attention because the digital inputs, analog signals, relay outputs and communication configuration may differ from the previous drive. If the existing machine is controlled by a PLC or DCS, the start/stop commands, speed reference, fault feedback and communication data mapping should be reviewed before commissioning. After installation, the motor nameplate parameters should be entered accurately and the acceleration time, deceleration time, frequency limits and control sources should be configured according to the actual machine. Before returning the system to production, local and remote operation, speed reference, motor rotation direction, acceleration, deceleration, alarm handling, fault reset and automatic PLC/DCS control should all be tested. This ensures that the ACS580-01-05A6-4 can operate reliably with both the motor and the existing automation system.
