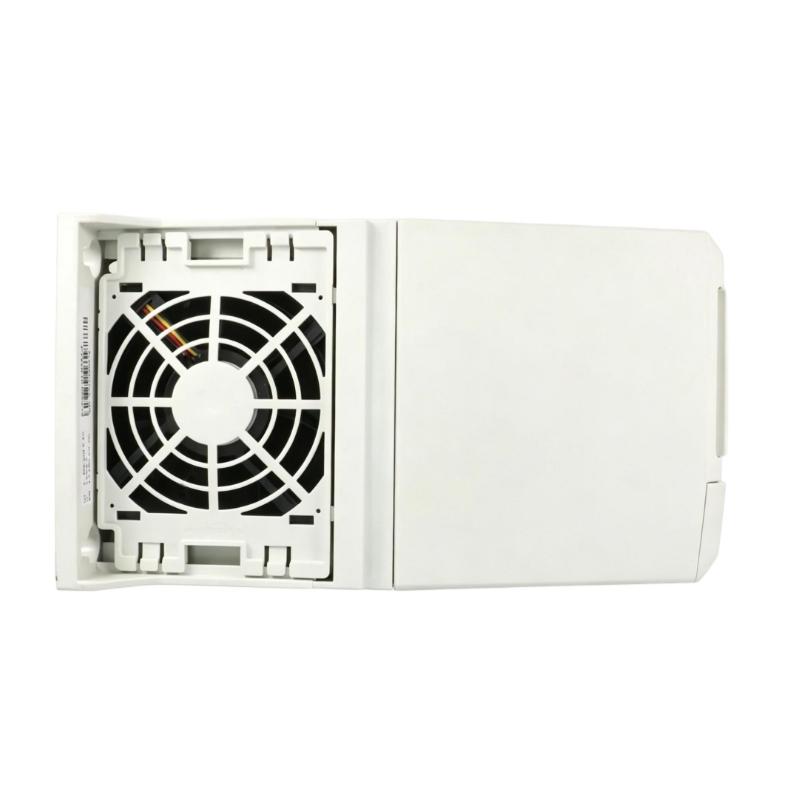

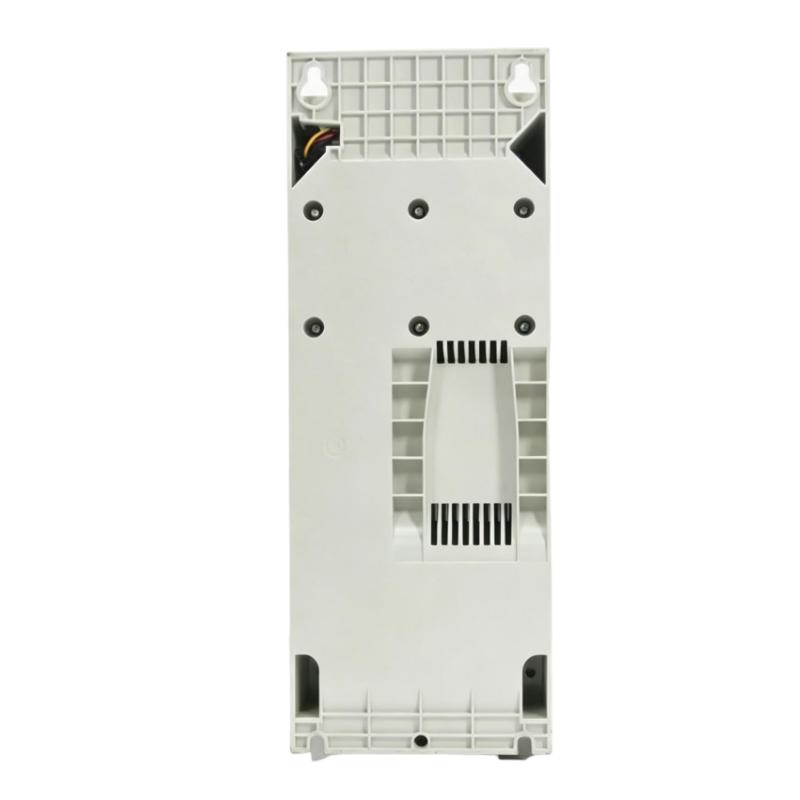

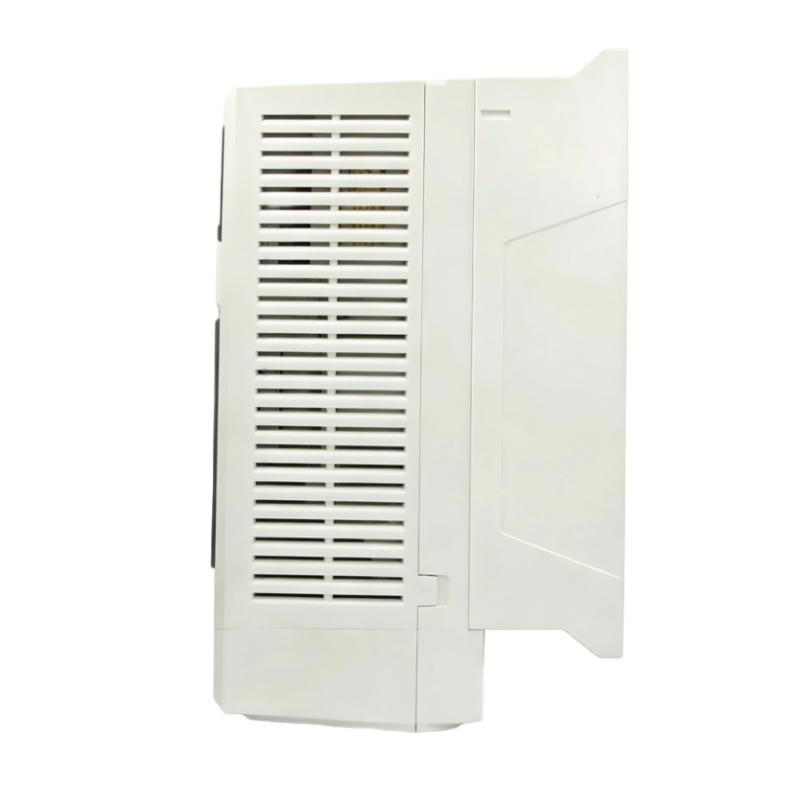

1. What is the ABB ACS580-01-05A7-4 mainly used for?

The ABB ACS580-01-05A7-4 is a general-purpose variable frequency drive designed to control the speed, acceleration, deceleration and operating performance of three-phase AC motors. With a rated power of approximately 2.2 kW and a rated output current of 5.7 A, it is suitable for a wide range of small industrial motor applications. Typical uses include pumps, fans, conveyors, compressors, mixers and other machinery requiring adjustable motor speed. By regulating the output frequency and voltage supplied to the motor, the drive allows the motor to operate according to actual process requirements rather than continuously running at a fixed speed. This can provide smoother starting and stopping, more flexible speed control and better matching between motor output and the mechanical load.

2. What are the main electrical specifications of the ACS580-01-05A7-4?

The ACS580-01-05A7-4 is designed for three-phase 380–480 V AC input power with a 50/60 Hz input frequency. Its rated power is 2.2 kW and its rated output current is 5.7 A. The output frequency can be configured according to the connected motor and application requirements. When selecting this drive, the motor should not be matched only by its kW rating. The motor nameplate current should also be checked against the drive’s applicable output-current rating. Engineers should additionally consider the type of mechanical load, starting torque, acceleration requirements, duty cycle and possible overload conditions. For equipment such as conveyors and mixers, which may require higher torque during startup, it is especially important to verify that the drive has sufficient capacity for both starting and continuous operation.

3. Which motor control methods can be used with the ACS580-01-05A7-4?

The ACS580-01-05A7-4 supports motor control methods suitable for general industrial applications, including scalar V/f control and vector control. V/f control can be used for applications where straightforward speed regulation is sufficient, while vector control can provide improved speed stability and torque response when the machine requires more dynamic motor performance. The appropriate control method should be selected according to the motor type, load characteristics and required control performance. During commissioning, accurate motor nameplate data should be entered, including rated voltage, rated current, rated frequency, rated power and rated speed. Correct motor parameters help the drive establish appropriate control characteristics and can reduce the risk of excessive current, unstable speed or insufficient torque during startup and normal operation.

4. How should the ACS580-01-05A7-4 be commissioned after installation?

Before commissioning, the three-phase power supply, motor connections, protective grounding, control wiring and related protection devices should be checked carefully. The motor nameplate parameters should then be entered into the drive, including rated voltage, rated current, rated frequency, rated power and rated speed. Application-specific parameters such as minimum frequency, maximum frequency, acceleration time and deceleration time should be configured according to the characteristics of the connected machine. The start command source and speed reference source must also be selected correctly. If the drive is controlled by a PLC or DCS, the remote control and communication settings should be checked before operation. After configuration, the motor should initially be tested at low speed to verify rotation direction, motor current, speed response and mechanical behavior. If the system operates normally, the speed and load can be increased progressively until the drive reaches normal operating conditions.

5. What should be checked if the ACS580-01-05A7-4 develops an overcurrent or overload fault?

When an overcurrent or overload fault occurs, the fault code and fault history should first be checked to determine when the fault appeared and what the drive was doing at that moment. If the fault occurs immediately during startup, incorrect motor parameters, incorrect wiring, excessive starting resistance or insufficient starting torque should be considered. If the fault appears during acceleration, the acceleration time may be too short for the inertia of the connected machinery. If the fault occurs during normal operation, the mechanical system should be inspected for excessive load, blocked components, bearing problems, abnormal friction or sudden changes in process resistance. The motor cable and terminal connections should also be checked for short circuits, grounding faults, insulation problems and loose connections. After the physical inspection, the motor parameters and selected control mode should be verified. If the system is mechanically and electrically healthy, the acceleration and operating parameters can be adjusted according to the actual load characteristics instead of simply increasing protection limits.

6. Can the ACS580-01-05A7-4 communicate with a PLC or DCS system?

Yes. The ACS580-01-05A7-4 can be integrated into industrial automation systems using PLCs, DCS controllers or other supervisory equipment. RS-485 communication with Modbus RTU can be used to exchange control and monitoring data, while optional fieldbus interfaces can be used when a specific industrial communication network is required. Depending on the control architecture, the PLC or DCS can send start, stop and speed-reference commands while receiving information such as output frequency, motor current, operating status, warnings and fault conditions. Hardwired digital and analog signals can also be used when required by the control design. During commissioning, the communication address, communication parameters, control source and speed reference source should be checked carefully. If the PLC sends a valid start command but the motor does not run, the drive’s active control source, fault status, interlocks and run-enable conditions should be checked before modifying other parameters.

7. What is the purpose of the STO function on the ACS580-01-05A7-4?

STO, or Safe Torque Off, is a safety function designed to prevent the motor from generating torque when the associated safety circuit is activated. It can be incorporated into machine safety systems involving emergency-stop circuits, safety doors, protective guards and other safety-related interlocks. When properly implemented, STO helps prevent unintended motor torque without relying solely on a standard software stop command. However, STO should not be considered equivalent to completely disconnecting the drive from the electrical supply. Hazardous voltage may still be present in the drive and its power connections after STO has been activated. For maintenance work involving electrical components, the power supply must still be isolated and the required lockout/tagout and absence-of-voltage procedures must be followed. STO should therefore be treated as one part of the complete machine safety system rather than a replacement for electrical isolation.

8. What should be checked when replacing an existing VFD with the ACS580-01-05A7-4?

When replacing an existing VFD with the ACS580-01-05A7-4, the motor’s rated voltage, current, power, frequency and speed should first be compared with the applicable ratings of the new drive. The three-phase 380–480 V AC supply, motor cable, grounding arrangement and protective devices should also be inspected. Particular attention should be given to the control wiring because digital inputs, analog signals, relay outputs and communication configurations may differ between drive models. If the existing machine is controlled by a PLC or DCS, the start/stop commands, speed reference, fault feedback and communication data mapping should be reviewed before commissioning. After installation, the correct motor nameplate parameters should be entered and the acceleration time, deceleration time, frequency limits and control sources should be configured according to the actual machine. Before returning the equipment to production, local and remote start/stop, speed reference, motor rotation direction, acceleration, deceleration, alarm handling, fault reset and automatic PLC/DCS operation should all be tested to ensure reliable integration with the existing motor and automation system.
